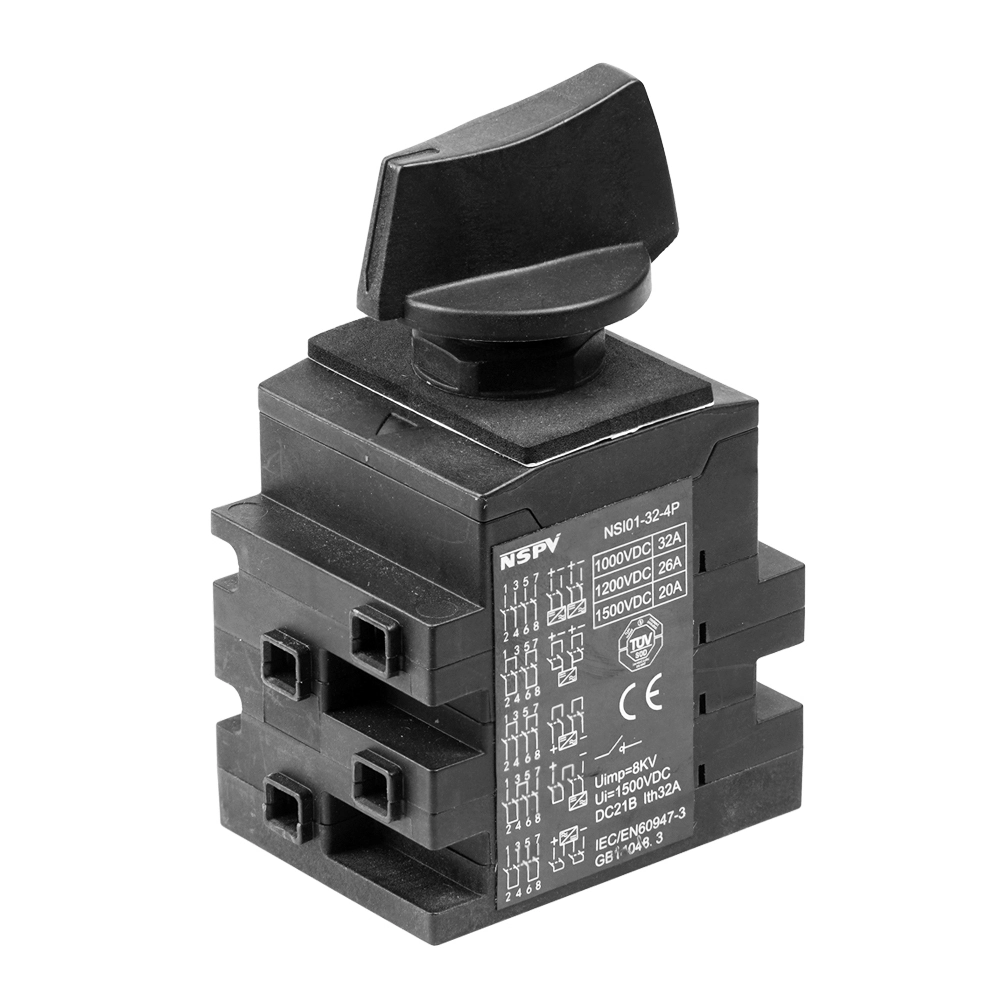

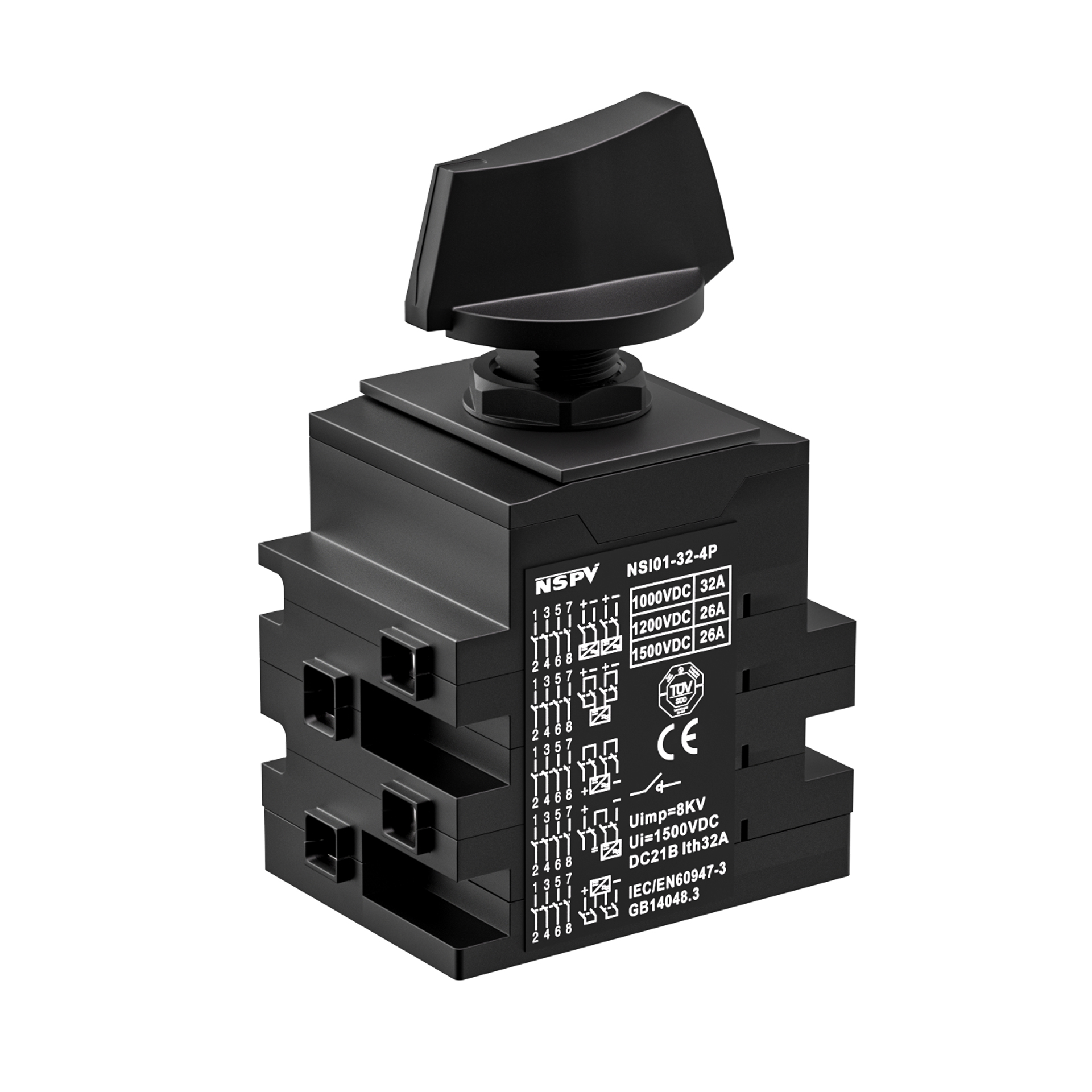

NSPV Solar DC Isolator Switch 4P

NSPV Solar DC Isolator Switch 4P Series includes three distinct types:

NSI01-32 1000V DC 32A,
NSI01-32 1200V DC 26A,
NSI01-32 1500V DC 20A,

Rated insulation voltage DC: 1500V

Rated impulse withstand voltage DC: 8000V

Rated short-time withstand current(1s): 700A

Rated short circuit capacity: 1400A

Inquiry

Write a Review

Product Introduction

The NSPV Solar Isolator Switch Series, available in 4P configurations with an IP20 rating, is a cost-effective and highly secure solution for solar power systems. This series includes three types:

NSI01-32 1000V DC 32A,

NSI01-32 1200V DC 26A, and

NSI01-32 1500V DC 20A, catering to diverse voltage and current needs. Designed by NSPV, these switches feature robust construction and advanced safety mechanisms.

One major advantage is cost savings. Their durable design reduces maintenance and replacement costs over time, while their high efficiency minimizes energy loss. Additionally, the switches boast exceptional safety performance, with strong arc resistance that prevents electrical hazards during operation or maintenance. The IP20 rating ensures protection against solid foreign objects, enhancing reliability in indoor environments. With a product connection capability of 2.5~16mm² / 14-8AWG, they offer flexible compatibility with various cable sizes. Overall, the NSPV Solar Isolator Switch Series combines affordability, safety, and versatility, making it an ideal choice for solar installations.

Product Specifications

Voltage Ratings	1000V DC (Type 1), 1200V DC (Type 2), 1500V DC (Type 3)
Current Ratings	32A (Type 1), 26A (Type 2), 20A (Type 3)
Pole Configurations	2P, 4P, 6P, 8P
IP Rating	IP20
Product Connection Capability	2.5~16mm²/ 14-8AWG

Our Features

● High Voltage and Current Ratings: The NSPV Solar Isolator Switch Series supports up to 1500V DC and 32A, ensuring compatibility with high-capacity solar systems.

● Multiple Pole Configurations: Available in 2P, 4P, 6P, and 8P, these switches offer flexibility in system design and installation.

● IP20 Protection: The switches are designed to prevent ingress of solid objects, enhancing durability and safety in indoor environments.

● Easy Installation: The compact and user-friendly design simplifies the installation process, reducing time and effort.

● NSPV Brand Design: The series features a sleek and modern design, reflecting the brand's commitment to quality and innovation.

Our Advantages

● Enhanced Safety: The high voltage and current ratings, combined with IP20 protection, ensure safe operation in solar power systems.

● Versatility: The multiple pole configurations allow for customized solutions tailored to specific system requirements.

● Durability: The robust design and high-quality materials ensure long-lasting performance, even in demanding environments.

● Cost-Effective: The NSPV Solar Isolator Switch Series offers excellent value for money, providing reliable performance at a competitive price.

Application

The NSPV Solar Isolator Switch Series is ideal for a variety of solar power applications, including:

● Residential solar installations ● Commercial solar farms ● Industrial solar systems ● Off-grid solar solutions

FAQ

What is the maximum voltage and current that the NSPV Solar Isolator Switch Series can handle?

The series supports up to 1500V DC and 32A, depending on the specific type (Type 1: 1000V DC 32A, Type 2: 1200V DC 26A, Type 3: 1500V DC 20A).

What pole configurations are available?

The series is available in 2P, 4P, 6P, and 8P configurations, offering flexibility for different system designs.

Is the NSPV Solar Isolator Switch Series suitable for outdoor use?

The series has an IP20 rating, which provides protection against solid foreign objects but is not waterproof. It is recommended for indoor installations.

What is the product connection capability of the switches?

The switches can accommodate wire sizes ranging from 2.5~16mm² / 14-8AWG, ensuring compatibility with a wide range of cables. The NSPV Solar Isolator Switch Series is a reliable and versatile choice for solar power applications, offering high performance, safety, and durability.
