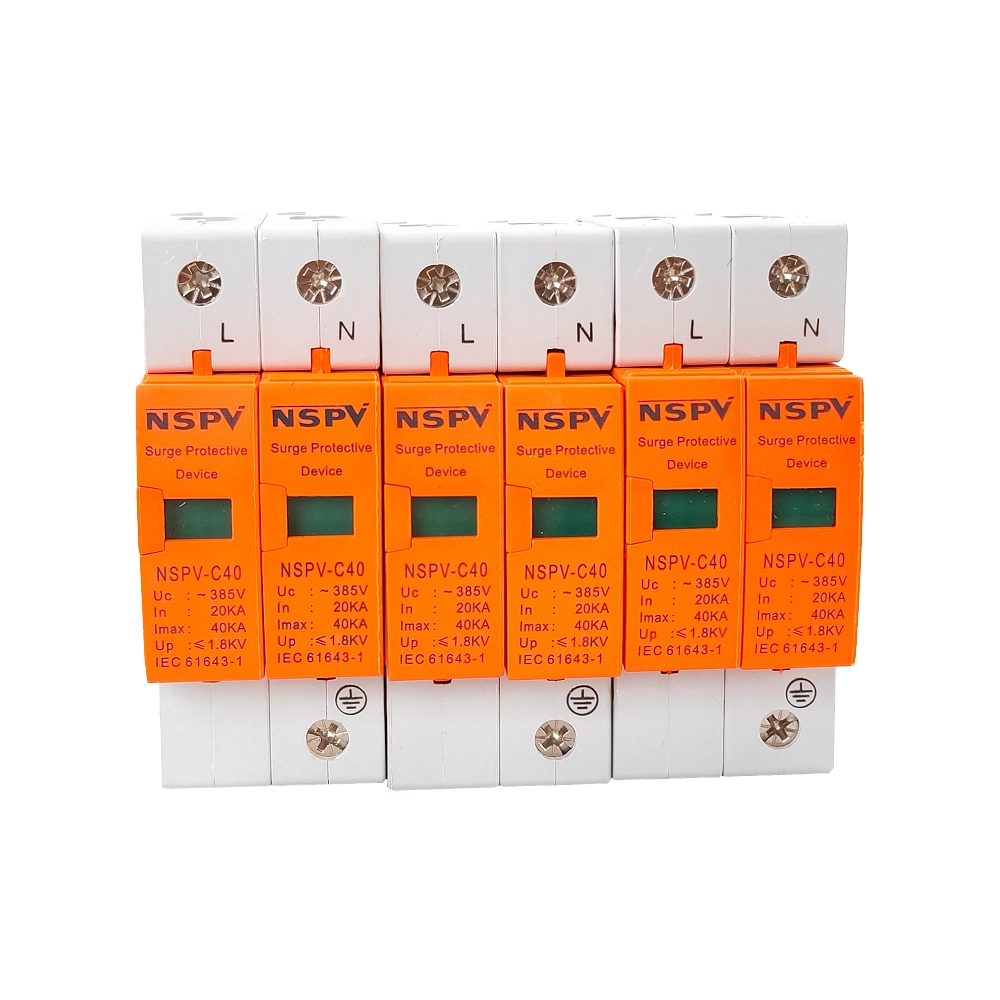

NSPV Solar DC & AC SPD Surge Protective Device Solution

NSPV Solar SPD integrates Class A - C surge protection for AC (400V) & DC (1000V/1500V), adapts to low/high - voltage solar setups, offers cost - efficient safety, and fits all solar applications from residential to industrial scale.

Inquiry

Write a Review

Product Introduction

Engineered with plastic or metal housing, the device offers flexibility: plastic reduces material costs for budget-conscious projects, while metal enhances durability and EMI shielding in harsh environments. Compliant with EN50022 and DIN46277-3 standards, it ensures global safety and reliability, minimizing installation risks and liability.

A 25ns time constant guarantees ultra-fast response, diverting surges before equipment damage occurs. This efficiency extends the lifespan of solar inverters, panels, and batteries, reducing long-term replacement costs. The IP20 rating protects against dust and accidental contact, ensuring stable performance in indoor electrical cabinets.

With OEM/ODM customization, NSPV tailors designs to specific needs—whether adjusting voltage ratings, housing materials, or mounting options. This adaptability streamlines procurement, avoiding over-engineering and excess spending.

By integrating cost-effective materials, rapid protection, and compliance, the NSPV SPD delivers a perfect balance of affordability and security, meeting diverse client demands while safeguarding solar investments for decades.

Product Specifications

Voltage Ratings
AC	400V (50/60Hz)
DC	1000V / 1500V (for high-voltage solar arrays)
Material Options
Plastic	(lightweight, corrosion-resistant)
Metal	(enhanced durability, EMI shielding)
Response Time	≤25ns (nanoseconds) for ultra-fast clamping.
Protection Modes
AC	L-N, L-PE, N-PE.
DC	+/-, +/- to PE.
Compliance	EN50022 (mechanical mounting) and DIN46277-3 (electrical safety).
Ingress Protection	IP20 (dust-protected, finger-safe).
Operating Temperature	-40°C to +85°C.
Mounting	DIN rail (EN50022) for easy integration into electrical cabinets.
Status Indication	LED or remote monitoring (optional) for real-time operational status.

Our Features

The NSPV Solar DC/AC Surge Protection Device (SPD) is engineered to safeguard solar power systems from transient overvoltages, ensuring uninterrupted operation and longevity. Designed for both AC (400V) and DC (1000V/1500V) applications, this SPD combines robust protection with versatile compatibility. Its compact design, available in plastic or metal housing, meets IP20 ingress protection standards, shielding internal components from dust and accidental contact. The NSPV brand’s solution adheres to EN50022 and DIN46277-3 certifications, guaranteeing compliance with global safety and performance benchmarks. A rapid response time constant of 25ns ensures minimal voltage spikes penetrate the system, while OEM/ODM customization allows tailored solutions for diverse project needs.

Our Advantages

● Dual Compatibility: Supports both AC and DC systems, reducing inventory complexity for installers.

● High Voltage Handling: 1500V DC rating caters to modern high-efficiency solar inverters and string configurations.

● Rapid Protection: 25ns response time mitigates risks from lightning strikes or switching surges.

● Durable Design: Metal variants offer EMI shielding, while plastic models suit cost-sensitive applications.

● Certified Reliability: Compliance with EN/DIN standards ensures safety in European and global markets.

● Customization: OEM/ODM services allow branding, feature adjustments, or mechanical modifications.

Application

NSPV Solar DC & AC SPD Surge Protective Device Solution 8

Residential Solar Systems

Protects rooftop inverters and junction boxes from surges.

NSPV Solar DC & AC SPD Surge Protective Device Solution 9

Commercial Solar Farms

Secures high-voltage DC combiner boxes and central inverters.

Industrial Installations

Safeguards PV plants in harsh environments (e.g., deserts, coastal areas).

Hybrid Systems

Integrates with battery storage and EV charging stations for comprehensive protection.

FAQ

What is the difference between AC and DC SPDs?

AC SPDs protect alternating current systems (e.g., grid-tied inverters), while DC SPDs shield direct current circuits (e.g., solar panels to inverters). The NSPV SPD supports both via configurable protection modes.

How often should the SPD be replaced?

Replace the SPD after a major surge event (indicated by status LED/alarm) or every 5-10 years, depending on environmental conditions.

Can the SPD be installed outdoors?

The IP20 rating suits indoor use. For outdoor applications, install the SPD inside a weatherproof enclosure or opt for higher IP-rated variants (customizable via OEM).

What is the warranty period?

NSPV offers a standard 2-year warranty, extendable up to 5 years under OEM agreements.

Does the SPD support parallel operation?

Yes, multiple SPDs can be paralleled for increased current handling, but proper coordination is required to avoid uneven load distribution.

How to select between plastic and metal housing?

Choose plastic for cost efficiency and corrosion resistance in dry environments. Opt for metal in industrial settings requiring EMI shielding or physical impact resistance. The NSPV Solar DC/AC SPD delivers a future-ready surge protection solution, combining speed, versatility, and compliance to secure solar investments worldwide.
