NSPV Solar Panels Fuse Connectors Series DC1500V IP68

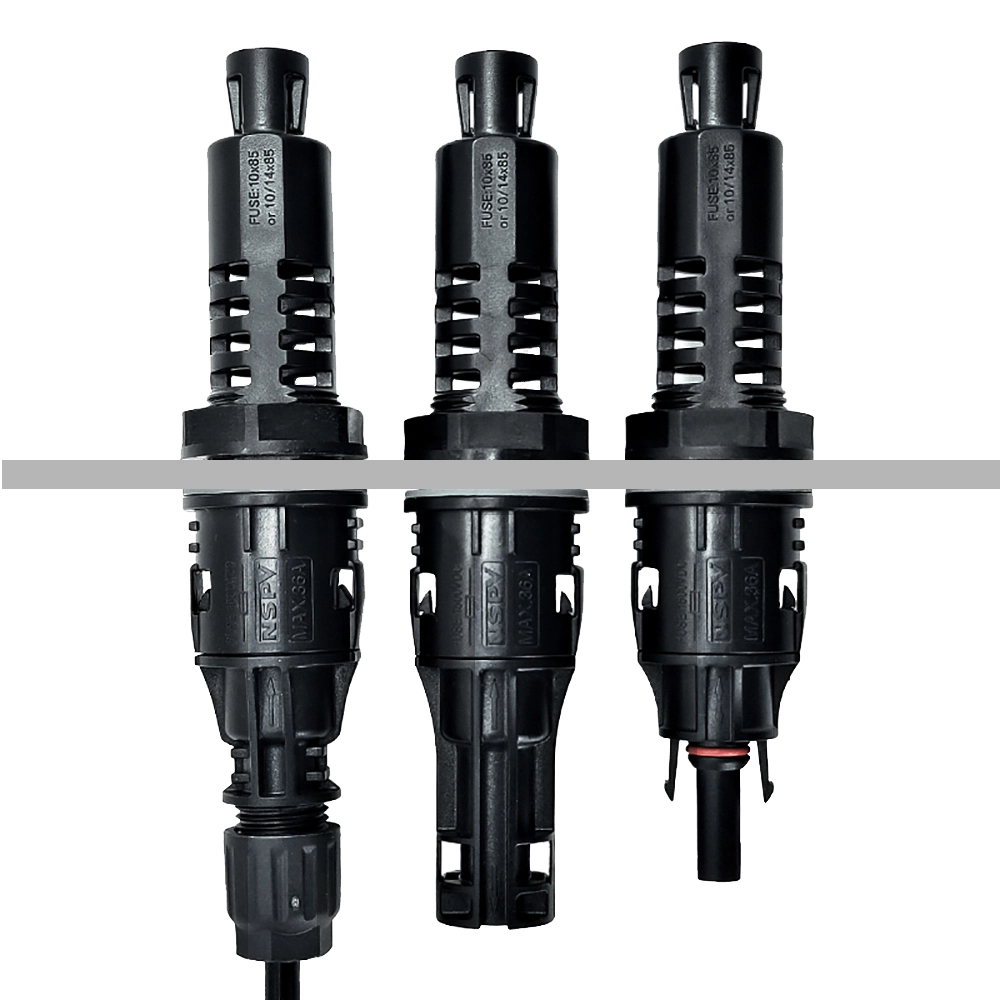

NSPV Panel Fuse Connector 1500VDC Series (Inverter & Combiner Box)

4PFC : Panel Cable Connectors.

4PFF : Panel Female Connectors.

4PFM : Panel Male Connectors.

Suitable for fuse size: (10*85mm) or (10/14*85mm)

Rated current（Without fuse）: 50A

IP68 & TUV CE Certification

Universal MC Type Connector

Inquiry

Write a Review

Product Introduction

The Solar Combiner Box with a Fuse Connector for DC 1500V inverter applications is a cutting-edge solution designed for efficient and safe solar power distribution. Its panel-type design, coupled with an IP68 waterproof rating, ensures durability and reliability in various environmental conditions, making it suitable for both indoor and outdoor installations.

Constructed from high-quality PPE/PA materials, this combiner box offers exceptional resistance to wear and tear, extending its service life. The fuse connector accommodates a wide wire size range of 2.5-16mm, providing flexibility in wiring configurations. Its patented design enhances safety by preventing incorrect connections and ensuring optimal performance.

Certified by TUV and ETL, this product meets international safety standards, giving users peace of mind. Available in three types—4PFC (Panel and Cable), 4PFM (Panel and Male), and 4PFF (Panel and Female)—it caters to diverse installation needs, streamlining the solar power integration process. Its maximum current rating of 50A ensures reliable overcurrent protection, safeguarding your solar investment.

Product Specifications

Voltage Rating	DC 1500V
Current Rating	Max 50A

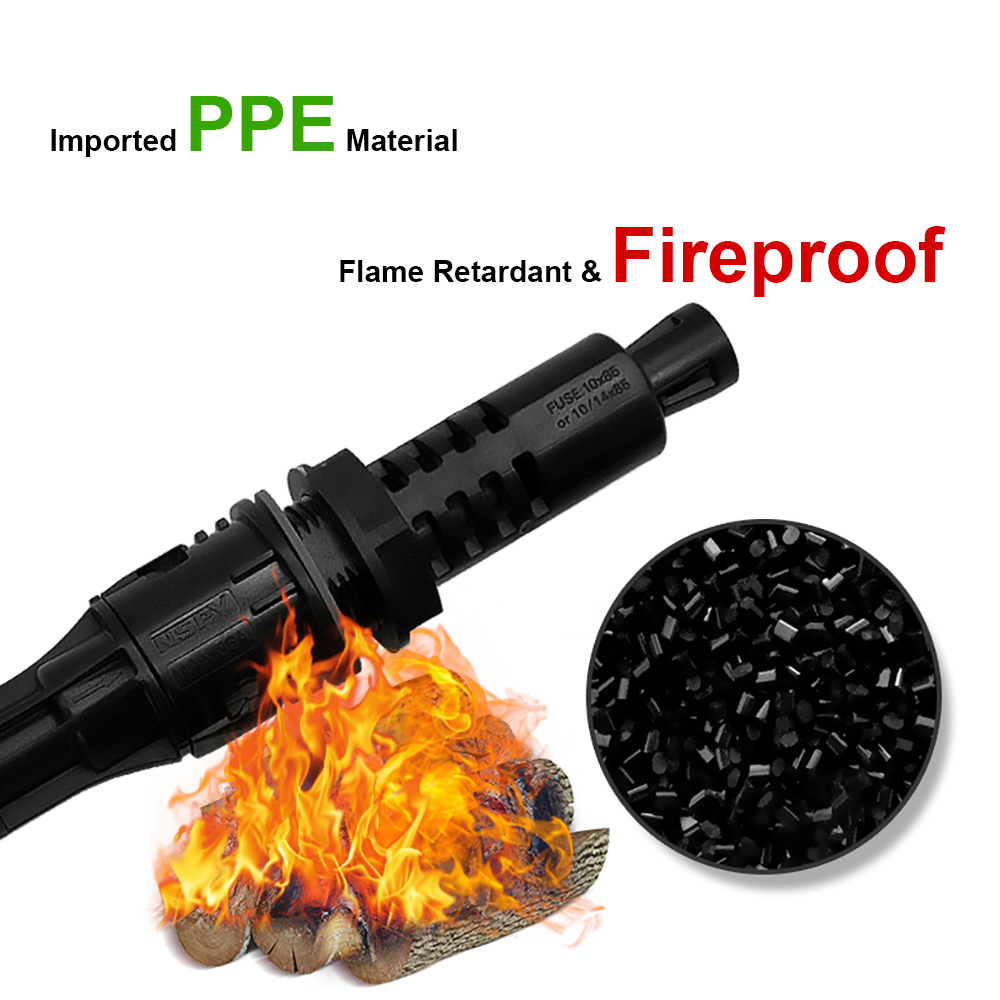

Material	PPE/PA for enhanced durability and resistance

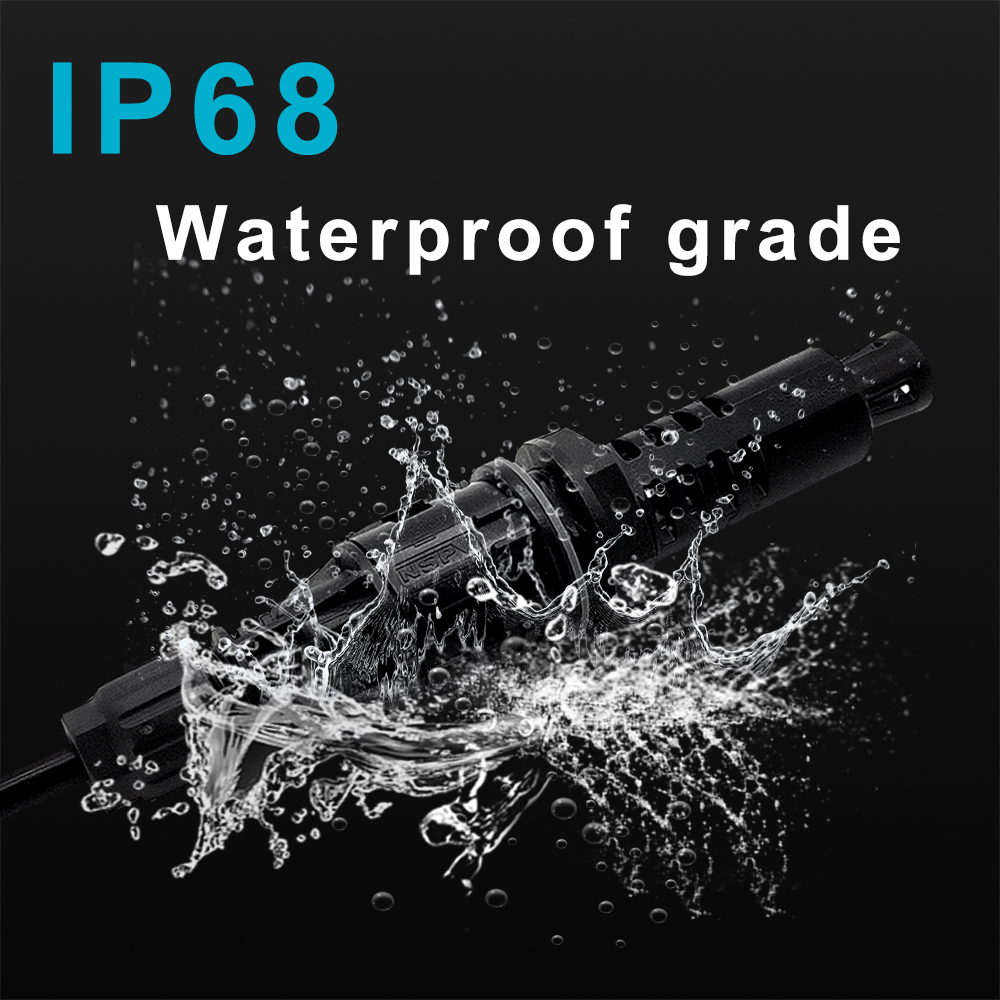

Waterproof Rating	IP68, ensuring protection against dust and water ingress
Wire Size Range	2.5-16mm, catering to various cable diameters

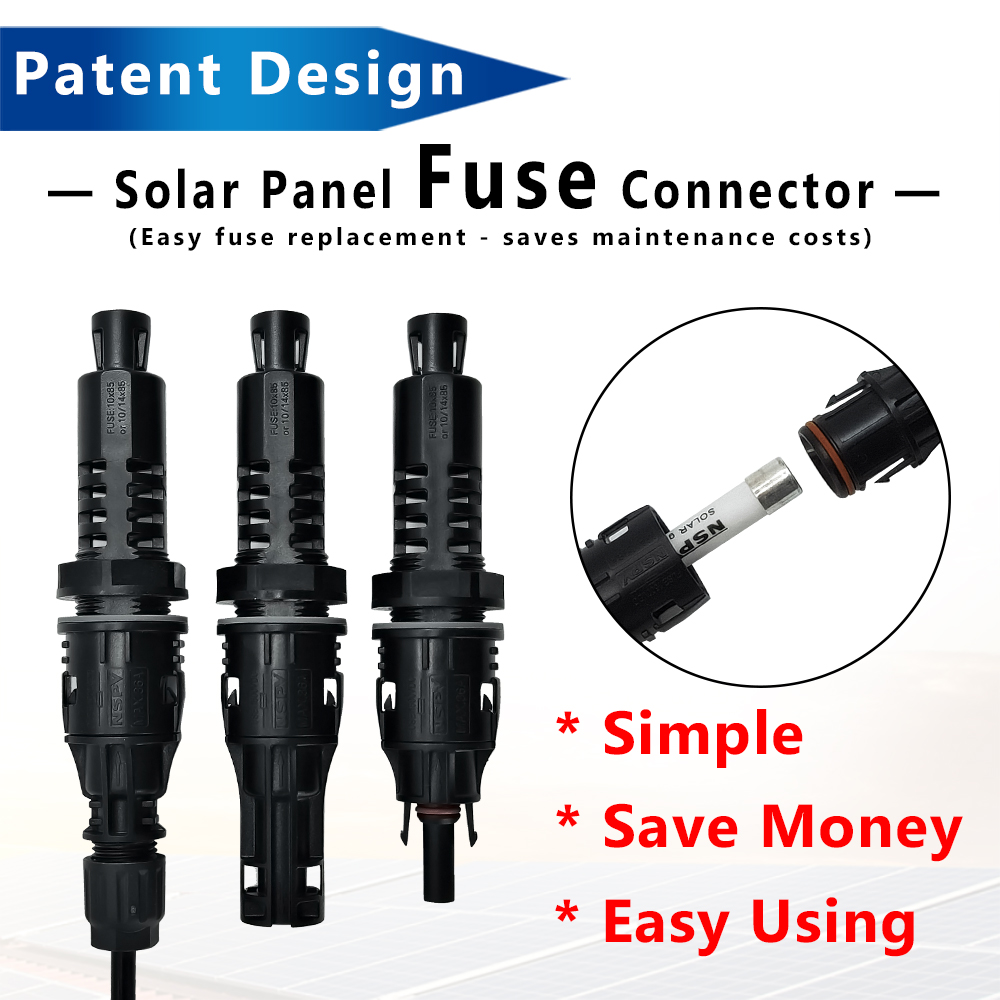

Design	Patented for superior performance and safety
Certifications	TUV and ETL approved, meeting global safety benchmarks
Types Available	Three distinct models - 4PFC (Panel and Cable), 4PFM (Panel and Male), 4PFF (Panel and Female) - to suit different installation needs.

Our Features

The Solar Combiner Box is designed to streamline solar power system integration, featuring a robust Panel-type Fuse Connector tailored for DC 1500V inverter applications. It incorporates high-quality fuses rated up to a maximum of 50A, ensuring reliable overcurrent protection. The box is constructed from premium PPE/PA materials, known for their durability and resistance to environmental factors. A standout feature is its IP68 waterproof rating, making it suitable for both indoor and outdoor installations, even in harsh weather conditions. The fuse connector accommodates a wire size range of 2.5-16mm, offering flexibility in wiring configurations. Additionally, it boasts a patented design that enhances safety and efficiency, along with certifications from TUV and ETL, guaranteeing compliance with international safety standards.

Our Advantages

Three Types Available:
- 4PFC: Panel cable connectors.
- 4PFF: Panel female connectors.
- 4PFM: Panel male connectors.
Compatible Fuse Sizes:
- Fits fuse sizes of (1085mm) or (10/1485mm).
High Rated Current:
- Rated current (without fuse) is 50A.
Certified Protection:
- IP68 waterproof and dustproof rating, with TUV CE certification.
Universal MC Type Design:
- Uses a standard MC type connector for wide compatibility.

Application

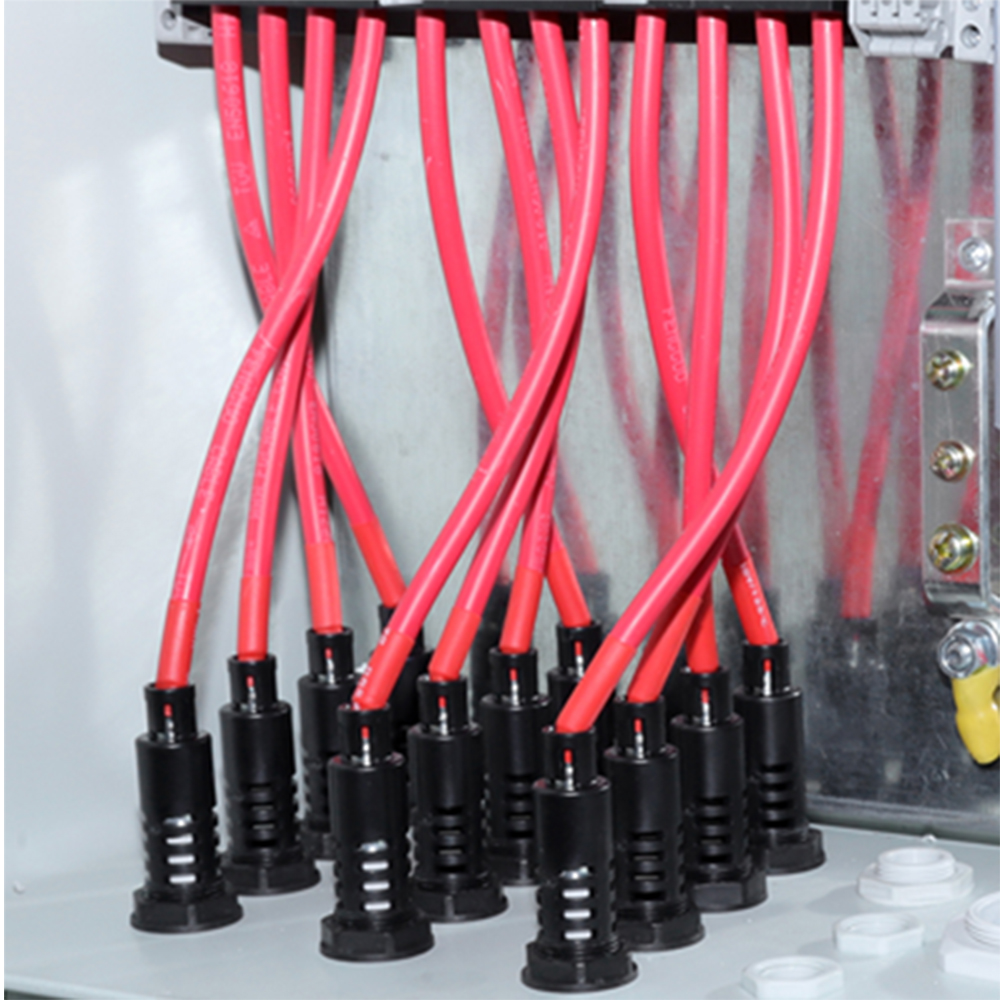

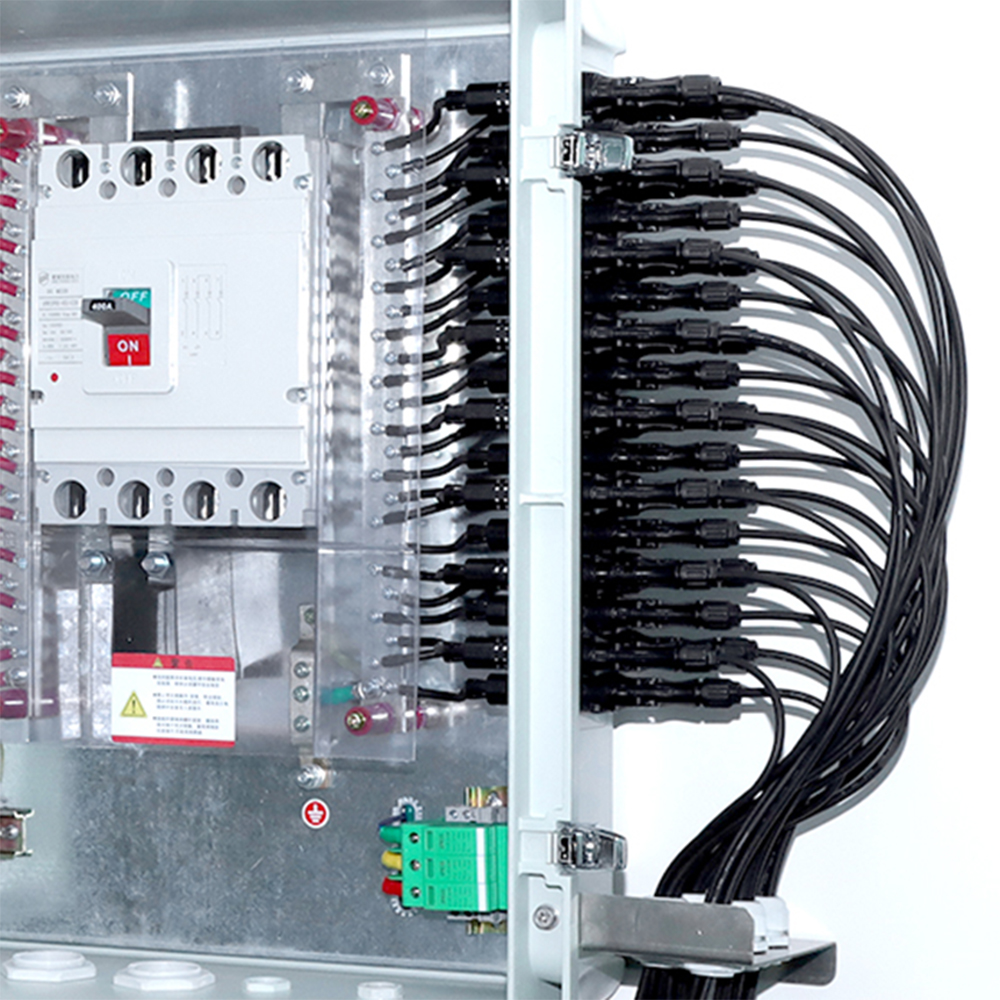

This Solar Combiner Box is ideal for residential, commercial, and industrial solar power systems, where efficient and safe power distribution is crucial. It is particularly suited for large-scale solar farms, rooftop installations, and any setup requiring multiple solar panels to be connected to a single inverter. Its versatility and robustness make it a preferred choice for installers looking for a reliable and cost-effective solution.

FAQ

What is the maximum current the fuse connector can handle?

The fuse connector is rated for a maximum current of 50A, providing ample protection for most solar power systems.

Is the Solar Combiner Box waterproof?

Yes, it has an IP68 waterproof rating, making it resistant to dust and water ingress, suitable for outdoor use.

What types of connections are available?

There are three types: 4PFC (Panel and Cable), 4PFM (Panel and Male), and 4PFF (Panel and Female), catering to different installation requirements.

Are there any certifications for this product?

Yes, the Solar Combiner Box is TUV and ETL certified, ensuring it meets international safety and quality standards.

What materials are used in the construction of the box?

It is constructed from high-quality PPE/PA materials, known for their durability and resistance to environmental factors.
