Solar Fuse Connector by NSPV

Product Introduction

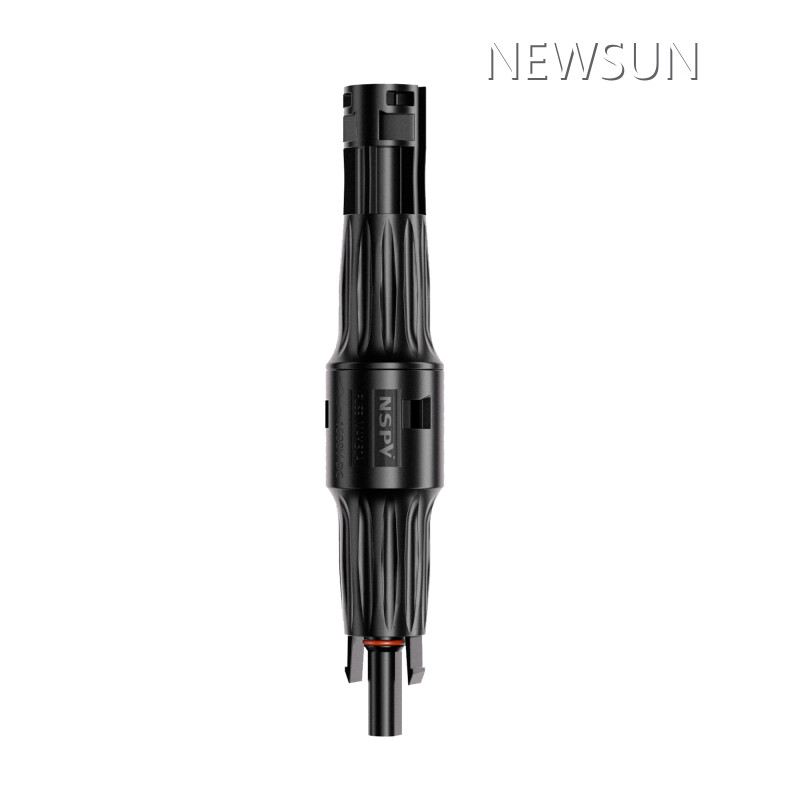

NSPV Solar Fuse Inline Connector 4F0-15 delivers reliable and efficient protection for high-performance PV systems.

Designed for 1500V DC applications, it supports a wide fuse range from 1A to 50A with both 10×85mm and 14×85mm fuse compatibility, offering flexible solutions for different solar project requirements.

With IP68 waterproof protection, premium UV-resistant materials, and TÜV & ETL certification, it ensures enhanced safety, durability, and easy maintenance for long-term PV system reliability.

Product Specifications

Voltage Rating	1500V DC
Current Rating	Max 50A
Waterproof Rating	IP68
Cable Size	2.5 to 16mm²
Material	Made from high-quality PPE/PA materials, known for their durability and resistance to environmental factors.
Design	Features a patented design that ensures secure connections and easy installation.
Certifications	Compliant with TUV and ETL standards, ensuring safety and reliability.
Types Available	Universal MC4 Connection Compatible
4F0	Male and Female connectors

Our Features

NSPV Solar DC Fuse Connector 1500V is engineered to provide reliable and safe electrical connections in solar photovoltaic (PV) systems. This cable-type connector is designed to withstand high voltage and current, ensuring optimal performance in demanding environments. With an IP68 waterproof rating, it offers exceptional protection against dust and water ingress, making it suitable for both indoor and outdoor applications. The connector supports a maximum current of 50A, ensuring compatibility with a wide range of solar setups.

Our Advantages

NSPV 4F0-1500V DC: Male & Female Connectors - This variant features both male and female connectors designed for 1500V DC applications, ensuring secure and reliable connections.
NSPV 4F1-1500V DC: Cable to Male Connector - This model includes a cable paired with a male connector, facilitating easy integration into solar DC systems at 1500V.
NSPV 4F2-1500V DC: Cable to Cable Connector - It offers a direct cable-to-cable connection solution, ideal for extending or joining cables in 1500V DC solar setups.
NSPV 4F3-1500V DC: Cable to Female Connector - This version comes with a cable and a female connector, enabling flexible and safe connections within 1500V DC solar installations.
Certifications & Waterproof Rating: TUV, CE, ETL Certified, IP68 Waterproof - All connectors in the series are TUV, CE, and ETL certified, ensuring compliance with international safety standards, and feature an IP68 waterproof rating for durability in harsh environments.

Application

Designed for modern solar PV installations, the NSPV 1500V DC Solar Fuse Connector provides reliable protection and flexible connection solutions for various photovoltaic applications, including rooftop solar projects, commercial & industrial PV systems, and large-scale utility solar farms. It can be integrated into PV string protection, DC cable assemblies, combiner boxes, and inverter-side connection systems, ensuring long-term safety and performance in demanding outdoor environments.

FAQ

What is the maximum voltage and current the connector can handle?

The NSPV Solar DC Fuse Connector is rated for 1500V DC and can handle a maximum current of 50A.

Is the connector waterproof?

Yes, it has an IP68 waterproof rating, providing protection against dust and water ingress.

What materials are used in the construction of the connector?

The connector is made from high-quality PPE/PA materials, ensuring durability and resistance to environmental factors.

What types of connectors are available?

There are four types available: 4F0 (Male and Female), 4F1 (Cable and Male), 4F3 (Cable and Female), and 4F2 (Cable to Cable).

Is the connector certified for safety and reliability?

Yes, it is compliant with TUV and ETL standards, ensuring it meets international safety and reliability requirements. The NSPV Solar DC Fuse Connector 1500V is a reliable and versatile solution for solar PV systems, offering robust protection and ease of installation. Its high voltage and current ratings, combined with its waterproof design and patented technology, make it an excellent choice for a wide range of solar applications.

Download Manual

1500VDC fuse connector TUV 50A.pdf

PDF

1500VDC fuse connector TUV 30A.PDF

PDF

1500VDC Fuse Connector ETL certificate-II.pdf

PDF

1500VDC fuse link 32L-TUV.pdf

PDF

1500VDC fuse link 32L-CE.pdf

PDF

1500VDC fuse link 2-32A 50KA-TUV.pdf

PDF
