Product details of the solar junction box

Product Introduction

The craftsmanship, innovation and aesthetics come together in this wonderful NSPV solar junction box . The product has extremely stable performance, which can be used for a long time without damage. The market share of this product is growing, showing its wide range of market applications.

Product Introduction

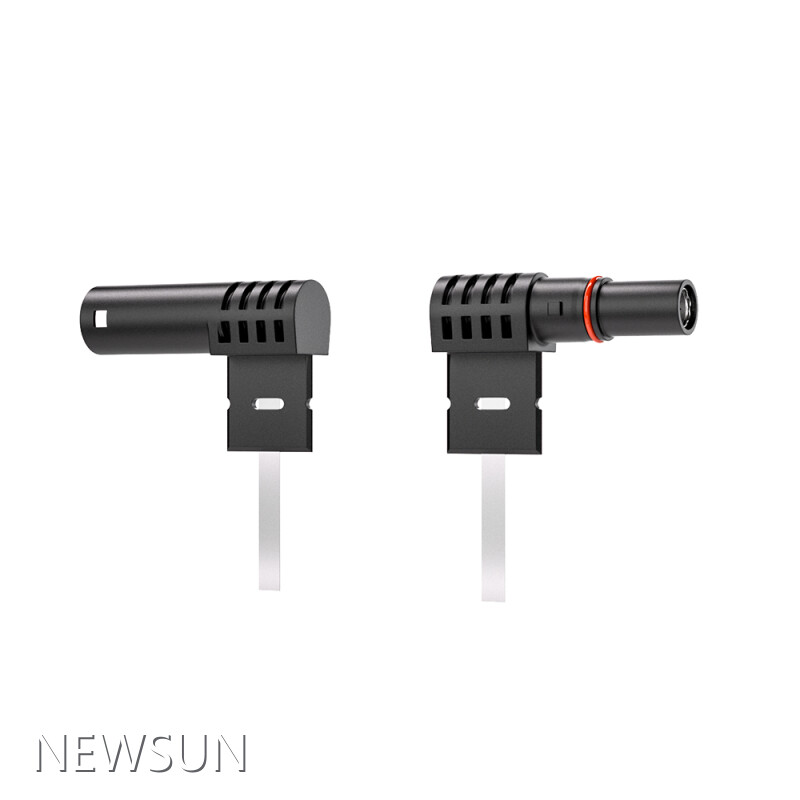

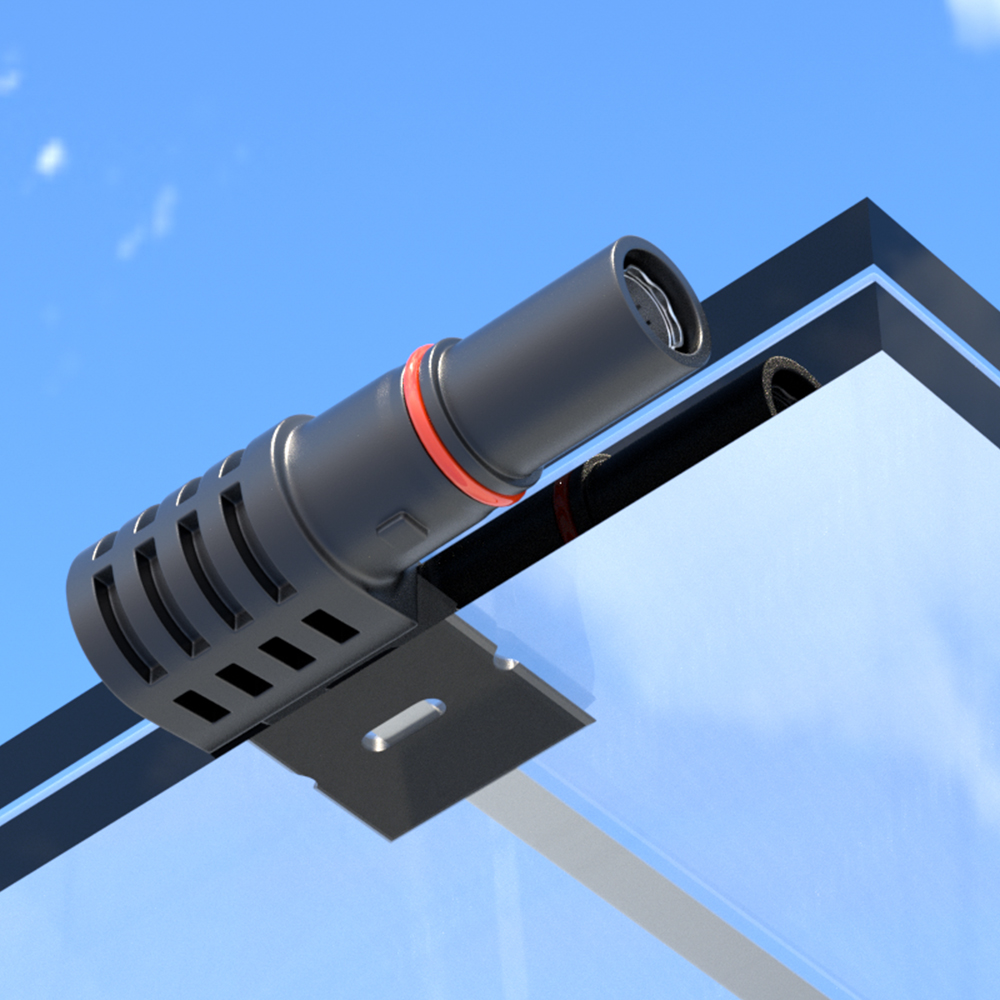

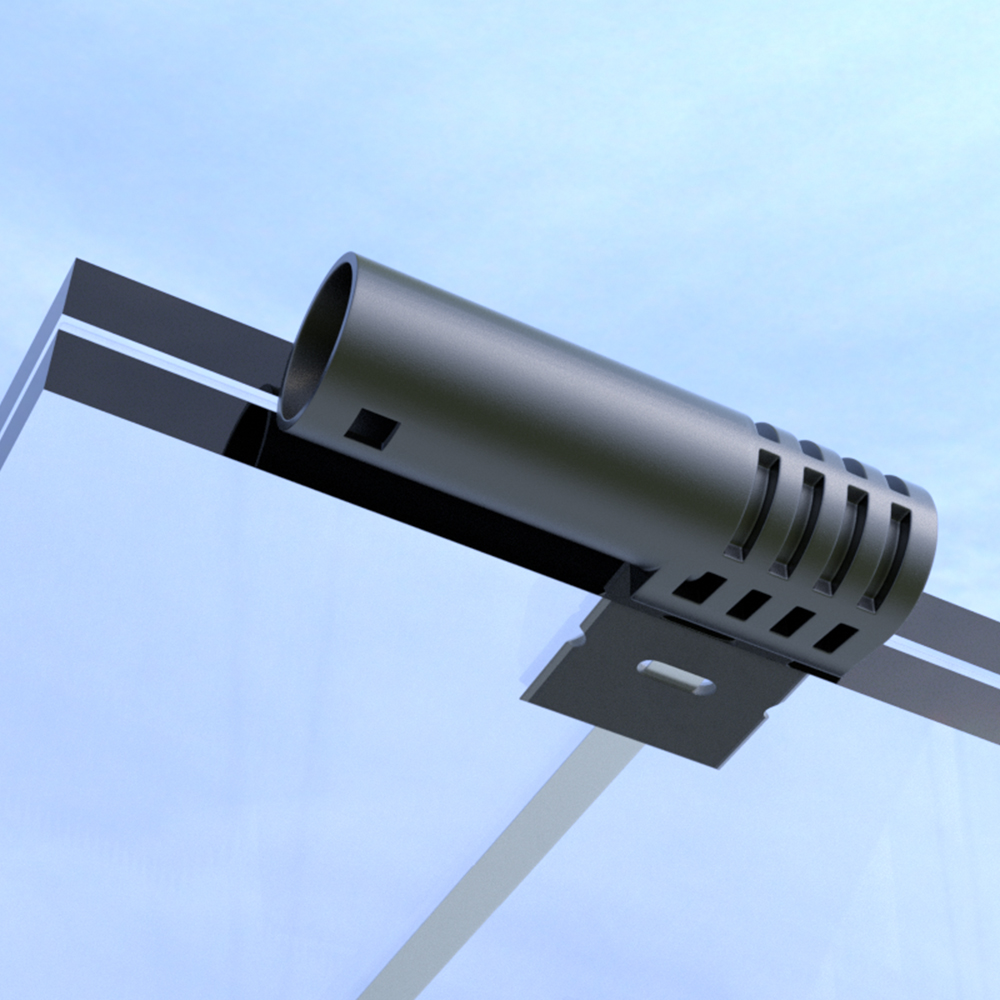

The NSPV Brand New Solar PV Panel EC1A junction box is a top-tier component designed to optimize solar photovoltaic systems. Boasting an IP65 rating for DC 1000V and an IP67 rating for DC 1500V, it offers exceptional protection against dust and water, ensuring reliable performance even in harsh environments. With a typical contact resistance of ≤0.25 mΩ, it minimizes power loss, enhancing overall system efficiency.

Crafted from PA/CU materials, this junction box exhibits excellent UV and water resistance, prolonging its lifespan and reducing maintenance costs. Its NSPV Brand design negative positive configuration simplifies installation, saving both time and labor expenses.

Moreover, the TUV IEC62852 certification guarantees its adherence to international safety standards, providing peace of mind regarding system safety. By choosing the NSPV EC1A junction box, users can enjoy significant cost savings through reduced maintenance and enhanced efficiency, while also benefiting from its superior safety features and durability.

Product Specifications

IP Rating	IP65 for DC 1000V; IP67 for DC 1500V
Rated Voltage	DC 1000V (IP65), DC 1500V (IP67)
Typical Contact Resistance	≤0.25 mΩ
Material	PA/CU (Polyamide/Copper)
Design	Negative Positive (NSPV Brand design)
Certification	TUV IEC62852 compliant

Our Features

High-Quality Materials: Utilizing copper contacts plated with tin, the EC1A ensures excellent conductivity and corrosion resistance. The insulation material, PA/CU, guarantees electrical isolation and safety.
High Temperature Resistance: The junction box can endure temperatures up to 150°C (for 1 hour without a connector), ensuring reliable operation in extreme heat conditions.
High Protection Level: With an IP65/IP67 rating, the EC1A is dustproof and waterproof, protecting internal components from environmental damage.
High Voltage and Pulse Resistance: Designed to handle a rated voltage of 1000V/1500V DC and a rated impulse voltage of 16KV, it ensures stability under high electrical stress.
Easy Installation: Engineered for outdoor use and UV resistance (F1), it supports soldering for ribbon and plug-in connections, facilitating quick and effortless installation.

Our Advantages

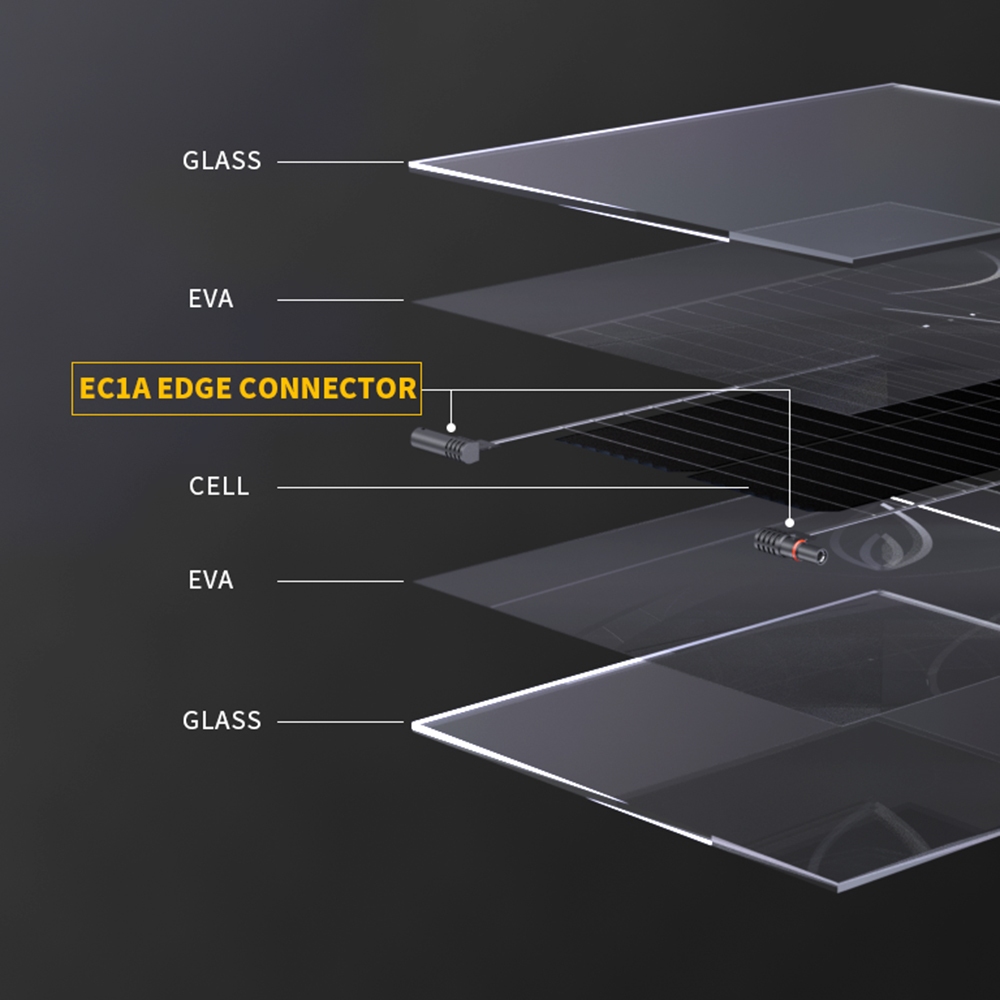

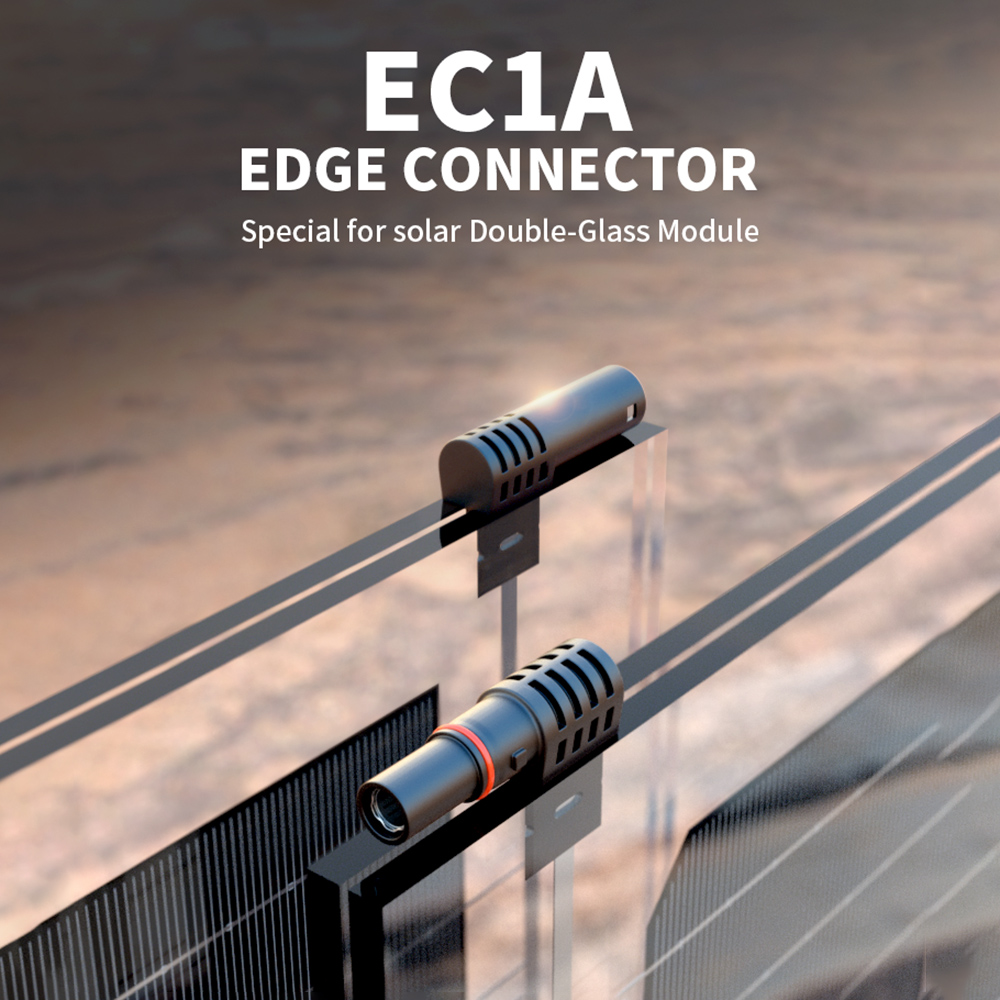

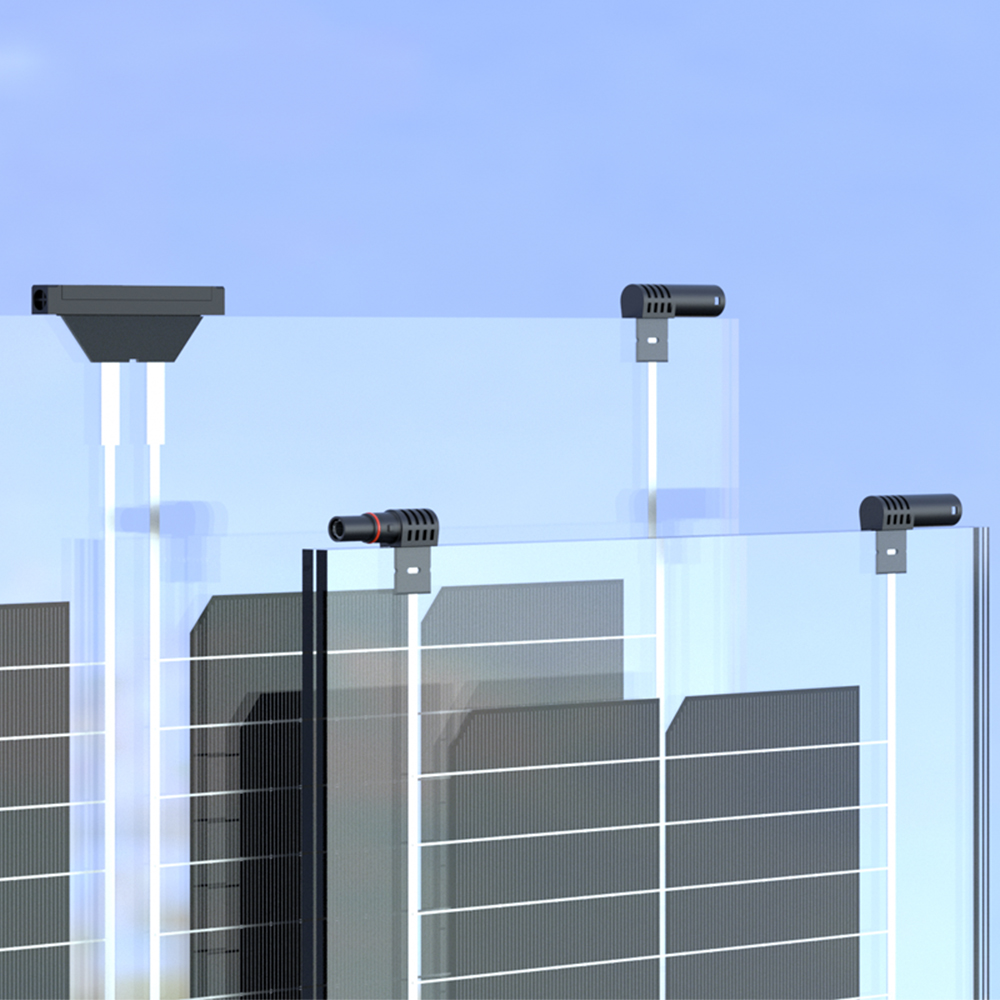

Unique Design Aesthetic: Unlike traditional PV junction boxes that necessitate the inclusion of PV cables and connectors, the EC1A adopts a minimalist design approach. It is designed to be used in conjunction with NSPV's mini connectors and cables, achieving a compact and streamlined profile that perfectly aligns with Building-Integrated Photovoltaics (BIPV) principles.
Diode-Free Compactness: The EC1A's diminutive size is a testament to its innovative design, which excludes diodes within the box itself. This not only reduces the overall footprint but also simplifies the installation process.
Enhanced Safety: The use of premium materials and adherence to international standards (IEC62852) guarantee the safety and reliability of the EC1A Junction Box.
Improved Efficiency: Low contact resistance (≤ 0.25 mΩ) minimizes power loss, thereby enhancing the overall efficiency of the solar PV system.
Durability: Its robust construction and high protection level render it resistant to environmental factors such as dust, water, and UV radiation, thereby extending its service life.
Versatility: Compatible with both 1000V and 1500V DC systems, the EC1A is suitable for a wide range of solar installations, from residential to commercial and industrial-scale projects.

Application

The NSPV Solar EC1A Junction Box finds widespread application in diverse solar PV installations, including residential rooftops, commercial buildings, and large-scale solar farms. Its unique design, durability, and high performance make it an ideal choice for ensuring reliable and efficient electrical connections in solar energy systems. Additionally, the option to customize the length with mini connectors and the availability of optional dust caps for male and female connectors further enhance its applicability in a variety of solar projects.

FAQ

What is the main difference between the IP65 and IP67 rated models?

The main difference lies in their level of protection against water ingress. The IP65 rated model is protected against low-pressure water jets, while the IP67 rated model can withstand temporary immersion in water up to 1 meter deep.

Can the NSPV EC1A junction box be used with any solar panel?

The NSPV EC1A junction box is designed to be compatible with a wide range of solar panels. However, it is essential to ensure that the voltage rating of the junction box matches or exceeds the voltage of the solar panel to ensure safe and efficient operation.

What certifications does the NSPV EC1A junction box have?

The NSPV EC1A junction box is TUV IEC62852 compliant, ensuring that it meets international safety and quality standards for solar photovoltaic components. In conclusion, the NSPV Brand New Solar PV Panel EC1A junction box is a high-performance, reliable component that enhances the efficiency and safety of solar photovoltaic systems. Its superior features, specifications, and advantages make it an excellent choice for a wide range of solar applications.

Q: What materials are used for the contacts in the EC1A Junction Box?

A: The contact material is copper, plated with tin.

Q: Is the EC1A Junction Box suitable for outdoor use?

A: Yes, it is designed for outdoor use and is UV resistant (F1).
