Product details of the solar y cables

Quick Detail

Strictly selected raw materials: NSPV solar y cables is made from top grade raw materials which are all well-selected and then are quickly put into precision production. Product quality is fully compliant with established industry standards. Sound prospects are expected as it gains further exposure in the market.

Product Information

The solar y cables of NEWSUN has the following advantages compared with solar y cables in the market.

Product Introduction

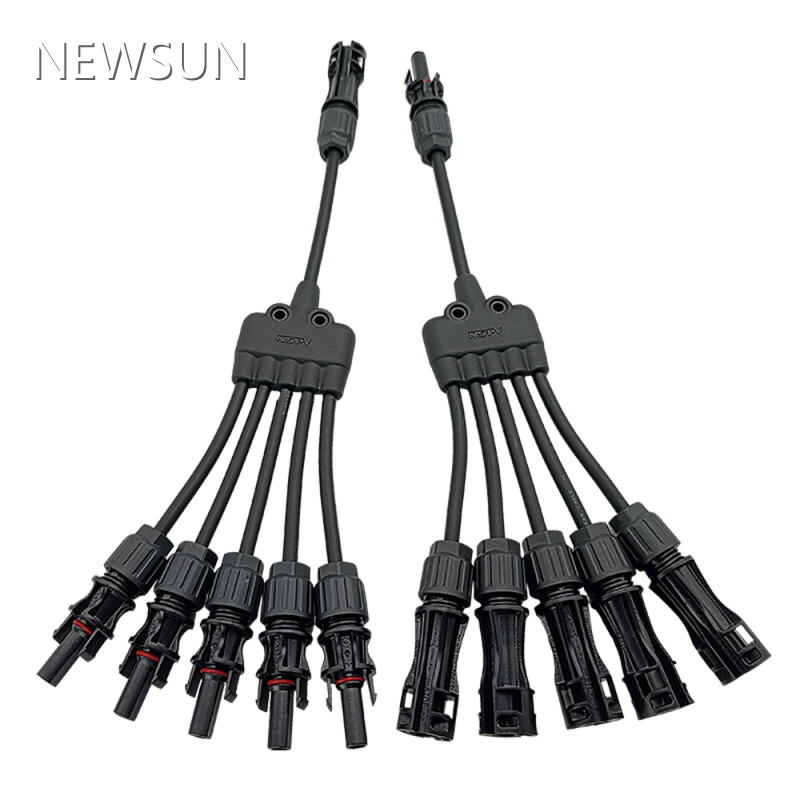

The NSPV Solar Y Cable M510H is a 5-in-1 solution that combines the functions of five separate cables into one compact, easy-to-install unit. It features a Y-shaped configuration with a central junction point that branches out to connect multiple solar panels to a single input on a charge controller or inverter. This design not only reduces cable clutter but also enhances system efficiency by ensuring a seamless flow of electrical current.

The M510H is constructed using high-quality materials that are resistant to UV radiation, extreme temperatures, and environmental wear, ensuring longevity and durability in outdoor settings.

Product Specifications

Product Connection Capability	The NSPV Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

5-in-1 Integration: The M510H consolidates five cables into one, simplifying the installation process and reducing the number of connections required. This integration minimizes the risk of loose connections and potential electrical hazards.
High-Quality Materials: Built with premium-grade, UV-resistant polymers and corrosion-resistant metal connectors, the M510H is designed to withstand harsh environmental conditions without degrading over time.
Optimized Electrical Performance: The cable's design ensures minimal electrical resistance, maximizing the efficiency of energy transfer from solar panels to the charge controller or inverter. This results in higher overall system output and improved energy harvest.
Easy Installation: The Y-shaped configuration and pre-terminated connectors make the M510H quick and easy to install, even for individuals with limited technical expertise. This reduces installation time and labor costs.
Versatile Compatibility: The M510H is compatible with a wide range of solar panel models and charge controllers, making it a versatile solution for various solar power system configurations.

Our Advantages

Enhanced System Efficiency: By consolidating multiple cables into one, the M510H reduces electrical resistance and potential energy losses, leading to a more efficient solar power system. This efficiency boost translates into increased energy production and cost savings over time.
Simplified Installation Process: The 5-in-1 design significantly simplifies the installation process, reducing the number of steps required and minimizing the potential for errors. This not only saves time but also enhances the overall reliability of the system.
Improved Aesthetics: With fewer cables visible, solar installations using the M510H have a cleaner, more professional appearance. This can be particularly advantageous for residential installations where aesthetics are a consideration.
Reduced Maintenance Needs: The robust construction and high-quality materials used in the M510H ensure that it requires minimal maintenance over its lifespan. This reduces ongoing costs and ensures consistent performance.
Cost-Effective Solution: By combining multiple functionalities into a single unit, the M510H offers a cost-effective alternative to purchasing and installing separate cables. Additionally, its durability and efficiency contribute to long-term savings on energy bills and maintenance costs.

Application

The NSPV Solar Y Cable M510H 5-in-1 solution is ideally suited for a wide range of solar power system applications. In residential settings, it can be used to connect multiple solar panels on rooftops or in ground-mounted arrays to a single charge controller or inverter. This simplifies the installation process and enhances the overall aesthetics of the system.

In commercial installations, the M510H's ability to handle multiple panels efficiently makes it an invaluable component in large-scale solar farms or industrial solar power systems. Its durability and resistance to environmental factors ensure reliable performance even in the most challenging conditions.

Furthermore, the M510H's compatibility with various solar panel models and charge controllers makes it a versatile solution for custom solar power system designs. Whether you are a homeowner looking to reduce your energy bills or a business owner seeking to invest in renewable energy, the NSPV Solar Y Cable M510H 5-in-1 solution offers a reliable, efficient, and cost-effective way to harness the power of the sun.

In conclusion, the NSPV Solar Y Cable M510H 5-in-1 solution represents a significant advancement in solar energy connectivity. Its innovative design, high-quality materials, and versatile compatibility make it an ideal choice for both residential and commercial solar installations. By choosing the M510H, you can enjoy enhanced system efficiency, simplified installation, improved aesthetics, reduced maintenance needs, and long-term cost savings.

FAQ

Q: Is the NSPV Solar Y Cable M510H compatible with all solar panel models?

A: The M510H is designed to be compatible with a wide range of solar panel models. However, it is always recommended to check the specifications of your specific panels to ensure compatibility before installation.

Q: Can the M510H be used in both residential and commercial solar installations?

A: Yes, the M510H is suitable for use in both residential and commercial solar power systems. Its versatile design and robust construction make it an ideal choice for various installation scenarios.

Q: How does the 5-in-1 design of the M510H improve system efficiency?

A: The 5-in-1 design reduces the number of connections and potential points of electrical resistance, leading to a more efficient flow of electrical current. This results in higher overall system output and improved energy harvest.

Q: Is the M510H resistant to environmental factors such as UV radiation and extreme temperatures?

A: Yes, the M510H is constructed using high-quality materials that are resistant to UV radiation, extreme temperatures, and environmental wear. This ensures its durability and longevity in outdoor settings.

Q: What is the expected lifespan of the NSPV Solar Y Cable M510H?

A: The lifespan of the M510H depends on various factors such as environmental conditions and usage patterns. However, with its robust construction and high-quality materials, it is designed to provide reliable performance for many years.
