Solar Y Cables Solar Cable Harness Wholesale - NSPV

Product details of the solar y cables

Quick Overview

Conforming to the design standard, our solar y cables is of high quality assurance. The performance and quality of the product have been widely recognized among users. NSPV has enforced the brand operation thoroughly.

Product Information

We value the quality of our products. And we strive for perfection in every detail of products. In this way, we guarantee the fine quality of our products.

Product Introduction

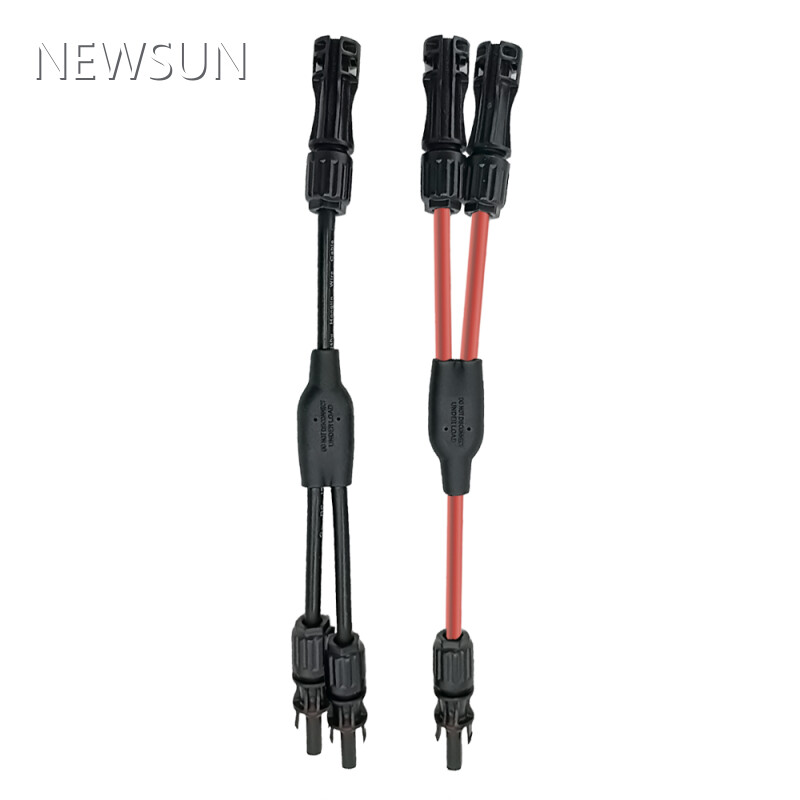

The NSPV H210Y, M210Y, and T100T 2-in-1 Y cable wiring harnesses are high-performance solar cable assemblies designed specifically for photovoltaic (PV) systems.

These cables are engineered to withstand the rigorous demands of outdoor solar installations, featuring robust insulation materials, high voltage ratings, and exceptional environmental resistance. Built with DC XLPE (Cross-Linked Polyethylene) tinned copper conductors, these cables ensure efficient power transmission while maintaining superior durability. Certified by CE and TUV, they adhere to international safety and quality standards (IEC62852:2014), making them a reliable choice for residential, commercial, and industrial solar projects.

Product Specifications

Product Connection Capability	The NSPV Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	LXPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

High Voltage Rating: Rated for 1500VDC, these cables are suitable for modern high-voltage solar systems, reducing energy loss and improving overall efficiency.

Superior Insulation: Made from PPE/TPE/PA insulation materials, the cables offer excellent resistance to UV radiation, chemicals, and abrasion, ensuring longevity in harsh outdoor environments.

Flame Retardancy: Compliant with UL94-V0 flame class, these cables minimize fire risks, enhancing safety in solar installations.

Wide Temperature Range: Operates effectively in ambient temperatures from -40℃ to +85℃, making them suitable for extreme climates.

IP68 Waterproof Rating: Fully protected against dust and capable of withstanding immersion in water up to 1 meter for 1 hour, ensuring reliability in wet conditions.

Versatile Connectors: Available with a variety of connector options, including 1000V and 1500V rated MC3, MC4, mini, and BIPV (Building-Integrated Photovoltaics) connectors, providing flexibility for different system requirements.

Our Advantages

Enhanced Durability: The combination of tinned copper conductors and high-grade insulation materials ensures these cables can withstand prolonged exposure to sunlight, moisture, and temperature fluctuations without degrading.

Improved Efficiency: The 1500VDC rating allows for longer cable runs with minimal voltage drop, optimizing energy harvest and system performance.

Safety Compliance: Meeting TUV and CE standards, these cables provide peace of mind by adhering to strict international safety protocols, reducing the risk of electrical failures or hazards.

Easy Installation: The press-fit crimp connection system simplifies installation, saving time and labor costs while ensuring secure electrical contacts (contact resistance ≤ 0.25 mΩ).

Customization Options: With a range of connector types and cable sizes (1.5mm² to 10mm² / 16AWG to 8AWG), these harnesses can be tailored to meet specific project needs, enhancing versatility.

Application

The NSPV H210Y, M210Y, and T100T 2-in-1 Y cable wiring harnesses are ideal for a wide range of solar applications, including:

Residential rooftop solar systems
Commercial and industrial solar farms
Building-integrated photovoltaics (BIPV)
Off-grid solar power systems
Any PV installation requiring reliable, high-voltage cabling with superior environmental resistance.

These cables provide a durable, efficient, and safe solution for connecting solar panels, inverters, and other components in photovoltaic systems, ensuring optimal performance and longevity.

FAQ

Q: What is the maximum voltage these cables can handle?

A: These cables are rated for 1500VDC, making them suitable for high-voltage solar applications.

Q: Are these cables waterproof?

A: Yes, they have an IP68 rating, which means they are dust-tight and can withstand immersion in water up to 1 meter for 1 hour.

Q: What types of connectors are available?

A: The cables come with various connector options, including MC3, MC4, mini, and BIPV connectors, in both 1000V and 1500V ratings.

Q: Can these cables be used in extreme temperatures?

A: Absolutely. They are designed to operate in ambient temperatures ranging from -40℃ to +85℃.

Q: How do I install these cables?

A: Installation is straightforward using the press-fit crimp connection system. Ensure proper alignment and apply firm pressure to secure the connection.
