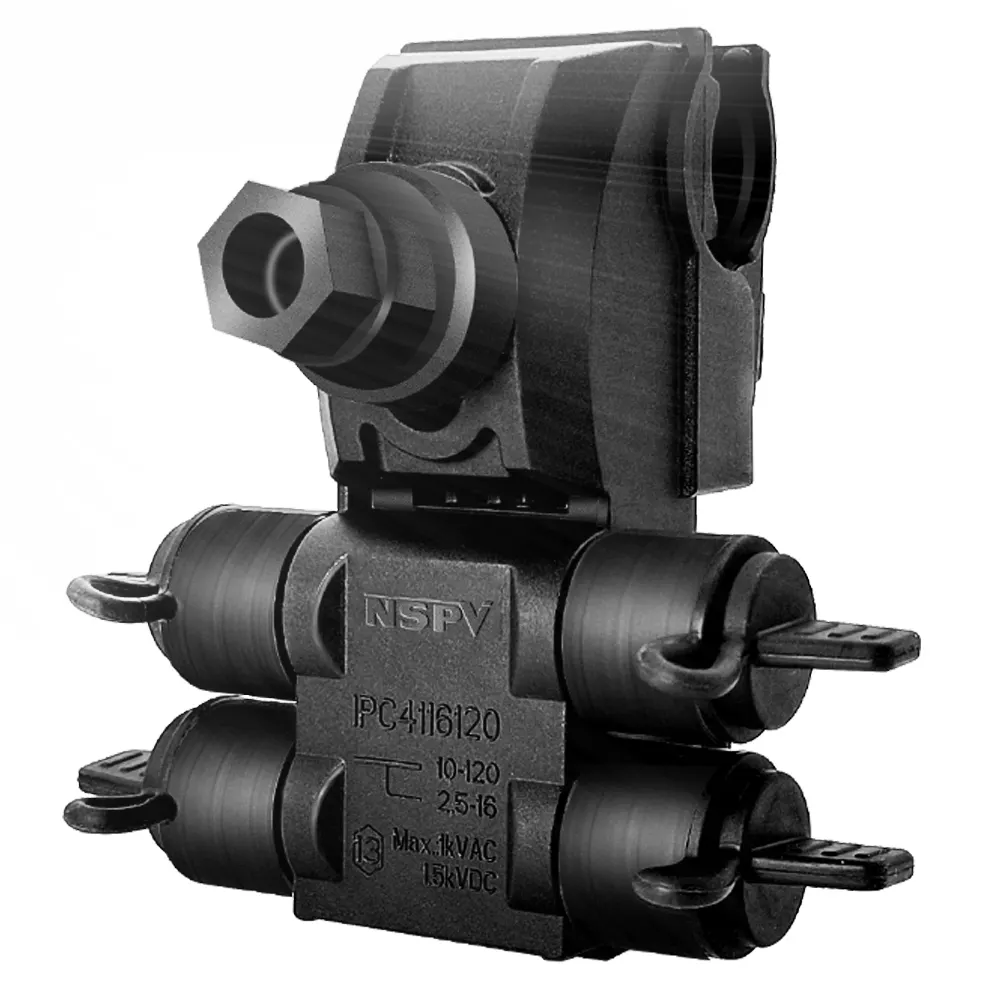

Main Features Of Dual Shear Head Insulation Piercing Connectors

Exploring the Advantages of Dual Shear Head Insulation Piercing Connectors

In the rapidly evolving world of electrical connections, efficiency and reliability are paramount. Among the innovative solutions addressing these needs are Dual Shear Head Insulation Piercing Connectors, a technology that has gained significant traction in both industrial and residential applications. But what exactly sets these connectors apart from traditional options? In this article, we will delve into the main features of Dual Shear Head Insulation Piercing Connectors, examining their unique design, the benefits they offer, and their role in enhancing electrical conductivity while ensuring safety and durability. Whether you're an industry professional or simply curious about advancements in electrical connectivity, this exploration promises to illuminate the key attributes that make these connectors a top choice. Join us as we uncover the fascinating intricacies of this essential technology!

1. Mechanics of Shear-Head Torque Bolts; 2. Why Dual Shear Heads Ensure Perfect Tightening; 3. Torque Control Without Precision Torque Wrenches; 4. Environmental Sealing and Contact Penetration; 5. Step-by-Step Installation Procedure

Insulation Piercing Connectors (IPCs) have revolutionized the way electrical connections are established, particularly in applications where reliability and efficiency are paramount. A notable variant in this technology is the dual shear head insulation piercing connector, a sophisticated solution designed with features that enhance connection integrity and performance.

1. Mechanics of Shear-Head Torque Bolts

At the heart of the dual shear head IPC is its innovative shear-bolt mechanism. Each connection employs two shear heads that work in unison to facilitate secure and reliable contact between the conductor and the connector. The mechanics of the shear-head torque bolts is both simple and effective: when torque is applied, the bolt sections are designed to shear at a predetermined torque value, ensuring that the force applied is sufficient to secure the connection without over-tightening, which could damage the conductors. This calibrated torque feature is critical as it establishes a reliable interface without compromising the integrity of the wire insulation.

2. Why Dual Shear Heads Ensure Perfect Tightening

The design advantage of incorporating dual shear heads cannot be overstated. While traditional connectors utilize a singular shear head, dual heads provide an additional layer of safety. They eliminate the risk of uneven pressure distribution during tightening, meaning that regardless of the variances in conductor sizes or materials, the bolts deliver a uniform sealing pressure on the insulation. This uniformity is essential for preventing moisture ingress and ensuring long-term connection reliability. By ensuring perfect tightening, the dual shear system also enhances the electrical characteristics of the connection, promoting efficient current transfer through reduced resistive losses.

3. Torque Control Without Precision Torque Wrenches

One major benefit of the dual shear head insulation piercing connectors is that they offer exceptional torque control without the necessity for precision torque wrenches. The design ingeniously integrates a snap feature that engages once the specified torque threshold is achieved. This means that installers do not require highly specialized tools or extensive training to effectively use these connectors. With a simple twist, the user can engage the connection, and the built-in stopping mechanism takes over, ensuring the integrity of the connection without the need for continued adjustment. This not only simplifies installation processes but also minimizes the risk of installation errors, further enhancing the connectors' reliability.

4. Environmental Sealing and Contact Penetration

Another remarkable feature of dual shear head IPCs is their ability to provide robust environmental sealing and contact penetration. The design facilitates a consistent and uniform contact between the connector and the conductor while piercing through the insulation layer. This stripping-free installation means that valuable time is saved during installation, and there is no risk of damaging conductor strands or affecting the insulation integrity. The connector’s environment-sealing capabilities are particularly important in outdoor applications or extreme environments where exposure to moisture, dust, or other contaminants could compromise performance. The IPC ensures that the internal contact area remains protected, facilitating prolonged durability and performance.

5. Step-by-Step Installation Procedure

The installation of dual shear head insulation piercing connectors is straightforward, making them accessible even to workers without specialized electrical training. The process begins with selecting the correct IPC for the conductor size being used. The next step involves positioning the connector on the conductor, aligning it properly. Using a powered or manual driver, the installer simply engages the dual shear heads until the calibrated torque snap occurs. This snap will indicate that the installation is complete with no additional adjustments necessary. Following installation, a visual inspection can be conducted to confirm that the connector is seated properly and that the wire insulation has not been compromised.

By harnessing the latest advancements in electrical connection technology, dual shear head insulation piercing connectors present a compelling option for modern electrical installations. Their dual shear bolt mechanism, ease of installation, and environmental resilience collectively lead to enhanced reliability and performance, securing their role as a crucial component in contemporary electrical engineering solutions. With an emphasis on contact reliability and efficient, strip-free installation, the dual shear head IPC stands as a testament to effective design in the electrical connector landscape.

Conclusion

In conclusion, the dual shear head insulation piercing connectors represent a significant advancement in electrical connectivity technology, offering unparalleled efficiency and reliability for a wide range of applications. Their innovative design not only simplifies the installation process but also ensures optimal performance, reducing the risk of connectivity issues that can lead to costly downtimes. With 15 years of expertise in the industry, our company is committed to delivering high-quality solutions that meet the evolving needs of our clients. As we continue to push the boundaries of innovation, we invite you to explore how our dual shear head connectors can enhance your projects and contribute to a more efficient future in electrical installations. Thank you for joining us on this journey into the future of connectivity; we look forward to being your trusted partner in achieving electrical excellence.
