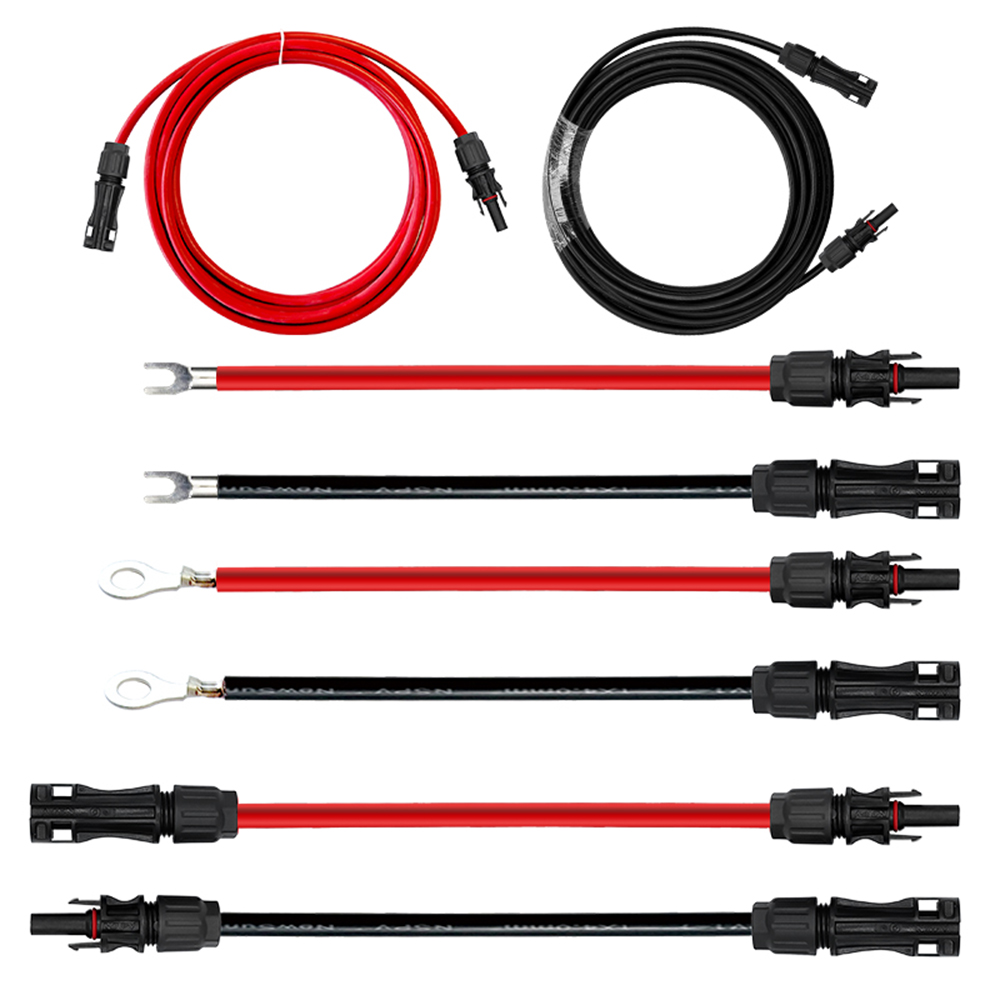

Custom Solar PV Extension Cable with Various Terminals & Connectors assembly
Custom Solar PV Extension Cable Assemblies designed for flexible PV wiring and connection applications.
- Cable: Custom color, length, size and core material; XLPE insulation available for solar PV applications
- Connector: NSPV branded solar connectors, with standard and customized options
- Terminal: Standard terminals or ODM/custom terminals available
One-stop ODM solution — customize the cable, connector and terminal to match your PV application.
Solar PV Extension Cable with Various Connectors & Terminals
NSPV Solar PV Extension Cable is a flexible cable assembly designed for connecting, extending, and routing DC wiring in photovoltaic (PV) systems. The cable can be supplied with different types of PV connectors, terminals, lugs, and other connection options according to project requirements.
By combining high‑quality solar DC cable with compatible connectors or terminals, NSPV provides ready‑to‑install cable assemblies for residential, commercial, industrial, and utility‑scale solar applications.
The extension cable can be customized in cable length, conductor size, connector type, terminal type, cable color, and assembly configuration, helping installers and EPC contractors simplify field installation and reduce cable preparation work.
Whether you need a standard PV extension cable or a customized solar cable assembly, NSPV can provide a solution based on your system voltage, current, cable size, connector requirements, and installation environment.
Technical Specifications
|
Product Type |
Solar PV Extension Cable / PV Cable Assembly |
|
Application |
Solar PV DC Systems |
|
Rated Voltage |
Up to 1500V DC* |
|
Cable Type |
PV Solar DC Cable |
|
Conductor |
Tinned Copper |
|
Insulation |
XLPE / according to requirement |
|
Conductor Sizes |
2.5 / 4 / 6 / 10 / 16 mm² and customized |
|
Cable Length |
Customized |
|
Cable Color |
Black / Red / Other colors on request |
|
Connector |
Various PV connector options |
|
Terminal |
Various terminal options |
|
Cable Assembly |
Factory assembled |
|
Waterproof Protection |
Depending on connector configuration |
|
Operating Temperature |
According to selected cable and connector |
|
Application |
Residential / C&I / Utility‑Scale PV |
|
Customization |
OEM / ODM available |
*The actual voltage and current rating depend on the selected cable, connector, terminal, and complete cable assembly configuration.
Our Features
- Multiple Connector Options: The extension cable can be assembled with different types of PV connectors to match the connection requirements of different solar modules, inverters, junction boxes, and other PV components.
- Various Terminal Options: In addition to PV connectors, cable assemblies can be supplied with different terminal configurations, including crimp terminals and other electrical connection terminals according to customer requirements.
- Flexible Cable Length: Cable length can be customized according to the installation requirements, helping reduce unnecessary cable cutting and field assembly.
- Multiple Cable Sizes: Different conductor cross‑sections can be selected according to system current, voltage, installation method, and project requirements.
- Factory‑Assembled: Cable assemblies are prepared and assembled before shipment, reducing on‑site cable preparation and helping improve installation efficiency.
- OEM & Custom Assembly: NSPV supports customized cable assemblies based on customer drawings, connector requirements, cable specifications, and project applications.
Available Cable Options & Product Advantages
NSPV supplies multiple solar extension cable types to fit diverse project environments, voltage and mechanical requirements, with reliable performance and long outdoor service life.
- Standard PV DC Cable: Commonly used for photovoltaic module and string connections, compliant with mainstream PV system standards.
- XLPE Solar Cable: Features premium XLPE insulation, excellent UV resistance, heat resistance and abrasion resistance, ideal for harsh long-term outdoor PV operation.
- Rodent-Resistant Solar Cable: Extra mechanical protection against rodent damage, suitable for field, ground-mounted and complex environment solar projects.
- Customized Cable Construction: Custom cable specs based on installation temperature, current load, mechanical requirements and regional industry standards.
- Ready-to-Install & Cost-Effective: Factory pre-assembled cables save on-site labor and cutting work, helping EPCs and installers improve efficiency and reduce project costs.
- Full Customization Support: Support custom length, color, connector/terminal matching and OEM cable harness solutions for all-scale solar projects.
Typical Applications
NSPV Solar PV Extension Cables are suitable for a wide range of photovoltaic applications, covering residential, commercial, industrial and utility-scale solar projects:
- Residential Solar: For rooftop PV systems, module connections, inverter connections, and DC cable extensions.
- Commercial & Industrial Solar: Ideal for office rooftops, shopping mall PV systems, factory distributed PV and other commercial energy projects.
- Utility‑Scale Solar: Designed for large-scale ground-mounted PV plants, supporting standardized cable assembly and high-volume project delivery.
- Solar Junction Boxes & Inverters: Professional DC extension cables for junction box wiring and inverter-side PV connection.
- Off-Grid Solar Systems: Stable DC cable solutions for remote area solar power stations, telecommunication base stations and off-grid energy equipment.
- Customized PV Equipment: Support OEM pre-assembled cable harnesses for solar equipment manufacturers and customized PV system devices.
In conclusion, NSPV's range of Solar Cables, Connectors, and Terminals offers a reliable, customizable, and high-performance solution for solar power installations. With comprehensive certifications, robust construction, and excellent after-sales support, these products are an ideal choice for anyone looking to harness solar energy efficiently and safely.
Need a Customized Solar Extension Cable?
Whether you need a standard PV extension cable, a 1500V DC cable assembly, or a customized cable with specific connectors and terminals, NSPV can help develop the appropriate configuration for your application.
Contact NSPV with your cable size, length, connector/terminal requirements, and quantity to discuss your solar cable assembly solution.
