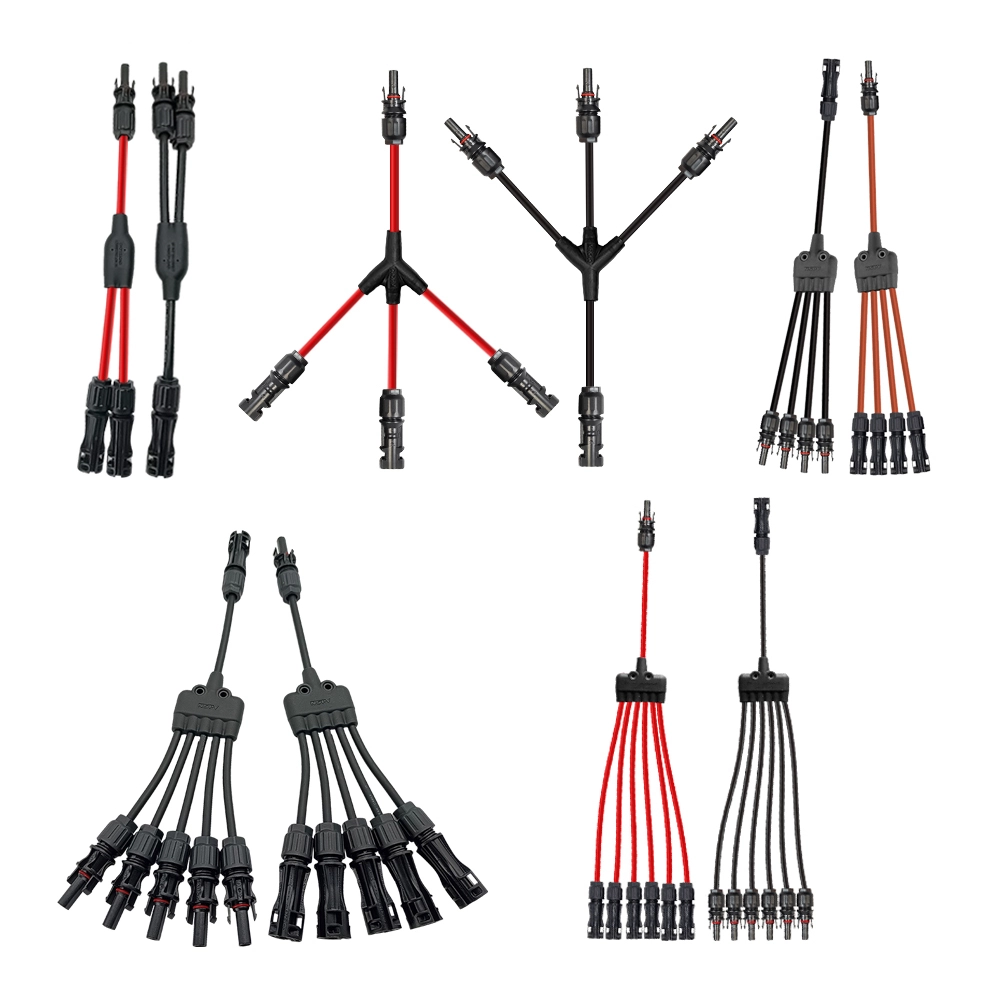

NSPV Solar Wiring Y Cable Harness series:

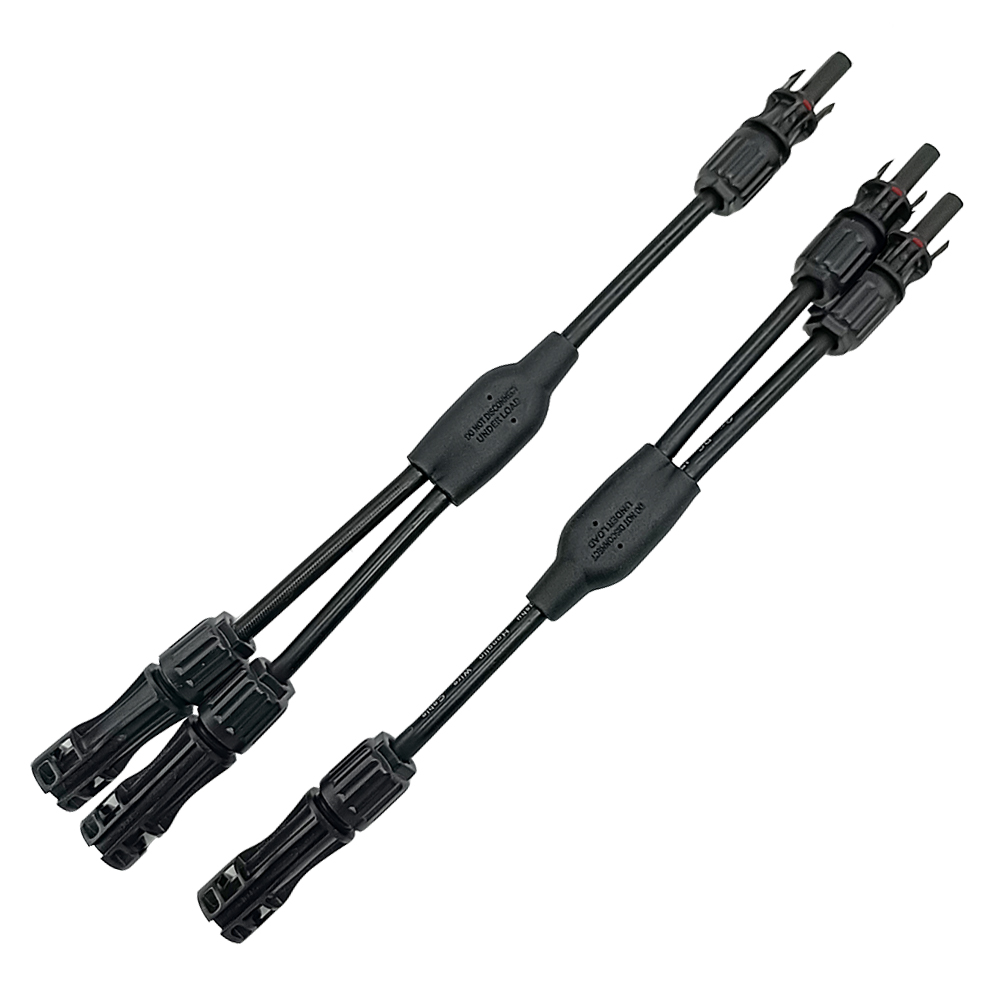

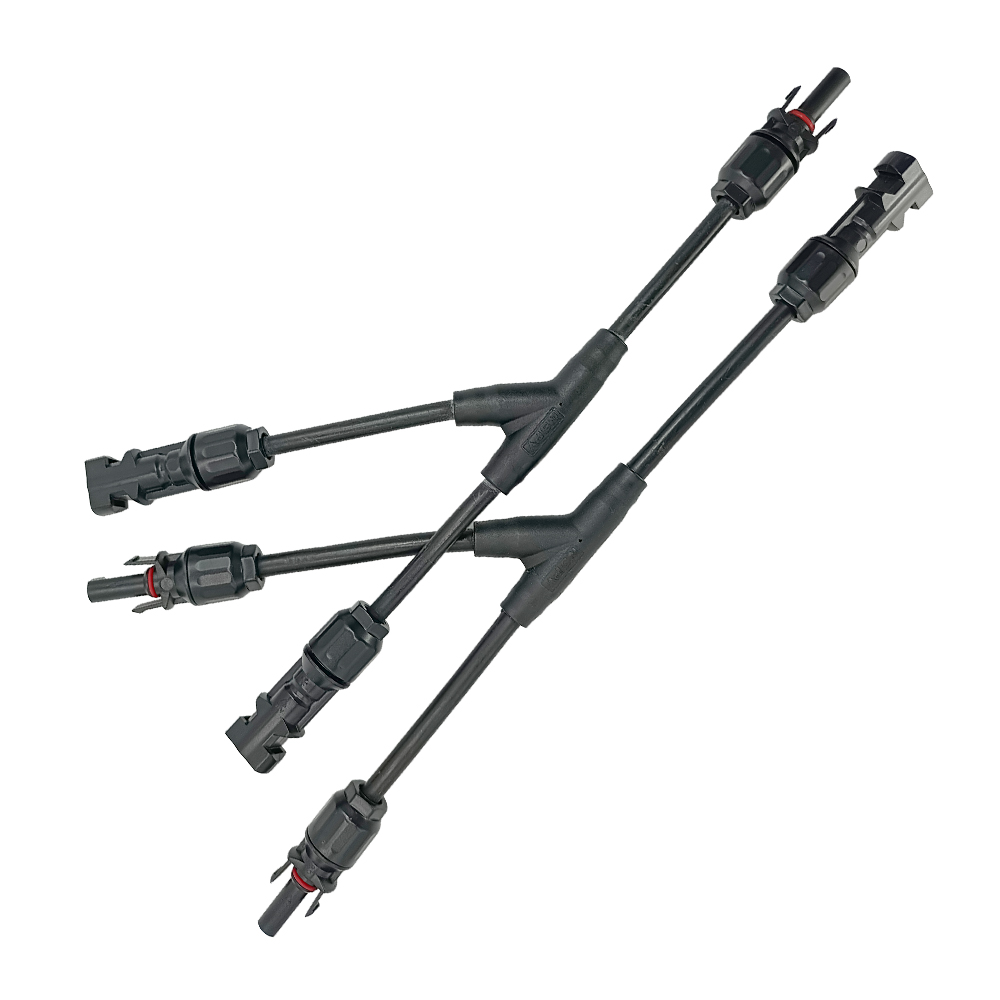

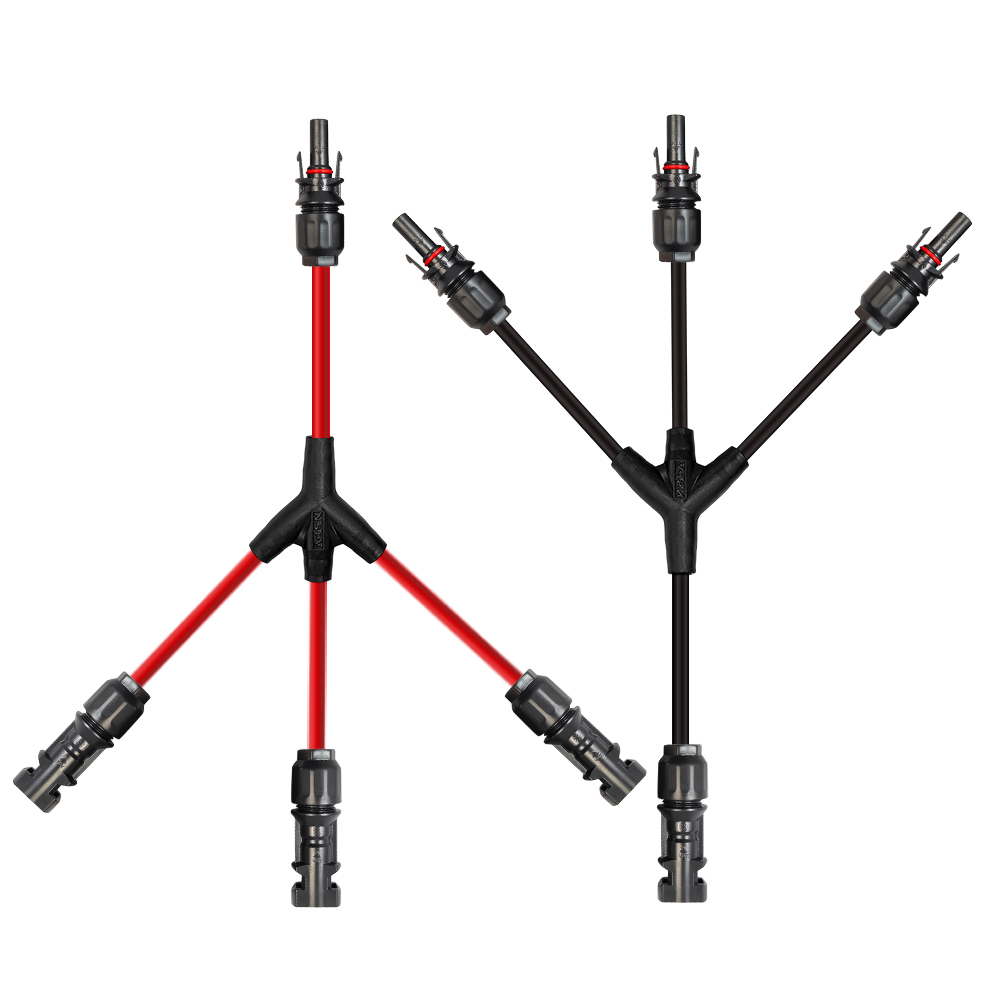

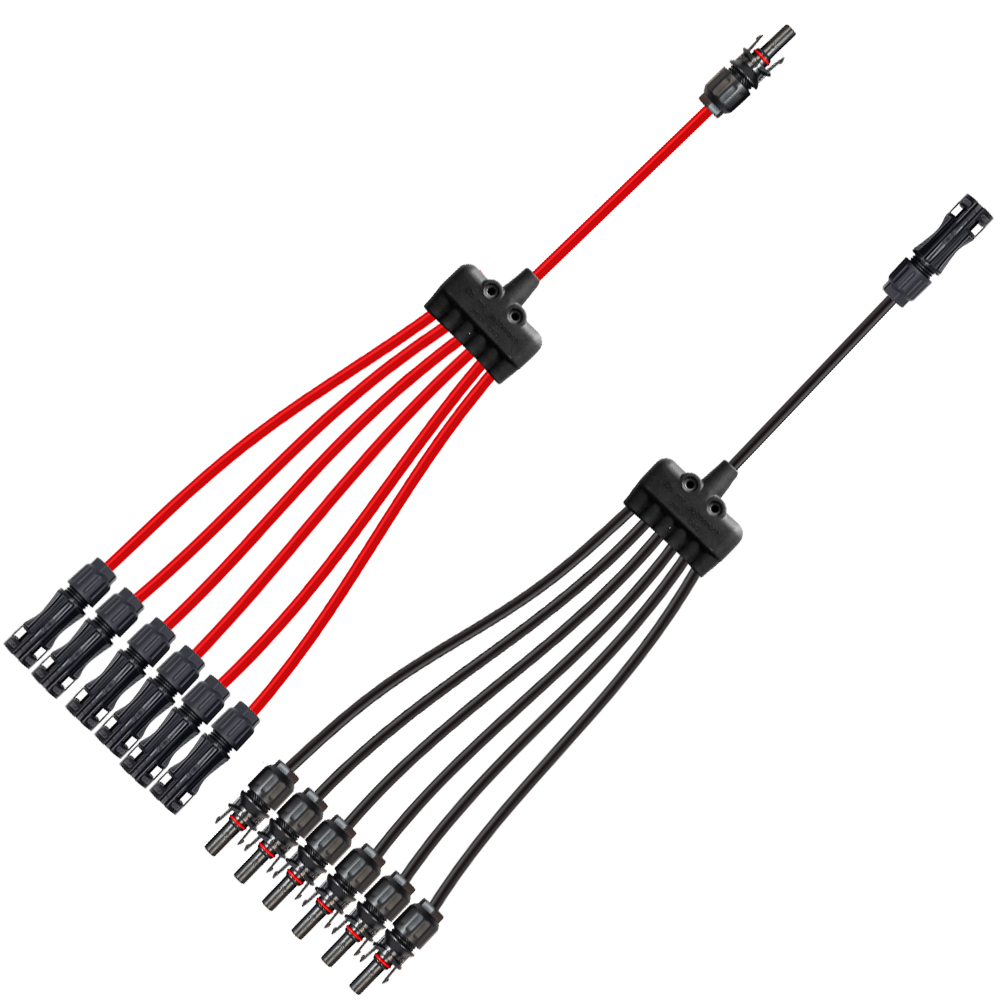

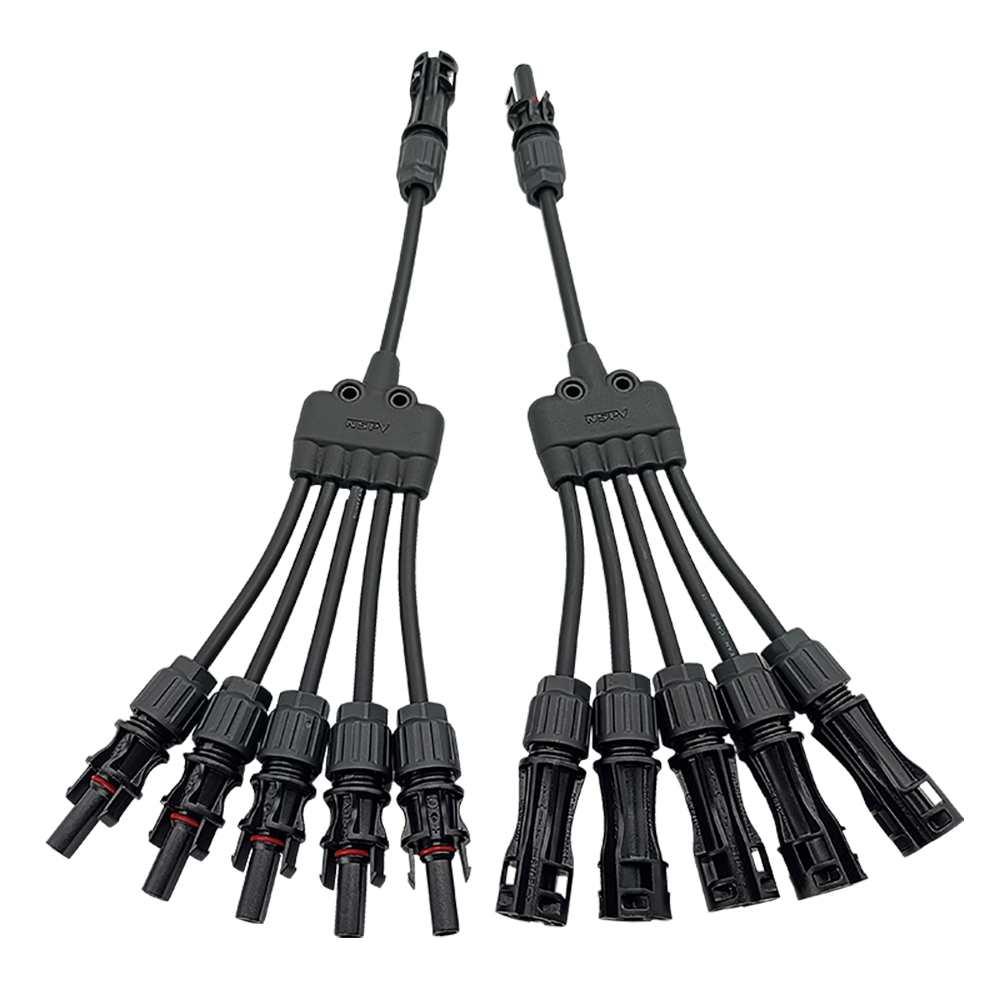

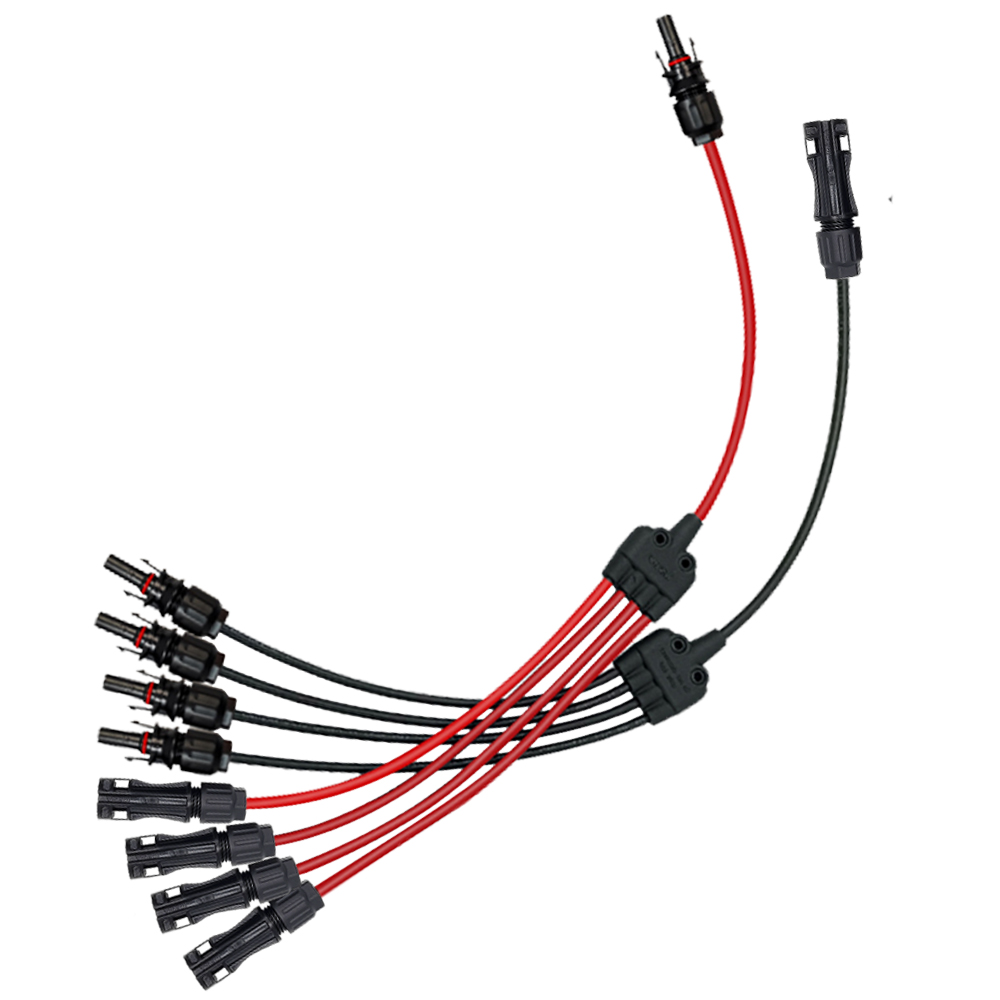

2-in-1	3-in-1	4-in-1	5-in-1	6-in-1
		4-in-2	5-in-2	6-in-2

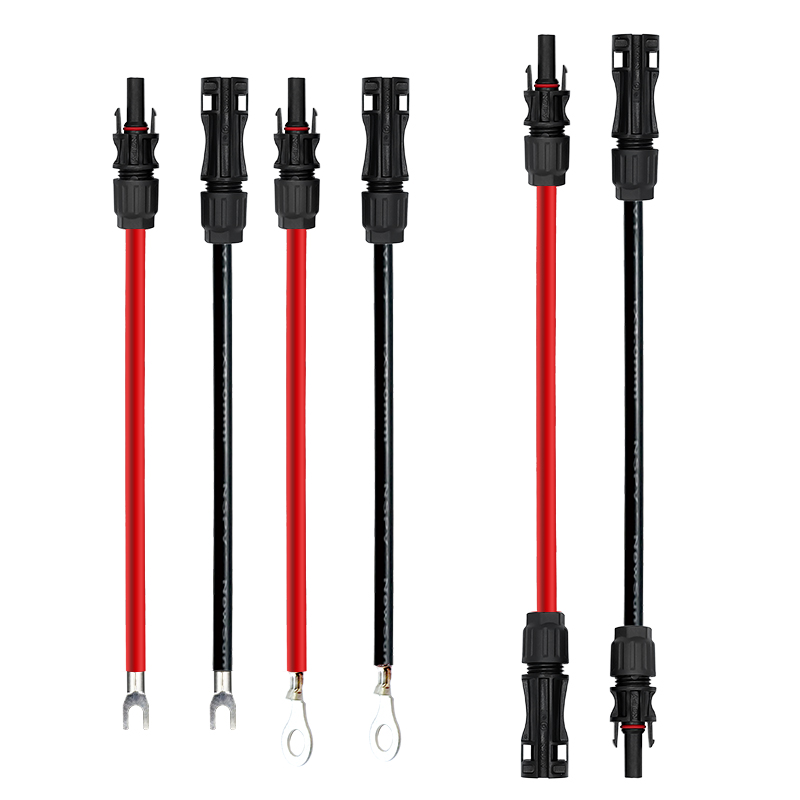

Different Connectors and Terminnal for Choices

ODM OEM Acceptable

Branch Cable size ranges from 2.5mm² to 6mm² or 14AWG to 10AWG,

Main Cable size ranges from 4mm² to 16mm² or 12AWG to 6AWG,

Inquiry

Write a Review

Product Introduction

The NSPV Solar PV Panel Y Cable Harness series connected solution is a premium choice for solar installations, boasting an IP68 rating for robust protection against dust and water ingress, ensuring durability in harsh outdoor environments. With a high voltage capacity of 1500V DC, it supports efficient power transmission over longer distances, reducing the need for additional components and thus cutting costs. The harness features XLPE level insulation, offering superior flame resistance and low smoke emission, enhancing safety significantly.

Constructed with tinned copper cables, it exhibits low electrical resistance, ensuring excellent conductivity and minimizing power loss. This translates to improved energy efficiency and performance of the solar PV system. The NSPV Brand design supports a wide cable size range (2.5~16mm² / 14-8AWG), providing flexibility in installation. Compliant with TUV IEC standards, it guarantees quality and reliability, making it a cost-effective and safe solution for maximizing solar energy output.

Product Specifications

Product Connection Capability	The NSPV Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

The NSPV Solar PV Panel Y Cable Harness is a cutting-edge solution designed for efficient and reliable series connection of solar photovoltaic (PV) panels. Engineered with precision, this harness boasts an IP68 rating, ensuring it is completely dust-tight and protected against the effects of immersion in water up to a specified depth, making it ideal for outdoor installations in diverse weather conditions. It supports a high voltage of 1500V DC, catering to the demands of modern solar systems that require enhanced energy efficiency and reduced transmission losses. The harness is constructed using XLPE (Low Smoke Zero Halogen Cross-Linked Polyethylene) level insulation, which offers superior flame resistance and low smoke emission, enhancing safety during operation. The tinned copper cable used in the harness provides excellent conductivity and corrosion resistance, ensuring long-term durability and optimal performance.

Our Advantages

Versatile Y Cable Harness Series:

Offers multiple configurations including 2-in-1, 3-in-1, 4-in-1, 5-in-1, 6-in-1, as well as 4-in-2, 5-in-2, and 6-in-2 options, catering to diverse wiring needs.

Wide Range of Connectors and Terminals:

Provides a variety of connectors and terminals to choose from, ensuring compatibility with different solar system setups.

Customizable Solutions:

Accepts ODM (Original Design Manufacturing) and OEM (Original Equipment Manufacturing) orders, allowing for tailored solutions to meet specific customer requirements.

Flexible Branch Cable Sizes:

Branch cable sizes range from 2.5mm² to 6mm² (or 14AWG to 10AWG), offering flexibility in wiring configurations for different solar panel connections.

Robust Main Cable Sizes:

Main cable sizes span from 4mm² to 16mm² (or 12AWG to 6AWG), ensuring reliable power transmission and durability in solar installations.

Comprehensive and Integrated Solution:

Combines a versatile Y cable harness series with a wide selection of connectors and terminals, providing a one-stop solution for efficient and reliable solar wiring.

Application

This Y Cable Harness is ideal for residential, commercial, and industrial solar PV installations where series connection of panels is required. It is particularly beneficial in large-scale solar farms and rooftop solar systems where maximizing energy output and minimizing installation complexity are crucial.

FAQ

Can the NSPV Y Cable Harness be used in saltwater environments?

Yes, its IP68 rating ensures it is protected against temporary immersion in water, making it suitable for coastal and marine applications, although prolonged exposure to saltwater should be avoided to prevent corrosion.

What is the maximum temperature the harness can withstand?

The XLPE insulation is designed to withstand high temperatures, but specific temperature ratings should be referred to in the product datasheet for exact details.

Is the harness compatible with all solar panel brands?

While it is designed to be versatile, compatibility should be verified with the manufacturer or based on the cable size and connection requirements of the specific solar panels being used. The NSPV Solar PV Panel Y Cable Harness series connected solution is a reliable, efficient, and safe choice for modern solar installations, offering unparalleled performance and durability.
