NSPV M420H & M410H 4-in-1 4-in-2 Y Cable Harness Solution 1

NSPV M420H & M410H 4-in-1 4-in-2 Y Cable Harness Solution 2

NSPV M420H & M410H 4-in-1 4-in-2 Y Cable Harness Solution

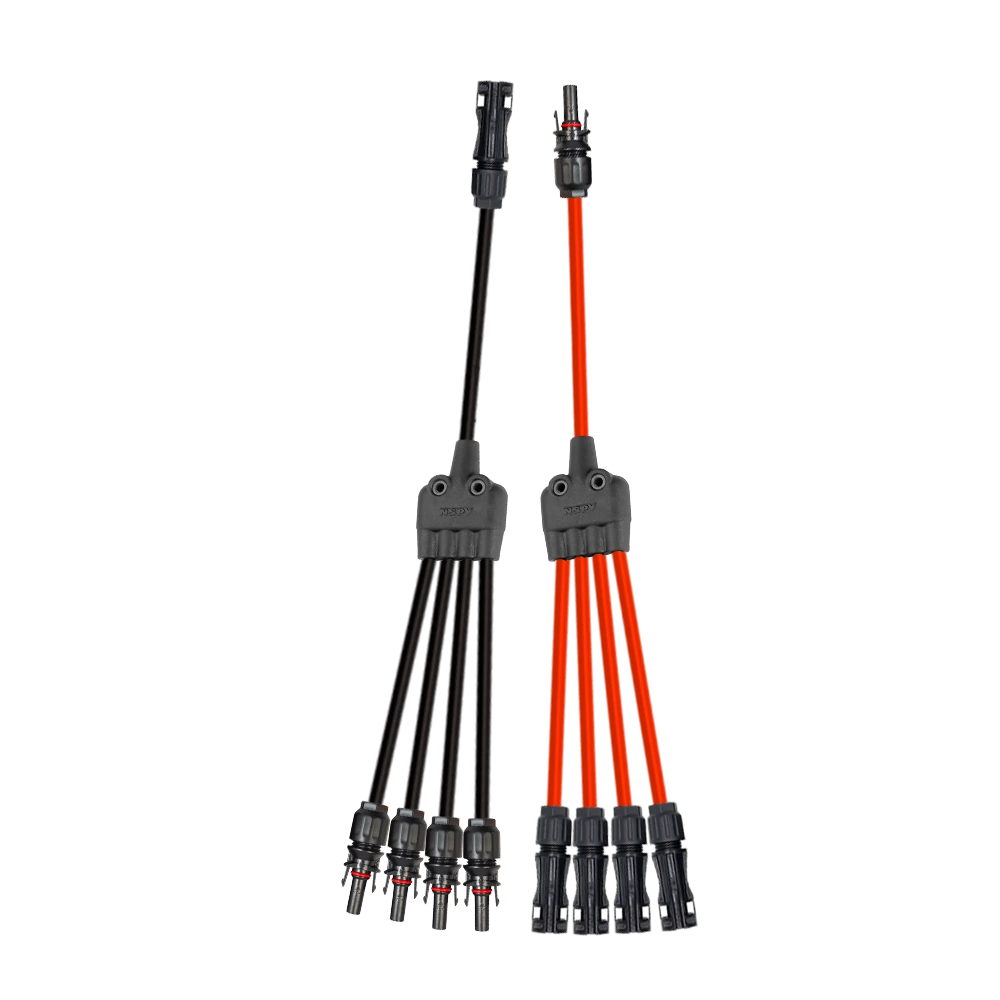

1. 4-in-1 Y Cable

Function: Combines 4 solar panels into one output, simplifying connections.
Applications: Ideal for smaller systems, such as rooftop installations.
Advantages: Reduces wiring complexity and material use.

2. 4-in-2 Y Cable

Function: Merges 4 solar panels into two outputs, allowing for unidirectional (same positive or negative) or bidirectional (positive + negative) merging.
Applications: Suitable for larger systems, reducing cable entanglement and saving space.
Advantages: More flexible, compact, and ideal for high-demand applications.

Inquiry

Write a Review

Product Introduction

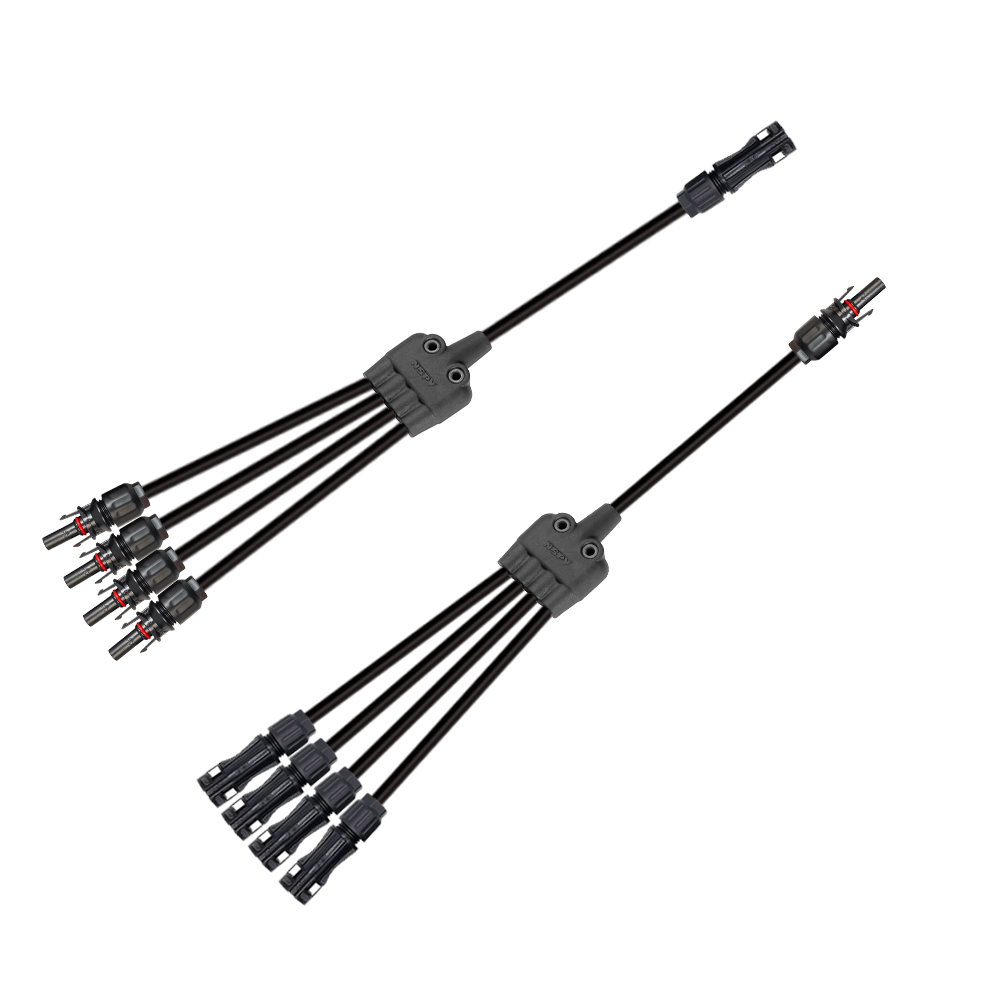

NSPV M420H and M410H 4-in-1 Y Cable Wiring Harnesses represent a pinnacle in solar panel connectivity solutions.

Designed specifically for outdoor solar installations, these harnesses combine high-quality materials with robust construction to ensure reliable and efficient power transmission.

Utilizing DC XLPE (Cross-Linked Polyethylene) tinned copper solar cables, these harnesses offer exceptional conductivity, corrosion resistance, and longevity, even in harsh environmental conditions.

Product Specifications

Cable Type:	DC XLPE tinned copper solar cable from 2.5mm² to 16mm² (14-8AWG),
Certifications:	CE, TUV compliant, adhering to international safety and quality standards (IEC62852:2014)
Voltage Options:	Available with connectors rated for 1000V and 1500V, accommodating a wide range of solar panel configurations
Connector Standards:	MC4 compatible, ensuring seamless integration with existing solar systems
Waterproof Rating:	IP68, providing complete protection against dust and long-term immersion in water up to 1 meter for 1 hour
Material:	Constructed with PPE/TPE/PA (Polyphenylene Ether/Thermoplastic Elastomer/Polyamide) for superior durability and UV resistance
Cable Size Range:	Suitable for cable cross-sections from 0.5 to 10mm² (16 to 8AWG), offering flexibility in system design

Our Features

High Conductivity: XLPE tinned copper conductors ensure minimal energy loss during transmission.
Enhanced Durability: The combination of PPE/TPE/PA materials provides excellent resistance to UV radiation, chemicals, and physical stress.
Seamless Integration: MC4 standard connectors facilitate easy and secure connections to solar panels and inverters.
All-Weather Performance: IP68 waterproof rating guarantees reliable operation in all weather conditions, from extreme heat to freezing temperatures.
Versatility: Available in configurations suitable for both 1000V and 1500V systems, these harnesses cater to diverse solar project requirements.

Our Advantages

Enhanced Durability: The combination of tinned copper conductors and high-grade insulation materials ensures these cables can withstand prolonged exposure to sunlight, moisture, and temperature fluctuations without degrading.

Improved Efficiency: The 1500VDC rating allows for longer cable runs with minimal voltage drop, optimizing energy harvest and system performance.

Safety Compliance: Meeting TUV and CE standards, these cables provide peace of mind by adhering to strict international safety protocols, reducing the risk of electrical failures or hazards.

Easy Installation: The press-fit crimp connection system simplifies installation, saving time and labor costs while ensuring secure electrical contacts (contact resistance ≤ 0.25 mΩ).

Customization Options: With a range of connector types and cable sizes (1.5mm² to 10mm² / 16AWG to 8AWG), these harnesses can be tailored to meet specific project needs, enhancing versatility.

Application

NSPV M420H and M410H 4-in-1 Y Cable Wiring Harnesses are ideal for a broad spectrum of solar applications, including residential rooftop installations, commercial solar farms, and industrial-scale solar projects. Their versatility, durability, and ease of installation make them a preferred choice for installers and system integrators seeking to optimize the performance and reliability of their solar installations.

FAQ

Q: Are the NSPV M420H and M410H harnesses compatible with all solar panels?

A: Yes, these harnesses are designed to be compatible with a wide range of solar panels, especially those utilizing MC4 connectors. However, it's always recommended to verify compatibility based on the specific panel and inverter specifications.

Q: What is the maximum operating temperature for these harnesses?

A: The harnesses can withstand temperatures up to 110°C (IEC standard), making them suitable for use in extremely hot climates.

Q: Can these harnesses be used in underwater solar installations?

A: While the harnesses have an IP68 waterproof rating, indicating they can withstand immersion in water up to 1 meter for 1 hour, they are primarily designed for outdoor terrestrial solar installations. Underwater use would require additional considerations and may not be recommended.

Q: Do these harnesses come with a warranty?

A: Warranty terms may vary depending on the manufacturer and distributor. It's advisable to inquire about the specific warranty details at the time of purchase.

Q: Are there any special maintenance requirements for these harnesses?

A: No special maintenance is required beyond regular visual inspections for signs of wear or damage. The durable construction and waterproof design minimize the need for frequent upkeep.
