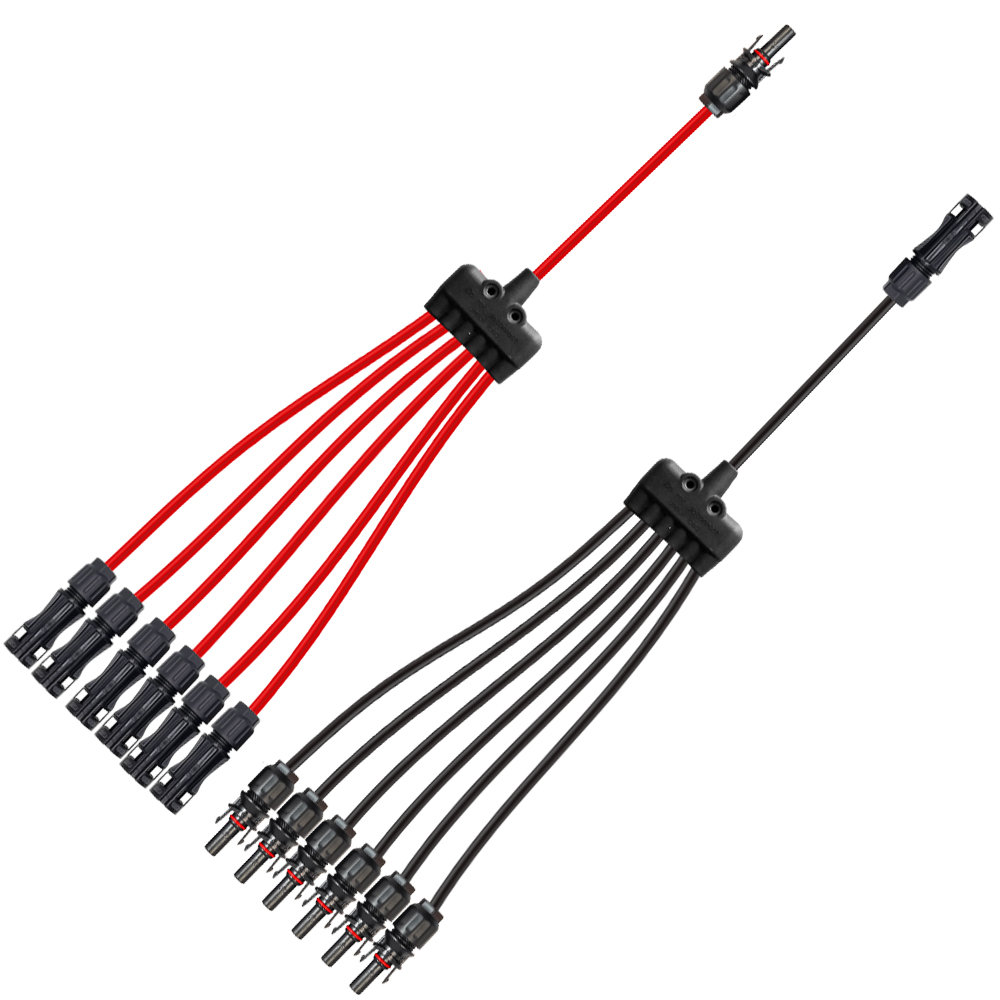

NSPV M610H Solar 6-in-1 Y Cable Harness solution 1

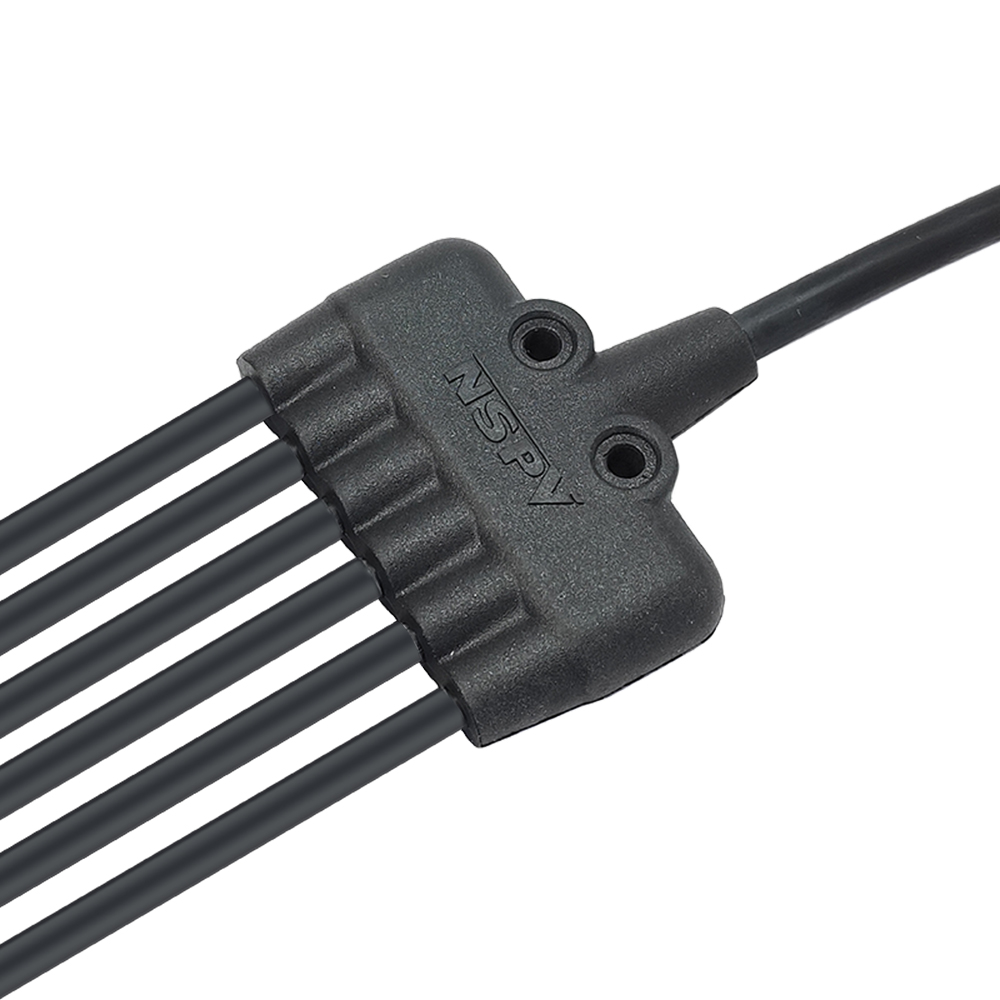

NSPV M610H Solar 6-in-1 Y Cable Harness solution 2

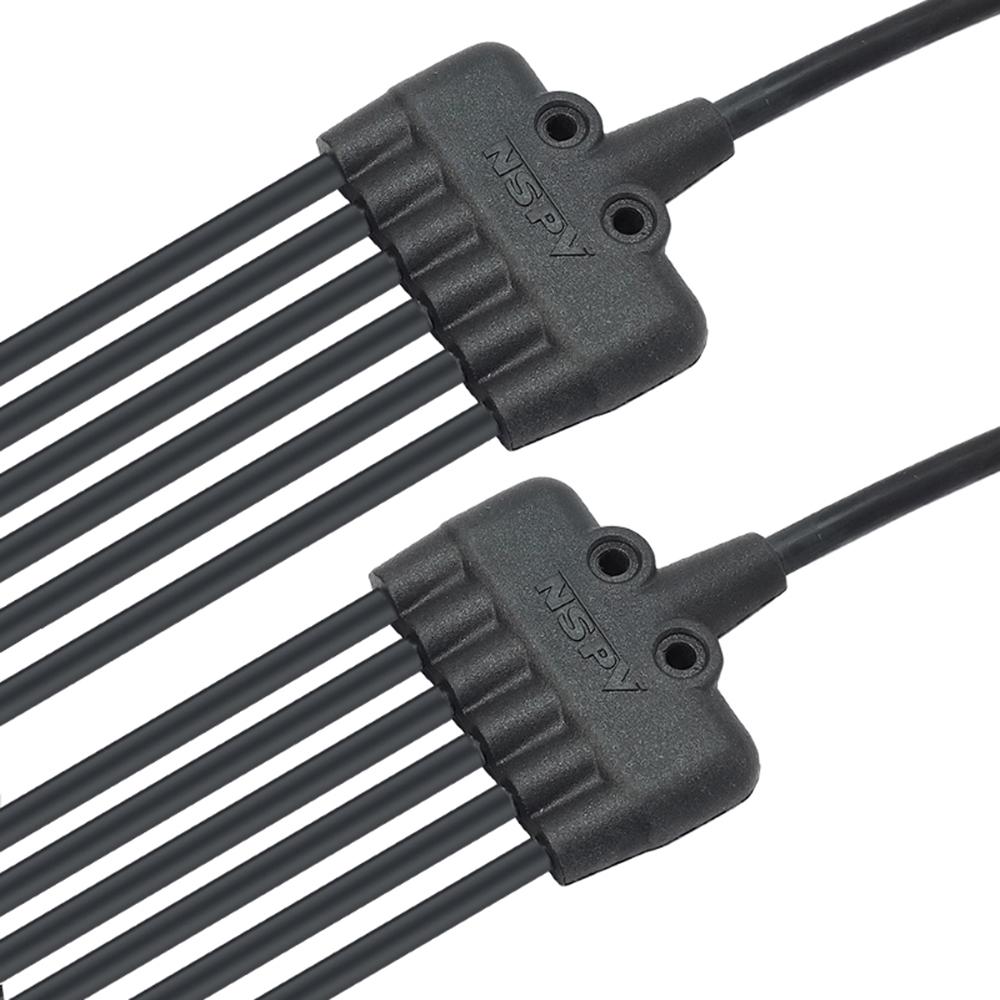

NSPV M610H Solar 6-in-1 Y Cable Harness solution 3

NSPV M610H Solar 6-in-1 Y Cable Harness solution

IP68 waterproof

XLPE Solar DC Cable Copper Tinned

UV Resistant

Various brand connectors are available

Inquiry

Write a Review

Product Introduction

The M610H 6-in-1 Y Cable Harness is part of NSPV's comprehensive range of solar cable assemblies, tailored to meet the demands of modern solar energy systems. With a rated voltage of 1500VDC and a flame class of UL94-V0, this cable harness guarantees both high electrical performance and exceptional fire resistance. Its design incorporates advanced materials and manufacturing techniques to ensure longevity and durability in solar applications.

Product Specifications

Product Connection Capability	The NSPV Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

1. High Voltage Rating: Rated for 1500VDC, making it suitable for high-voltage solar arrays.
2. Excellent Flame Resistance: Achieves a UL94-V0 flame class, providing superior fire safety.
3. UV Resistant: Designed for outdoor use with UV-resistant materials to prevent degradation from sunlight exposure.
4. Wide Temperature Range: Operates effectively within an ambient temperature range of -40℃ to +85℃, ensuring reliability in extreme climates.
5. High Protection Grade: Rated IP68 for dust and water resistance, ensuring protection against the elements even in harsh conditions.
6. Low Contact Resistance: Connector contact resistance is ≤ 0.25 mΩ, minimizing power loss and improving system efficiency.
7. Crimp Connection: Utilizes a reliable crimp connection method for secure and durable electrical connections.

Our Advantages

Enhanced System Efficiency: The low contact resistance and high-quality materials reduce power loss, improving overall system efficiency.
Increased Durability: The UV-resistant and flame-retardant properties, combined with a wide temperature range, ensure long-term durability and reliability.[资料1-第1页-阻燃等级Flame class UL
Simplified Installation: The 6-in-1 Y design simplifies cable management, reducing installation time and complexity.
Cost-Effective: By integrating multiple cables into a single assembly, the M610H reduces material costs and improves cost-effectiveness for solar projects.
Versatile Application: Suitable for a wide range of solar PV applications, including residential, commercial, and utility-scale installations.

Application

The NSPV Solar M610H 6-in-1 Y Cable Harness is widely used in various solar photovoltaic applications, including:

Residential Solar Installations: Ideal for connecting solar panels to inverters in home solar systems.
Commercial Solar Projects: Suitable for medium-scale solar installations on commercial buildings and facilities.
Utility-Scale Solar Farms: Designed to handle the high-voltage and high-capacity requirements of large-scale solar power plants.
Off-Grid Solar Systems: Provides reliable power transmission in remote and off-grid solar applications, such as rural electrification and telecommunication towers.

In summary, the NSPV Solar M610H 6-in-1 Y Cable Harness is a high-performance, durable, and cost-effective solution for solar PV systems, offering enhanced efficiency, simplified installation, and versatile application possibilities.

FAQ

Q: What is the maximum voltage the M610H can handle?

A: The M610H is rated for a maximum voltage of 1500VDC.

Q: Is the M610H suitable for outdoor use?

A: Yes, the M610H is designed for outdoor use with UV-resistant materials and a high protection grade (IP68).

Q: What is the temperature range for the M610H?

A: The M610H operates effectively within an ambient temperature range of -40℃ to +85℃.

Q: How does the M610H ensure secure electrical connections?

A: The M610H utilizes a crimp connection method, which provides secure and durable electrical connections.

Q: What certifications does the M610H have?

A: The M610H complies with TUV and CE standards, as well as IEC62852:2014 regulations.
