Rated current: 35A (4sqmm) or 65A (10sqmm)
Rated voltage: 500V AC
Suitable cable cross sections: 2.5~10 sqmm or 14~8AWG
IP68 Waterproof

TUV Certification

Inquiry

Write a Review

Product Introduction

The NSPV 3P Solar AC Connector 3 Pins is a top-tier solution for solar power systems, boasting an IP68 rating for superior dust and water resistance, ensuring reliable performance in any environment. With a maximum rated current of 65A (10sqmm) and a rated voltage of 500V AC, it delivers robust power transmission capabilities. Its typical contact resistance of ≤0.25 mΩ minimizes energy loss, enhancing overall system efficiency.

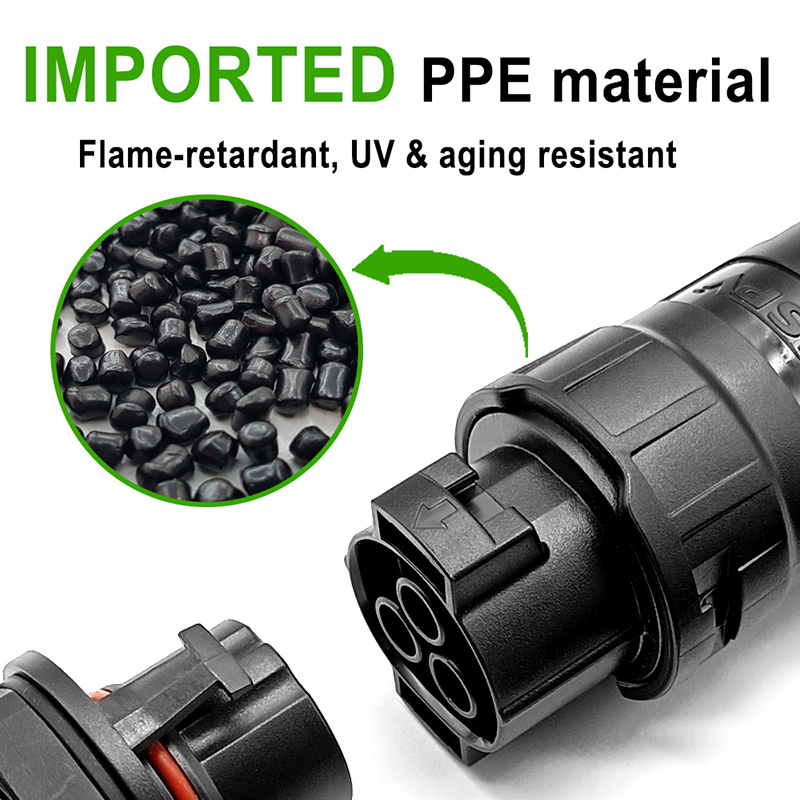

Constructed from durable PPE/PA materials, this connector withstands harsh conditions, extending its lifespan and reducing replacement costs. It accommodates wire sizes from 2.5 to 10mm² (14 to 8AWG), offering flexibility in wiring. The NSPV brand design guarantees quality and innovation.

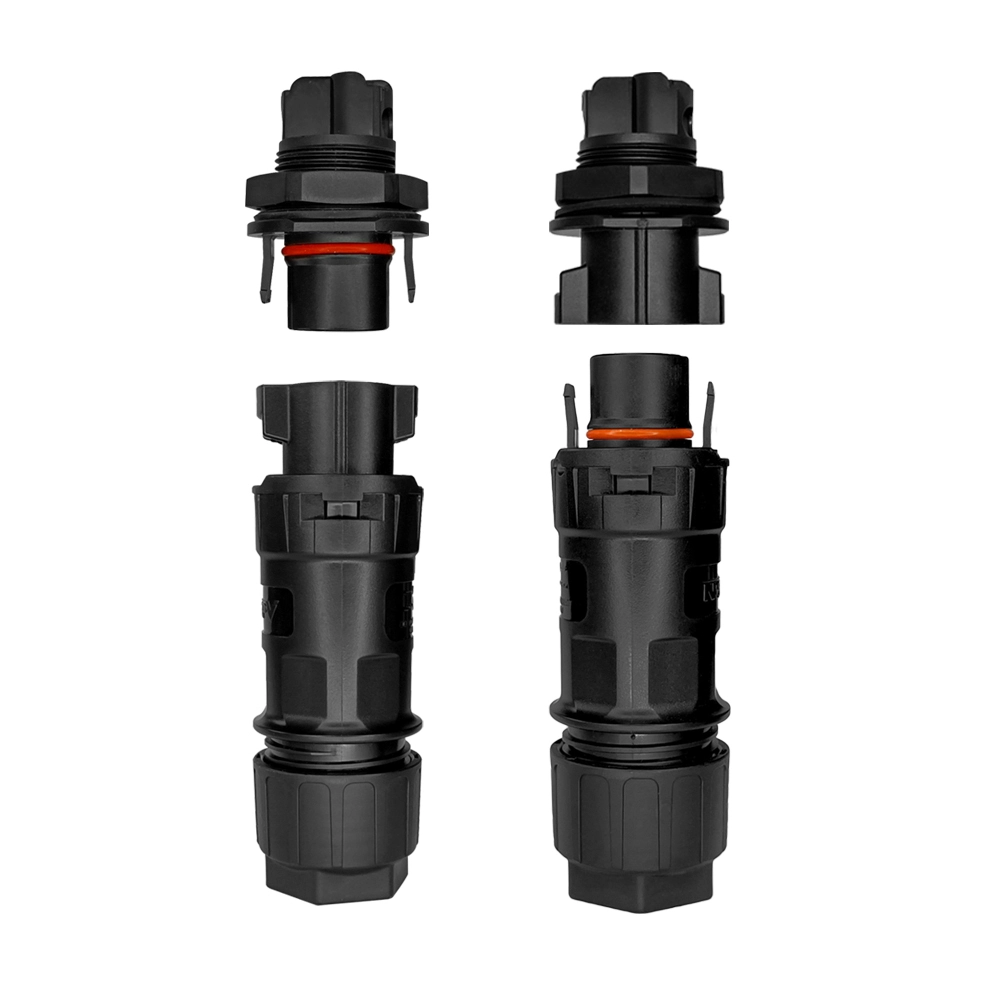

Available in four types—3PCM Cable male, 3PCF Cable female, 3PPM Panel male, and 3PPF Panel female—it simplifies installation and maintenance. Its user-friendly design facilitates easy operation, inspection, and repair, saving time and labor costs. Moreover, its efficient design reduces cable and connector usage, further cutting down on expenses. Choose the NSPV 3P Solar AC Connector for a cost-effective, reliable solar power solution.

Product Specifications

Material	Constructed from high-quality PPE/PA (Polyphenylene Ether/Polyamide) materials, the connector offers excellent durability, resistance to UV radiation, and chemical stability, ensuring longevity even in harsh environmental conditions.
Wire Size Range	Compatible with wire sizes ranging from 2.5 to 10mm² (14 to 8AWG), providing flexibility in wiring configurations.
Brand Design	The NSPV brand design signifies a commitment to quality and innovation in solar connector technology.
Types Available	The connector comes in four distinct types to cater to various installation needs.
3PCM Cable Male	Designed for connecting male cable ends.
3PCF Cable Female	For connecting female cable ends.
3PPM Panel Male	Ideal for mounting on solar panels with male connectors.
3PPF Panel Female	Suitable for panel installations requiring female connectors.

Our Features

The NSPV 3P Solar AC Connector is a robust, three-pins connector designed specifically for solar power applications. It boasts an impressive IP68 rating, ensuring complete protection against dust ingress and long-term immersion in water, making it ideal for both indoor and outdoor installations. The connector is engineered to handle a maximum rated current of 65A with a 10sqmm conductor size and a rated voltage of 500V AC, providing reliable performance in demanding solar environments. Its typical contact resistance is ≤0.25 mΩ, ensuring minimal power loss and efficient energy transfer.

Our Advantages

Upgraded Version: It's the 3 Pins AC Connectors II Version, offering an enhancement over the 3C AC Connectors I Version.
High Current Capacity: Rated for a maximum current of 35A (with 4sqmm cables).
High Voltage Rating: Supports a rated voltage of 500V AC.
Versatile Cable Compatibility: Suitable for cable cross sections ranging from 1.5 to 4 sqmm (or 16 to 12AWG).
Superior Waterproofing: Features an IP68 waterproof rating for reliable outdoor use.

Application

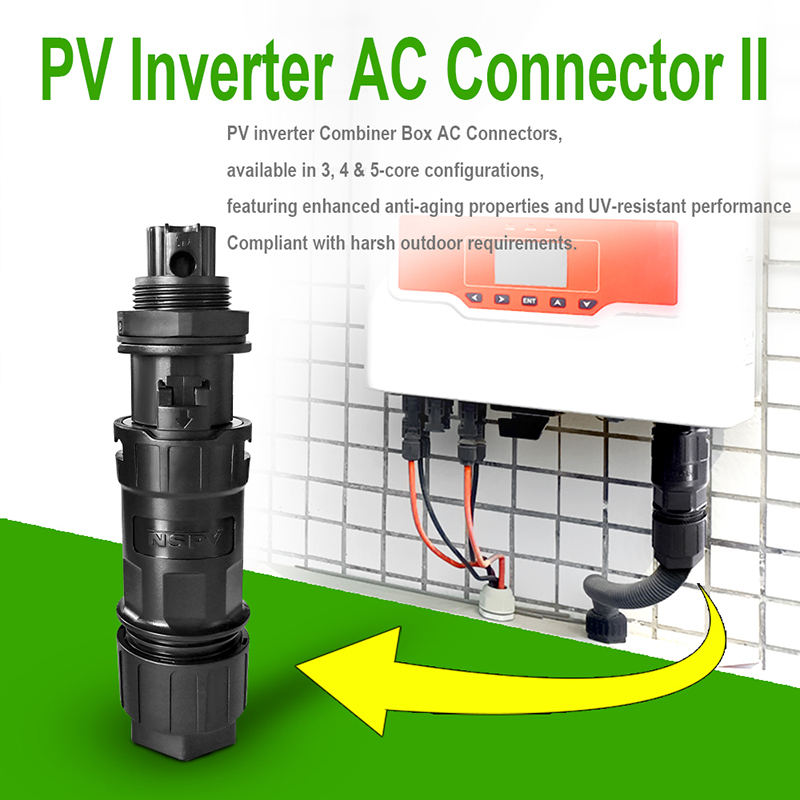

The NSPV 3P Solar AC Connector is widely used in residential, commercial, and industrial solar power systems. It is particularly suited for connecting solar panels to inverters, junction boxes, or other components within the solar array. Its robust design and high performance make it an essential component in ensuring the seamless and efficient operation of solar installations.

FAQ

What is the maximum current rating of the NSPV 3P Solar AC Connector?

The connector has a maximum rated current of 65A when used with a 10sqmm conductor.

Can this connector be used outdoors?

Yes, the IP68 rating ensures it is fully protected against dust and can withstand temporary immersion in water, making it suitable for outdoor use.

What wire sizes are compatible with this connector?

The connector is compatible with wire sizes ranging from 2.5 to 10mm² (14 to 8AWG).

How many types of this connector are available?

There are four types available: 3PCM Cable Male, 3PCF Cable Female, 3PPM Panel Male, and 3PPF Panel Female, catering to different installation requirements.

What materials are used in the construction of this connector?

The connector is made from high-quality PPE/PA materials, ensuring durability and resistance to environmental factors.
