NSPV Solar AC Connector 3C 3 pins

3PCF1 Cable Female Connector
3PPM1 Cable Male Connector
3PPM1 Panel Male Connector
Rated voltage: 500V AC, IP67 Waterproof
EN 61984 Standard
Insulation resistance ≥1000 MΩ

Inquiry

Write a Review

Product Introduction

The Solar AC Connector 3C 3 pins, IP67 rated, is a premium electrical solution tailored for solar energy systems. It features a sturdy PPE/PA material construction, ensuring durability and resilience against environmental stressors. With a rated current of Max. 35A (6sqmm) and a rated voltage of 500V AC, it supports high-power applications efficiently. Its typical contact resistance of ≤0.25 mΩ minimizes energy loss, enhancing system performance.

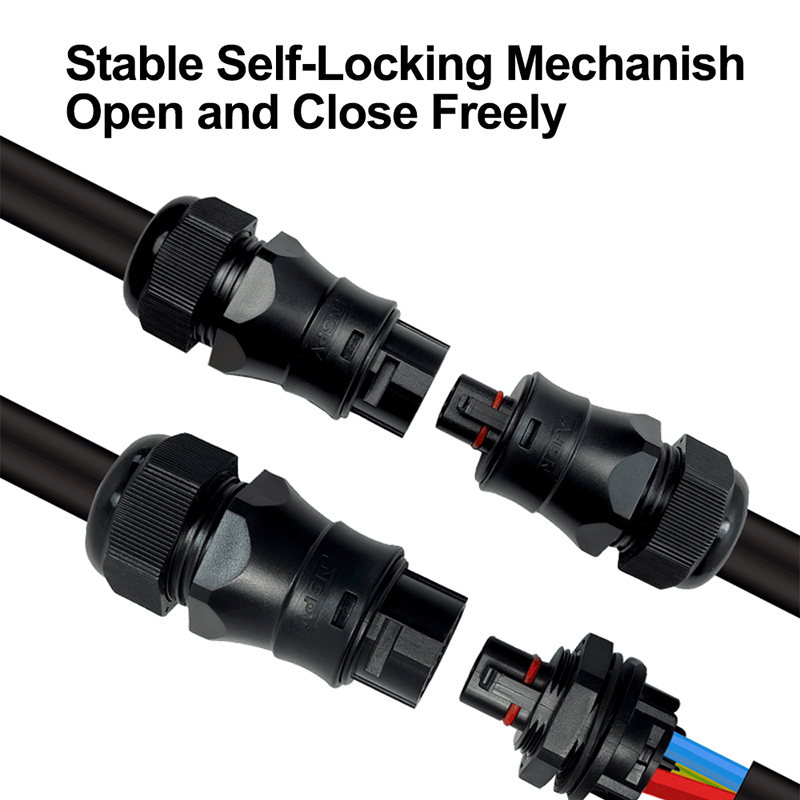

Available in three types—Cable Male, Cable Female, and Panel Male—it offers versatile installation options. The connector's IP67 rating guarantees protection against dust and water, ideal for outdoor use.

Its advantages include cost savings through reduced cable and connector usage, thanks to its efficient design. Operation and maintenance are straightforward, simplifying inspections and repairs. This not only saves time but also reduces long-term costs. Additionally, its compatibility with 2.5-6mm cables ensures flexibility in system design, further optimizing material usage. The NSPV brand design underscores its reliability and quality, making it a smart choice for both residential and commercial solar installations.

Product Specifications

Rated Current	Max. 35A (6sqmm)
Rated Voltage	500V AC
Contact Resistance	≤0.25 mΩ
Cable Size Range	2.5-6mm
Material	PPE/PA (Polyphenylene Ether/Polyamide)
IP Rating	IP67 (Dust-tight and protected against immersion in water up to 1 meter for 30 minutes)
Brand Design	NSPV

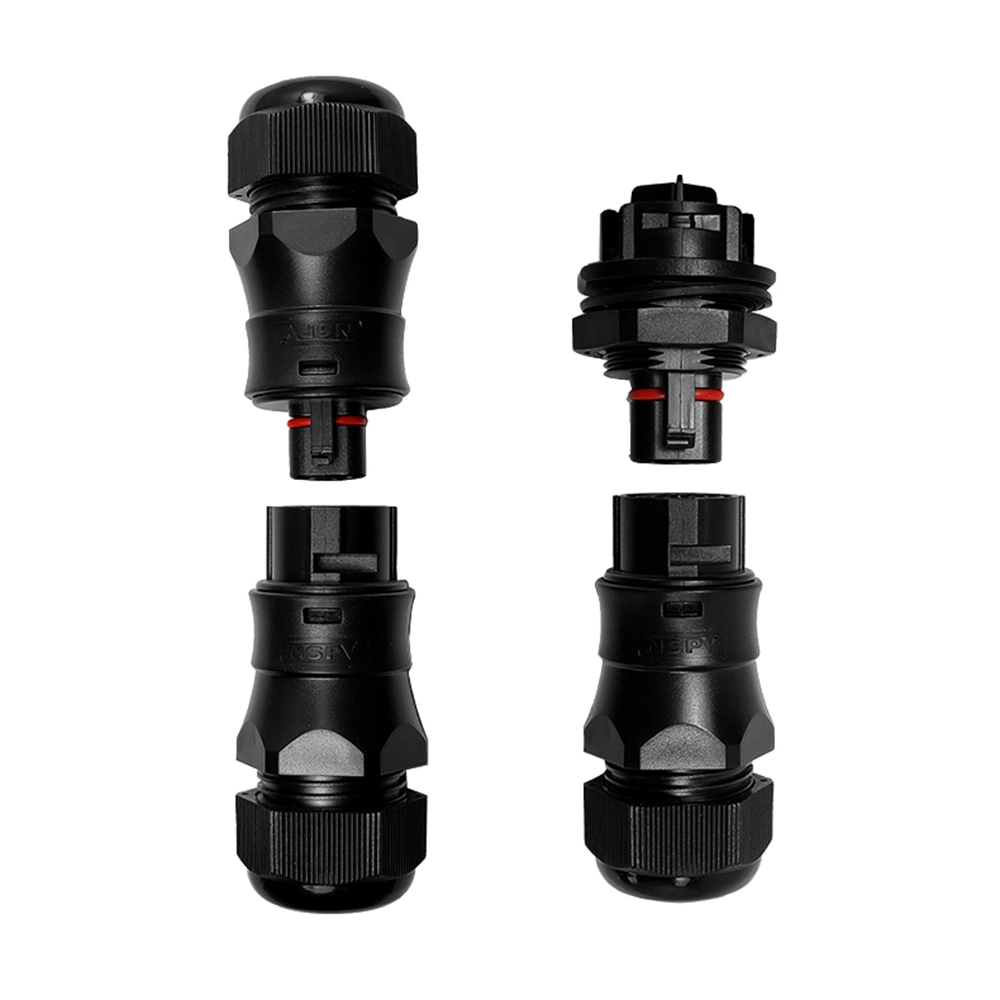

Types Available	Cable Male, Cable Female, Panel Male

Our Features

The Solar AC Connector 3C 3 pins, IP67 rated, is a high-performance electrical connector designed specifically for solar energy systems. It boasts a robust construction using advanced PPE/PA materials, ensuring durability and resistance to environmental factors. The connector is engineered to handle a maximum rated current of 35A with a 6sqmm cable, making it suitable for high-power applications. Its rated voltage of 500V AC allows for seamless integration into various solar setups. The typical contact resistance of ≤0.25 mΩ ensures minimal power loss, enhancing overall system efficiency. Available in three different types—Cable Male, Cable Female, and Panel Male—this connector offers versatility in installation and configuration.

This connector is ideally suited for residential and commercial solar installations, where reliable and efficient power transmission is crucial. It can be used to connect solar panels, inverters, and other components within the solar energy system, ensuring a secure and stable electrical connection. Its robust design and high-performance specifications make it an excellent choice for both new installations and upgrades to existing systems.

Our Advantages

1. Versatile Connectivity Options:

Features 3PCF1 Cable Female Connector, 3PPM1 Cable Male Connector, and 3PPM1 Panel Male Connector for flexible and diverse connection setups.

2. High-Performance Specifications:

Rated for 500V AC with IP67 waterproof rating, ensuring reliability and durability in various environmental conditions.

3. Compliance with International Standards:

Meets EN 61984 standard, guaranteeing quality and safety in solar applications.

4. Excellent Insulation Properties:

Insulation resistance of ≥1000 MΩ, providing superior electrical isolation and safety.

Application

FAQ

What is the maximum cable size that can be used with this connector?

The Solar AC Connector 3C is compatible with cable sizes ranging from 2.5mm to 6mm.

Is this connector suitable for outdoor use?

Yes, the connector's IP67 rating ensures it is dust-tight and protected against temporary immersion in water, making it ideal for outdoor applications.

Can this connector be used with different types of solar panels?

Absolutely, the connector's versatile design allows it to be used with various types of solar panels, provided the cable size and electrical specifications match.

What is the expected lifespan of this connector?

The use of high-quality PPE/PA materials and robust construction ensures a long lifespan, even in challenging environmental conditions. Regular maintenance and proper installation can further extend its service life.
