NSPV Solar branch fuse connector 4FBCC-15 DC1500V Y cable harness wiring solution

Fuse link*2

1A to 50A of each

This is branch fuse connectors, other solution type of Solar Y Cable Fuse Connectors, cost control

UV Resistant

Inquiry

Write a Review

Product Introduction

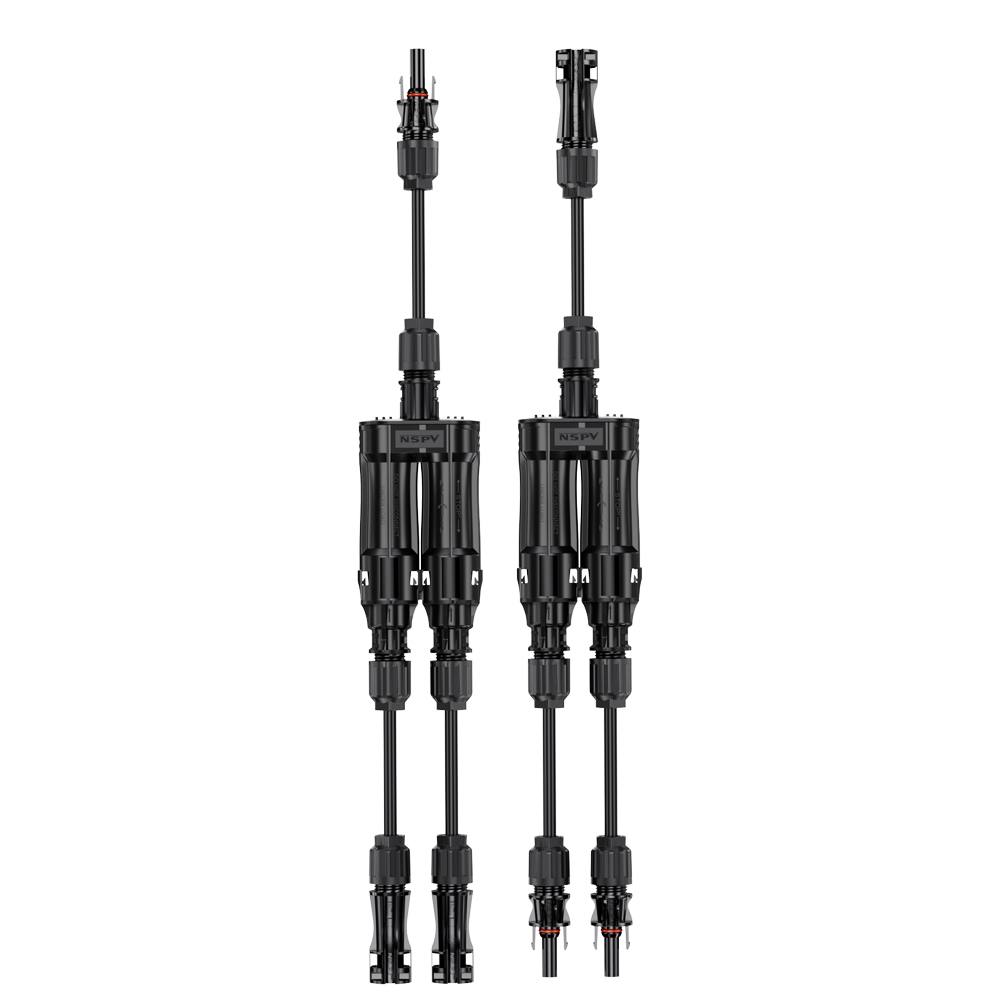

4FBCC-15 Y cable harness is engineered to combine two solar panel outputs into a single output, facilitating efficient power transmission and simplifying wiring configurations in solar installations. It features high-quality solar connectors at both ends and a fuse connector in the middle, ensuring optimal electrical performance and enhanced safety against overcurrent conditions.

Product Specifications

Product Connection Capability	NSPV 2-in-1 4FBCC-15 wiring Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

High Current and Voltage Ratings: The connector supports a maximum input current of 30A (without fuse) and a maximum output current of 60A, with a rated voltage of 1500VDC, making it suitable for high-power solar applications.
Wide Range of Fuse Options: It offers a comprehensive selection of fuse ratings from 1A to 50A, allowing for precise overcurrent protection tailored to specific system requirements.
High-Quality Materials: The insulation material is PPE/PA, known for its excellent electrical insulation properties and resistance to environmental degradation. The metal conductors are made of copper, plated with tin for enhanced conductivity and corrosion resistance.
Robust Design: The connector is designed to withstand harsh environmental conditions, with an operating temperature range of -40℃ to +85℃ (IEC standard) and a flame class rating of UL94-V0, ensuring fire safety.
IP68 Protection Rating: It provides dust-tight and waterproof protection, making it suitable for outdoor installations in various climates.

Our Advantages

Enhanced Safety: The built-in fuse protection prevents damage to solar panels and other system components by interrupting the circuit in case of overcurrent, reducing the risk of fire and electrical hazards.
Improved System Efficiency: By combining two inputs into one output, the Y cable harness reduces wiring complexity and minimizes power losses, enhancing overall system efficiency.
Versatility: The wide range of fuse options allows for flexible configuration and customization according to the specific needs of different solar installations.
Durability: The high-quality materials and robust design ensure long-term reliability and performance, even in challenging environmental conditions.

Fuse Link*2, 1A to 50A of Each

The product includes two fuse links, each available in ratings from 1A to 50A. This dual-fuse configuration provides redundant protection, ensuring that if one fuse fails, the other can still provide overcurrent protection, enhancing system safety and reliability.

Application

The NSPV Solar Branch Fuse Connector 4FBCC-15 DC1500V Y Cable Harness Wiring Solution is ideal for use in residential, commercial, and industrial solar PV systems. It is particularly suitable for installations where multiple solar panels need to be connected in parallel, providing a safe and efficient solution for power transmission and overcurrent protection.

FAQ

Q: What is the maximum voltage and current rating of the connector?

A: The connector has a rated voltage of 1500VDC and supports a maximum input current of 30A (without fuse) and a maximum output current of 60A.

Q: What materials are used in the construction of the connector?

A: The insulation material is PPE/PA, and the metal conductors are copper, plated with tin.

Q: What is the operating temperature range of the connector?

A: The connector can operate within a temperature range of -40℃ to +85℃ (IEC standard).

Q: How does the fuse protection work?

A: The built-in fuses interrupt the circuit in case of overcurrent, preventing damage to solar panels and other system components.

Q: Is the connector waterproof?

A: Yes, the connector has an IP68 protection rating, making it dust-tight and waterproof.
