Product Introduction

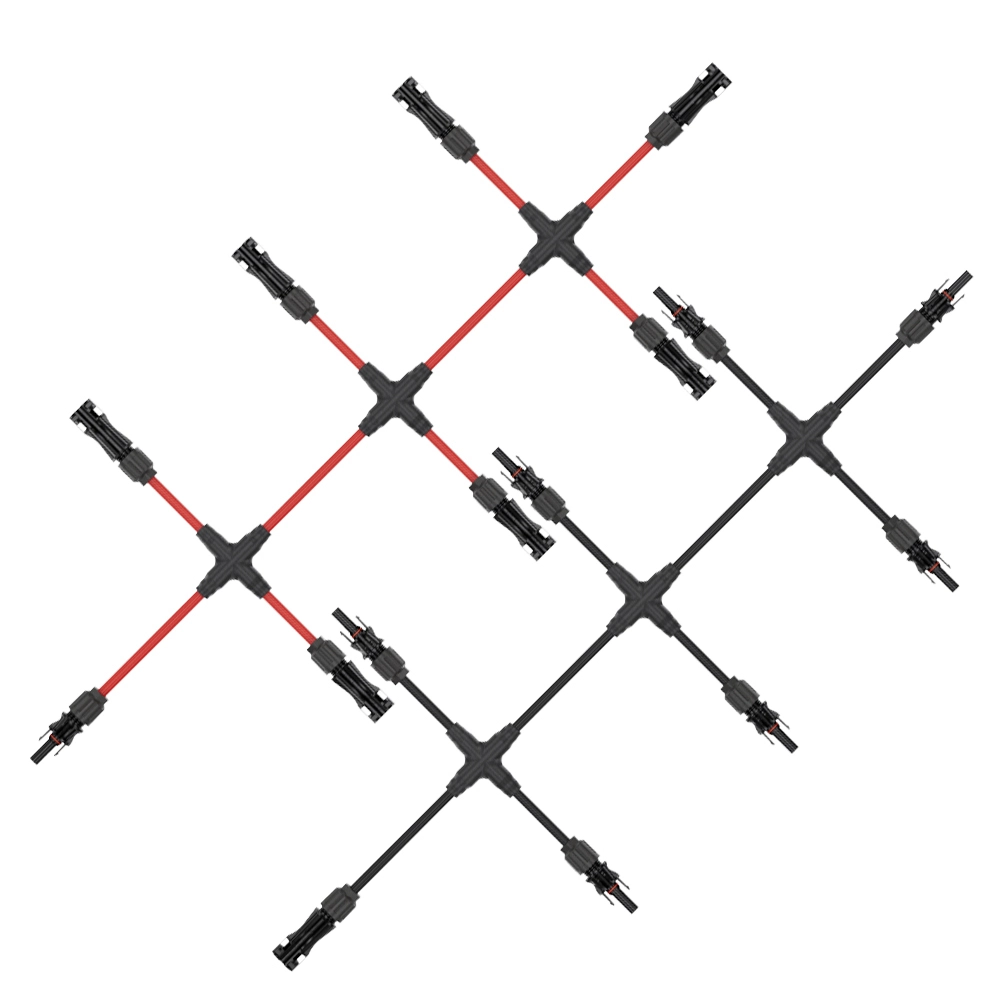

NSPV Solar DC Y Cable Cross310T Wiring Harness is engineered to meet the demanding requirements of modern solar installations. It features a 1500VDC rated voltage, making it suitable for high-voltage solar arrays. The harness is constructed with high-quality insulation materials such as PPE, TPE, or PA, which provide excellent resistance to environmental factors like UV radiation, moisture, and temperature extremes. Additionally, it boasts a flame class rating of UL94-V0, ensuring superior fire safety.

Product Specifications

Product Connection Capability	NSPV Y Cable Wiring Harness Cross supports a wide range of cable sizes, from 2.5mm² to 16mm² (14 to 8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

High Voltage Rating: Rated for 1500VDC, enabling it to handle the output of high-power solar panels.
Excellent Insulation: Utilizes PPE, TPE, or PA insulation materials for enhanced durability and resistance to environmental stressors.
Fire Safety: Meets UL94-V0 flame class standards, reducing the risk of fire propagation.
High Impulse Voltage Resistance: Withstands rated impulse voltages up to 16KV, protecting against voltage surges.
UV Resistant: Designed for outdoor use with UV-resistant properties, ensuring long-term performance in sunny climates.
Wide Temperature Range: Operates effectively in ambient temperatures ranging from -40℃ to +85℃, suitable for various geographical locations.
Robust Connection: Features crimp connections with copper, tin-plated contact materials for low contact resistance (≤ 0.25 mΩ) and reliable electrical conductivity.
High Protection Rating: IP68 rated, providing protection against dust ingress and temporary immersion in water.

Our Advantages

Enhanced System Efficiency: The high voltage rating and low contact resistance minimize power losses, improving overall system efficiency.
Increased Safety: The flame-resistant insulation and high impulse voltage resistance enhance system safety, reducing the risk of electrical fires and equipment damage.
Durability and Longevity: The UV-resistant and temperature-stable materials ensure long-term performance, even in harsh outdoor environments, reducing maintenance costs and downtime.
Versatility: Available in various configurations, including 2+ and 3+ Y-connectors, it accommodates different solar array layouts and connection requirements.
Easy Installation: The crimp connection system simplifies installation, saving time and labor costs during system setup.

Application

The NSPV Solar DC Y Cable Cross310T Wiring Harness is ideal for use in residential, commercial, and utility-scale solar PV systems. Its high voltage rating and robust design make it suitable for connecting multiple solar panels in series or parallel configurations, facilitating efficient power transmission to the inverter. The availability of 2+ and 3+ Y-connectors allows for flexible system design, accommodating various array layouts and connection requirements. Whether in sunny deserts or cold northern regions, this wiring harness ensures reliable and safe operation, contributing to the overall success and longevity of solar installations.

FAQ

Q: What is the maximum voltage this wiring harness can handle?

A: The NSPV Solar DC Y Cable Cross310T Wiring Harness is rated for a maximum voltage of 1500VDC.

Q: Is this wiring harness suitable for outdoor use?

A: Yes, it is designed for outdoor use with UV-resistant properties and a wide operating temperature range.

Q: What is the flame class rating of this product?

A: The product meets UL94-V0 flame class standards, indicating excellent fire resistance.

Q: Can this wiring harness be used in cold climates?

A: Yes, it operates effectively in ambient temperatures as low as -40℃.

Q: What types of connectors are available for this wiring harness?

A: The wiring harness is available in various configurations, including 2+ and 3+ Y-connectors, to accommodate different connection needs.
