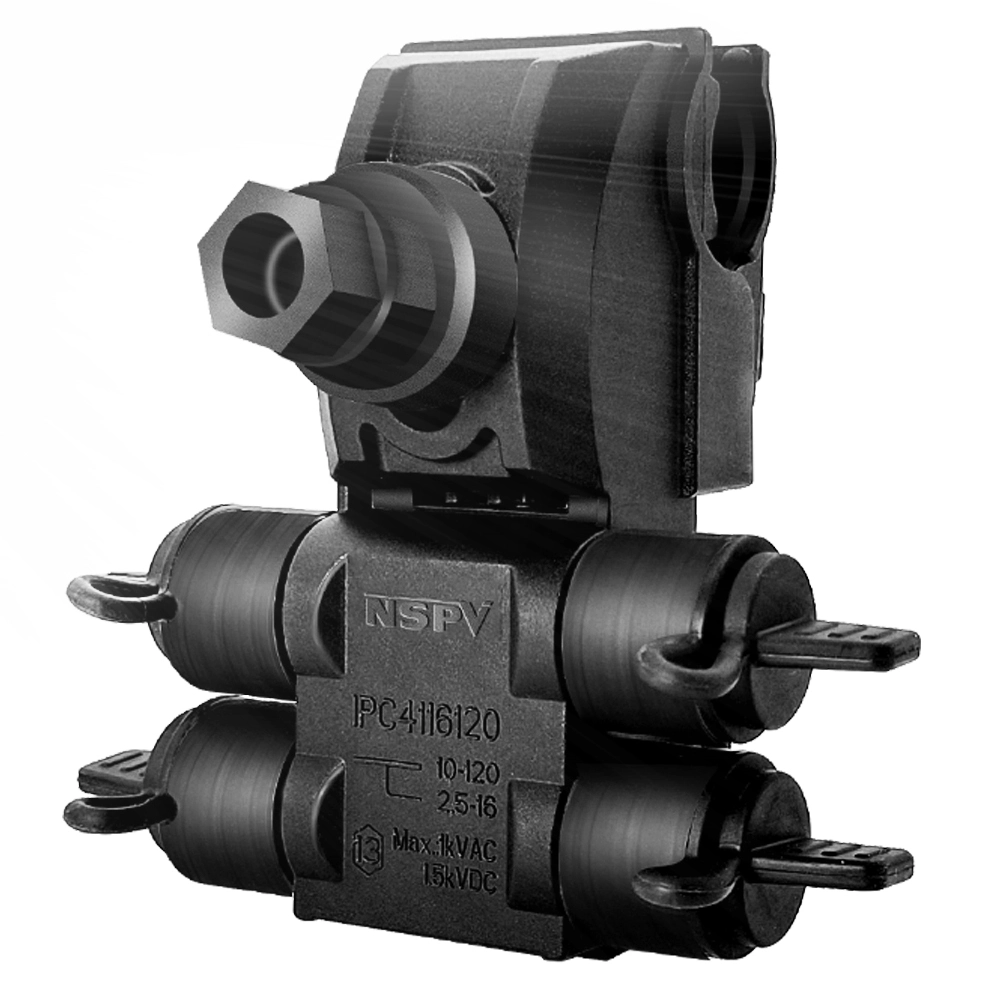

NSPV Solar DC Insolation Piercing Connector (IPC Connectors) IPC4116120

IP65 Waterproof

Main DC Cable:

10-120mm² (Al/CU) or
8-4/0 AWG or
19.7 -211.6 MCM

Tap DC Cable*4 size:

2.5~16mm² (OD Max.9.0) or
14-6 AWG or
4.9 -31.6 MCM

Inquiry

Write a Review

Product Introduction

The NSPV Brand New Solar Isolation Piercing Connector is a premium choice for solar power systems, offering IP65-rated protection with voltage options of AC 1000V and DC 1500V. Its typical contact resistance is ≤5 mΩ, ensuring minimal power loss and optimal energy transfer. Constructed from durable PA/CU materials, this connector features an innovative NSPV brand design that guarantees reliability and performance.

It accommodates a wide range of cable cross sections, with tap connections supporting 2.5 to 16mm² (OD Max. 9.0) and main connections handling 10 to 120mm² for both aluminum and copper conductors. This versatility simplifies installation and reduces inventory costs.

The connector's benefits are manifold. It saves costs by eliminating the need for stripping insulation, speeding up installation. Its high safety performance, UV resistance, and waterproof capabilities ensure long-term durability, even in harsh outdoor environments, reducing maintenance expenses and enhancing system reliability. Choose NSPV for a cost-effective, safe, and efficient solar connection solution.

Product Specifications

Constructed from high-quality PA/CU materials, the connector exhibits exceptional durability and electrical conductivity. The typical contact resistance is ≤5 mΩ, minimizing power loss and ensuring optimal energy transfer. It supports a variety of cable cross sections: for the tap connection, it accommodates cables ranging from 2.5 to 16mm² with a maximum outer diameter (OD) of 9.0mm, while the main connection supports cables from 10 to 120mm², compatible with both aluminum (Al) and copper (CU) conductors. This versatility makes it suitable for diverse solar setups.

Our Features

The NSPV Brand New Solar Isolation Piercing Connector is a cutting-edge solution designed to enhance the efficiency and reliability of solar power systems. Engineered with precision, this connector is IP65 rated, ensuring it is dust-tight and protected against low-pressure water jets from any direction, making it ideal for outdoor solar installations. Available in two voltage variants, AC 1000V and DC 1500V, it caters to a wide range of solar applications, from residential rooftops to large-scale solar farms.

Our Advantages

Best Voltage Rating: Supports both 1500V DC and 1000V AC, suitable for a wide range of solar power applications.
Low Contact Resistance: With a contact resistance of ≤ 5 mΩ, it ensures efficient power transmission with minimal energy loss.
Quality Contact Material: Made of tinned copper, providing excellent conductivity and corrosion resistance.
Excellent Protection Level: Features an IP65 protection rating, safeguarding against dust and water ingress for reliable outdoor use.
Strong Nut Cap Locking Force: With a locking force greater than 12Nm, it ensures secure and stable connections, preventing accidental disconnections.

Application

NSPV IPC4116120 Solar Insulation Piercing Connector is a revolutionary component in the solar energy sector, designed to streamline electrical connections with unparalleled efficiency. Its primary application lies in solar photovoltaic (PV) systems, where it serves as a reliable junction for connecting solar panels to the electrical grid or battery storage systems.

NSPV IPC4116120 connector stands out for its insulation - piercing capability, eliminating the need for stripping wire insulation, thus saving time and reducing the risk of electrical faults. It is engineered to handle both DC1500V and AC1000V, making it versatile for various solar power setups.

In DC - based solar arrays, it ensures a secure connection for high - voltage DC power transmission from panels to inverters.

For AC - side applications, it seamlessly integrates into the grid - connection process, facilitating the safe transfer of alternating current. Its robust design guarantees long - term durability, even in harsh environmental conditions, ensuring uninterrupted solar power generation and distribution.

FAQ

What makes NSPV IPC4116120 Solar Isolation Piercing Connector different from other connectors?

The NSPV connector stands out due to its piercing mechanism, which simplifies installation, and its IP65 rating, ensuring robust protection against environmental factors. Its low contact resistance and compatibility with a wide range of cable sizes further enhance its appeal.

Can this connector be used with both aluminum and copper cables?

Yes, the NSPV Solar Isolation Piercing Connector is designed to work with both aluminum and copper conductors, providing flexibility in cable selection for different solar applications.

Is the connector easy to install?

Absolutely. The piercing mechanism eliminates the need for stripping insulation, making installation quick and straightforward. Additionally, the connector's design ensures a secure fit, reducing the risk of loose connections.

What voltage ratings are available for this connector?

The NSPV Solar Isolation Piercing Connector is available in two voltage variants: AC 1000V and DC 1500V, catering to different solar system requirements.

How does the IP65 rating benefit the connector?

The IP65 rating ensures that the connector is dust-tight and protected against low-pressure water jets, making it suitable for outdoor use and extending its lifespan by protecting it from environmental damage.
