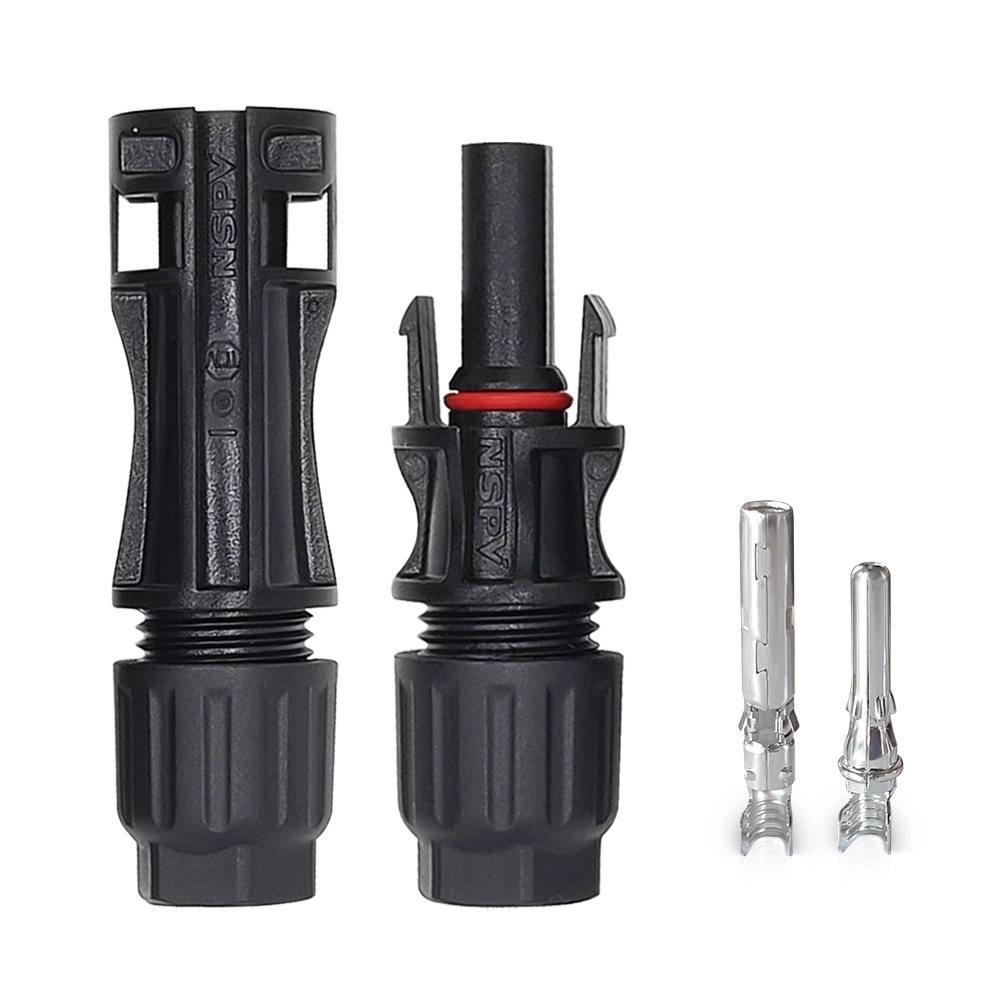

NSPV Solar Cable Connector 1500V DC IP68 1

NSPV Solar Cable Connector 1500V DC IP68 2

NSPV Solar Cable Connector 1500V DC IP68 3

NSPV Solar Cable Connector 1500V DC IP68 4

NSPV Solar Cable Connector 1500V DC IP68 5

NSPV Solar Cable Connector 1500V DC IP68

DC1500V Cable Connector Compatible MC type

2.5sqmm or 14AWG:35A

4sqmm or 12AWG : 45A

6sqmm or 10AWG : 55A

10sqmm or 8AWG : 60A

16sqmm or 6AWG : 75A

IP68 Waterproof

TUV, IEC, ETL sertification

Inquiry

Write a Review

Product Introduction

The NSPV Solar DC1500V Cable Connector is engineered for high-performance solar systems, combining cutting-edge reliability with cost efficiency. Rated for 1500V DC and supporting currents up to 65A (for 16mm²/6AWG cables), it optimizes power transmission in large-scale installations while reducing cabling costs by up to 30%. Its IP68-rated, dustproof, and waterproof design ensures uninterrupted operation in extreme environments, from coastal areas to arid deserts, safeguarding against moisture, dust, and UV degradation.

Product Specifications

Rated Voltage	1500V DC
Rated Current	30A–100A (model-dependent)
Test Voltage	8kV (50Hz, 1min)
Contact Resistance	≤0.25mΩ
Cable Cross-Section	2.5–16mm² (14–6AWG)
Locking Mechanism	Nut cap with 1.5–1.8Nm torque for secure connections
Operating Temperature	-40°C to +85°C (IEC standard)
Contacts	Copper with tin plating for corrosion resistance
Insulation	PPE/PA (flame-retardant, UV-stabilized)
Safety Class	II (double insulation)

Our Features

The NSPV Solar Cable Connector 1500V DC is engineered for high-voltage solar energy systems, offering robust compatibility with modern photovoltaic (PV) installations. Key features include:

● High Voltage & Current Capacity: Rated for 1500V DC and currents up to 65A (with some models supporting 100A), enabling efficient power transmission in large-scale solar farms and industrial setups.

● IP68 Waterproof & Dustproof: Fully sealed design ensures reliability in harsh environments, including coastal, desert, or rainy climates.

● UV Resistance: Constructed with outdoor-grade materials (PPE/PA insulation) to withstand prolonged sunlight exposure without degradation.

● Universal Compatibility: Matches MC4/EVO connector standards, facilitating seamless integration with existing PV systems.

● TUV & IEC Certified: Meets international safety and performance benchmarks, including flame resistance (UL94-V0) and impulse voltage tolerance (up to 16kV).

Our Advantages

Diverse Tin-Plated Terminal Options:

We offer three types of tin-plated terminals, including full copper, half-copper half-aluminum, and full aluminum, catering to various application requirements and cost considerations.

Customizable Terminal Designs Based on Cable Size: Our terminals are available in both hollow and solid versions, tailored to match the specific sizes of photovoltaic cables. The available sizes include:

2.5mm² or 14AWG
4mm² or 12AWG
6mm² or 10AWG
10mm² or 8AWG
16mm² or 6AWG

Application

● Utility-Scale Solar Farms: Ideal for 50kW–10MW projects requiring high-voltage, low-loss power transmission.

● Industrial & Commercial Rooftops: Handles dense panel arrays with minimal voltage drop.

●

● Agrivoltaics: Withstands agricultural environments (e.g., dust, humidity) without performance loss.

FAQ

Can this connector be used with 1000V DC systems?

Yes, it is backward compatible with lower-voltage systems but is optimized for 1500V DC to future-proof installations.

What cable types are compatible?

Supports 1.5–16mm² (16–6AWG) PV cables, including standard 4/6sqmm and 10/12AWG variants.

Is it suitable for marine or coastal environments?

Absolutely. The IP68 rating and UV-resistant materials ensure resistance to saltwater corrosion and sunlight exposure.

How does it compare to generic connectors?

NSPV connectors offer higher current ratings, stricter certifications (TUV/IEC), and a 50% longer lifespan due to superior materials and testing.

Where can I purchase these connectors?

We maintain a safety stock to ensure prompt availability. Orders can be placed directly through our factory for bulk purchases or expedited shipping. Alternatively, you may contact our authorized agents worldwide for localized procurement and after-sales support.
