Company Advantages
· With well-selected materials, NSPV cable harness assembly boasts a pretty impressive set of features.
· The quality of this product is under the supervision of highly experienced QC team.
· It enjoys high popularity and reputation among its rival products of the same trade from home and abroad.
Product Introduction
NSPV Solar PV Panel Y Cable Harness series connected solution is a premium choice for solar installations, boasting an IP68 rating for robust protection against dust and water ingress, ensuring durability in harsh outdoor environments. With a high voltage capacity of 1500V DC, it supports efficient power transmission over longer distances, reducing the need for additional components and thus cutting costs. The harness features XLPE level insulation, offering superior flame resistance and low smoke emission, enhancing safety significantly.
Constructed with tinned copper cables, it exhibits low electrical resistance, ensuring excellent conductivity and minimizing power loss. This translates to improved energy efficiency and performance of the solar PV system. The NSPV Brand design supports a wide cable size range (2.5~16mm² / 14-8AWG), providing flexibility in installation. Compliant with TUV IEC ETL standards, it guarantees quality and reliability, making it a cost-effective and safe solution for maximizing solar energy output.
Product Specifications
|
Products Type |
NSPV Y Cable Harness Series |
|
Cable |
Copper Tinned, XLPE |
|
2 to 1 Branch |
H type, T type, Y type |
|
3 to 1 Branch |
Y type, + Type ( Cross Type harness) |
|
4 to 1 Bracnh |
H type, BIPV |
|
4 to 2 Bracnh |
H type, BIPV |
|
5 to 1 Bracnh |
H type, BIPV |
|
6 to 1 Bracnh |
H type, BIPV |
|
Product Connection Capability |
Cable sizes, from 2.5mm² to 16mm² (14 to 8AWG), |
|
Voltage Rating |
1500V DC |
|
IP Rating |
IP68 |
|
Certificate |
TUV, CE, ETL |
|
Certification |
Compliant with TUV IEC standards, ensuring quality and reliability. |
Our Features
The NSPV Solar PV Panel Y Cable Harness is a cutting-edge solution designed for efficient and reliable series connection of solar photovoltaic (PV) panels. Engineered with precision, this harness boasts an IP68 rating, ensuring it is completely dust-tight and protected against the effects of immersion in water up to a specified depth, making it ideal for outdoor installations in diverse weather conditions. It supports a high voltage of 1500V DC, catering to the demands of modern solar systems that require enhanced energy efficiency and reduced transmission losses. The harness is constructed using XLPE (Low Smoke Zero Halogen Cross-Linked Polyethylene) level insulation, which offers superior flame resistance and low smoke emission, enhancing safety during operation. The tinned copper cable used in the harness provides excellent conductivity and corrosion resistance, ensuring long-term durability and optimal performance.
Our Advantages
Versatile Y Cable Harness Series:

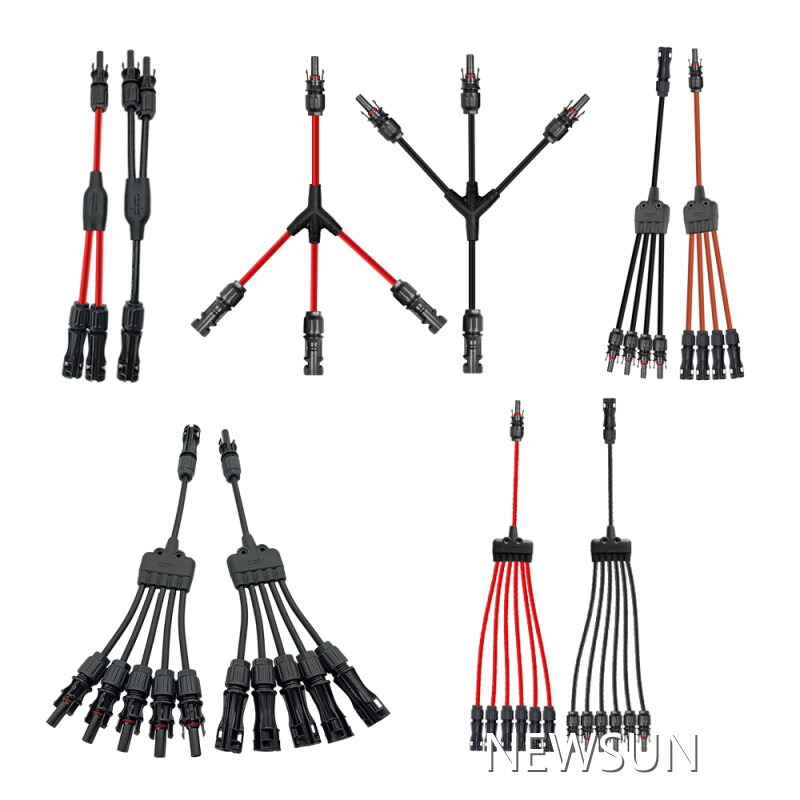

- Offers multiple configurations including 2-in-1, 3-in-1, 4-in-1, 5-in-1, 6-in-1, as well as 4-in-2, 5-in-2, and 6-in-2 options, catering to diverse wiring needs.
Wide Range of Connectors and Terminals:
- Provides a variety of connectors and terminals to choose from, ensuring compatibility with different solar system setups.
Customizable Solutions:
- Accepts ODM (Original Design Manufacturing) and OEM (Original Equipment Manufacturing) orders, allowing for tailored solutions to meet specific customer requirements.
Flexible Branch Cable Sizes:
- Branch cable sizes range from 2.5mm² to 6mm² (or 14AWG to 10AWG), offering flexibility in wiring configurations for different solar panel connections.
Robust Main Cable Sizes:
- Main cable sizes span from 4mm² to 16mm² (or 12AWG to 6AWG), ensuring reliable power transmission and durability in solar installations.
Comprehensive and Integrated Solution:
- Combines a versatile Y cable harness series with a wide selection of connectors and terminals, providing a one-stop solution for efficient and reliable solar wiring.
Application
NSPV Solar Y Cable Harness Series is designed for efficient parallel connection and current collection in photovoltaic systems. It is widely used for connecting multiple PV module strings, combining DC power outputs, and optimizing cable routing between PV arrays and inverter systems.
With various configurations including 2-to-1, 3-to-1, 4-to-1, 4-to-2, 5-to-1, and 6-to-1 harness solutions, as well as customized Y-type, T-type, and cross-type designs, NSPV provides flexible connection solutions for residential, commercial, industrial, and utility-scale solar installations.
These pre-assembled PV cable harnesses simplify installation, reduce system wiring complexity, and ensure reliable parallel connection performance in different solar array layouts.
FAQ
Company Features
· NEWSUN PV TECHNOLOGY CO., LTD excels in cable harness assembly designing, manufacturing, and marketing. We have earned our reputation as one of the leading manufacturers in the industry.
· NSPV has implemented advanced technology to achieve the standard of producing cable harness assembly. Our cable harness assembly are all produced by the top technology and equipment in this field which has a strong foundation for the upgrading of high-end products. cable harness assembly is not only reflected in NSPV's products and technologies, but also reflected in our strategy and business model.
· NEWSUN PV TECHNOLOGY CO., LTD will showcase new images and lead new trend in the future. Contact!
Product Comparison
Compared with other similar products, our cable harness assembly has the following advantages.
