Car Fuse Connector by NSPV
Product details of the car fuse connector
Product Information
NSPV car fuse connector is produced in strict accordance with international production specification and standards. The product is under a strict and complete quality control system. NEWSUN PV TECHNOLOGY CO., LTD is able to provide quality services to customers at the lowest cost.
Product Introduction

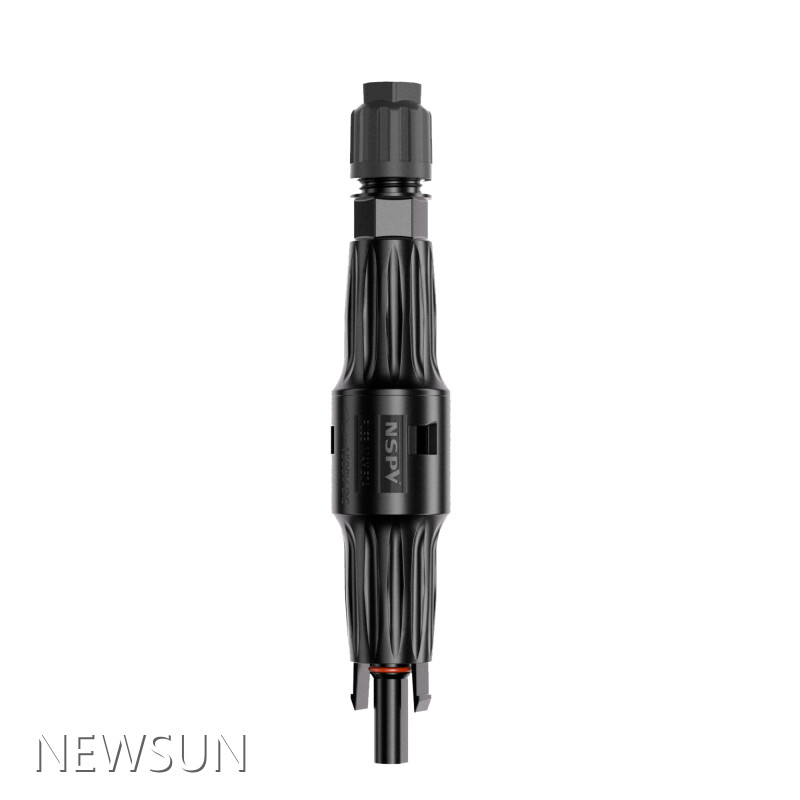

NSPV PV In-line Fuse Connector 4F3-15 delivers reliable and efficient protection for high-performance PV systems.
Designed for 1500V DC applications, it supports a wide fuse range from 1A to 50A with both 10×85mm and 14×85mm fuse compatibility, offering flexible solutions for different solar project requirements.
With IP68 waterproof protection, premium UV-resistant materials, and TÜV & ETL certification, it ensures enhanced safety, durability, and easy maintenance for long-term PV system reliability.
Product Specifications
Voltage Rating | 1500V DC |
Current Rating | Max 50A |
Waterproof Rating | IP68 |
Cable Size | 2.5 to 16mm² |
Material | Made from high-quality PPE/PA materials, known for their durability and resistance to environmental factors. |
Design | Features a patented design that ensures secure connections and easy installation. |
Certifications | Compliant with TUV and ETL standards, ensuring safety and reliability. |
Types Available | Universal MC4 Connection Compatible |
4F3 | Cable and Female connector |
Our Features
NSPV Solar DC Fuse Connector 1500V is engineered to provide reliable and safe electrical connections in solar photovoltaic (PV) systems. This cable-type connector is designed to withstand high voltage and current, ensuring optimal performance in demanding environments. With an IP68 waterproof rating, it offers exceptional protection against dust and water ingress, making it suitable for both indoor and outdoor applications. The connector supports a maximum current of 50A, ensuring compatibility with a wide range of solar setups.
Our Advantages
NSPV 4F0-1500V DC: Male & Female Connectors - This variant features both male and female connectors designed for 1500V DC applications, ensuring secure and reliable connections.
NSPV 4F1-1500V DC: Cable to Male Connector - This model includes a cable paired with a male connector, facilitating easy integration into solar DC systems at 1500V.
NSPV 4F2-1500V DC: Cable to Cable Connector - It offers a direct cable-to-cable connection solution, ideal for extending or joining cables in 1500V DC solar setups.
NSPV 4F3-1500V DC: Cable to Female Connector - This version comes with a cable and a female connector, enabling flexible and safe connections within 1500V DC solar installations.
Certifications & Waterproof Rating: TUV, CE, ETL Certified, IP68 Waterproof - All connectors in the series are TUV, CE, and ETL certified, ensuring compliance with international safety standards, and feature an IP68 waterproof rating for durability in harsh environments.
Application
Designed for modern solar PV installations, the NSPV 1500V DC Solar Fuse Connector provides reliable protection and flexible connection solutions for various photovoltaic applications, including rooftop solar projects, commercial & industrial PV systems, and large-scale utility solar farms. It can be integrated into PV string protection, DC cable assemblies, combiner boxes, and inverter-side connection systems, ensuring long-term safety and performance in demanding outdoor environments.
FAQ
Company Advantage
• NEWSUN has obvious geographical advantages with great traffic convenience.
• It has been years since our company was built in With the experience and knowledge accumulated in these years, we regard the problem from the perspective of development, seek opportunities through challenges, and turn the crisis into a turning point. Through constant struggle and breakthrough, we have won a number of honors and have been highly recognized and trusted by the industry, the market and consumers.
• NEWSUN constantly improves product quality and service system. Our commitment is to provide quality products and professional services.
• We are constantly seeking new development ideas. At present, the market of PV Connector /Solar connector,PV Cable / Solar Cable,PV Wire Harness / Solar Wire Harness/Solar cable assemblies,AC Connector,PV Junction Box / Solar Junction Box,PV Combiner Box,PV Circuit Breaker / DC Circuit Breaker,PV Cable Clip / Solar Cable Clip,PV SPD/ Solar SPD,PV Grounding Clip,DC Breaker / DC Isolator,DC Switch / AC Switch,Copper-Aluminum Terminal Connector,Solar/PV installation tools has been developed across the country.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
