Product details of the electrical fuse connector
Product Information
NSPV electrical fuse connector is made of superior raw materials which are selected from qualified vendors. Its long service life is greatly ensured by the strict testing procedure. This product is over and above our rival's product, and yet we're able to sell it at the same price.
Product Introduction

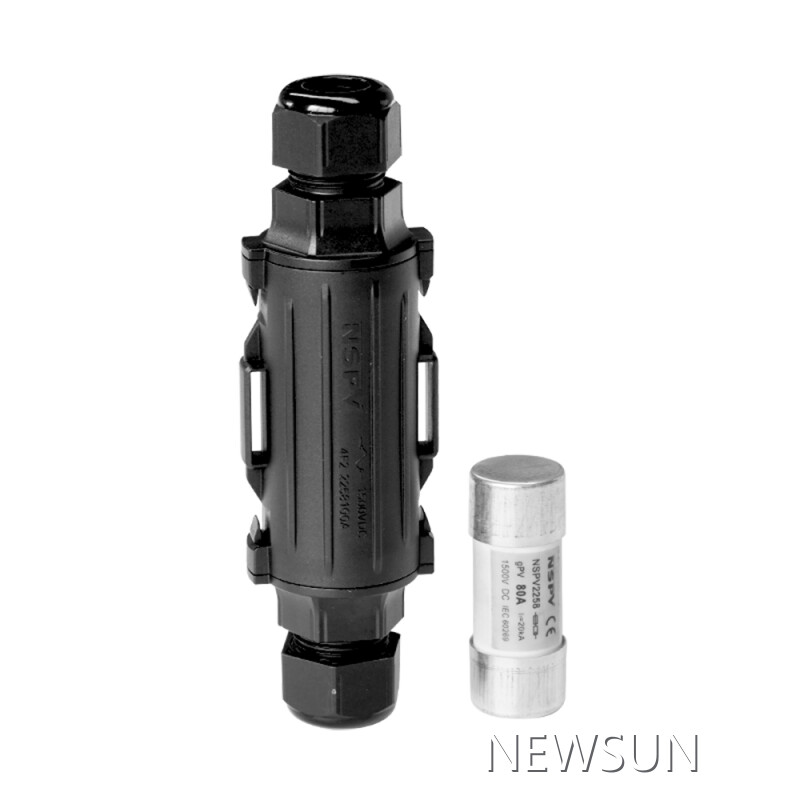

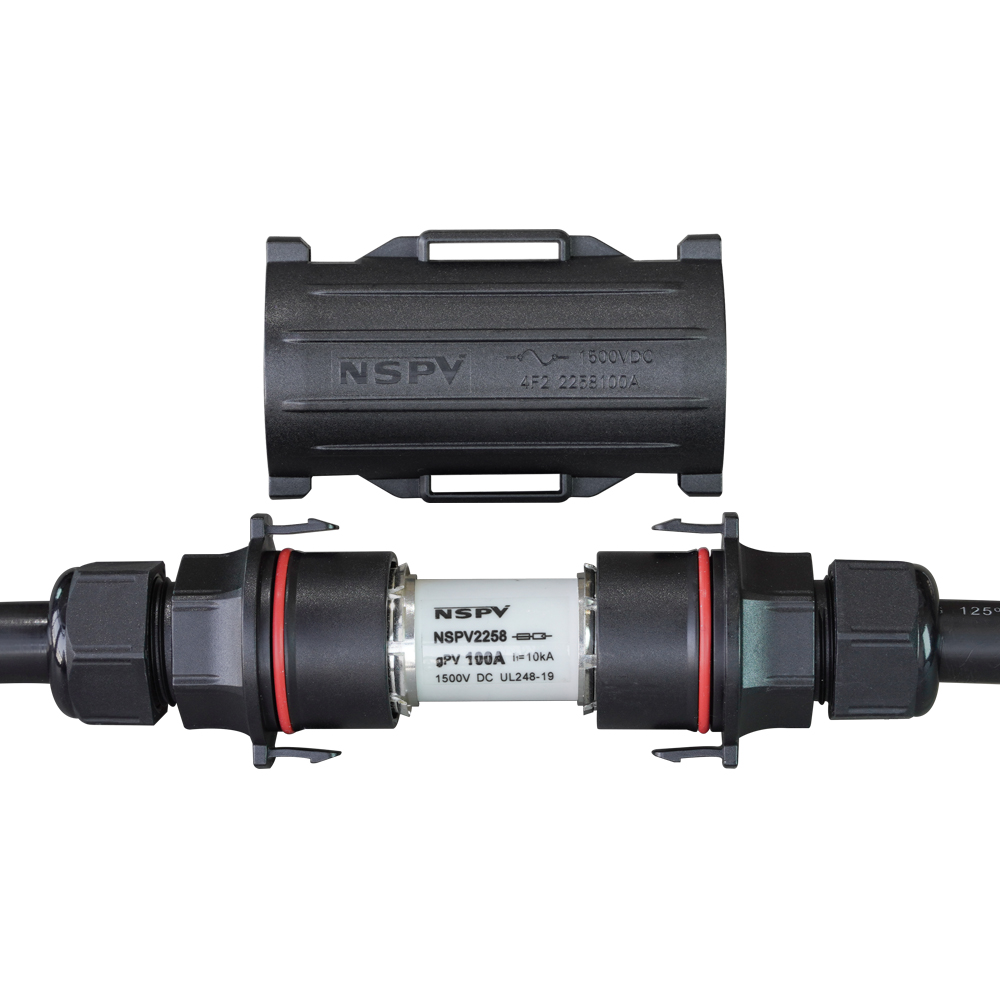

NSPV 4F2-2258100A Solar DC1500V 100A Fuse Connector stands out as a premier safety component in solar photovoltaic systems, offering unparalleled advantages and functionality.
Engineered for systems operating at up to 1500VDC and 100A, it provides robust short-circuit and overcurrent protection, ensuring system integrity and preventing potential fire hazards.
Its PC/PA insulation material and UL94-V0 flame retardancy enhance safety, while its IP68 rating guarantees dust-tight and waterproof performance in harsh outdoor environments. With low contact resistance (≤0.25 mΩ), it minimizes power loss, improving overall system efficiency. The connector's compatibility with various cable sizes and copper, tin-plated conductors ensures reliable electrical transmission and long-term durability.
Seamlessly integrating into PV setups, the NSPV 4F2-2258100A is a cost-effective solution for enhancing system safety and reliability.
Product Specifications
|
Connector Types |
DC1500V Solar Cable 100A Fuse Connector size: 35sqmm or 3 AWG Max |
|
Voltage Rating |
It is rated for 1500V DC |
|
IP Rating |
IP68 Waterproof |
|
Material |
PC/PA, Tinned Copper |
|
Certification |
TUV. ETL, CE |
Our Features
- High Voltage and Current Rating: Rated for up to 1500VDC and 100A, making it suitable for a wide range of PV applications.
- Superior Insulation Material: Constructed with PC/PA insulation material, ensuring excellent electrical insulation and mechanical strength.
- High Safety Standard: Safety degree II classification, providing enhanced protection against electrical hazards.
- Flame Retardant: UL94-V0 flame class rating, minimizing the risk of fire spread in case of electrical faults.
- Wide Temperature Range: Operates effectively in ambient temperatures ranging from -40℃ to +50℃ (IEC),
- Low Contact Resistance: ≤0.25 mΩ contact resistance, ensuring minimal power loss and efficient electrical transmission.
- IP68 Protection: Dust-tight and waterproof up to 1 meter for 1 hour, suitable for outdoor and harsh environment installations.
- Versatile Cable Compatibility: Suitable for cable cross-sections of 10mm², 16mm², 25mm², and 35mm², providing flexibility in system design.
- Copper, Tin-Plated Conductors: High conductivity and corrosion resistance, ensuring long-term reliability.
Our Advantages
- Enhanced System Safety: Protects PV systems from short circuits and overcurrents, preventing equipment damage and potential fire hazards.
- Durable and Reliable: Robust construction with high-quality materials ensures long-term performance and reliability in demanding environments.
- Easy Integration: Designed for seamless integration with existing PV systems, simplifying installation and maintenance.
- Compliance with International Standards: Meets stringent international safety and performance standards, providing peace of mind to system integrators and end-users.
- Cost-Effective Solution: Offers a cost-effective way to enhance the safety and reliability of PV systems, reducing the risk of costly downtime and repairs.
Application
NSPV 4F2-2258100A Solar DC1500V 100A Fuse Connector is ideal for use in solar photovoltaic power generation systems, where it provides essential short-circuit and overcurrent protection.
It is suitable for connecting photovoltaic panels and batteries in residential, commercial, and utility-scale PV installations. The fuse connector's high voltage and current ratings, combined with its robust construction and compliance with international standards, make it an excellent choice for ensuring the safety and reliability of PV systems.
