Product Introduction

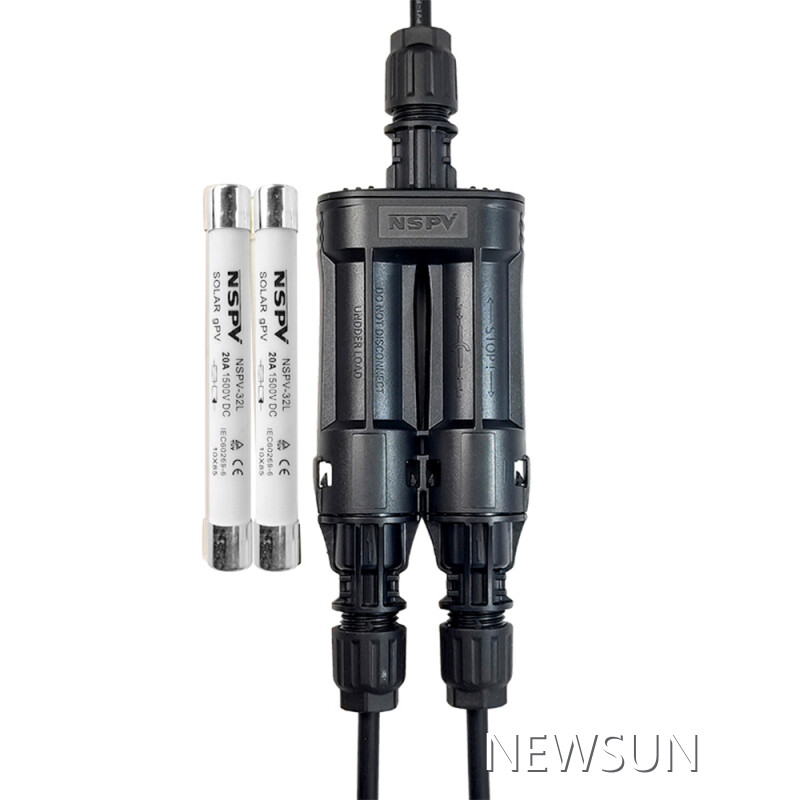

The Solar PV Branch Fuse Connector DC 1500V, featuring a 2-in-1 design, is a game-changer for solar photovoltaic systems. With an IP68 waterproof rating, it ensures reliable performance even in harsh outdoor environments, safeguarding against water and dust ingress. This connector supports a maximum current of 50A, catering to high-power solar arrays efficiently.

One of its key benefits is cost savings. The 2-in-1 design combines two functions into one, reducing the need for additional connectors and cables. This not only cuts down on material costs but also simplifies installation, saving labor expenses. Moreover, its compact design minimizes cable usage, further reducing overall system costs.

Operation and maintenance are also made easier. The connector's intuitive design facilitates quick and straightforward installation, while its robust construction ensures long-term reliability, minimizing downtime and maintenance needs. In summary, the Solar PV Branch Fuse Connector DC 1500V offers a cost-effective, space-saving, and maintenance-friendly solution for modern solar installations.

Product Specifications

Voltage Rating	DC 1500V, suitable for high-voltage solar systems.
Current Capacity	Max 50A, ensuring ample power handling capability.
Cable Size Range	Accommodates cables from 2.5mm to 16mm in diameter, providing flexibility in system design.
Material	Constructed from high-quality PPE/PA materials, known for their excellent electrical insulation, mechanical strength, and resistance to UV radiation and chemicals.
Waterproof Rating	IP68, offering complete protection against dust ingress and long-term water submersion.
Certification	TUV and ETL certified, meeting international safety and quality standards.
Brand	NSPV, a trusted name in the solar industry, known for innovative and reliable products.
Design	Patent-protected design, ensuring uniqueness and superior performance.

Our Features

The Solar PV Branch Fuse Connector DC 1500V is a cutting-edge electrical component designed specifically for solar photovoltaic systems. It features a robust cable type connection, ensuring secure and reliable power transmission. With an impressive IP68 waterproof rating, this connector is impervious to dust and can withstand temporary immersion in water, making it ideal for outdoor installations in diverse weather conditions. The connector supports a maximum current of 50A, catering to high-power solar arrays without compromising safety or efficiency.

Our Advantages

Dual-Function Design: NSPV 2-in-1 Branch Fuse Connectors 1500V DC Series combines both branching and fusing functions, streamlining installation and saving space.
High Current Capacity: It supports up to 30A per input (with fuse) and a maximum of 60A output using 10sqmm or 8AWG copper tinned XLPE DC cables, ensuring reliable power transmission.
Versatile Fuse Compatibility: The connectors accommodate standard fuse sizes (1085mm or 10/1485mm), offering flexibility in fuse selection for different applications.
Superior Waterproof Protection: With an IP68 rating, these connectors are fully dust-tight and waterproof, ensuring reliable performance even in harsh outdoor environments.
Certified Safety & Quality: They meet TUV CE standards (EN60269/EN62208), guaranteeing safety, reliability, and compliance with international electrical regulations.

Application

This connector is widely used in residential, commercial, and industrial solar photovoltaic systems. It is particularly suited for applications where high power transmission and reliability are critical, such as solar farms, rooftop solar installations, and off-grid solar systems. Its versatility in accommodating different cable sizes makes it a popular choice among installers and system designers.

FAQ

What is the maximum voltage and current this connector can handle?

The connector is rated for DC 1500V and can handle a maximum current of 50A.

Is this connector waterproof?

Yes, it has an IP68 waterproof rating, making it suitable for outdoor use in all weather conditions.

What cable sizes does this connector support?

It supports cables ranging from 2.5mm to 16mm in diameter.

Is this connector certified for safety and quality?

Yes, it is TUV and ETL certified, meeting international standards for safety and quality.

How many types of this connector are available?

There are seven different types available, catering to various installation requirements and preferences. In summary, the Solar PV Branch Fuse Connector DC 1500V is a high-performance, reliable, and versatile component designed for modern solar photovoltaic systems. Its robust features, specifications, and advantages make it an ideal choice for installers and system designers seeking to optimize their solar installations.

Download

Company Advantages

· The production of NSPV fuse connector for car adopts a relatively advanced technical level in the industry.

· Each product is rigorously tested before delivery.

· This product is practical and economical for the needs of customers in the field.

Company Features

· NEWSUN PV TECHNOLOGY CO., LTD is extremely professional in manufacturing and supplying fuse connector for car.

· We have recently invested in a new long-term testing facility. This allows the R&D and QC teams in the factory to test new developments in market conditions and to simulate long-term testing of the products prior to launch.

· More and more domestic and foreign customers have highly valued the service of the NSPV brand. Get info!

Application of the Product

NEWSUN's fuse connector for car is widely used in many industries.

Since the establishment, NEWSUN has always been focusing on the R&D and production of PV Connector /Solar connector,PV Cable / Solar Cable,PV Wire Harness / Solar Wire Harness/Solar cable assemblies,AC Connector,PV Junction Box / Solar Junction Box,PV Combiner Box,PV Circuit Breaker / DC Circuit Breaker,PV Cable Clip / Solar Cable Clip,PV SPD/ Solar SPD,PV Grounding Clip,DC Breaker / DC Isolator,DC Switch / AC Switch,Copper-Aluminum Terminal Connector,Solar/PV installation tools. With great production capability, we can provide customers with personalized solutions according to their needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
