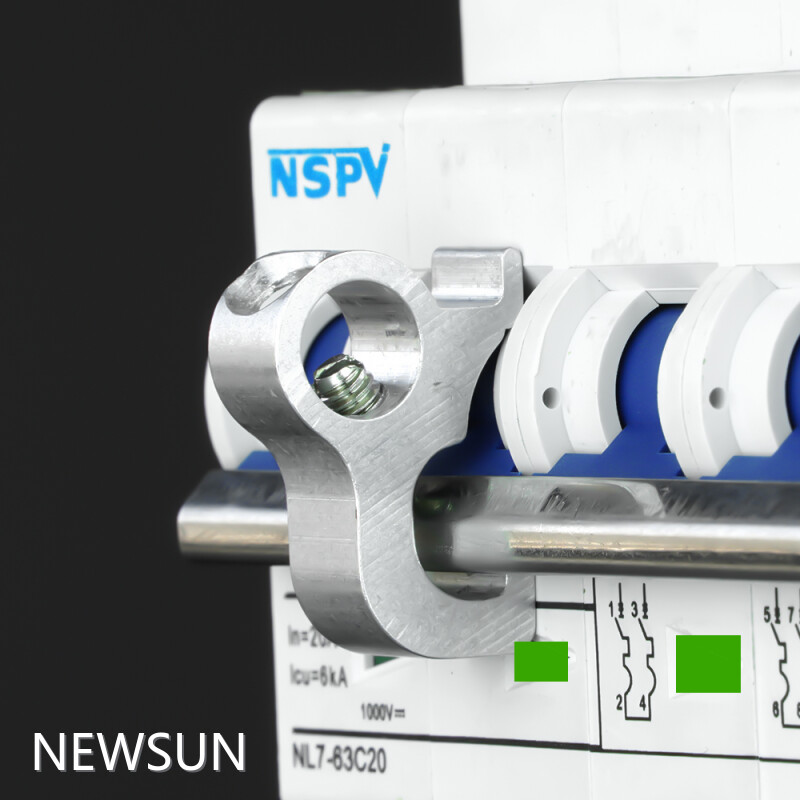

NSPV Solar Mini Circuit Breaker Safety Lock is a professional-grade safety lockout device engineered specifically for small circuit breakers (MCBs) used in solar photovoltaic (PV) systems. Designed by NewSun PV (NSPV), this compact yet robust lockout ensures that circuit breakers remain securely in the OFF position during maintenance, servicing, or emergency shutdown procedures. The product is manufactured from high-tension aluminum alloy, providing an excellent balance of lightweight durability and corrosion resistance — a critical requirement for outdoor solar installations exposed to harsh environmental conditions. The NSPV MCB Lockout is available in a clean white finish, making it highly visible on any electrical panel, and comes in a convenient package of 100 PCS per bag with a total package weight of just 0.48 kg (0.99 lb.).

Product Specifications

Feature	Detail
Material	High-tension aluminum alloy — lightweight, strong, corrosion-resistant
Color	White — high visibility for safety identification
Temperature Range	-40℃ to +85℃ (IEC certified)
Packaging	100 PCS/bag, 0.48 kg (0.99 lb.)
Drawing No.	T150201-01
Installation	3-step process: Place over toggle → tighten grub screw → add padlock
Verification	Ensures breaker toggle is securely fastened and cannot be switched on

Our Features

Routine maintenance of solar combiner boxes and inverter DC/AC disconnects
Emergency shutdown procedures requiring immediate and verifiable isolation
Multi-person lockout/tagout (LOTO) operations on rooftop and ground-mounted arrays
Commissioning and decommissioning of solar installations

Our Advantages

Superior Material Quality — Made from high-tension aluminum alloy, the NSPV MCB Lockout resists deformation, cracking, and corrosion far better than plastic alternatives. This ensures long-term reliability even in outdoor solar arrays exposed to UV radiation, moisture, and extreme temperatures.
Wide Operating Temperature Range (-40℃ to +85℃) — Unlike many competing lockouts that become brittle in cold or soften in heat, the NSPV aluminum lockout maintains structural integrity across the full IEC-rated temperature spectrum, making it ideal for global solar deployments.
Fast & Secure Installation — The 3-step application method (position → grub screw tighten → padlock) allows electricians to secure a circuit breaker in under 30 seconds, minimizing downtime during maintenance operations.
Enhanced Safety Compliance — The built-in padlock hole supports multi-worker lockout procedures, ensuring that no single person can re-energize the circuit. This aligns with OSHA 1910.147 and IEC 60364 safety standards.
Lightweight & Cost-Effective — At only 0.48 kg per 100 pieces, the product is easy to transport and stock on-site. The aluminum construction provides premium durability at a competitive price point, reducing total cost of ownership for solar EPC companies.

Application

Place the circuit breaker in the OFF position (Figure 1).
Place the Lockout over the circuit breaker toggle as shown (Figure 2).
Using a small screwdriver, tighten the internal grub screw securing the Lockout onto the toggle (Figure 3).
Place a lockout padlock through the hole as shown (Figure 4).
Verify that the circuit breaker toggle is securely fastened and cannot be switched on (Figure 5).

The aluminum construction ensures the device withstands outdoor UV exposure, rain, dust, and temperature extremes typical of solar farm environments, guaranteeing reliable performance throughout the system's 25+ year lifespan.

FAQ

Q1: What material is the Solar Circuit Breaker Safety Lock made from?

A: The lockout is manufactured from high-tension aluminum alloy, offering superior strength, corrosion resistance, and lightweight performance compared to plastic alternatives.

Q2: What is the operating temperature range of this product?

A: The NSPV MCB Lockout is rated for an ambient temperature range of -40℃ to +85℃ according to IEC standards, making it suitable for extreme climates worldwide.

Q3: How do I install the Circuit Breaker Safety Lock ?

A: Simply follow the 3-step process: (1) Place the circuit breaker in the OFF position, (2) Place the lockout over the toggle and tighten the internal grub screw with a small screwdriver, (3) Insert a padlock through the hole to secure. Always verify the toggle cannot be switched on.

Q4: Can this lockout be used with all MCB sizes?

A: The NSPV MCB Lockout (Drawing: T150201-01) is designed for standard small circuit breakers. Please verify compatibility with your specific MCB toggle size before purchase.

Q5: How many units come in one package?

A: Each package contains 100 PCS of MCB Lockouts, with a total package weight of 0.48 kg (0.99 lb.), making it convenient for bulk purchasing by solar installation companies.
