Solar Ac Connector by NSPV

Inquiry

Company Advantages

· The appearance design of NSPV solar ac connector is getting better thanks to the constant effort of our innovative design team.

· The product is in accordance with international quality standards.

· NEWSUN PV TECHNOLOGY CO., LTD always takes the forefront of the industry transformation.

Product Introduction

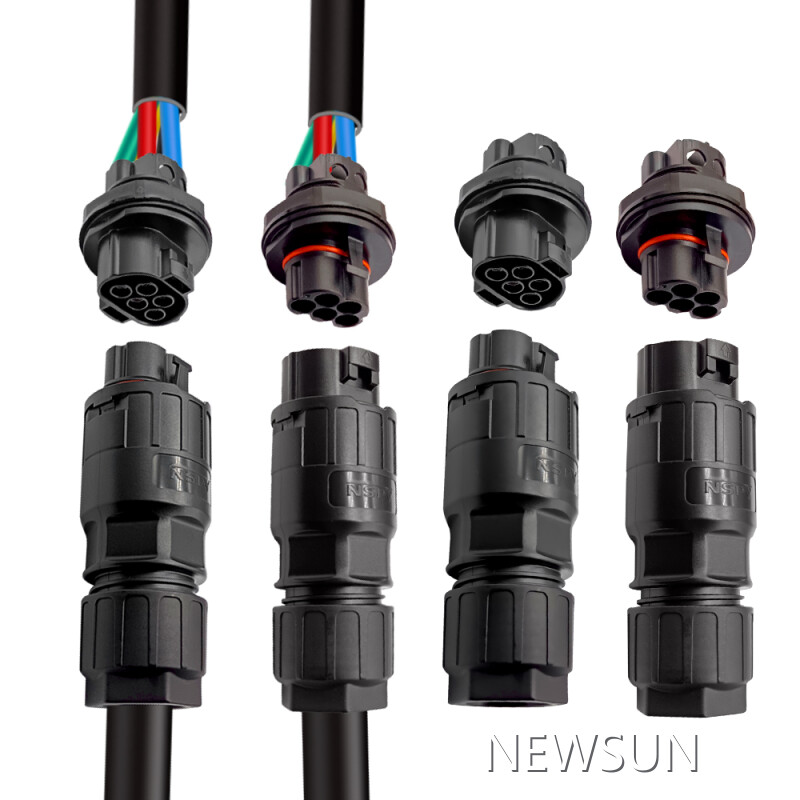

The NSPV 4P/5P Solar AC Connector is a premium choice for solar energy systems, featuring 4-pins and 5-pins configurations with an IP68 rating for dust-tight and waterproof protection. Rated for a maximum current of 65A (at 10sqmm) and a voltage of 500V AC, it ensures reliable power transmission. Its typical contact resistance of ≤0.25 mΩ minimizes energy loss, enhancing system efficiency.

Constructed from durable PPE/PA materials, this connector withstands harsh environmental conditions, reducing the need for frequent replacements and thus saving costs in the long run. Its compatibility with cable sizes ranging from 2.5~10mm²/14~8AWG offers flexibility in installation, helping to save on cable expenses.

The NSPV Brand design includes four distinct types—5PCM Cable male, 5PCF Cable female, 5PPM Panel male, and 5PPF Panel female—simplifying connections and maintenance. Its straightforward operation and easy inspection and repair processes further reduce labor costs and downtime, making it a cost-effective and efficient solution for solar projects.

Product Specifications

Pins Configuration	4 Pins and 5 Pins options available
IP Rating	IP68 – Dust-tight and waterproof
Rated Current	Max. 65A (at 10sqmm cable cross-section)
Rated Voltage	500V AC
Typical Contact Resistance	≤0.25 mΩ, ensuring minimal power loss
Cable Size Range	2.5~10mm² / 14~8AWG, accommodating a wide variety of cable gauges
Material	Constructed from high-quality PPE/PA materials, providing durability and resistance to environmental factors
Design	Exclusive NSPV Brand design, ensuring compatibility and reliability
Types Available
5PCM Cable Male	For male cable connections
5PCF Cable Female	For female cable connections
5PPM Panel Male	For male panel mounting
5PPF Panel Female	For female panel mounting

Our Features

The NSPV 4P 5P Solar AC Connector is a cutting-edge solution designed for efficient and reliable power transmission in solar energy systems. Available in both 4-pins and 5-pins configurations, this connector is engineered to meet the rigorous demands of modern solar installations. Its IP68 rating ensures complete protection against dust ingress and long-term immersion in water, making it ideal for outdoor use in various weather conditions. The connector is rated for a maximum current of 65A with a cable cross-section of 10sqmm, and a rated voltage of 500V AC, ensuring robust performance even in high-power applications.

Our Advantages

High-Quality Insulation Material: Utilizes PPE/PA for superior insulation performance.
High Rated Current Capacity: Supports up to 65A (for 10sqmm or 8AWG cables).
High AC Rated Voltage: Rated for 500V AC, suitable for various solar applications.
Low Contact Resistance: Ensures efficient power transmission with ≤0.25 mΩ contact resistance.
TUV Certified: Complies with EN 61984 standard, ensuring safety and reliability.
Optional Extra Buckle Locks: Includes AC5PLC01 locks for enhanced security and stability.

Application

The NSPV Solar AC Connector II (2P, 3P, 4P, 5P series) isn't just for linking inverters and energy - storage batteries. Its robust design makes it highly adaptable. It also finds use in heavy - duty sectors, like seamlessly connecting circuits in hydraulic excavators and other heavy machinery, ensuring stable power flow and reliable operation in demanding industrial environments.

FAQ

What is the maximum current rating of the NSPV 4P/5P Solar AC Connector?

The maximum current rating is 65A at a 10sqmm cable cross-section.

Can this connector be used in wet environments?

Yes, the IP68 rating ensures that the connector is dust-tight and waterproof, making it suitable for use in wet and outdoor environments.

What cable sizes are compatible with this connector?

The connector is compatible with cable sizes ranging from 2.5~10mm² / 14~8AWG.

Are there different types of connectors available?

Yes, there are four different types: 5PCM Cable Male, 5PCF Cable Female, 5PPM Panel Male, and 5PPF Panel Female, catering to various connection needs. In conclusion, the NSPV 4P/5P Solar AC Connector is a reliable, durable, and efficient solution for solar energy systems. Its high ratings, robust design, and versatile applications make it an excellent choice for any solar project.

Download 3P AC Connector

Download 4P AC Connector

Download 5P AC Connector
