Product Introduction

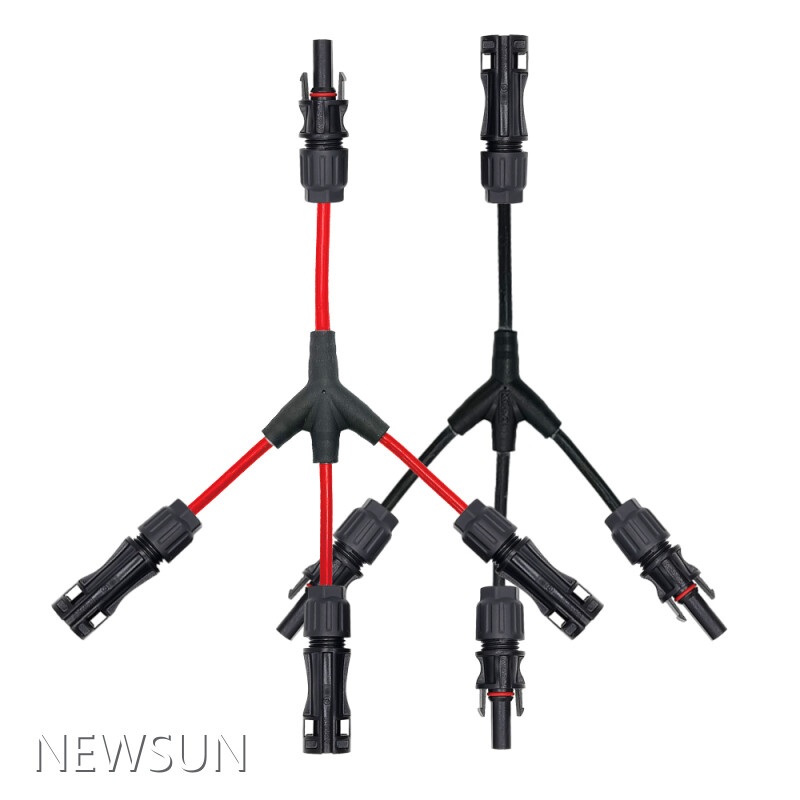

The NSPV +310T, M310Y, and M310H 3-in-1 Y Cable Wiring Harness represents a cutting-edge solution in the realm of solar photovoltaic (PV) systems.

Designed specifically for high-voltage DC applications, this wiring harness integrates three cables into a single, robust assembly, facilitating efficient power transmission in solar installations. Manufactured with DC XLPE (Cross-Linked Polyethylene) tinned copper conductors, it ensures superior electrical conductivity and durability. The harness is certified by CE and TUV, adhering to international safety and quality standards, including IEC62852:2014.

Product Specifications

Product Connection Capability	The NSPV Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations.
Voltage Rating	It is rated for 1500V DC, suitable for high-voltage solar systems.
IP Rating	The IP68 rating guarantees protection against dust ingress and temporary immersion in water.
Material	LXPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

High Voltage Rating: Rated for 1500VDC, making it suitable for modern, high-efficiency solar panels and systems.
Superior Insulation: Utilizes PPE/TPE/PA insulation materials, providing excellent resistance to environmental factors and enhancing safety.
Flame Retardancy: Achieves UL94-V0 flame class, ensuring fire safety in case of electrical faults.
UV Resistance: Designed for outdoor use with UV-resistant properties (F1), protecting against solar degradation over time.
Wide Temperature Range: Operates effectively in ambient temperatures ranging from -40℃ to +85℃, accommodating diverse climatic conditions.
Diverse Connector Options: Offers a variety of connector types, including 1000V and 1500V rated options, MC4, mini, BIPV (Building Integrated Photovoltaics), etc., catering to different installation needs.
IP68 Waterproof Rating: Ensures complete protection against dust ingress and long-term immersion in water up to 1 meter for 1 hour, ideal for harsh outdoor environments.

Our Advantages

Enhanced Efficiency: The 3-in-1 Y configuration reduces cable clutter and simplifies installation, leading to improved system aesthetics and reduced labor costs.
Increased Reliability: High-quality materials and rigorous testing (including 8kV test voltage) ensure long-term reliability and minimal downtime.
Cost-Effective: By integrating multiple cables into one harness, it reduces material costs and simplifies inventory management.
Versatility: Compatible with a wide range of solar panel types and inverter systems, thanks to its diverse connector options.
Safety Compliance: Meets stringent safety standards (CE, TUV), providing peace of mind to installers and end-users regarding electrical safety and system performance.

Application

The NSPV +310T, M310Y, and M310H 3-in-1 Y Cable Wiring Harness finds extensive application in residential, commercial, and utility-scale solar PV installations. Its high voltage rating and robust construction make it ideal for connecting solar panels to inverters, charge controllers, and battery storage systems. The diverse connector options ensure compatibility with a wide range of solar panel technologies, including traditional crystalline silicon, thin-film, and BIPV modules. Whether installed on rooftops, ground-mounted systems, or integrated into building facades, this wiring harness provides a reliable, efficient, and safe solution for solar power transmission.

FAQ

Q: What is the maximum operating voltage of this wiring harness?

A: The maximum operating voltage is 1500VDC.

Q: Are there different connector options available?

A: Yes, we offer a variety of connector types including 1000V and 1500V rated, MC4, mini, and BIPV connectors.

Q: Is this product suitable for outdoor installations?

A: Absolutely, it is designed for outdoor use with UV-resistant properties and an IP68 waterproof rating.

Q: What is the temperature range for this wiring harness?

A: The ambient temperature range is -40℃ to +85℃.

Q: Does this product comply with international safety standards?

A: Yes, it is certified by CE and TUV, adhering to IEC62852:2014 and other relevant standards.

Download

Company Advantages

· The offered NSPV solar cable harness is designed with the aid of the best quality raw materials.

· solar cable harness can ensure good performance and value, and give full play to a certain role.

· Due to its significant economic return, the product has a bright future in this field.

Company Features

· We are basically known to provide the wide range of solar cable harness.

· The cutting edge technology successfully helps NEWSUN PV TECHNOLOGY CO., LTD improve quality of solar cable harness.

· NSPV has always been driven to seek the sustainable development of company. Get more info!

Application of the Product

solar cable harness of NEWSUN has very extensive application in different scenarios.

Based on the actual needs of our customers, we provide a one-stop solution for them with the purpose of rational allocation of PV Connector /Solar connector,PV Cable / Solar Cable,PV Wire Harness / Solar Wire Harness/Solar cable assemblies,AC Connector,PV Junction Box / Solar Junction Box,PV Combiner Box,PV Circuit Breaker / DC Circuit Breaker,PV Cable Clip / Solar Cable Clip,PV SPD/ Solar SPD,PV Grounding Clip,DC Breaker / DC Isolator,DC Switch / AC Switch,Copper-Aluminum Terminal Connector,Solar/PV installation tools.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
