Solar Tools by NSPV

Product Introduction

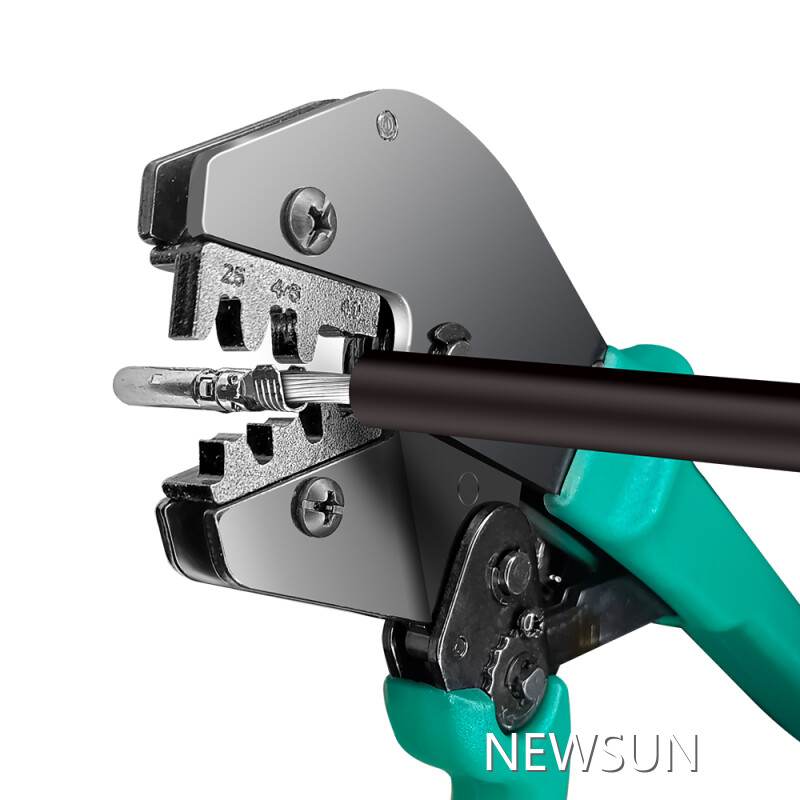

As photovoltaic systems continue to expand globally, the quality of electrical connections has become a critical factor in ensuring system safety and long-term performance. NSPV (Newsun PV Technology) introduces its Solar PV Cable Connector Crimping Tools, engineered to deliver consistent, high-quality crimping for solar connectors and terminals.

Designed specifically for photovoltaic DC Cable Connector applications, NSPV DC Cable Connector Crimping Tools provide precision, durability, and ease of operation, making them an essential tool for installers, EPC contractors, and maintenance teams.

Product Specifications

NSPV Solar PV Cable Connector Crimping Tools are designed for crimping solar DC cable connector terminals with cross-sections ranging from:

2.5mm²
4mm²
6mm²
10mm²
16mm²

The tool supports both:

Lathing (machined) terminals
Stamping (pressed) terminals

It is ideal for small to medium-scale PV installations, maintenance work, and on-site cable assembly.

Our Features

1. Wide Cable Compatibility

The crimping tool supports multiple cable sizes (2.5–16mm²), making it highly versatile across different solar system designs.

2. Dual Mold Configuration

Equipped with interchangeable molds (Mold A & Mold B), the tool can handle both machined and stamped terminals efficiently.

3. Precision Crimping Structure

Engineered with high-accuracy dies to ensure:

Uniform compression
Strong mechanical bonding
Stable electrical conductivity

4. Ergonomic Design

Non-slip handles
Optimized leverage ratio
Reduced operator fatigue

5. Durable Construction

Manufactured from high-strength steel materials, ensuring:

Long service life
Resistance to wear and deformation

Our Advantages

1. Consistent Crimping Quality

Unlike low-cost crimp tools that result in uneven الضغط and loose connections, NSPV tools ensure stable and repeatable crimping results, reducing failure risks.

Benefit:
Improves connection reliability and reduces system downtime.

2. Optimized for PV Connectors

Many general-purpose crimp tools are not designed for solar connectors.

NSPV tools are specifically engineered for:

PV DC connectors
Solar cable terminals

Benefit:
Perfect fit, avoiding damage to connectors and ensuring proper electrical contact.

3. Reduced Installation Errors

With precise mold alignment and clear size compatibility, NSPV tools help installers avoid:

Under-crimping
Over-crimping
Terminal deformation

Benefit:
Higher installation efficiency and lower rework costs.

4. Cost-Effective for Field Use

While hydraulic crimping tools are expensive and complex, NSPV provides a manual yet highly efficient solution.

Benefit:
Ideal balance between cost and performance, especially for:

EPC teams
Distributors
On-site technicians

5. Compact and Portable

Compared to bulky industrial tools, NSPV crimpers are:

Lightweight
Easy to carry
Suitable for rooftop and remote installations

Benefit:
Improves flexibility for field operations.

Application

NSPV Solar PV Cable Connector Crimping Tools are widely used in:

Residential rooftop solar installations
Commercial & industrial PV systems
Solar farm maintenance and repair
On-site cable harness assembly
PV connector installation (MC4-compatible systems)

They are particularly suitable for:

Small batch cable preparation
Field service operations
After-sales maintenance work

FAQ

Q1: What cable connector sizes can this crimping tool handle?

A: The tool is designed for 2.5mm², 4mm², 6mm², and 10mm² , 16mm² solar cable mc4 connector, covering the most commonly used PV connector sizes.

Q2: Can it be used for all types of terminals?

A: Yes, NSPV crimp tools support both machined (lathing) terminals and stamped terminals, thanks to the dual mold design.

Q3: Is this tool suitable for large-scale solar projects?

A: It is best suited for small to medium installations and maintenance work. For large-scale production, hydraulic tools may be considered, but NSPV offers excellent performance for on-site use.

Q4: How does it ensure crimping quality?

A: The tool uses precision-engineered dies that apply uniform pressure, ensuring strong mechanical and electrical connections every time.

Q5: What are the advantages over standard crimping tools?

A: Compared to generic tools, NSPV provides: Better compatibility with PV connectors More accurate crimping Reduced installation errors Longer durability
