Product details of the solar y cable harness

Product Description

NSPV has been focusing on the design of solar y cable harness to follow the trend in the market. One of the most popular functions of solar y cable harness is reliability. This product is applicable due to its outstanding features in the industry.

Product Introduction

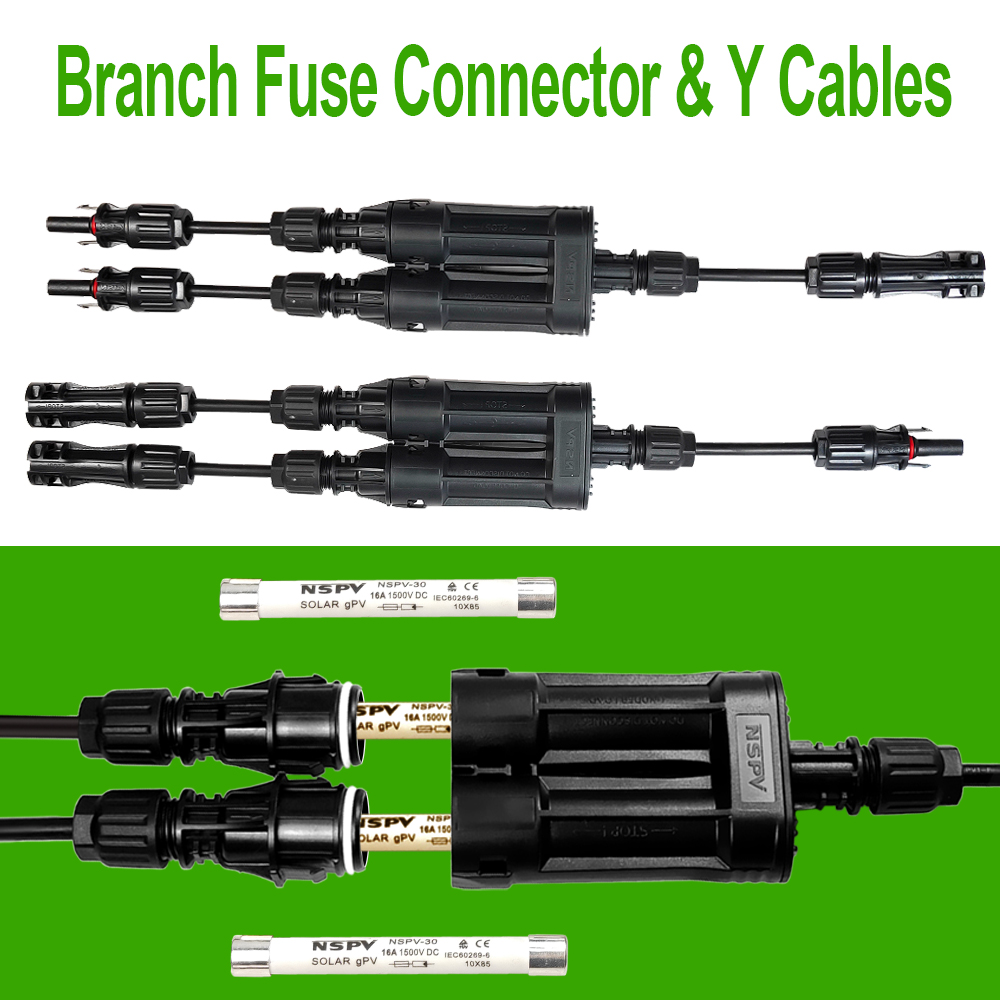

NSPV, a leading name in the solar industry, introduces its innovative Solar Branch Fuse Connectors & Y Cables 2-in-1 solution, designed to streamline and enhance the efficiency of solar power systems. This product seamlessly combines the functionality of branch fuse connectors and Y cables, offering a versatile, reliable, and cost-effective solution for solar installations.

Product Specifications

Y Cable Fuse Types	2 Branch in 1 Main Y Cable & Fuse Connectors Harness
Voltage Rating	It is rated for 1500V DC
IP Rating	IP68 Waterproof
Material	XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission.
Certification	Compliant with TUV IEC standards, ensuring quality and reliability.

Our Features

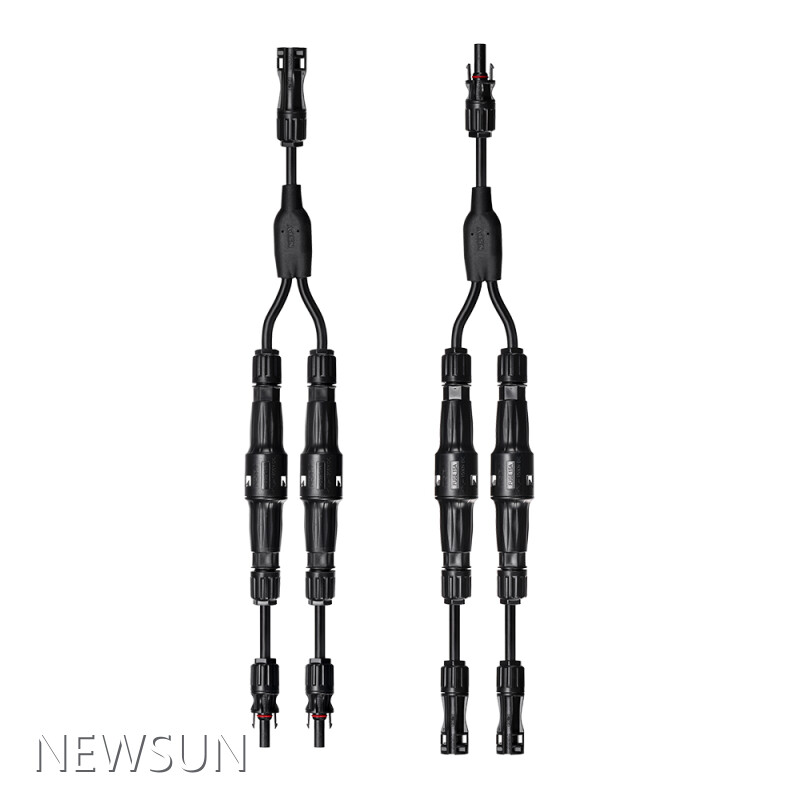

NSPV 2-to-1 Y Cable Fuse Connectors Harness features an advanced double injection molding design at the junction point, providing enhanced sealing performance and superior protection against water, dust, and environmental exposure. Made with high-quality XLPE insulation materials, the cable harness offers excellent UV resistance, weather durability, and long-term outdoor reliability. With an IP68 waterproof rating and up to 25 years of UV protection performance, NSPV Y Cable Harness ensures safe and stable power transmission for demanding solar PV applications, including residential, commercial, and utility-scale solar systems.

Our Advantages

Space and Cost Efficiency: By combining branch fuse connectors and Y cables into a single unit, NSPV's solution reduces the number of components needed, saving space and lowering installation costs.
Enhanced Safety: The integrated fuse design provides overcurrent protection, preventing potential damage to solar panels and inverters. This safety feature is crucial for maintaining system integrity and preventing costly repairs.
Ease of Installation: The pre-assembled nature of the product simplifies the installation process, reducing labor time and minimizing the risk of errors. Installers can quickly connect solar panels without the need for additional wiring or components.
Durability and Reliability: Built with high-quality materials and designed to withstand extreme weather conditions, NSPV's solution ensures long-lasting performance, even in the most challenging environments.

Application

For large-scale photovoltaic (PV) power projects, NSPV's Solar Branch Fuse Connectors combined with Y Cable 2-in-1 solutions are designed to enhance system safety, reliability, and installation flexibility.

The integrated fuse provides overcurrent and short-circuit protection at PV string connection points, helping protect cables and downstream components such as inverters and combiner boxes from abnormal current conditions.

Based on customers' technical requirements, NSPV can optimize the Y Cable design by selecting suitable cable cross-sections and current ratings to reduce current density, minimize power loss, and prevent cable overheating caused by excessive loading.

The fuse rating is selected according to PV system parameters and safety standards to provide reliable protection against overload and short-circuit conditions.

For specific applications requiring reverse current blocking or enhanced polarity protection, NSPV can also provide customized solutions incorporating anti-reverse diodes. This flexibility allows reliable integration into various PV installations, including ground-mounted, rooftop, and utility-scale solar projects.

FAQ

Q: Can I use NSPV's solution with any type of solar panel?

Yes, NSPV's Solar Branch Fuse Connectors & Y Cables are compatible with most types of solar panels, thanks to the wide range of connector options available.

What is the maximum current rating for this product?

The current rating is selected based on your solar module specifications. Please provide the Imp and Isc of your PV modules, and we will recommend the appropriate branch cable size, fuse rating, and complete 2-in-1 Y Cable Fuse Connector Harness for your application.

Is this product suitable for outdoor use?

Absolutely. With an IP68 waterproof rating, NSPV's solution is designed to withstand outdoor conditions, including rain, snow, and dust.

Can I customize the wire gauge for my specific needs?

Yes, NSPV offers customization options for wire gauges, allowing you to choose the exact size that matches your system requirements.
