Product details of the types of ac power connectors
Quick Overview
As a focusing point, the design of types of ac power connectors plays an important role in the uniqueness of products. The strict quality control system is applied to ensure the quality of the product. Our types of ac power connectors is available in a wide range of applications. Due to its cost-effectiveness, the product is becoming more and more popular in this field.
Product Information
Compared with peer products, our company's types of ac power connectors has the following characteristics.
Product Introduction
The AC5C Connector is a 5-pin connector capable of supporting a maximum current of 40A (when paired with 6sqmm wire) and a rated voltage of 500V AC. It incorporates high-quality PPE/PA insulation material, providing outstanding electrical insulation and mechanical resilience. Designed to meet safety degree II standards and boasting a UL94-V0 flame resistance rating, the connector ensures heightened safety in solar power systems
Product Specifications
Material | Constructed from high-quality PPE/PA materials, the connector offers excellent durability and resistance to environmental factors such as UV radiation, chemicals, and extreme temperatures. |
Cable Size Compatibility | The connector is compatible with cable sizes ranging from 2.5mm to 6mm, providing flexibility in installation and system design. |
Brand Design | The NSPV brand design ensures a sleek and professional appearance, while also guaranteeing high-quality manufacturing standards. |

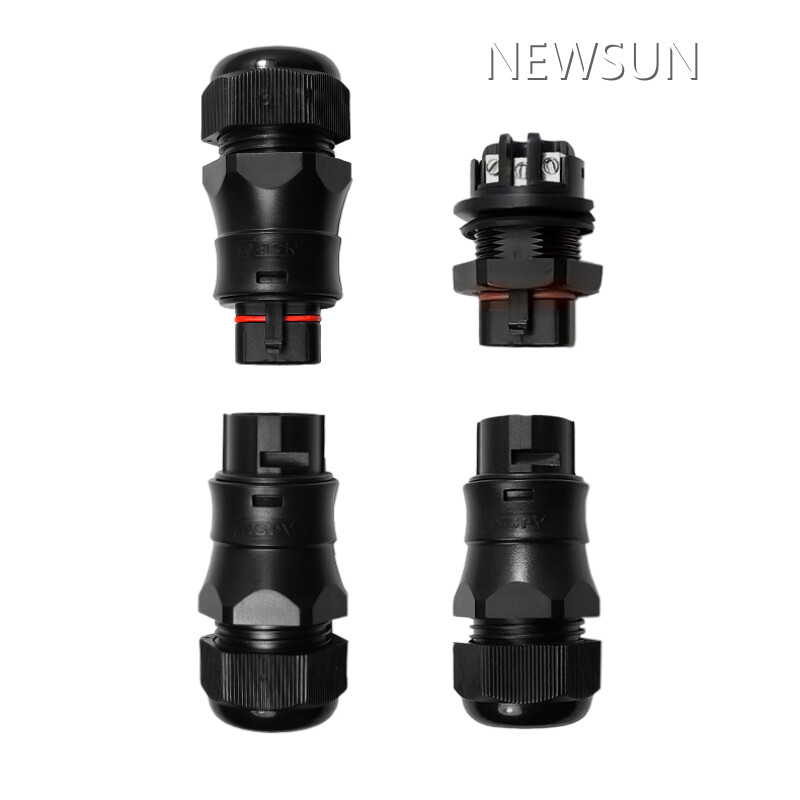

Types Available | The connector comes in three different types: Cable Male, Cable Female, and Panel Male, catering to various connection needs within a solar PV system. |
Our Features
- High Current and Voltage Rating: The AC5C Connector can handle up to 40A of current and 500V AC voltage, accommodating a broad spectrum of solar power applications.
- Excellent Insulation: Utilizing PPE/PA insulation material, the connector offers superior electrical insulation, preventing short circuits and electrical hazards.
- Flame Resistance: With a UL94-V0 flame resistance rating, the connector will not contribute to fire propagation in the event of an electrical fault.
- Wide Temperature Range: Operating reliably from -40℃ to +85℃, the connector is suitable for diverse climatic conditions.
- Secure Connection: The screw/crimping connection method ensures a stable and secure link between the connector and wire, minimizing disconnection risks.
- IP67 Protection: Rated IP67, the connector provides dust ingress protection and temporary water immersion resistance, enhancing durability and reliability.
Our Advantages
- Enhanced Safety: The AC5C Connector's high safety standards and flame resistance rating significantly mitigate the risk of electrical accidents and fire hazards in solar power systems.
- Reliable Performance: Its robust construction and premium materials ensure stable and reliable power transmission, even in harsh environments.
- Easy Installation: The screw/crimping connection method simplifies installation, enabling quick and efficient connections without specialized tools.
- Versatility: With wide current and voltage ratings and compatibility with various wire sizes, the connector suits a broad range of solar power applications.
- Universal Compatibility: The connector's interface is universally compatible with Germany's Wieland brand photovoltaic AC connectors, facilitating seamless integration and interchangeability.
- External Locking Hex Nut Design: The panel-end design incorporates an externally locked hex nut, providing a secure and tamper-resistant connection that enhances safety and reliability.
Application
The NSPV 5 Pins Solar AC Connector (Version I) is extensively utilized in solar photovoltaic systems for connecting solar panels to inverters, charge controllers, or other electrical devices. Its high current and voltage ratings, coupled with excellent insulation and flame resistance properties, render it an ideal choice for both residential and commercial solar installations. The connector's wide temperature range and IP67 protection rating further enhance its suitability for diverse climatic conditions and outdoor environments.
