Product Introduction

The NSPV brand Solar PV panel NEHP01 junction box is a top-tier component designed for reliable and efficient solar installations. With an IP68 rating, it offers exceptional protection against water and dust, ensuring durability in various environmental conditions. The junction box comes in two types: Type 1 supports a rated current of 22A (with a 30A diode), while Type 2 handles up to 35A (with a 50A diode), both rated for DC 1500V. Its typical contact resistance is ≤0.25 mΩ, minimizing power loss and enhancing system efficiency.

Constructed from high-quality PPE/PA materials, the NEHP01 junction box exhibits excellent UV and water resistance, extending its lifespan and reducing maintenance costs. Its three-part NSPV brand design (negative, middle, positive) simplifies installation and ensures secure connections. Certified by TUV and compliant with IEC standards, it guarantees safety and reliability. By choosing the NEHP01 junction box, users can enjoy cost savings through reduced maintenance and enhanced system performance, all while benefiting from its superior safety features.

Product Specifications

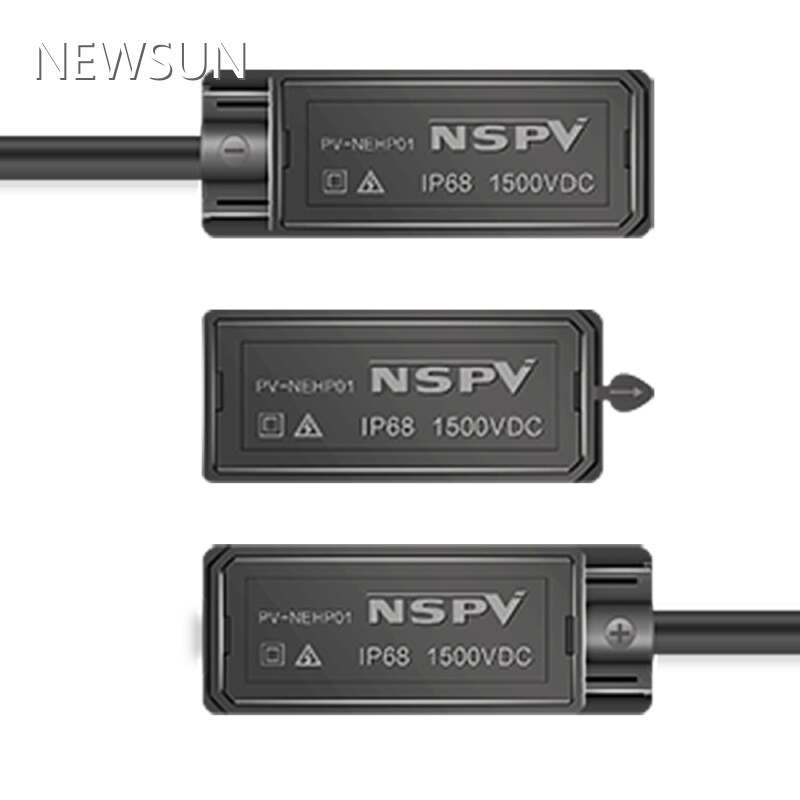

The NEHP01 junction box comes in two types, catering to different current requirements. Type 1 is rated for a current of 22A and includes a diode capable of handling up to 30A, while Type 2 is designed for a higher current of 35A, with a diode rated at 50A. Both types support a rated voltage of DC 1500V, making them compatible with a wide range of solar panel configurations. The typical contact resistance is ≤0.25 mΩ, ensuring minimal power loss and efficient energy transfer. The cable size accommodated is 6mm²/10AWG, providing ample capacity for current flow. The NSPV brand design incorporates a three-part layout: negative, middle, and positive, facilitating easy and secure connections.

Our Features

Customizable configurations for varying PV panel sizes:

Medium Panels: Use NEHP01-N + NEHP01-P, with one wire per side (Negative & Positive). Optional anti-reverse diodes available for enhanced protection.
Large Panels: Opt for NEHP01-N + NEHP01-P + NEHP01-M (includes built-in bypass diodes for improved efficiency).

Two Current Ratings Available:

Type 1: 22A (with 30A diode)

Type 2: 35A (with 50A diode)

Our Advantages

Flexible Design for Diverse Panel Sizes & Applications
- Two-part box: Ideal for medium-sized rooftop/residential panels, enabling compact wiring and easy installation.
- Three-part box: Optimized for large commercial/utility-scale panels, distributing current evenly to reduce heat buildup.
Dual Current Ratings
- Type 1: 22A (30A diode) for standard systems.
- Type 2: 35A (50A diode) for high-power demands.
IP68 Potted: Ultimate Protection
- Fully sealed against water, dust, and harsh environments.
IP65 Non-Potted: Cost-Efficient & Reliable
- Dustproof and splash-resistant for budget-friendly installations.

Application

The NEHP01 junction box is ideal for use in a variety of solar PV applications, including residential rooftop installations, commercial solar farms, and industrial solar power plants. Its high current and voltage ratings make it suitable for both small-scale and large-scale solar projects, providing a reliable and efficient solution for connecting solar panels to the inverter or other electrical components.

FAQ

What is the IP rating of the NEHP01 junction box?

The NEHP01 junction box has an IP68 rating, providing complete protection against dust and water ingress.

What types of currents does the NEHP01 junction box support?

The NEHP01 junction box comes in two types: Type 1 supports 22A (with a 30A diode), and Type 2 supports 35A (with a 50A diode).

What is the rated voltage of the NEHP01 junction box?

The rated voltage of the NEHP01 junction box is DC 1500V.

What materials are used in the construction of the NEHP01 junction box?

The NEHP01 junction box is constructed using high-quality PPE/PA materials, known for their durability and UV resistance.

Is the NEHP01 junction box certified for safety and quality?

Yes, the NEHP01 junction box is certified by TUV and complies with IEC standards, ensuring its safety and quality.
