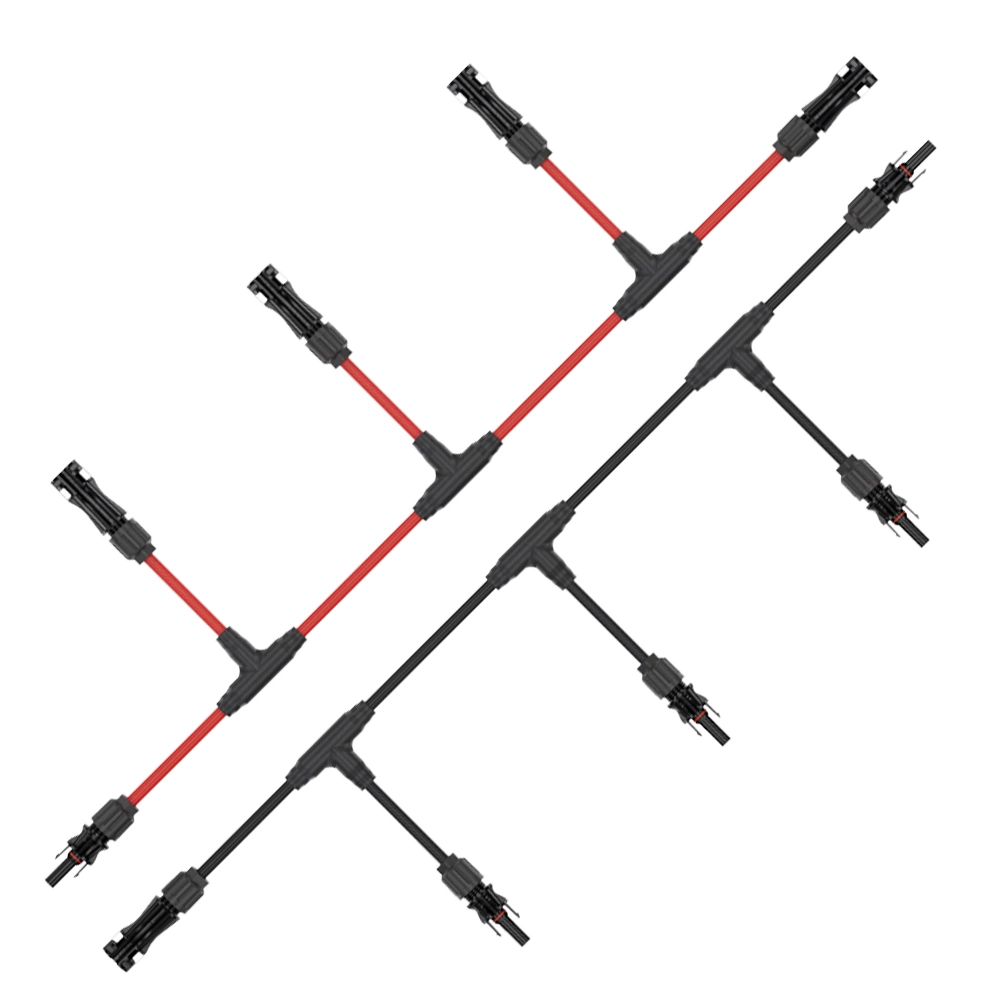

Solar DC T cable harness series solution
2T to 5T
Fuse Connector
Diode Connector
Solar Cable Connectors of Various Brands
Product Introduction
The NSPV Solar DC T Cable Harness is built with premium-grade materials and incorporates advanced design features to deliver exceptional performance in solar applications. It supports a rated voltage of 1500VDC and is equipped with T-type connectors that facilitate easy branching and interconnection within solar arrays. The harness is available in configurations with 2, 3, or 4 T-type connectors, with a maximum of 5 T-type connectors allowed in series, providing flexibility in system design and installation.
Product Specifications
|
Product Connection Capability |
NSPV Y Cable T wiring Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14 to 8AWG), providing flexibility in connecting various solar panel configurations. |
|
Voltage Rating |
It is rated for 1500V DC, suitable for high-voltage solar systems. |
|
IP Rating |
The IP68 rating guarantees protection against dust ingress and temporary immersion in water. |
|
Material |
XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission. |
|
Certification |
Compliant with TUV IEC standards, ensuring quality and reliability. |
Our Features
- High Voltage Rating: Rated for 1500VDC, suitable for modern high-voltage solar systems.
- Superior Insulation: Utilizes PPE/TPE/PA insulation materials for excellent electrical insulation and durability.
- Flame Retardancy: Meets UL94-V0 flame class standards, ensuring fire safety.
- UV Resistance: Designed for outdoor use with UV-resistant properties to withstand prolonged sun exposure.
- Wide Temperature Range: Operates efficiently in ambient temperatures ranging from -40℃ to +85℃.
- High Protection Rating: IP68 rated, providing protection against dust and water immersion up to 1 meter for 1 hour.
- Low Contact Resistance: Connector contact resistance ≤ 0.25 mΩ, minimizing power loss.
- Crimp Connection: Employs a reliable crimp connection method for secure electrical connections.
Our Advantages
- Enhanced Safety: The NSPV Solar DC T Cable Harness prioritizes safety with its high voltage rating, flame retardancy, and UV resistance, reducing the risk of electrical hazards and fire incidents in solar installations.
- Reliable Performance: Built with durable materials and designed to withstand harsh environmental conditions, the harness ensures consistent and reliable power transmission over the lifespan of the solar system.
- Flexible Configuration: The availability of multiple T-type connectors (2, 3, or 4, with a maximum of 5 in series) allows for flexible system design and easy expansion or modification of solar arrays.
- Efficient Installation: The crimp connection method simplifies the installation process, reducing labor costs and time. Additionally, the harness's pre-assembled design eliminates the need for on-site wiring, further streamlining installation.
- Cost-Effective Solution: By minimizing power loss and ensuring long-term reliability, the NSPV Solar DC T Cable Harness offers a cost-effective solution for solar power transmission, contributing to the overall profitability of solar projects.
Application
The NSPV Solar DC T Cable Harness is ideal for use in residential, commercial, and utility-scale solar photovoltaic systems. Its high voltage rating, durability, and flexible configuration make it suitable for various solar array designs, enabling efficient and reliable power transmission from solar panels to inverters and other electrical components. Whether in rooftop installations or ground-mounted solar farms, the NSPV Solar DC T Cable Harness is a trusted choice for solar professionals worldwide.
