Solar DC1000V Diode Connectors Series

Rated current (Without diode) : 30A
Rated current (With Diode) : 10A（Diode Rated Current 15A)
Rated voltage: 1000VDC
contact resistance : ≤0.25 mΩ
IP67 Waterproof

Reverse Blocking Diode Or Anti-reverse Diode

Inquiry

Write a Review

Product Introduction

The NSPV Brand Solar DC1000V Diode Connector is a top-tier solution designed for solar power systems, offering unparalleled reliability and efficiency. With an IP67 rating, it provides robust protection against dust and water immersion, ensuring longevity even in harsh outdoor environments. Its rated current capacity stands at 30A without the diode and 10A with the diode (diode rated current 15A), enabling efficient power transmission while safeguarding against reverse current that could damage solar panels.

Crafted from durable PPE/PA materials, this connector exhibits excellent UV resistance and mechanical strength, reducing the need for frequent replacements and thus cutting down on long-term costs. Its typical contact resistance of ≤0.25 mΩ minimizes energy loss, enhancing overall system efficiency. The connector accommodates cable sizes from 2.5mm to 6mm, offering flexibility in installation.

Operation and maintenance are straightforward, thanks to its user-friendly design. Regular inspections and simple maintenance routines ensure optimal performance. With comprehensive UV and water protection, the NSPV Brand Solar DC1000V Diode Connector is a cost-effective, reliable choice for solar installations.

Product Specifications

Rated Current (Without Diode)	30A, allowing for high power transmission without significant losses.

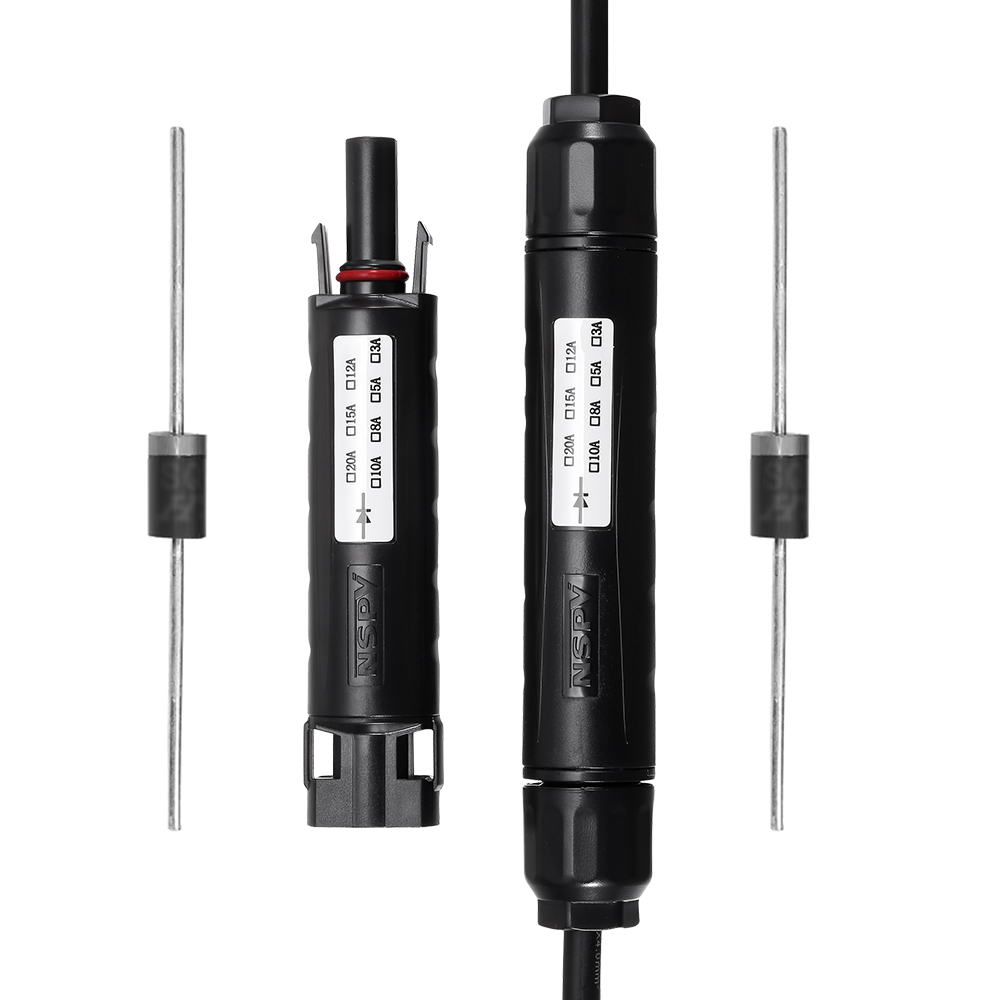

Rated Current (With Diode)	10A (Diode Rated Current 15A), providing built-in protection against reverse current flow which can damage solar panels.
Typical Contact Resistance	≤0.25 mΩ, ensuring minimal energy loss and efficient power transfer.
Material	Made from high-quality PPE/PA (Polyphenylene Ether/Polyamide) materials, offering excellent durability, UV resistance, and flame retardancy.
Design	NSPV Brand exclusive design, ensuring precision engineering and ease of use.

Our Features

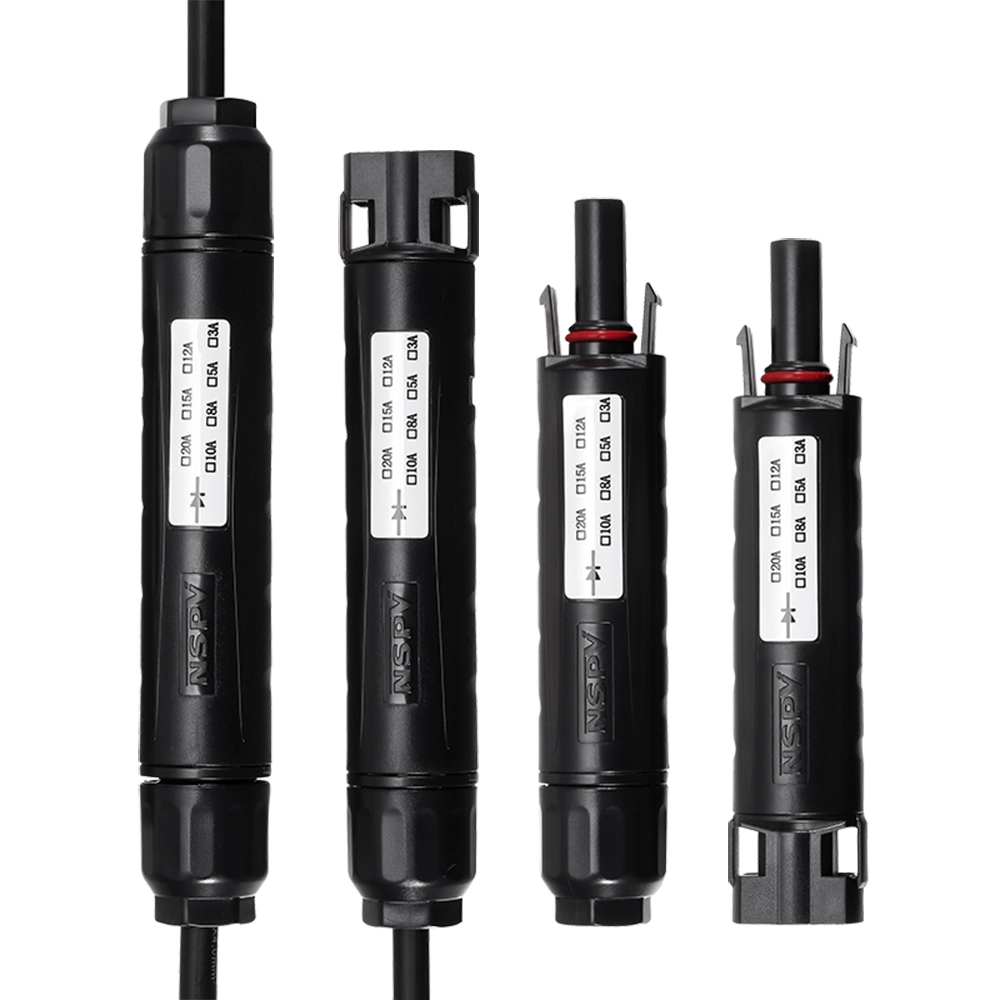

The Solar DC1000V Diode Connector by NSPV is engineered to meet the rigorous demands of solar energy systems, offering a robust and reliable connection solution. With an IP67 rating, this connector ensures complete protection against dust ingress and temporary immersion in water, making it ideal for outdoor installations. It supports a high voltage of DC1000V, catering to the needs of both residential and commercial solar setups. The connector is designed with versatility in mind, accommodating cable diameters from 2.5mm to 6mm, and is available in four different types: cable-to-cable, male-to-female, cable-to-male, and cable-to-female, ensuring compatibility with a wide range of solar panel and inverter configurations.

Our Advantages

High Current Capacity (Without Diode): Rated at 30A, ensuring robust performance in solar applications without diodes.
Reliable Current with Diode: Supports 10A (with a diode rated at 15A), providing flexibility and safety in circuit protection.
High Voltage Rating: Designed for 1000VDC, suitable for high-voltage solar systems.
Low Contact Resistance: ≤0.25 mΩ, minimizing energy loss and improving efficiency.
IP67 Waterproof: Offers excellent protection against dust and water, ensuring durability in outdoor environments.

Application

This connector is widely used in solar photovoltaic (PV) systems, connecting solar panels to inverters or other components within the system. Its high voltage and current ratings make it suitable for both small-scale residential installations and large commercial solar farms. The built-in diode provides an added layer of protection, preventing damage from reverse current flow and ensuring the longevity of the solar panels.

FAQ

Can this connector be used in saltwater environments?

Yes, the IP67 rating ensures that the connector is protected against temporary immersion in water, including saltwater, making it suitable for coastal solar installations.

What is the maximum cable diameter this connector can accommodate?

The connector is designed to accommodate cable diameters ranging from 2.5mm to 6mm, providing flexibility for different solar panel and inverter connections.

Is the diode replaceable if it fails?

While the diode is integrated into the connector design for convenience and protection, it is recommended to replace the entire connector in case of diode failure to ensure optimal performance and safety.

Can I use this connector for AC applications?

No, this connector is specifically designed for DC applications within solar PV systems and should not be used for AC connections.

The diode is designed for long-term reliability and does not require periodic replacement under normal operating conditions. However, regular inspection is recommended to ensure optimal performance.

In conclusion, the Solar DC1000V Diode Connector is a high-performance, reliable solution for solar power systems, offering comprehensive protection and efficient energy transfer. Its robust design, superior materials, and patent-pending technology make it an excellent choice for a wide range of solar applications.
