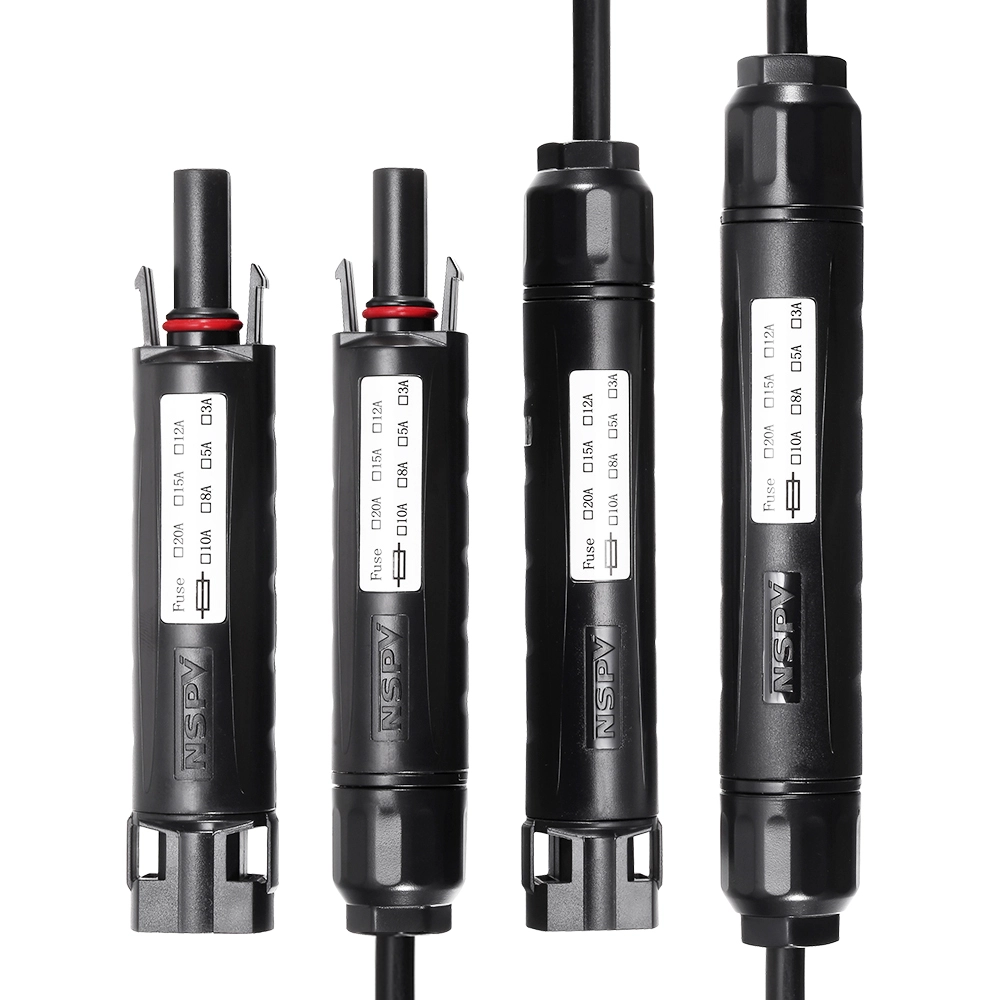

Solar DC1000V Fuse Connector MC universal type 1

Solar DC1000V Fuse Connector MC universal type 2

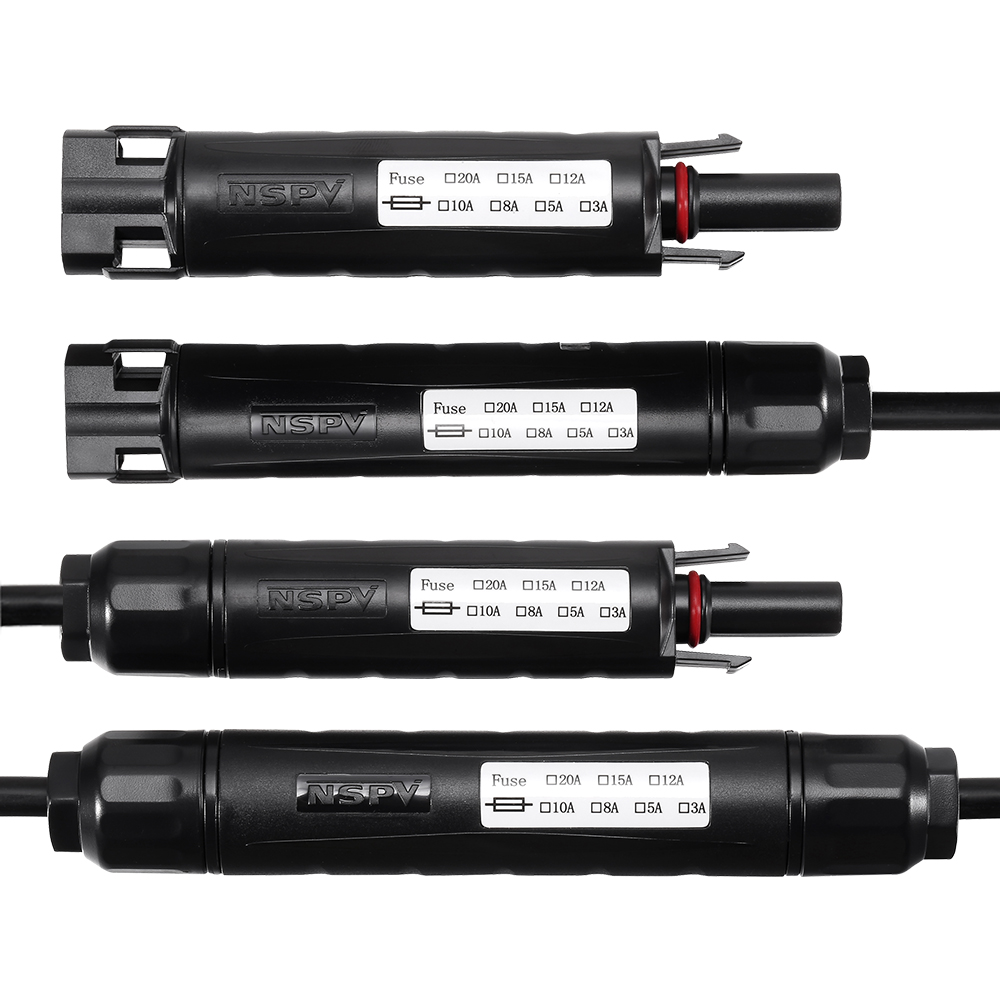

Solar DC1000V Fuse Connector MC universal type 3

Solar DC1000V Fuse Connector MC universal type

4F0: Male & Female Connectors type, 1000VDC

4F1: Cable & Male Connector Type, 1000VDC

4F2: Cable & Cable Connector Type, 1000VDC

4F3: Cable & Female Connector Type, 1000VDC

Rated current（With Fuse): 1A to 30A

Nut cap locking force: 1.5-1.8Nm

Contact resistance: ≤0.25 mΩ

Inquiry

Write a Review

Product Introduction

The Solar DC1000V Fuse Connector by NSPV is a top-tier solution for solar energy systems, offering high voltage handling up to 1000V DC and an IP67 rating for dust and water resistance, ensuring reliable outdoor performance. With a rated current of 30A without a fuse and 1-30A with a fuse, it provides flexible overcurrent protection. Its typical contact resistance of ≤0.25 mΩ minimizes power loss, enhancing system efficiency.

Crafted from durable PPE/PA materials, it accommodates cables from 2.5mm to 6mm and comes in four types: cable-to-cable, male-to-female, cable-to-male, and cable-to-female, simplifying installation and customization.

This connector saves costs by reducing the need for extra cables and connectors, thanks to its versatile design. Its straightforward operation and easy inspection/maintenance lower labor costs and downtime. Overall, it offers a cost-effective, efficient, and reliable solution for solar power systems.

Product Specifications

The connector is versatile, accommodating cable sizes ranging from 2.5mm to 6mm, catering to a wide array of solar panel configurations. It comes in four different types: cable-to-cable, male-to-female, cable-to-male, and cable-to-female, providing flexibility in system design and installation. The rated current without a fuse is 30A, while with a fuse, it can handle currents from 1A to 30A, ensuring safe operation under different load conditions. A typical contact resistance of ≤0.25 mΩ minimizes power loss and enhances overall system efficiency.

Our Features

The Solar DC1000V Fuse Connector, designed by NSPV, is a cutting-edge solution tailored for solar energy systems. This connector is engineered to operate seamlessly under high-voltage DC conditions, specifically up to 1000V, ensuring robust performance in solar installations. It boasts an IP67 rating, which means it is fully protected against dust ingress and can withstand temporary immersion in water, making it ideal for outdoor use in varying weather conditions. The connector is crafted from high-quality PPE/PA materials, known for their durability and resistance to environmental stressors such as UV radiation and chemicals.

Our Advantages

Wide Rated Current Range: Supports currents from 1A to 30A with a fuse, accommodating diverse applications.
Secure Nut Cap Locking: Features a nut cap locking force of 1.5-1.8Nm, ensuring a stable and reliable connection.
Low Contact Resistance: Maintains a contact resistance of ≤0.25 mΩ, minimizing power loss and enhancing efficiency.
Broad Temperature Tolerance: Operates effectively in ambient temperatures ranging from -40℃ to +85℃ (IEC standards).
High-Quality Insulation Material: Utilizes PPE/PA insulation material for enhanced safety and durability.
Waterproof Design (IP67): Offers excellent protection against water and dust ingress, ensuring reliable performance in harsh environments.

Application

This connector is widely used in residential, commercial, and industrial solar power systems. It is suitable for connecting solar panels to inverters, charge controllers, and other components within the solar array. Its robust design and high voltage rating make it an excellent choice for both on-grid and off-grid solar installations, ensuring safe and efficient power transmission.

FAQ

What is the maximum voltage the connector can handle?

The Solar DC1000V Fuse Connector is designed to handle up to 1000V DC, making it suitable for high-voltage solar applications.

Can this connector be used in wet conditions?

Yes, with an IP67 rating, the connector is fully protected against dust and can withstand temporary immersion in water, ensuring reliable performance in wet conditions.

What types of cables can be used with this connector?

The connector accommodates cable sizes from 2.5mm to 6mm, providing flexibility for various solar panel configurations.

Is overcurrent protection available with this connector?

Yes, the connector comes with an option to include a fuse, allowing for overcurrent protection and enhancing system safety.

What materials are used in the construction of this connector?

The connector is made from high-quality PPE/PA materials, known for their durability and resistance to environmental factors such as UV radiation and chemicals.
