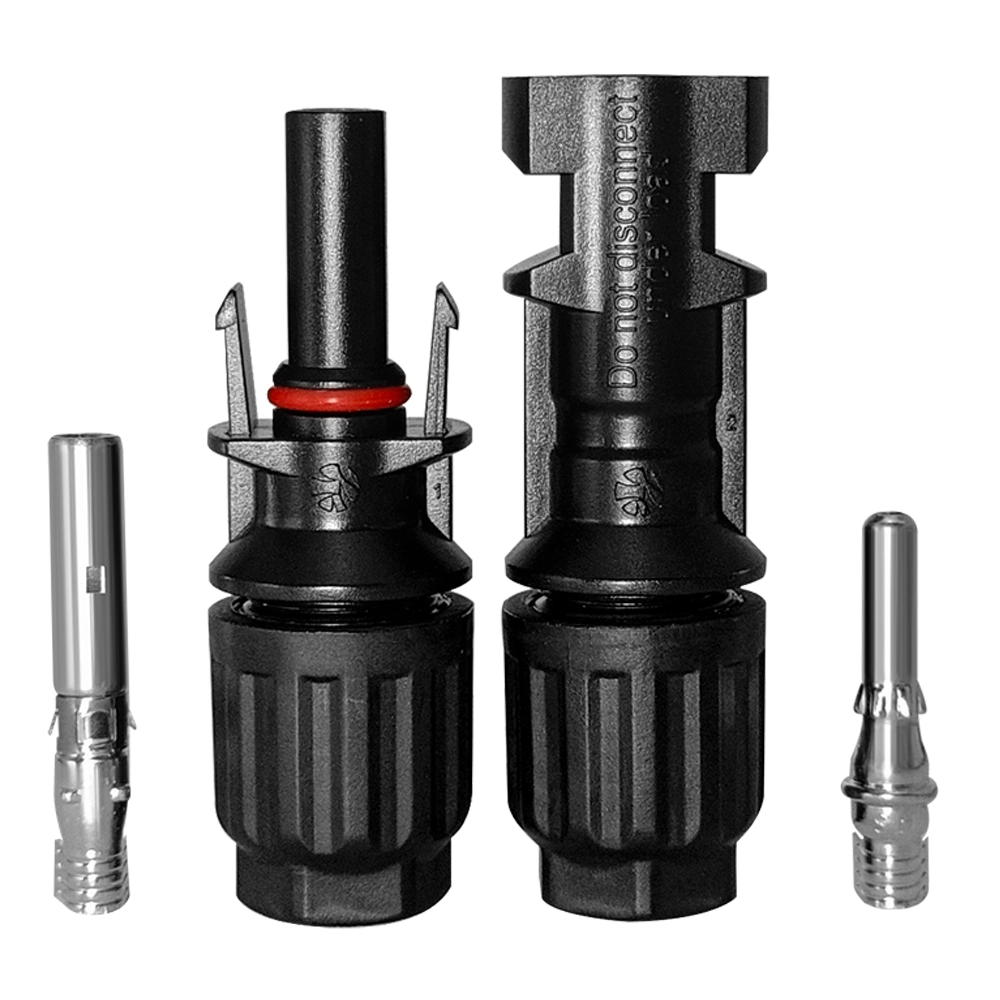

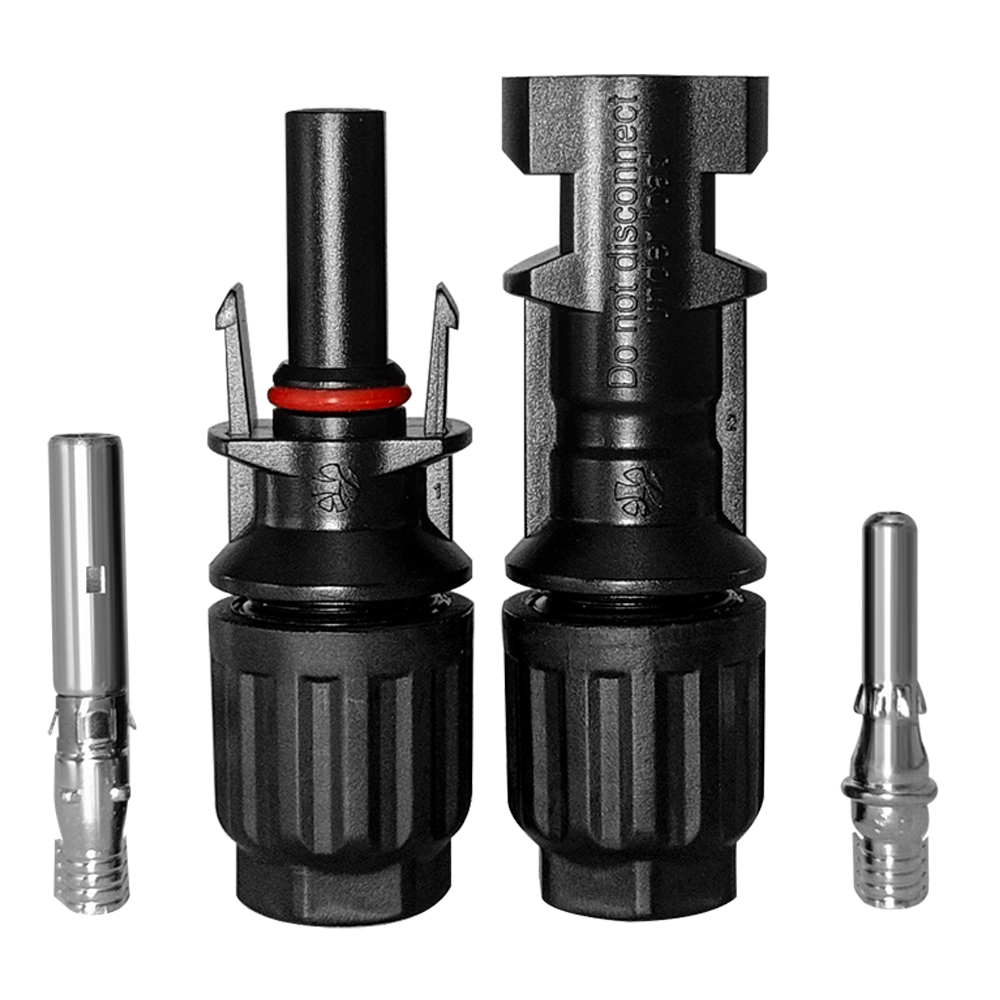

NSPV IP67 Solar 1000VDC Cable Connector

IP67 waterproof rating
Low contact resistance: ≤0.25mΩ
Contact material: Copper,Tin plated
Suitable cable cross sections: 1.5~6 sqmm or 16~10AWG

Inquiry

Write a Review

Product Introduction

The NSPV Solar 1000V DC Cable Connector stands out for its safety, efficiency, and durability, making it an ideal choice for photovoltaic (PV) systems. Engineered with TUV certification and IP67 waterproof rating, it ensures reliable performance in extreme environments, protecting against electrical faults, moisture, and UV degradation. Its low contact resistance (≤0.25mΩ) minimizes power loss, enhancing overall system efficiency and energy yield.

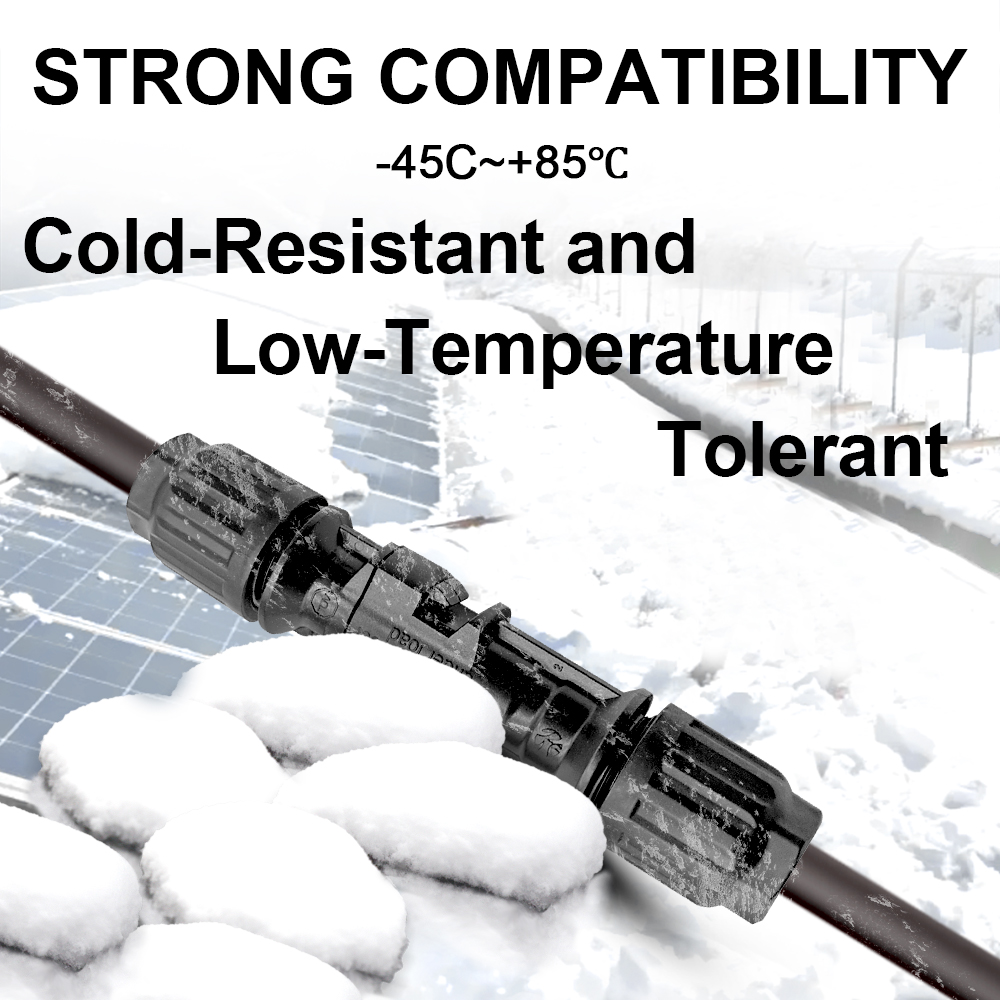

Key advantages include universal MC compatibility, enabling seamless integration with existing solar setups, and high-temperature tolerance (-40°C to +85°C), suitable for desert or tropical climates. The flame-retardant insulation (UL94-V0) and corrosion-resistant copper contacts further guarantee long-term reliability.

After-Sales Support

NSPV prioritizes customer satisfaction with a 2-year warranty covering manufacturing defects. Their dedicated technical team offers 24/7 global assistance, including troubleshooting, installation guidance, and replacement services. Additionally, NSPV provides certified training programs for installers to ensure proper usage and maximize product lifespan.

With its cost-effective design, robust performance, and comprehensive support, the NSPV Solar 1000V DC Cable Connector is a trusted solution for residential, commercial, and utility-scale solar projects worldwide.

Product Specifications

Electrical Ratings
Rated Voltage	1000V DC
Rated Current	30A
Test Voltage	8kV (50Hz, 1 minute)
Rated Impulse Voltage	16kV
Mechanical Properties

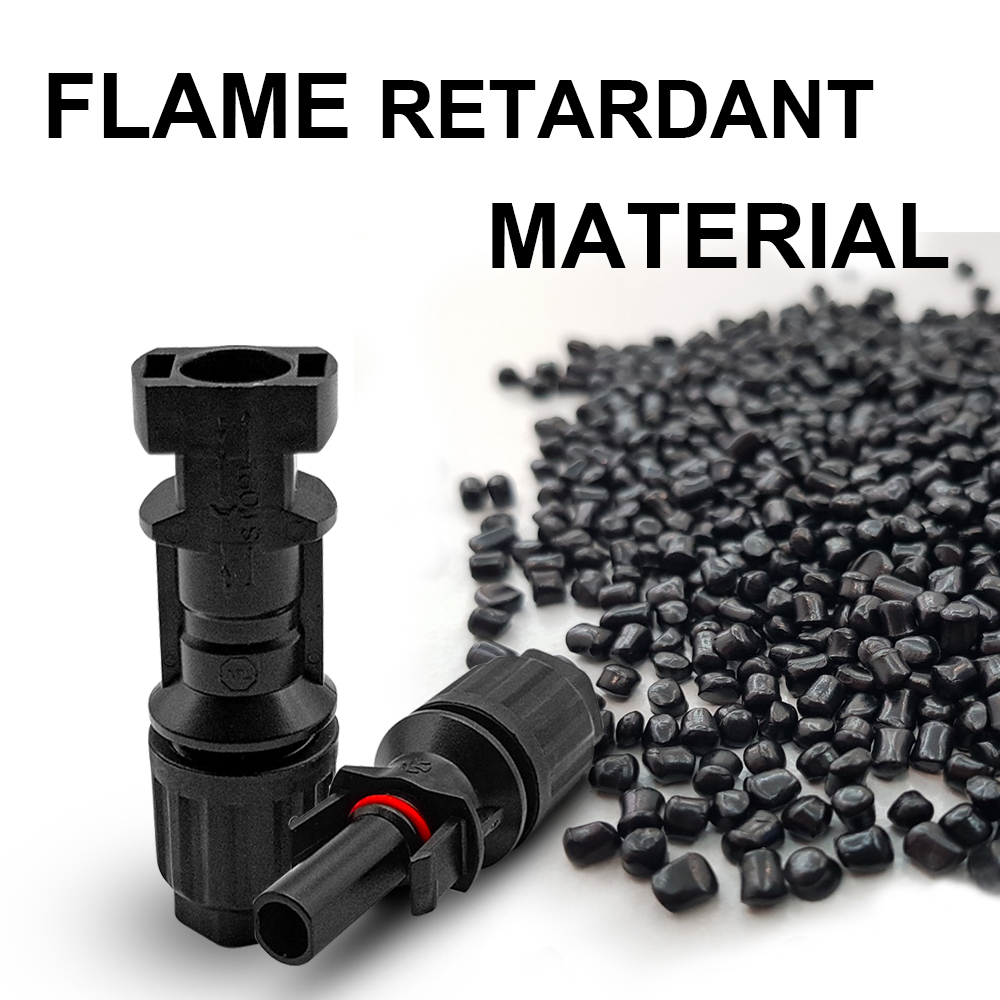

Insulation Material	PPE/PA (flame-retardant, UL94-V0 certified)

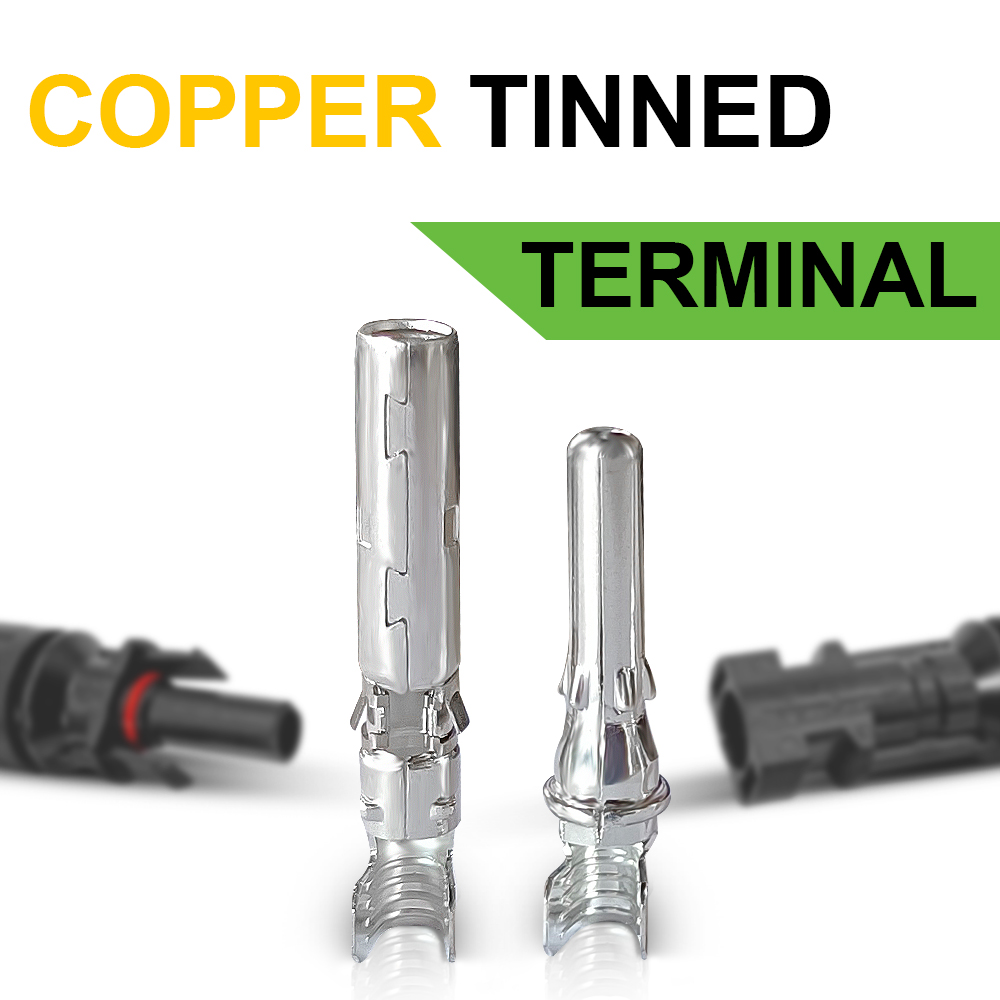

Contact Material	Copper with tin plating for corrosion resistance
Temperature Range	-40°C to +85°C (IEC standard)
Cable Cross-Section	2.5–10mm² (14–8AWG)
Physical Design
Crimp connection system for secure, vibration-resistant termination
Nut cap locking force	0.8–1.0Nm
Insertion/Withdrawal Force	50N each

Our Features

The NSPV Solar 1000V DC Cable Connector is engineered for high-performance photovoltaic (PV) systems, offering robust safety and reliability. Key features include:

● TUV Certification: Meets international safety standards, ensuring compliance with global PV industry requirements.

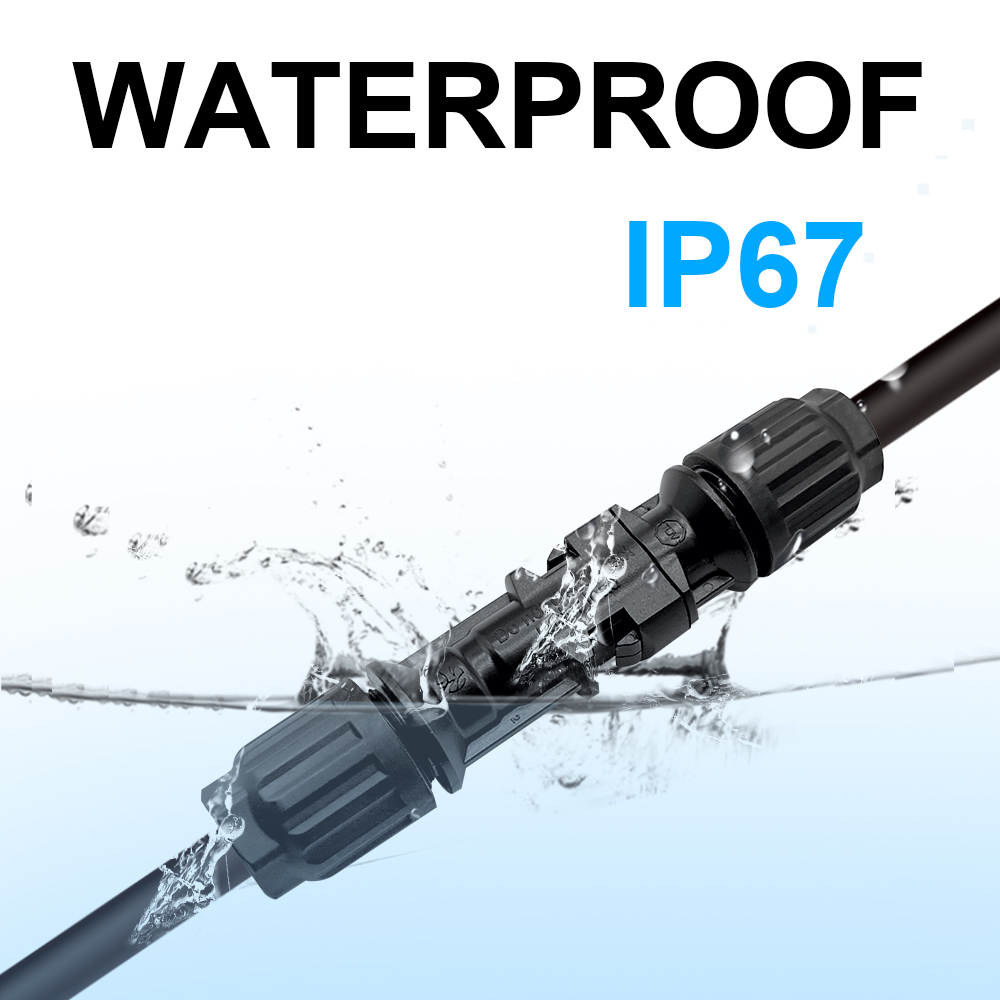

● IP67 Waterproof Rating: Withstands immersion in water up to 1 meter for 1 hour, making it ideal for outdoor installations in harsh climates.

● UV Resistance: The PPE/PA insulation material is designed to resist degradation from prolonged sun exposure, extending product lifespan.

● Low Contact Resistance (≤0.25mΩ): Minimizes power loss and heat generation, enhancing system efficiency.

● MC Compatibility: Universal design ensures seamless integration with existing PV infrastructure, reducing installation complexity.

Our Advantages

High Waterproof Performance: It boasts an IP67 waterproof rating, ensuring reliable operation even in wet conditions.
Low Contact Resistance: The connector features a contact resistance of ≤0.25mΩ, minimizing energy loss and enhancing efficiency.
Premium Contact Material: Made with copper and tin-plated for excellent conductivity and corrosion resistance.
Versatile Cable Compatibility: Suitable for cable cross sections ranging from 1.5~6 sqmm or 16~10AWG, offering flexibility in installation.

Application

The connector is widely used in:

● Residential Solar Systems: Connecting rooftop panels to inverters or combiner boxes.

● Commercial & Industrial Installations: Linking multiple panels in series/parallel configurations for higher voltage outputs.

● Utility-Scale Solar Farms: Integrating bifacial panels or high-capacity arrays with string inverters.

● Off-Grid Solutions: Supporting standalone systems in remote areas with harsh weather.

FAQ

Is this connector compatible with non-NSPV panels?

Yes, it is MC-compatible, ensuring seamless integration with most PV modules on the market.

Can it be used in high-temperature environments?

The connector operates reliably up to +85°C, suitable for desert or tropical climates.

What cable sizes does it support?

It accommodates cables from 2.5–10mm² (14–8AWG), covering standard PV cable gauges.

Does it require special tools for installation?

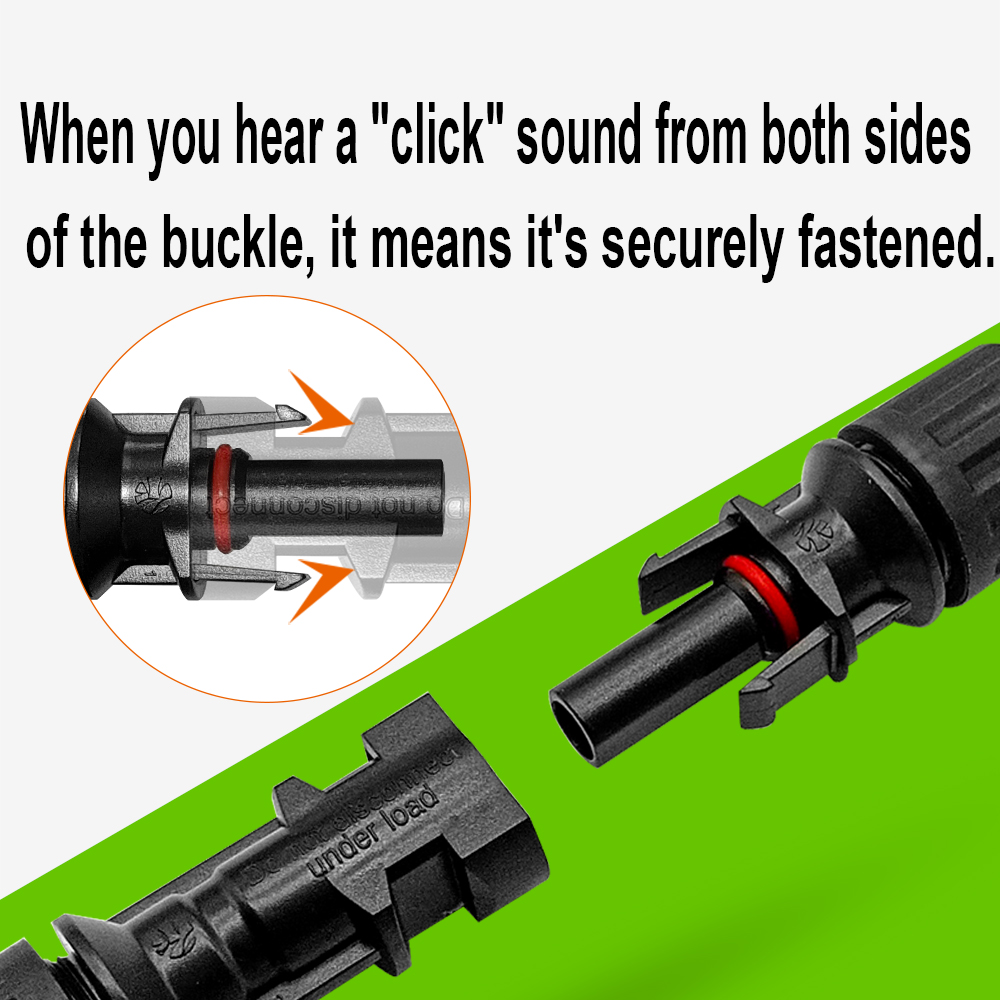

A standard crimping tool is recommended for secure cable termination, while the locking mechanism ensures easy plug-and-play assembly.

Is it suitable for 1500V systems?

While rated for 1000V DC, NSPV offers a 1500V variant for next-generation high-voltage PV projects. The NSPV Solar 1000V DC Cable Connector combines safety, efficiency, and versatility, making it a trusted choice for global solar installations. Its rigorous certifications and durable design ensure long-term performance in diverse environments.
