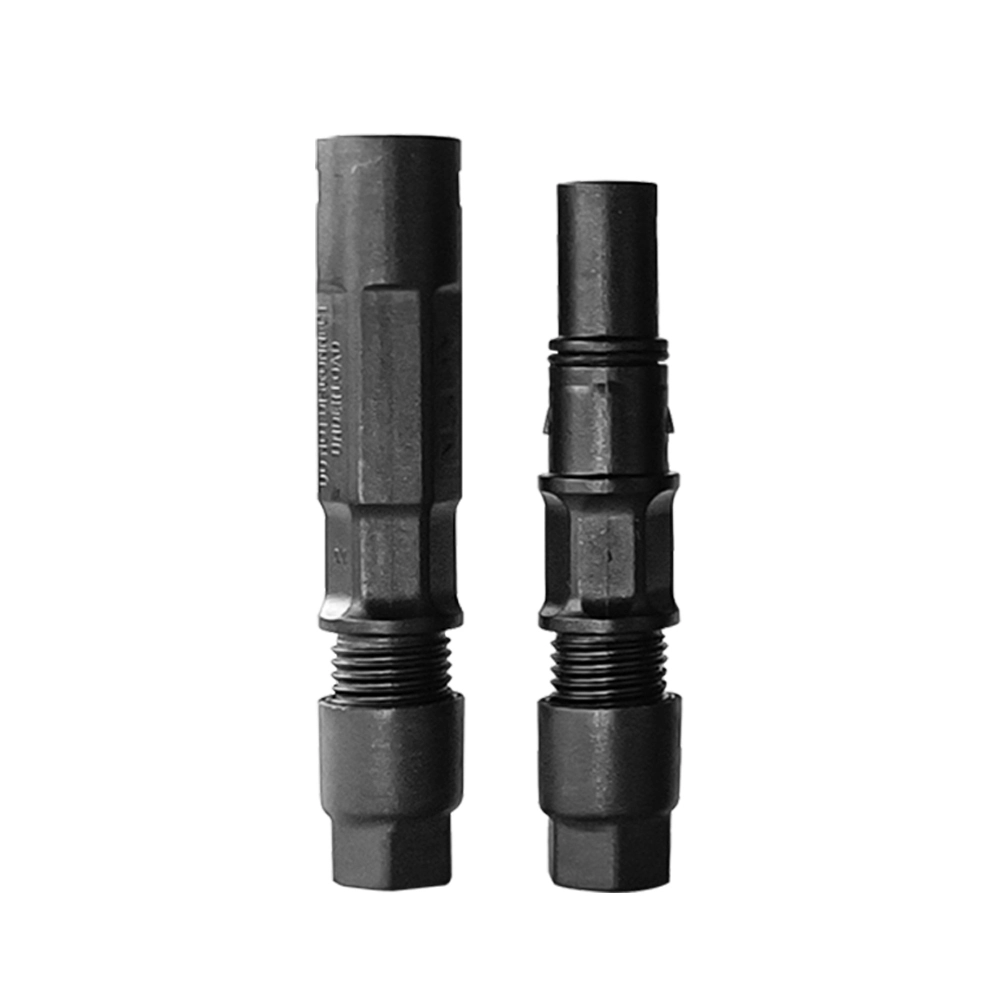

NSPV Solar 1500VDC Mini Connectors

Insulation material: PPE/PA
IP67 waterproof
Rated current 20A MAX
Cable O.D. size : (6.2mm)Max
Suitable cable: 1.5~4mm2 or 16-12AWG
contact resistance: ≤0.25 mΩ

Inquiry

Write a Review

Product Introduction

The NSPV brand Solar 1000V DC Cable Mini Connector, when paired with BIPV junction boxes and EC1A junction boxes, offers unparalleled advantages in solar energy systems. Its universal compatibility with 4mm-6mm cable diameters simplifies installation, reducing both time and costs by eliminating the need for multiple connector types. This seamless integration ensures efficient power transmission, enhancing overall system performance and reliability.

The connector's robust design, featuring a secure locking mechanism and IP67 waterproof rating, guarantees durability in harsh outdoor environments, minimizing maintenance needs. Its high 1000V DC rating makes it suitable for large-scale solar projects, ensuring safe and stable power flow.

NSPV's commitment to customer satisfaction extends beyond product quality. They offer comprehensive after-sales service, including technical support, warranty coverage, and easy access to replacement parts. This ensures that any issues are promptly addressed, keeping your solar system running smoothly. Choose NSPV for a reliable, efficient, and worry-free solar solution.

Product Specifications

Voltage Rating	1000V DC, suitable for high-voltage solar installations.
Cable Diameter Range	4mm to 6mm, accommodating various cable sizes for flexibility in system design.

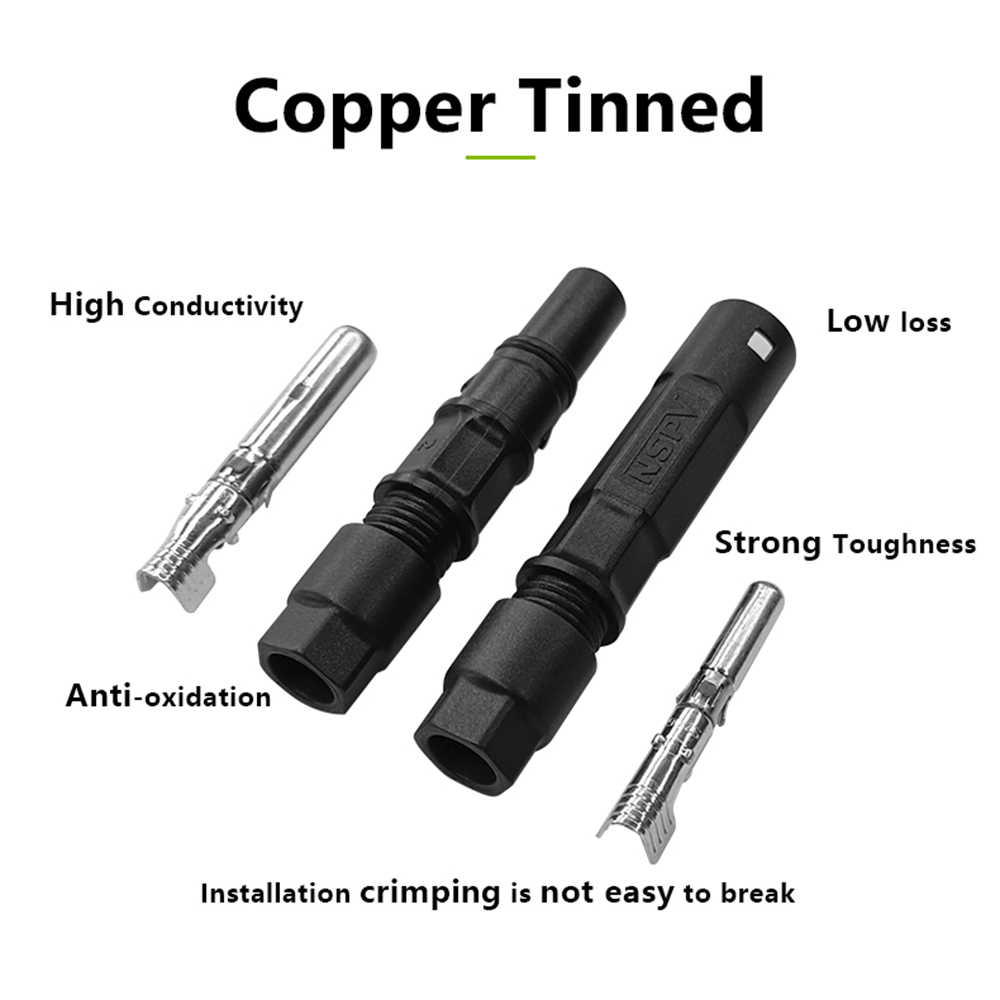

Material	High-quality, UV-resistant plastic housing with corrosion-resistant metal contacts for longevity.
IP Rating	IP67, offering dust-tight and waterproof protection, ideal for outdoor applications.
Temperature Range	Operates efficiently between -40°C to +90°C, ensuring performance in extreme climates.
Certifications	Complies with international standards such as IEC 62930, ensuring safety and reliability.

Our Features

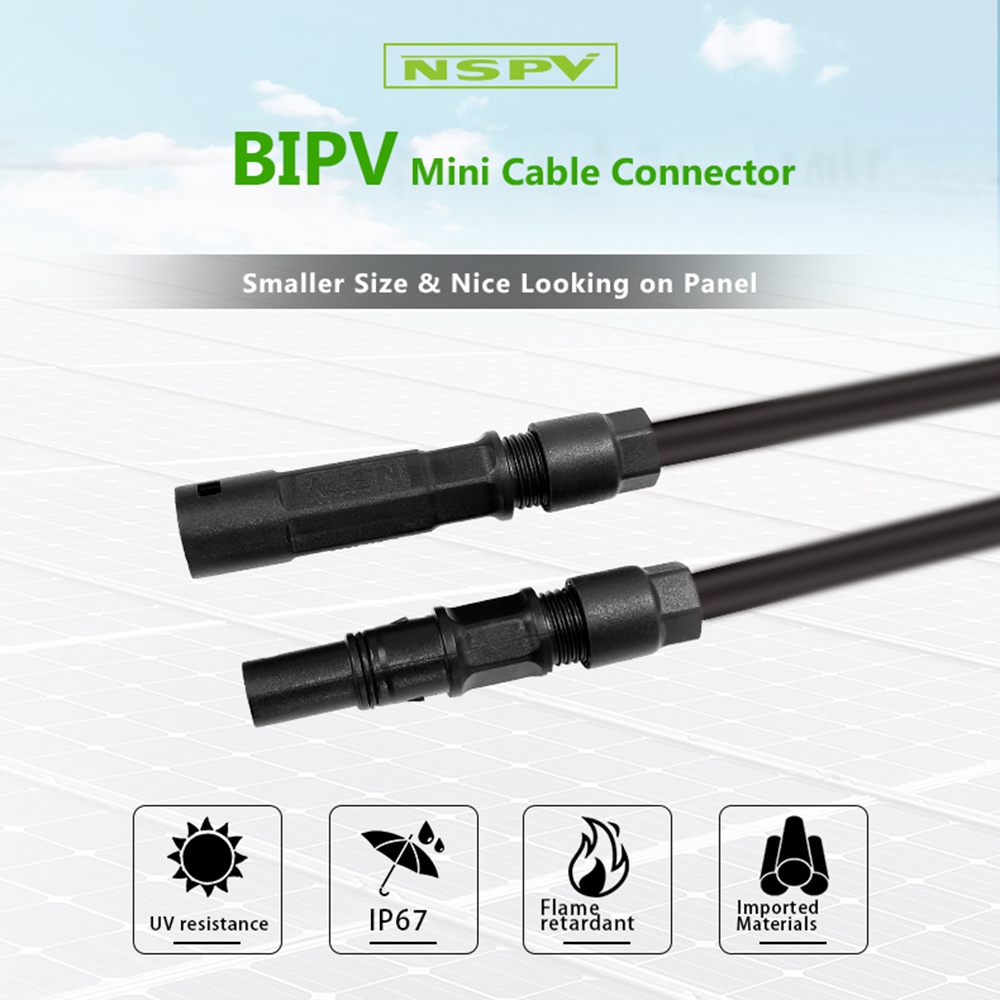

The NSPV Solar 1000V DC Cable Mini Connector is engineered for high-performance solar energy systems, offering seamless integration with Building-Integrated Photovoltaic (BIPV) junction boxes and EC1A junction boxes. Designed for versatility, this connector accommodates cable diameters ranging from 4mm to 6mm, ensuring compatibility with a wide array of solar panel configurations. Its compact, robust design minimizes space requirements while maintaining durability in harsh outdoor environments, including resistance to UV radiation, moisture, and temperature extremes. The connector features a secure locking mechanism that prevents accidental disconnection, ensuring uninterrupted power flow and system reliability.

Our Advantages

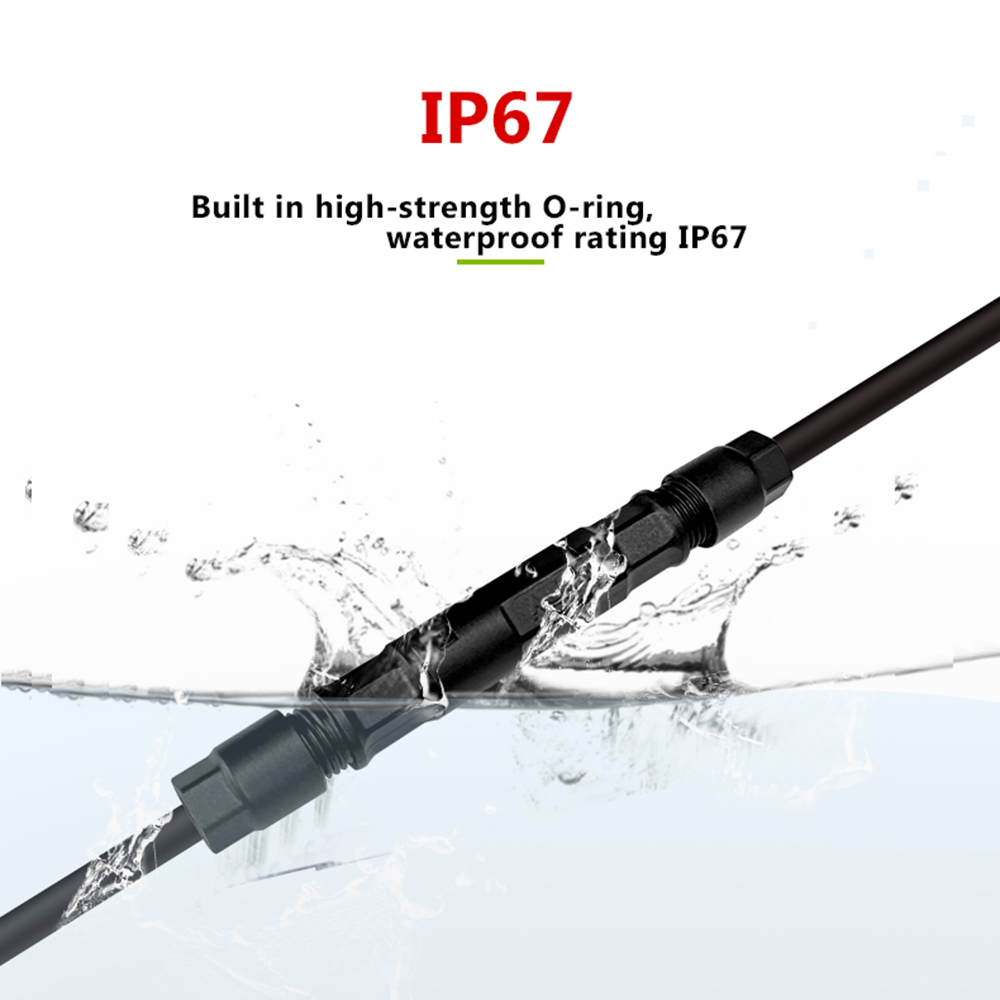

IP67 Waterproof: Highly water-resistant, ensuring reliable performance in wet conditions.
High Current Rating: Rated for a maximum current of 20A, suitable for demanding solar applications.
Flexible Cable Size: Accepts cables with an outer diameter up to 6.2mm, providing versatility.
Wide Cable Gauge Range: Compatible with cables ranging from 1.5~4mm² (16-12AWG), accommodating various setups.
Low Contact Resistance: Contact resistance ≤0.25 mΩ, minimizing energy loss and ensuring efficient power transmission.

Application

This connector is ideally suited for solar photovoltaic (PV) systems, particularly those utilizing BIPV technology where solar panels are integrated into building structures. It is also perfect for traditional rooftop and ground-mounted solar arrays that employ EC1A junction boxes for efficient power distribution. The connector's high voltage rating makes it suitable for large-scale solar farms, ensuring safe and efficient transmission of electricity over long distances. Its versatility and durability also make it a preferred choice for solar street lighting, solar pumps, and other off-grid solar applications.

FAQ

Can this connector be used with any type of solar panel?

Yes, the NSPV Solar 1000V DC Cable Mini Connector is compatible with most solar panels, provided the cable diameter falls within the 4mm-6mm range.

Is it necessary to use a specific type of junction box with this connector?

While the connector is designed to work optimally with BIPV and EC1A junction boxes, it can also be used with other junction boxes that meet the same voltage and cable diameter specifications.

How do I ensure a secure connection?

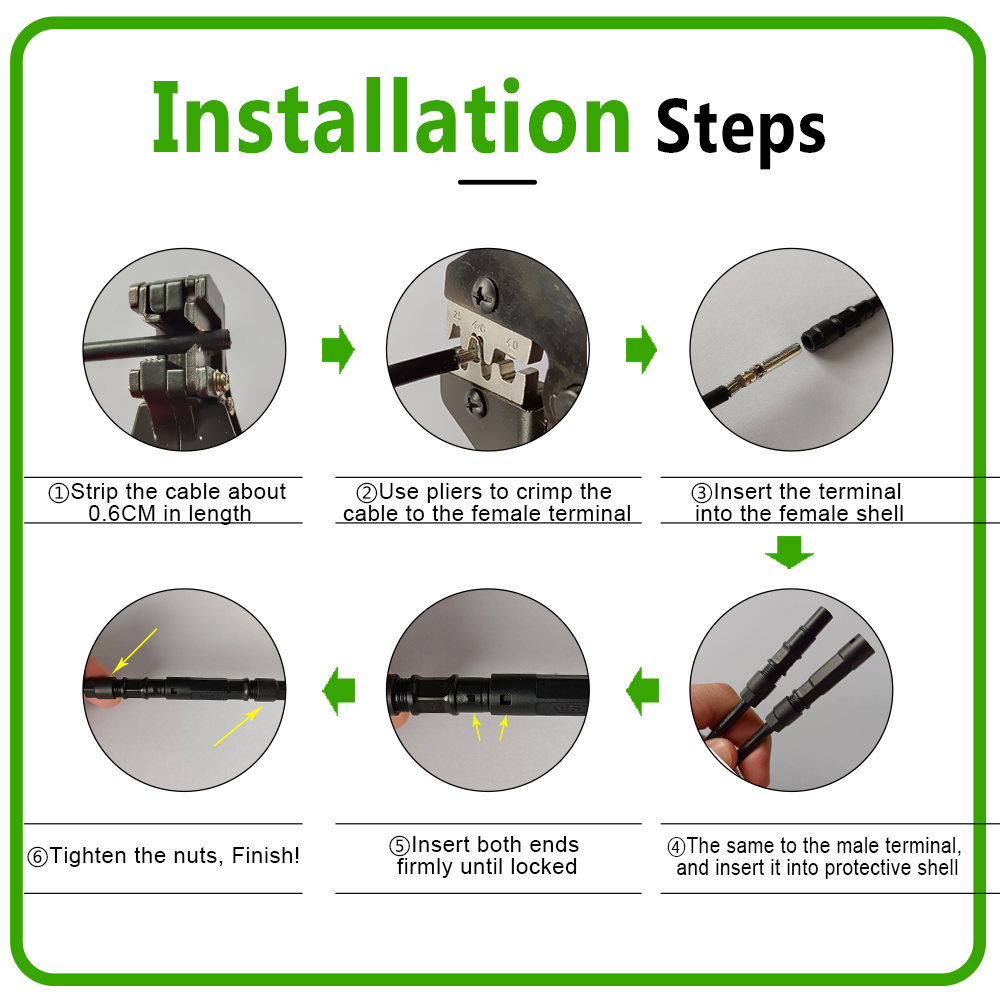

The connector features a built-in locking mechanism. Simply insert the cable, ensure it is seated properly, and then lock the connector to create a secure, waterproof seal.

What maintenance is required for this connector?

Regular visual inspections for damage or wear are recommended. However, due to its durable construction and high IP rating, minimal maintenance is typically required.
