NSPV DC 1500V Solar Panel Connectors

IP68 Waterproof, TUV, IEC

Copper Tinned Terminal ( Hollow or Solid for choice)
Cable size : 2.5mm to 60mm, 14AWG to 6AWG

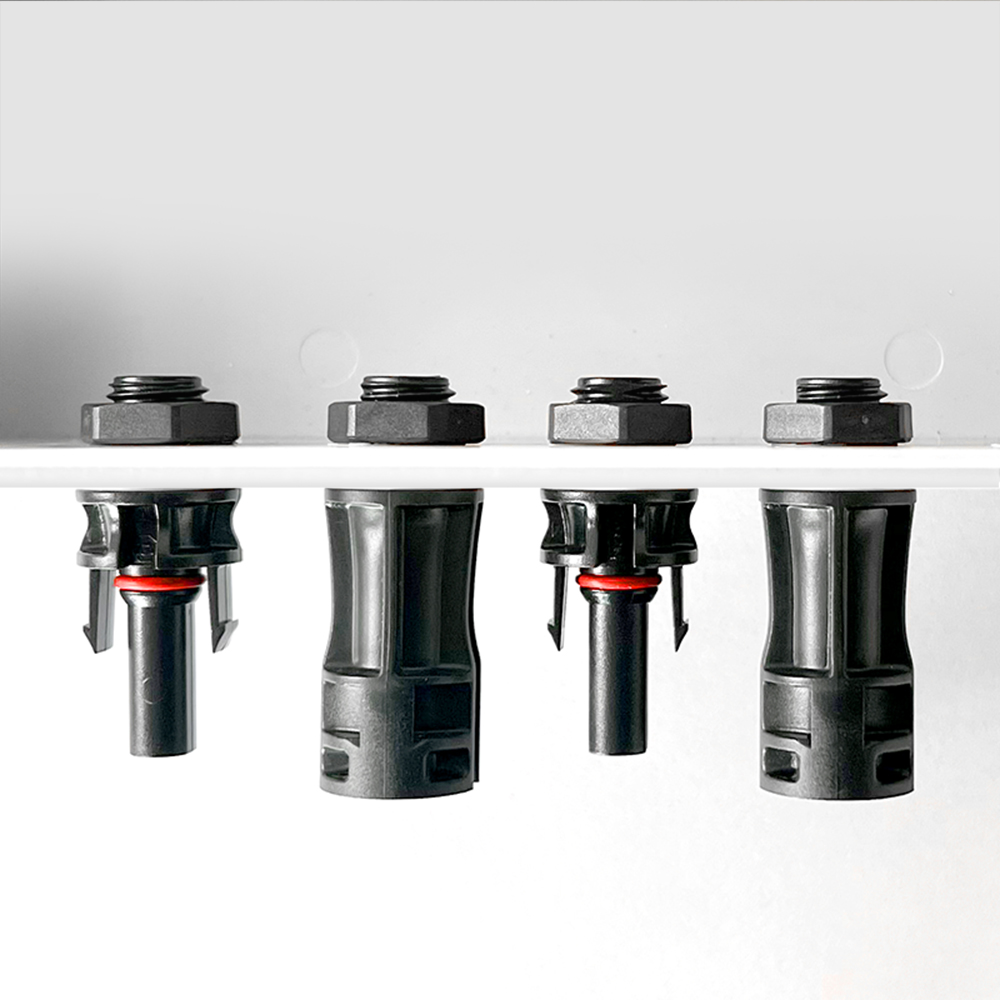

Vale using: Inverter, Combiner Box

Inquiry

Write a Review

Product Introduction

The NSPV DC 1500V Solar Panel Connector is a versatile, high-performance solution designed for seamless integration between solar panels, combiner boxes, and inverters. Built with a universal Multi Connect design, it eliminates compatibility issues, allowing effortless interconnection across diverse solar systems without requiring proprietary adapters. This flexibility simplifies installations, reduces inventory costs, and accelerates project timelines.

Product Specifications

Voltage Rating	DC 1500V (compatible with high-voltage solar systems)
Current Rating	Up to 70A (depending on cable size)

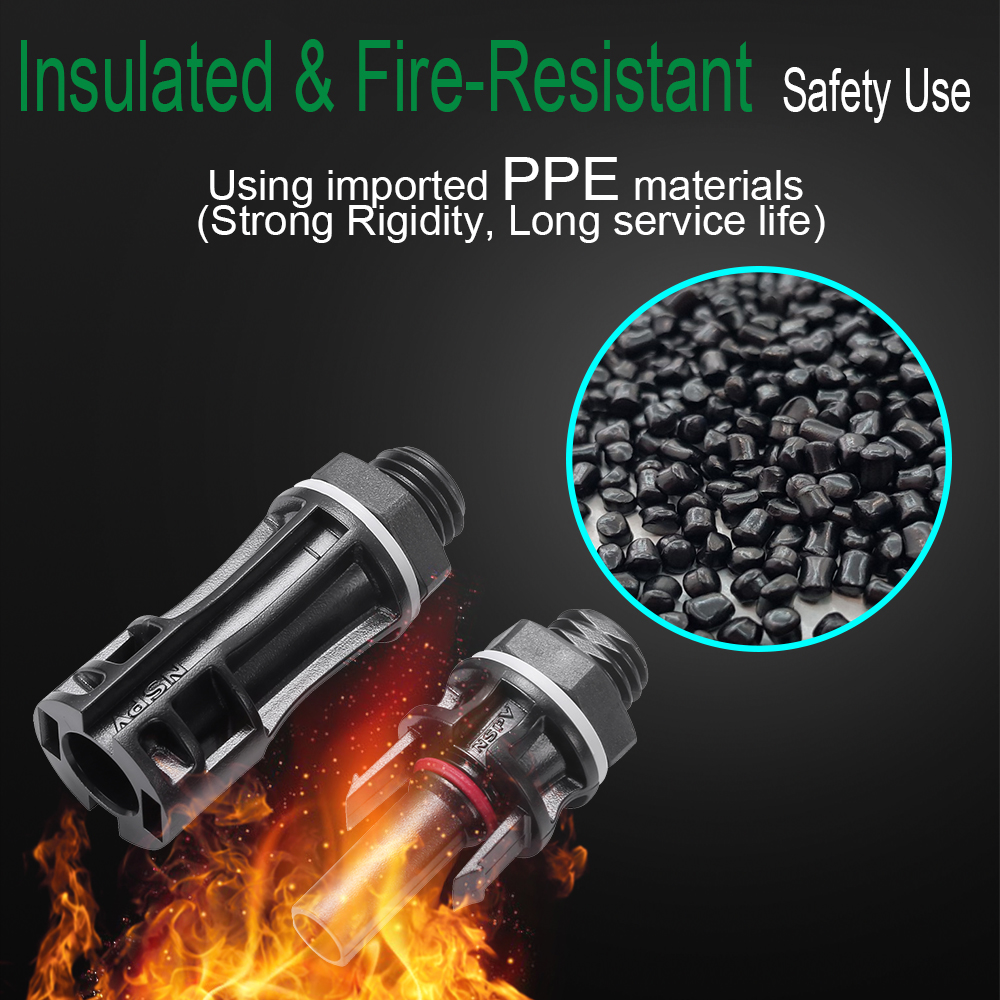

Material	High-grade PPE/PA for flame retardancy and chemical resistance

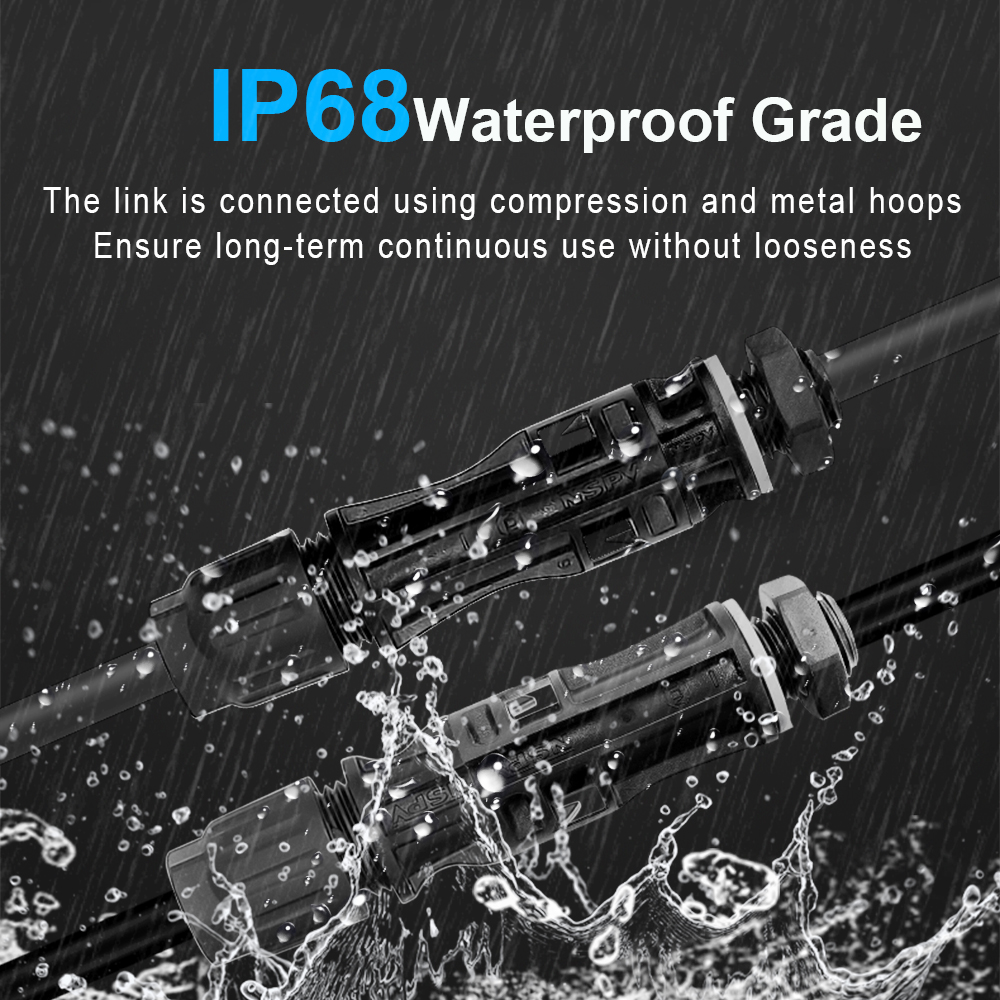

Protection Class	IP68 (immersion-proof up to 1 meter for 30 minutes)
Cable Range	2.5–10mm² (AWG 14–8) for flexible or rigid cables
Temperature Range	-40°C to +90°C (withstanding harsh climates)

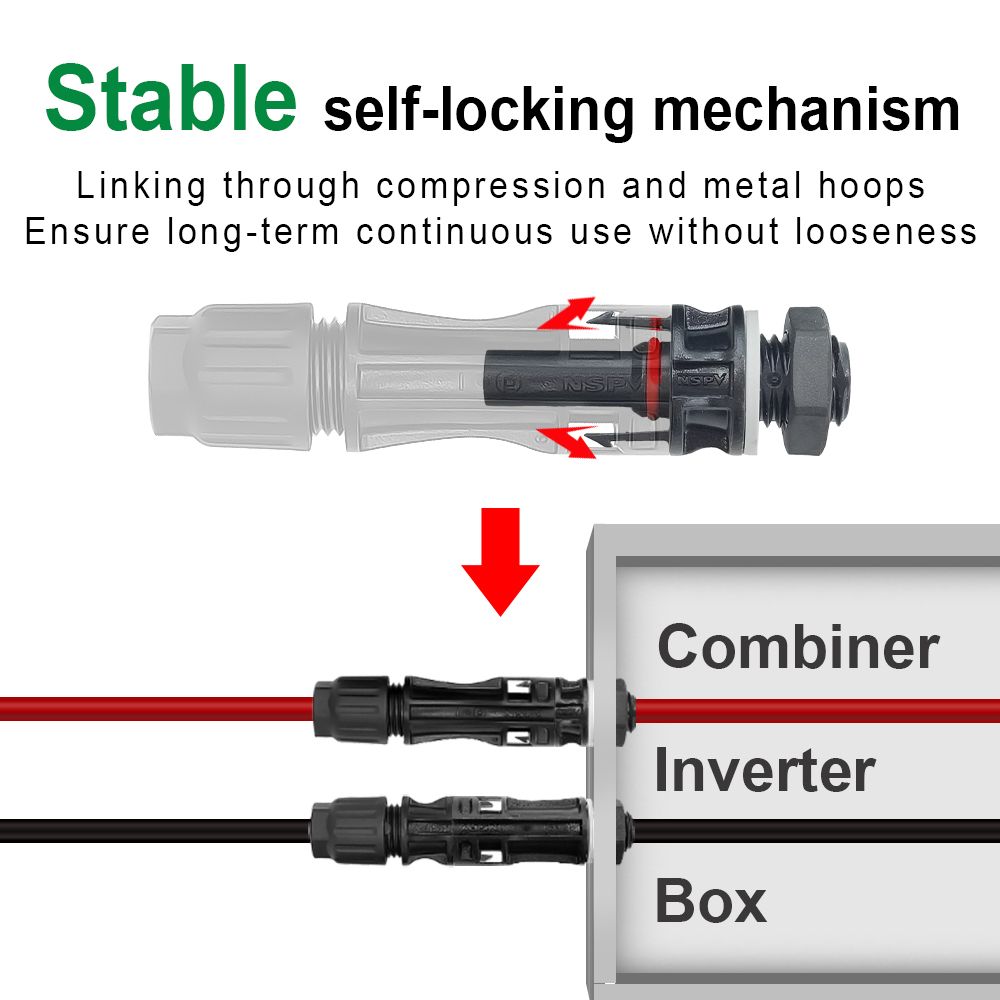

Connection Type	-Universal plug-and-play with secure locking mechanism
Certifications	Comply with IEC 62852, TÜV, and RoHS standards

Our Features

DC 1500V Solar Panel Connectors

Material: High-performance PPE/PC/PA (flame-retardant and UV-resistant)
Waterproof Rating: IP68 (fully dustproof and submersible up to 1.5m depth)
Certifications: TÜV-certified, compliant with IEC standards

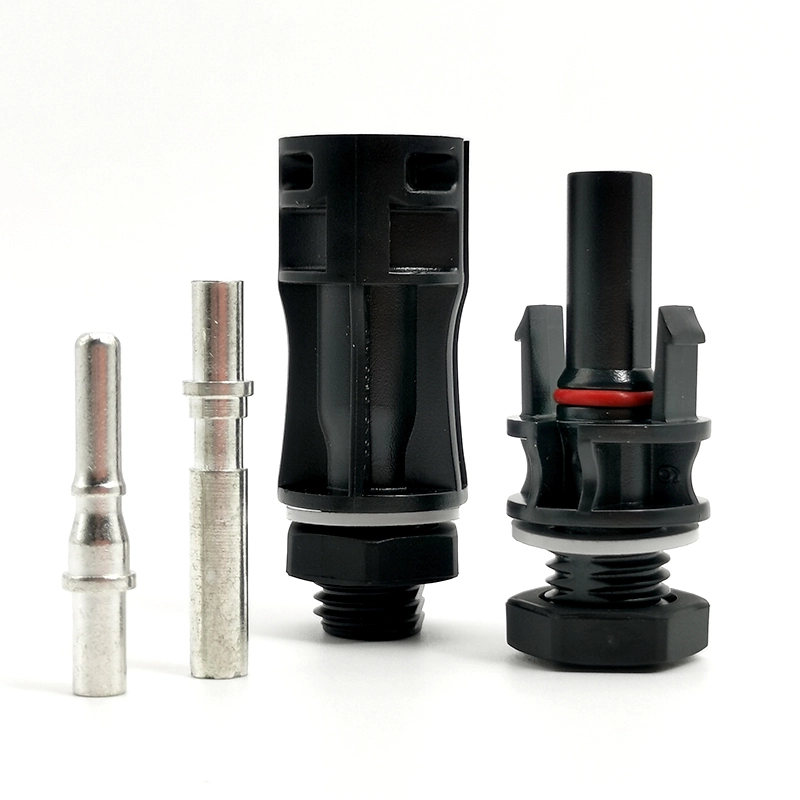

Terminal Design: Copper-tinned terminals (hollow or solid options available for flexibility in wiring)
Cable Compatibility: Supports 2.5mm² to 10mm² (14AWG to 8AWG) cables
Installation: Requires a dedicated spanner wrench for secure, tool-assisted assembly

Our Advantages

● Universal Compatibility: Works with most solar arrays and inverters, eliminating the need for proprietary adapters.

● Enhanced Safety: IP68 sealing prevents moisture ingress, reducing fire risks and system failures.

● Durability: PPE/PA material resists UV degradation, abrasion, and temperature extremes, extending lifespan.

● Time Efficiency: The Multi Connect feature allows rapid parallel connections, cutting installation time by up to 50%.

● Cost-Effective: Reduces maintenance costs by minimizing downtime and component replacements.

Application

Ideal for:

● Residential Solar Systems: Connecting rooftop panels to inverters.

● Off-Grid Projects: Ensuring reliable power in remote areas with harsh weather.

● Agricultural Solar Setups: Withstanding dust and humidity in farm environments.

FAQ

What makes this connector different from others?

Its PPE/PA material offers superior durability compared to standard PVC connectors, while the Multi Connect design simplifies multi-panel setups without additional hardware.

Is it compatible with all solar inverters?

Yes, its universal design ensures compatibility with most DC 1500V inverters and combiner boxes.

Can it handle high-temperature environments?

Absolutely. It operates reliably from -40°C to +90°C, making it suitable for desert or cold-climate installations.

How do I install it?

Insert the cable into the connector, ensure the locking mechanism clicks securely, and verify the IP68 seal. No tools are required for basic connections.

What cable sizes does it support?

It accommodates cables from 2.5mm² to 10mm², covering both thin and thick wiring needs.

Is it waterproof?

Yes, the IP68 rating ensures complete protection against dust and water immersion, safeguarding against short circuits.
