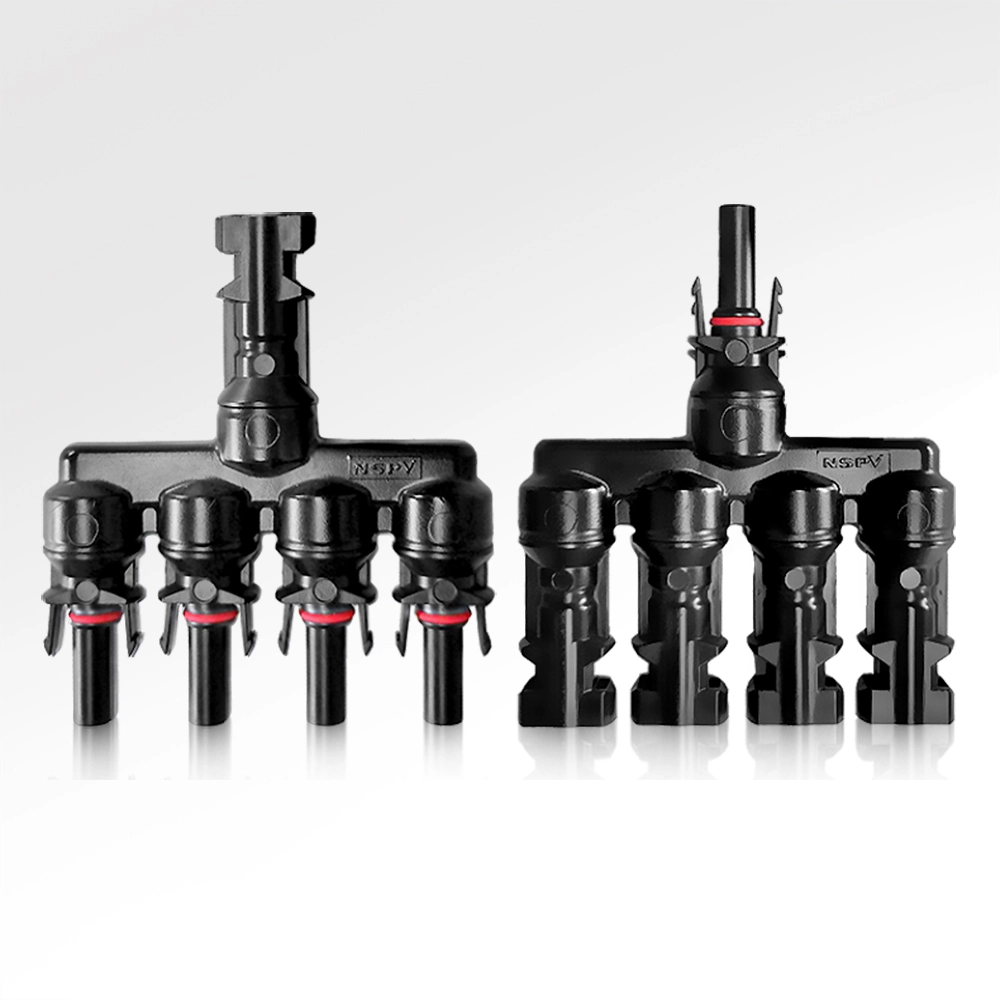

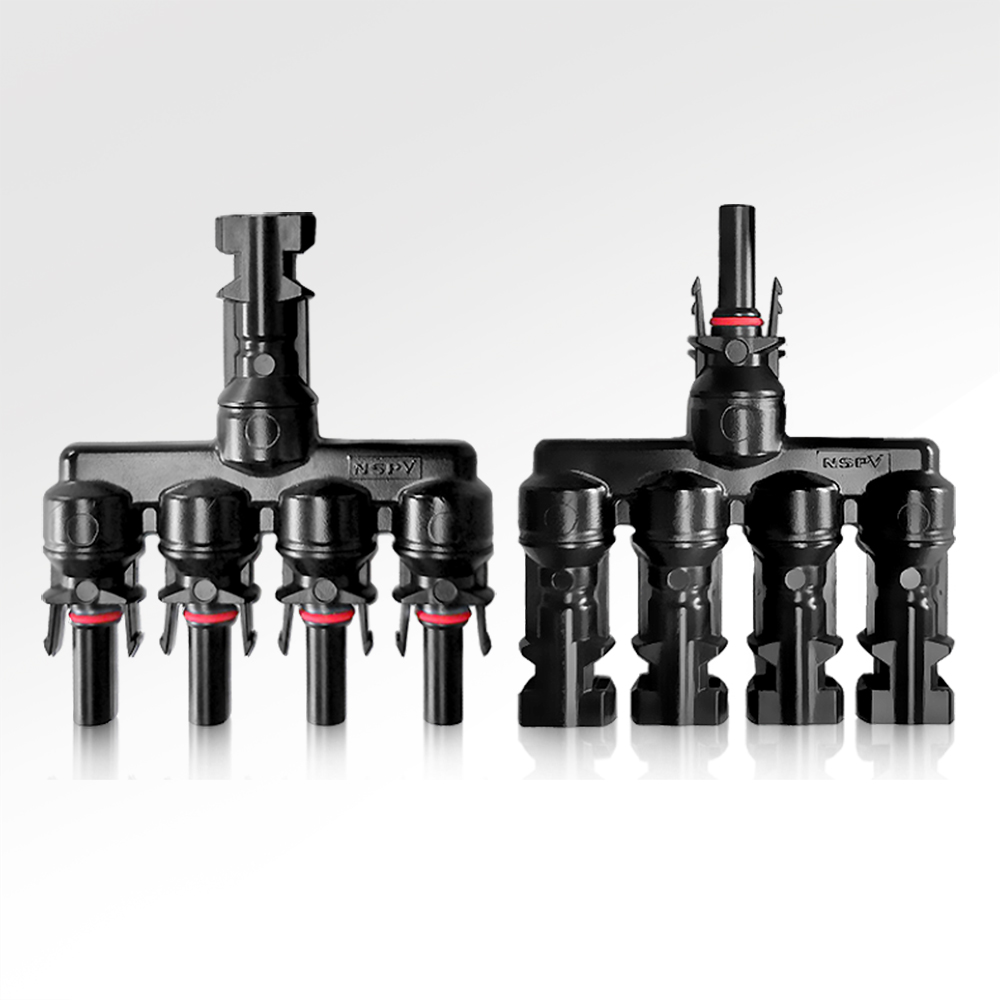

NSPV DC1500V Solar Cable Branch Connector 4-in-1

NSPV DC1500V Solar Cable Branch Connector 4-in-1
IP68 （1m,1H) Protection Rating
Output 50A MAX,
PPE Insulation material,
Cable size 2.5mm~10mm2 /14~8AWG

Inquiry

Write a Review

Product Introduction

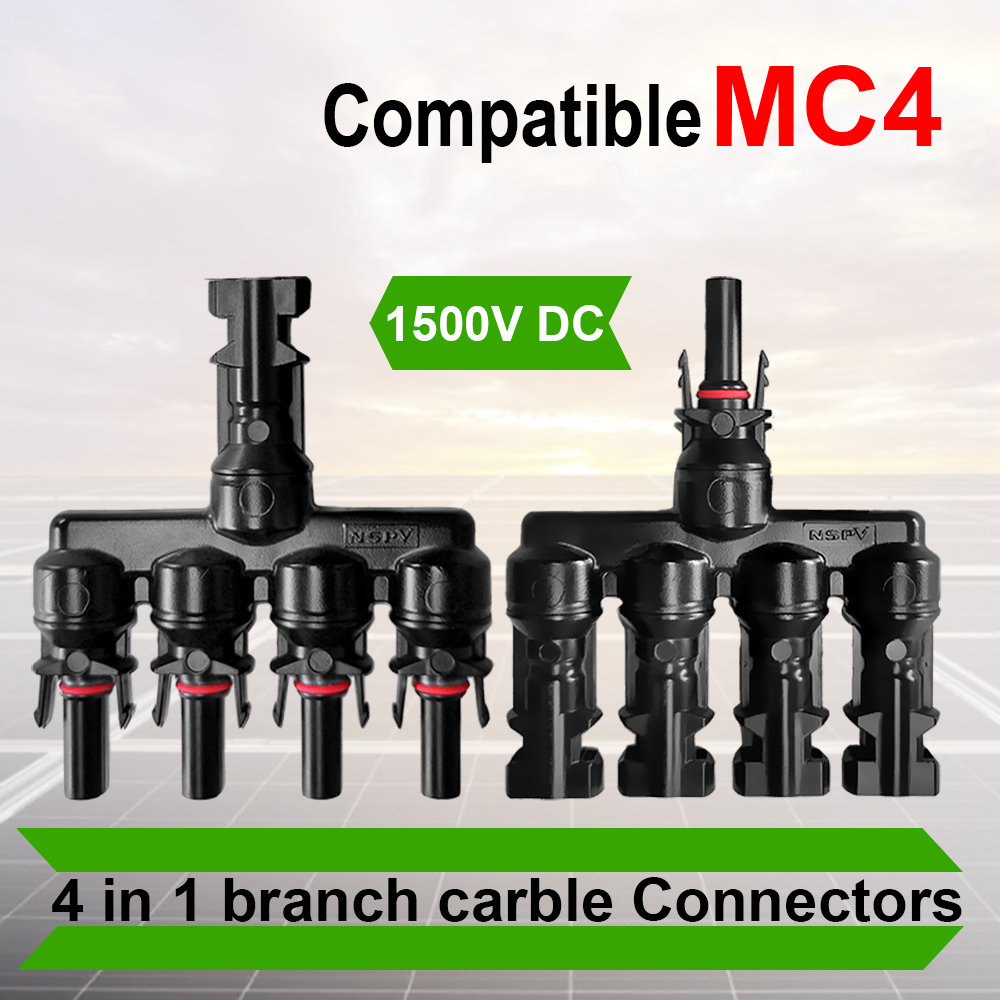

The NSPV Brand DC1500V Solar Cable Branch Connector 4-in-1 is a cutting-edge solution designed to simplify and optimize solar energy installations. Featuring a multi-connect design, this connector allows seamless integration of up to four solar PV cables into a single junction point, reducing clutter and installation time while enhancing system efficiency.

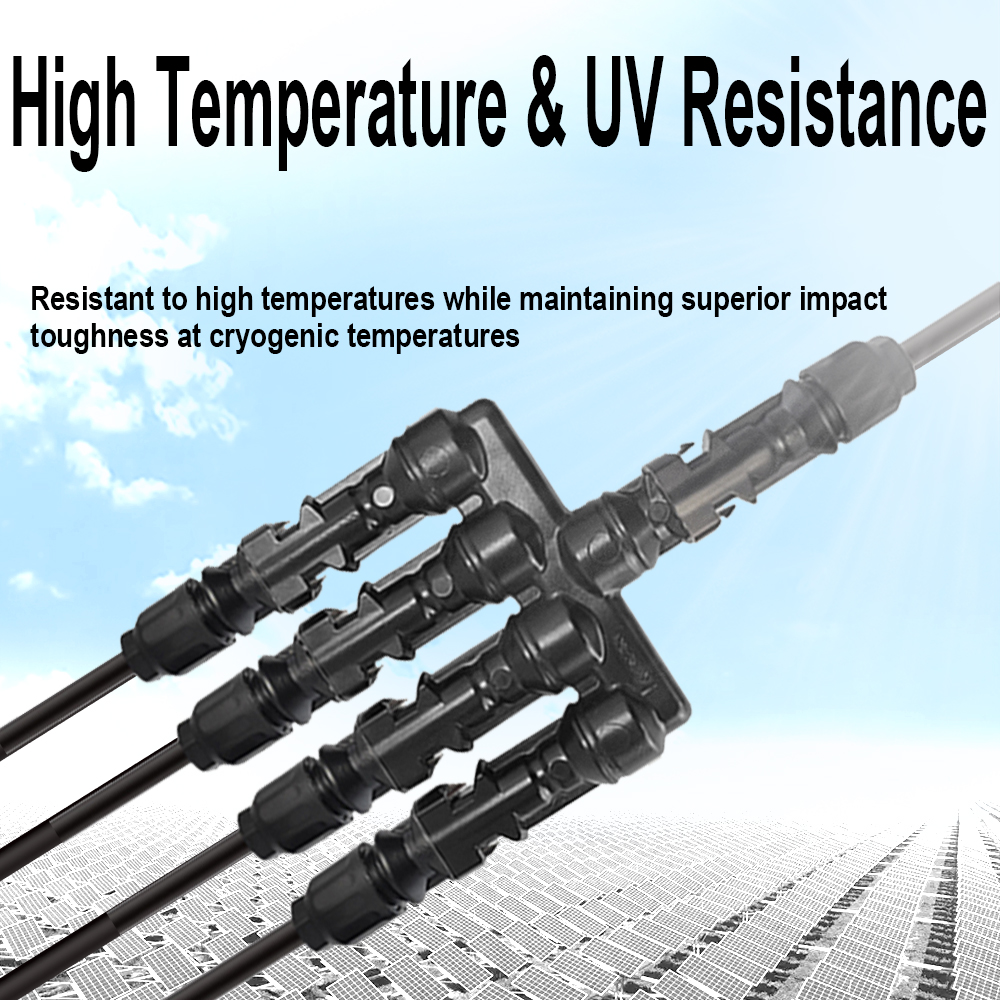

● Crafted from universal PPE/PA materials, it offers exceptional durability, withstanding UV exposure, extreme temperatures, and harsh weather conditions. Its IP68-rated waterproof and dustproof construction ensures long-term reliability in outdoor environments, making it ideal for residential, commercial, and industrial solar projects.

● Key advantages include universal cable compatibility (2.5mm² to 16mm²), eliminating the need for multiple adapters, and a high voltage rating of DC1500V, supporting modern high-efficiency solar systems. The ergonomic design simplifies handling, while corrosion-resistant copper contacts guarantee stable electrical performance.

● NSPV provides comprehensive after-sales support, including a 1-year warranty, technical assistance, and easy access to replacement parts. This connector not only streamlines installations but also delivers cost savings through reduced labor and material requirements, making it a trusted choice for global solar applications.

Product Specifications

Voltage Rating	DC1500V, suitable for high-voltage solar systems
Current Capacity	Up to 50A (dependent on cable size)
Cable Compatibility	Accepts 2.5mm² to 16mm² solar PV cables (single-core, tinned copper conductors)
Material	PPE/PA housing for superior durability and weather resistance
Contact Material	High-conductivity copper alloy with corrosion-resistant plating
Protection Class	IP68 (waterproof and dustproof)
Temperature Range	-40°C to +90°C (-40°F to +194°F)
Certifications	Compliant with IEC 62852 and TÜV standards for safety and performance

Our Features

The NSPV DC1500V Solar Cable Branch Connector 4-in-1 is engineered to streamline solar installations with its innovative multi-connect design, enabling secure integration of up to four solar PV cables into a single junction point. Built for durability and reliability, this connector features a robust housing crafted from high-grade PPE (Polyphenylene Ether) and PA (Polyamide) materials, ensuring exceptional resistance to UV radiation, extreme temperatures, and environmental stressors. Its ergonomic design simplifies installation, while the IP68-rated waterproof and dustproof construction guarantees long-term performance in outdoor environments. Compatible with cable cross-sections ranging from 2.5mm² to 16mm², this connector supports versatile configurations for residential, commercial, and industrial solar arrays.

Our Advantages

1. Dual - Polarity 4 - in - 1 Design:

Each pair has positive and negative terminals in one unit, simplifying installation and cutting component numbers.

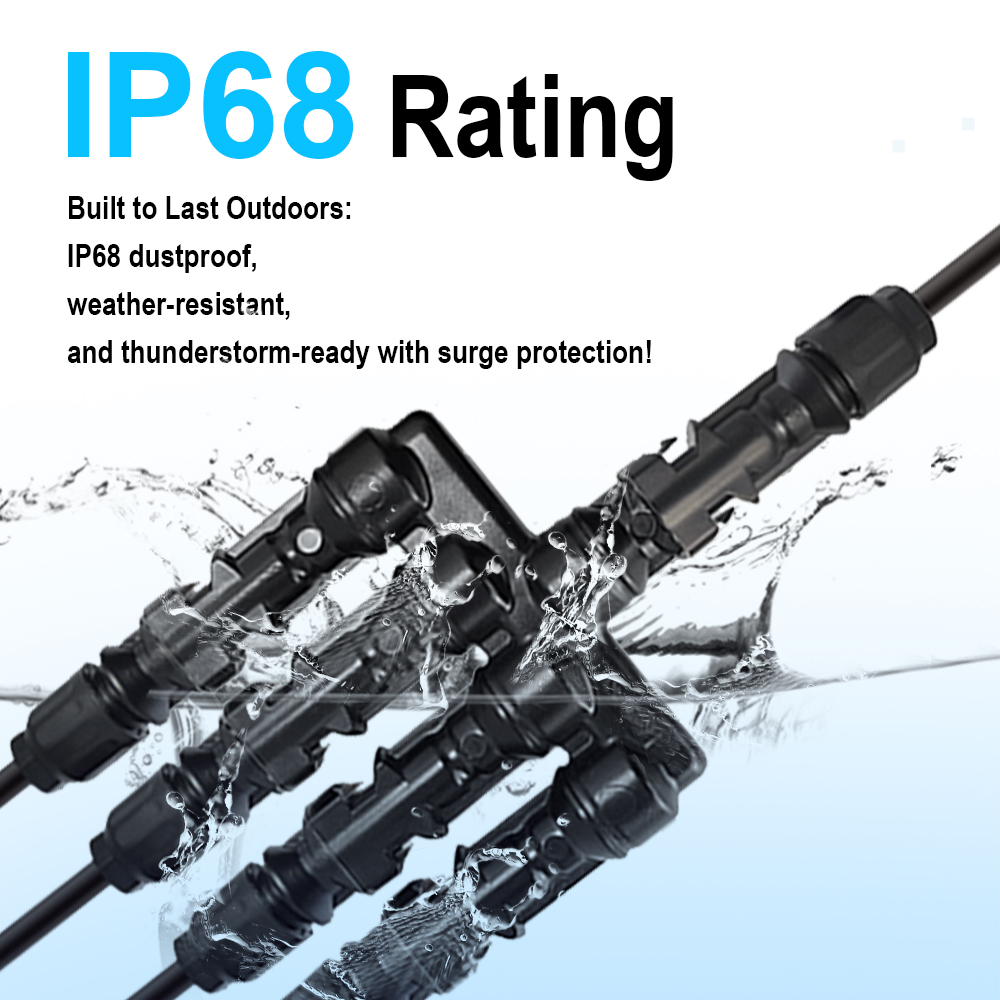

2. IP68 Waterproof Rating:

Can endure being under 1m of water for 1 hour, ensuring reliable performance in harsh outdoor conditions.

3. 50A Max Current Capacity:

Suitable for various solar projects, from small residential to large commercial installations, handling high electrical loads.

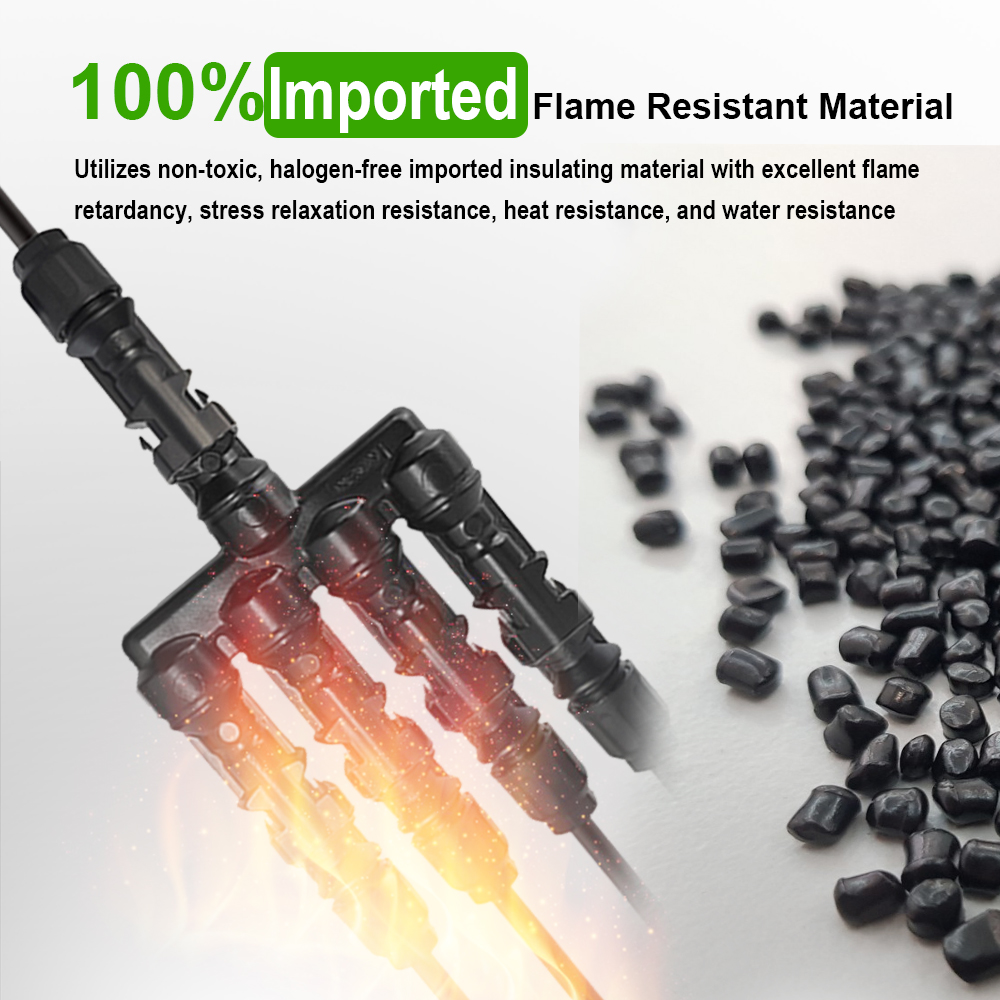

4. PPE Insulation & Wide Cable Fit:

Made of PPE for excellent insulation; compatible with cables from 2.5mm² - 10mm² (14AWG - 8AWG).

Application

Ideal for:

● Residential rooftop solar installations requiring compact, efficient wiring.

● Commercial solar farms needing scalable, high-capacity connections.

● Off-grid systems where space and durability are critical.

● Retrofitting projects where upgrading to a multi-connect solution improves system efficiency.

FAQ

What makes this connector different from standard solar connectors?is connector?

Its 4-in-1 multi-connect design allows simultaneous integration of four cables, reducing clutter and installation steps. The PPE/PA housing also offers superior environmental protection compared to conventional materials.

Is this connector compatible with all solar cables?

It accepts 2.5mm² to 16mm² single-core, tinned copper PV cables, covering most industry-standard sizes. Always verify cable compatibility before installation.

Can it be used in extreme weather conditions?

Yes! The IP68 rating and temperature tolerance of -40°C to +90°C make it suitable for desert, coastal, and arctic environments.

Does it require special tools for installation?

Standard crimping tools for solar cables are sufficient. The connector’s ergonomic design ensures easy handling without compromising safety.

Is it certified for international use?

Compliance with IEC 62852 and TÜV standards ensures global recognition for safety and performance.
