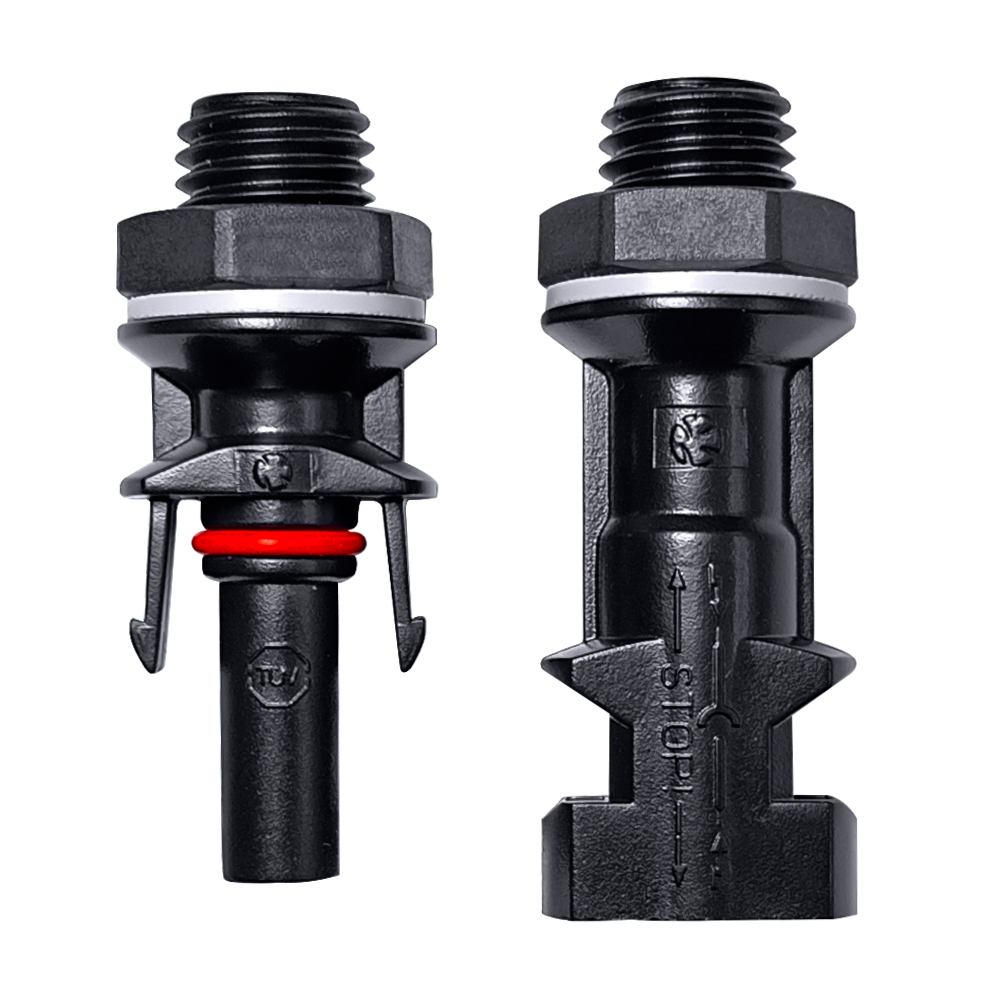

NSPV Solar 1000VDC Panel Connectors

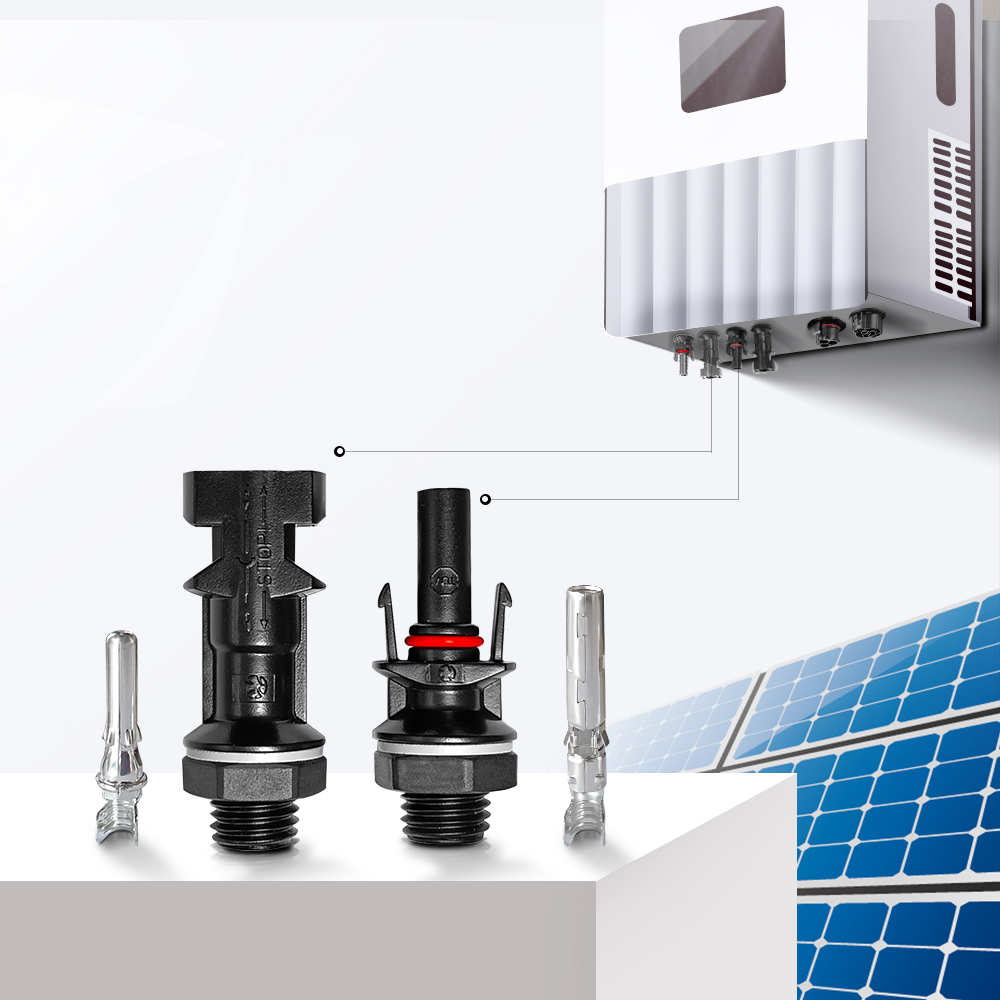

NSPV Solar 1000VDC Panel Connector using for Inverter, Combiner Box
IP67 waterproof
30A MAX
suitable cable size: 2.5mm to 6mm or 14AWG to 10AWG

Inquiry

Write a Review

Product Introduction

The NSPV Solar 1000V DC Panel Connector is a premium solution designed to optimize solar energy systems when paired with combiner boxes and inverters. Its Multi Connect capability ensures universal compatibility, allowing seamless integration with a wide range of solar panels and electrical components without proprietary limitations. This versatility simplifies system design and reduces the need for multiple connector types, streamlining installation and maintenance.

Engineered for high-performance 1000V DC applications, the connector features a durable PPE/PA construction that resists UV degradation, extreme temperatures, and moisture, ensuring reliable operation in harsh environments. Its IP67 rating guarantees waterproof and dustproof protection, while the tool-free snap-lock mechanism enables quick, secure connections, minimizing downtime and labor costs.

Key Advantages:

● Enhanced Efficiency: Reduces power loss during transmission, boosting overall system output.

● Cost-Effective: Universal design lowers inventory and replacement expenses.

● Scalability: Ideal for residential, commercial, and industrial projects of any size.

● After-Sales Support: NSPV provides a 2-year warranty and 24/7 technical assistance, ensuring long-term reliability. Customers also benefit from global certification compliance (IEC, TÜV, CE) and access to replacement parts with fast shipping.

Choose the NSPV Solar 1000V DC Connector for a smarter, more efficient solar setup backed by exceptional support.

Product Specifications

Voltage Rating	1000V DC
Current Rating	Up to 30A (varies by cable size)
Material	PPE/PA housing with corrosion-resistant metal contacts
Protection Class	IP67
Temperature Range	-40°C to +90°C
Cable Compatibility	Works with standard solar cables (4mm² to 10mm²)
Certifications	Compliant with IEC 62852, TÜV, and CE standards

Our Features

1. High-Voltage & Weatherproof Performance

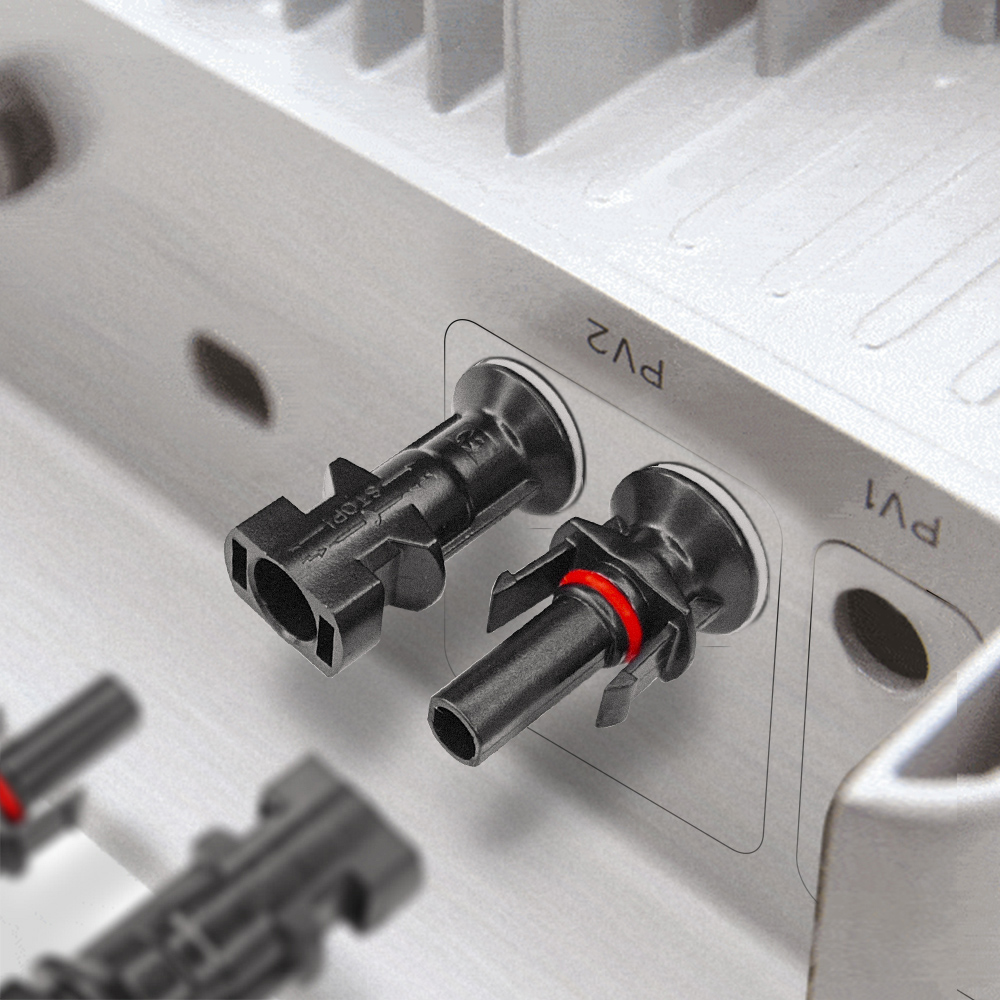

1000VDC rated for safe use in solar inverters/combiner boxes.
IP67 waterproof and dustproof, ensuring reliability in harsh outdoor environments.

2. High Current & Flexible Cabling

30A max capacity reduces energy loss and overheating.
Compatible with 2.5–6mm² (14–10AWG) cables for versatile system integration.

3. Durable & User-Friendly Design

Corrosion-resistant materials withstand UV and temperature extremes.
Quick-lock mechanism simplifies installation and prevents accidental disconnections.

Our Advantages

● Enhanced System Efficiency: By minimizing power loss during transmission, the connector improves overall system output.

● Cost-Effective: Its universal design reduces the need for multiple connector types, lowering inventory and replacement costs.

● Safety First: The IP67 rating and high-voltage tolerance ensure secure operation, reducing the risk of electrical hazards.

● Longevity: The UV-resistant PPE/PA material extends the connector’s lifespan, outlasting conventional alternatives.

● Scalability: Compatible with both small-scale and large-scale solar arrays, making it versatile for diverse projects.

Application

● Residential Solar Systems: Ideal for rooftop installations where space and efficiency are critical.

● Commercial Solar Farms: Supports high-capacity arrays with its 1000V DC rating and durable design.

● Industrial Solar Projects: Withstands demanding environments, such as factories or agricultural sites.

● Off-Grid Solutions: Perfect for remote locations requiring reliable, weatherproof connections.

FAQ

Can this connector be used with any solar panel brand?

Yes, its Multi Connect design ensures universal compatibility with most solar panels on the market.

Is it suitable for high-humidity areas?

Absolutely. The IP67 rating and corrosion-resistant materials make it ideal for coastal or humid climates.

What cable sizes does it support?

It works with standard solar cables ranging from 4mm² to 10mm².

Does it require special tools for installation?

No, the tool-free snap-lock mechanism allows for quick and easy assembly.

Is it certified for international use?

Yes, it complies with IEC 62852, TÜV, and CE standards, ensuring global acceptance. The NSPV Solar 1000V DC Panel Connector is a versatile, high-performance solution that enhances solar energy systems by ensuring secure, efficient, and long-lasting connections. Its universal compatibility, robust design, and ease of use make it an essential component for maximizing solar output in any application.
