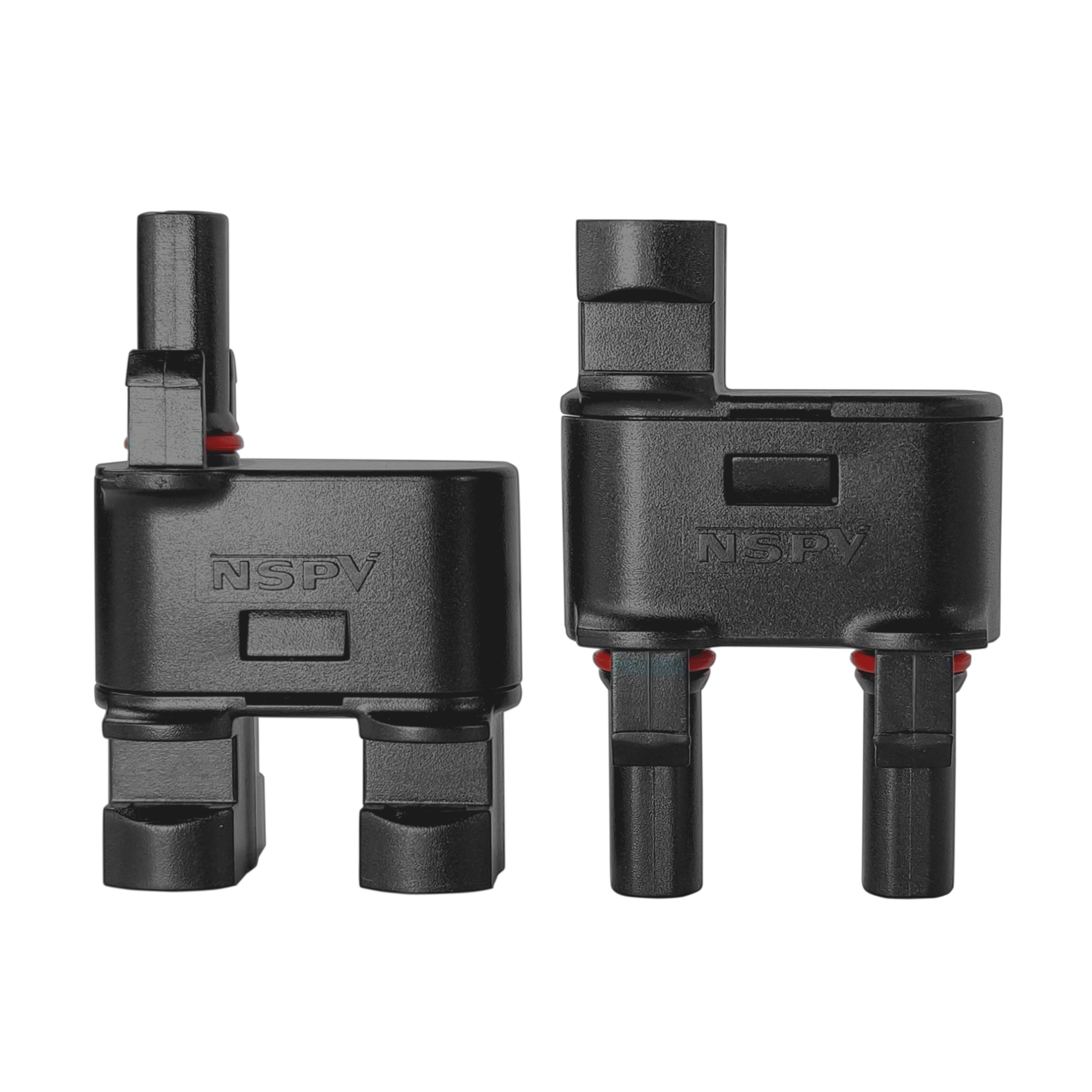

NSPV Solar 1500VDC Cable Branch Connector 2-in-1

IP68 Protection Rating
Output: 65A MAX,
PPE Insulation material

TUV/CE (IEC62852)

Inquiry

Write a Review

Product Introduction

The NSPV Solar 1500V DC Cable Branch Connector 2-in-1 is engineered to optimize solar power distribution in high-voltage systems, offering unmatched efficiency and reliability. Its dual-port design simplifies wiring by combining two outputs into one compact unit, reducing installation time and material costs by up to 40% compared to traditional methods. Rated for 1500V DC and supporting 65A currents (16mm²/6AWG), it ensures seamless power flow in large-scale solar farms and commercial installations.

Product Specifications

Rated Current	Max. 65A (16sqmm or 6AWG Output)
Rated Voltage	1500V DC
Contact Resistance	≤0.25 mΩ
Test Voltage	8kV (50Hz, 1min)
Mechanical Properties	Cable Cross-Section: Supports 10mm² (8AWG) and 16mm² (6AWG) cables
Operating Temperature	-40°C to +85°C (IEC standard)
Locking Torque	1.5–1.8Nm for secure connections

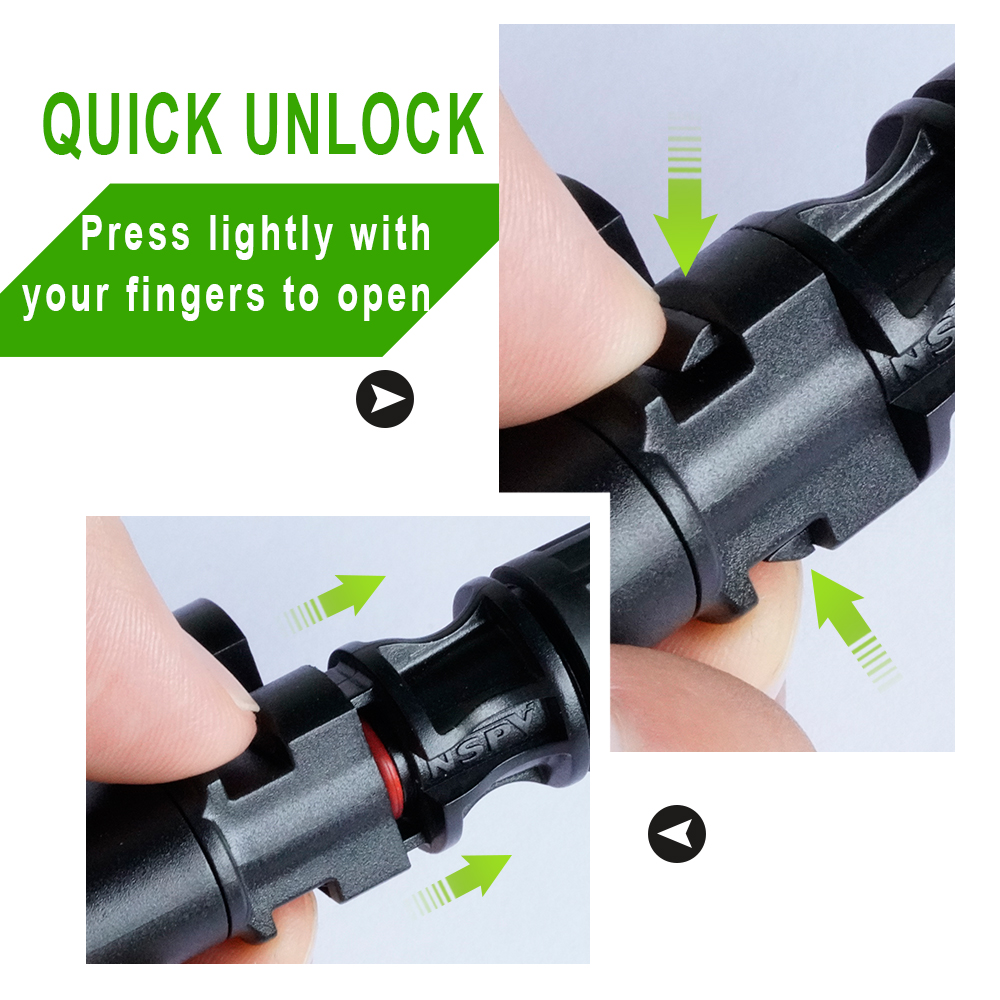

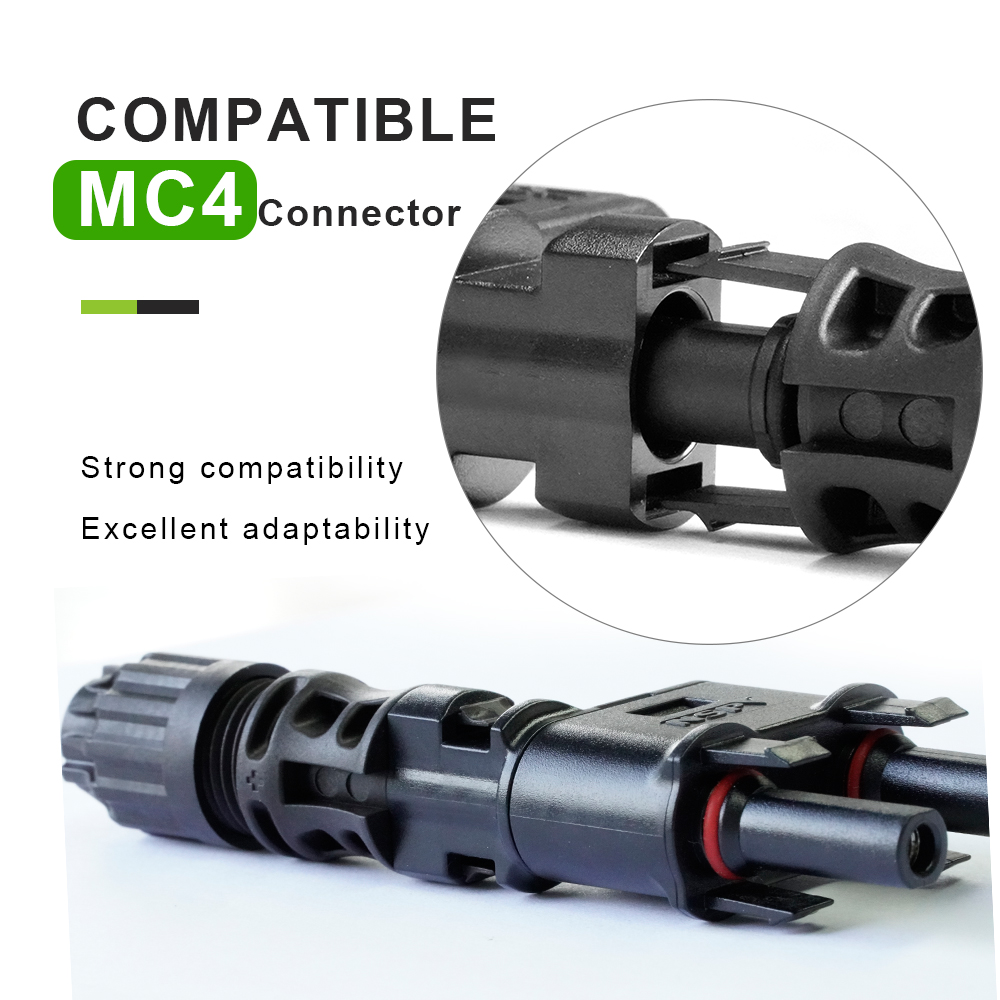

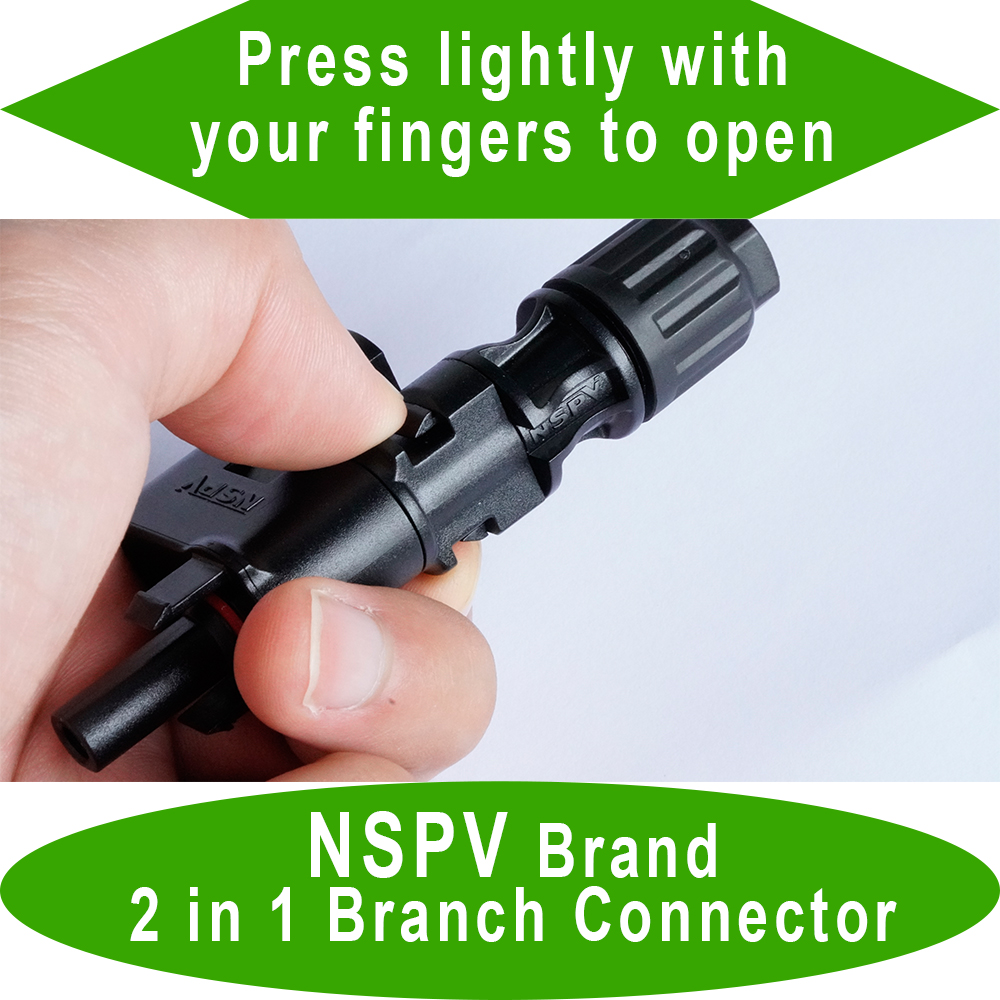

Branch MC4 Connector 2 in 1 Quick Unlock

Our Features

The NSPV Solar 1500V DC Cable Branch Connector 2-in-1 is a revolutionary solution designed to streamline solar power distribution in high-voltage systems. This dual-function connector combines a main input port with two output ports, enabling efficient branching of DC current without compromising safety or performance. Rated for 1500V DC, it supports modern solar farms and industrial installations operating at elevated voltages, reducing the need for additional junction boxes or complex wiring.

Our Advantages

Dual-Polarity Design
- Combines positive and negative terminals in one unit, simplifying installation and reducing cable clutter.
High-Performance Rating
- Supports 1500V DC and 65A max output, ensuring reliable power transmission for demanding solar applications.

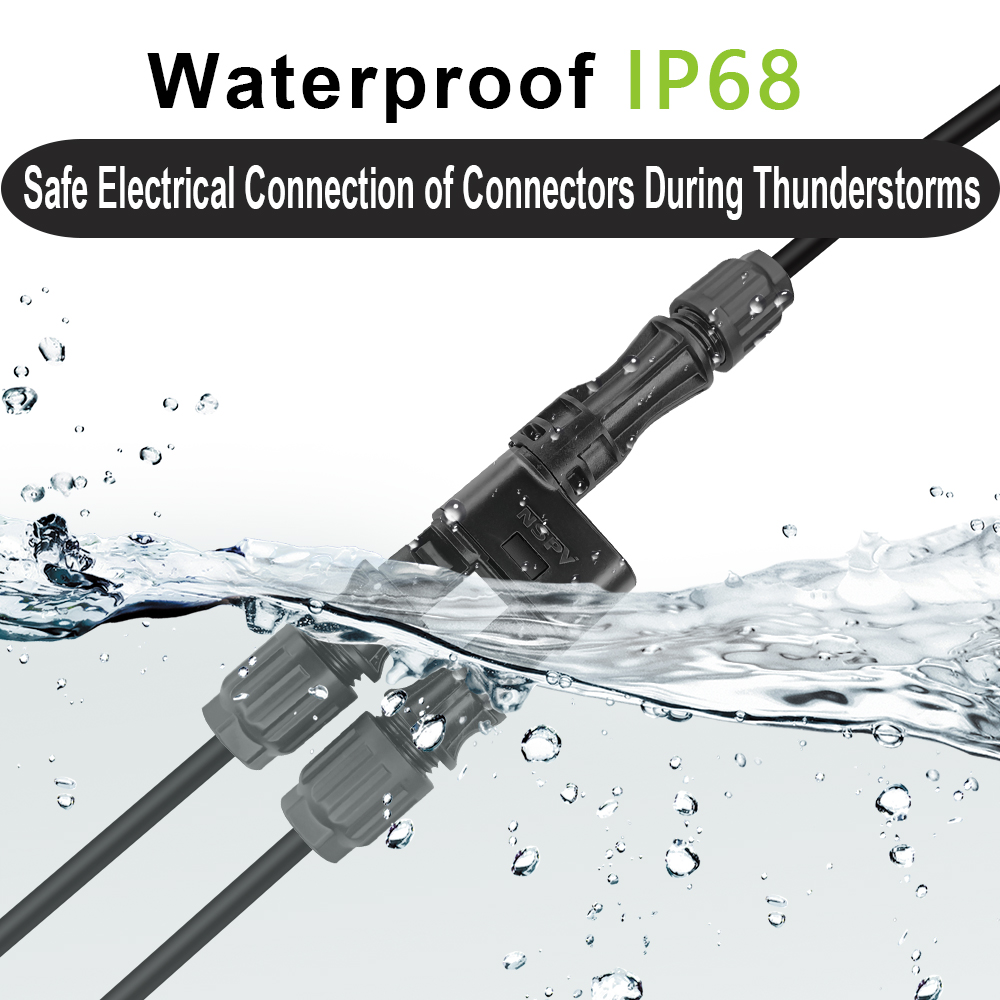

IP68 Weather Resistance
- Fully dustproof and waterproof, enabling uninterrupted operation in extreme environments.
Safety-Certified & Durable
- PPE insulation and TUV/CE (IEC62852) certified for long-lasting safety and UV resistance.

Application

● Utility-Scale Solar Farms: Ideal for distributing power from central inverters to multiple panel strings.

● Commercial Rooftop Systems: Streamlines wiring in dense, space-constrained installations.

● Off-Grid & Hybrid Systems: Supports battery storage and backup generators in remote areas.

● Agrivoltaics: Withstands agricultural environments (dust, humidity) without performance loss.

FAQ

Can this connector be used with 1000V DC systems?

Yes, it is backward compatible but optimized for 1500V DC to future-proof installations.

What cable types are compatible?

Supports 10mm² (8AWG) and 16mm² (6AWG) solar cables, including standard PV1-F variants.

Is it suitable for marine or coastal environments?panels?

Absolutely. The IP68 rating and UV-resistant materials ensure resistance to saltwater corrosion and sunlight.

How does it compare to traditional branching methods?

The 2-in-1 design reduces installation time by 50% and eliminates the need for extra components, lowering overall costs.

Where can I purchase this connector?

NSPV maintains global safety stock for prompt delivery. Order directly from our factory or contact authorized agents worldwide for localized support.
