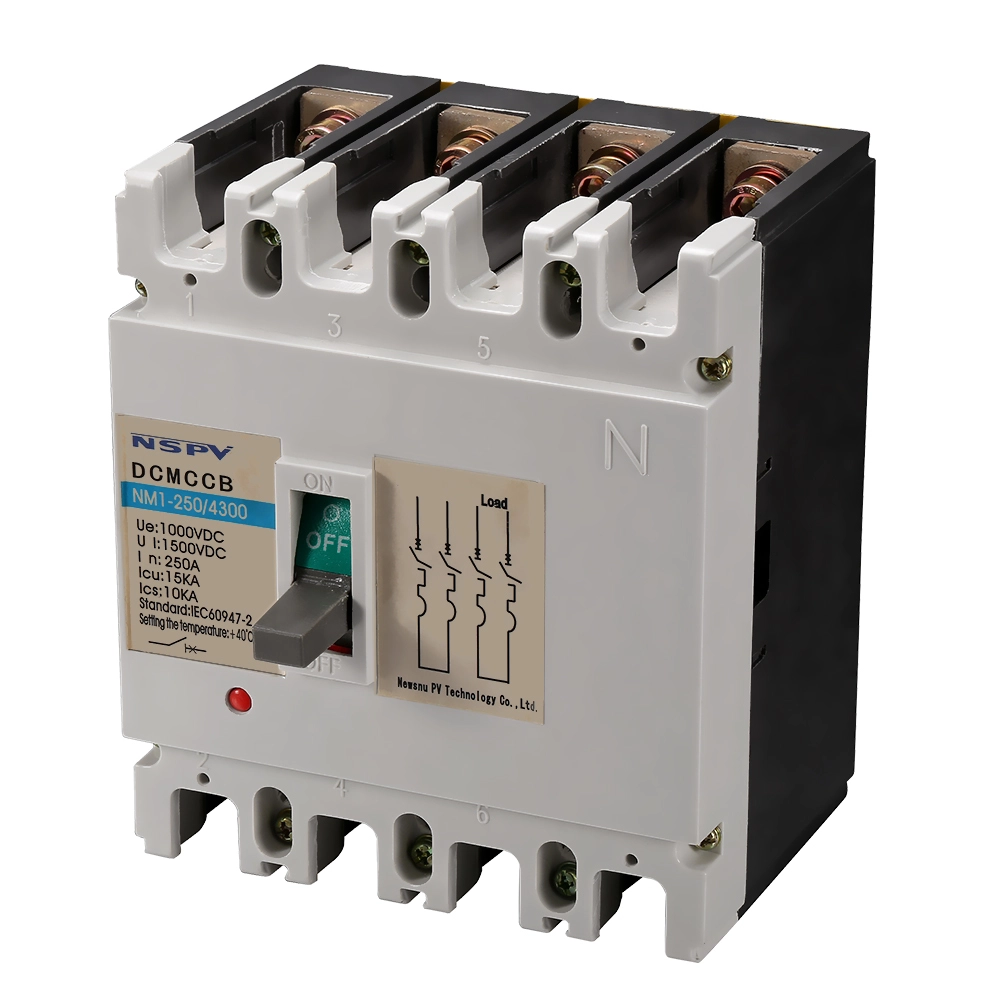

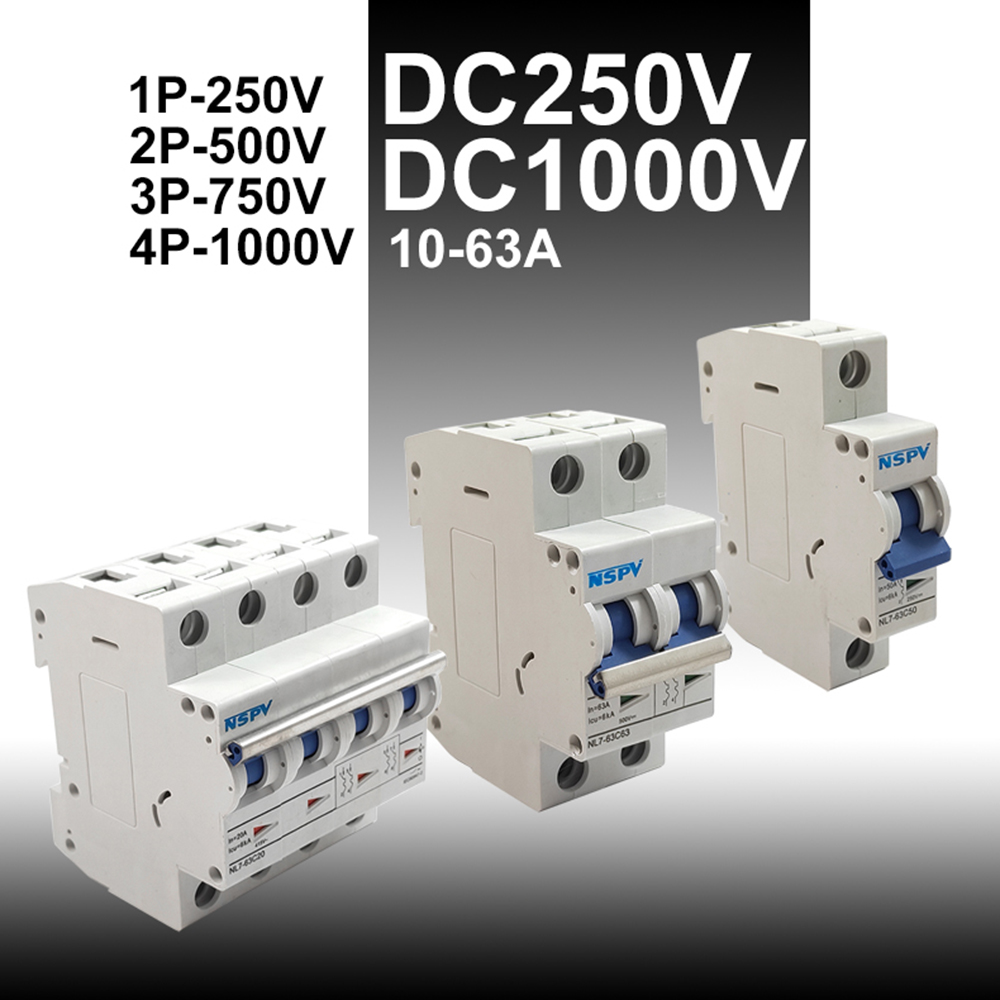

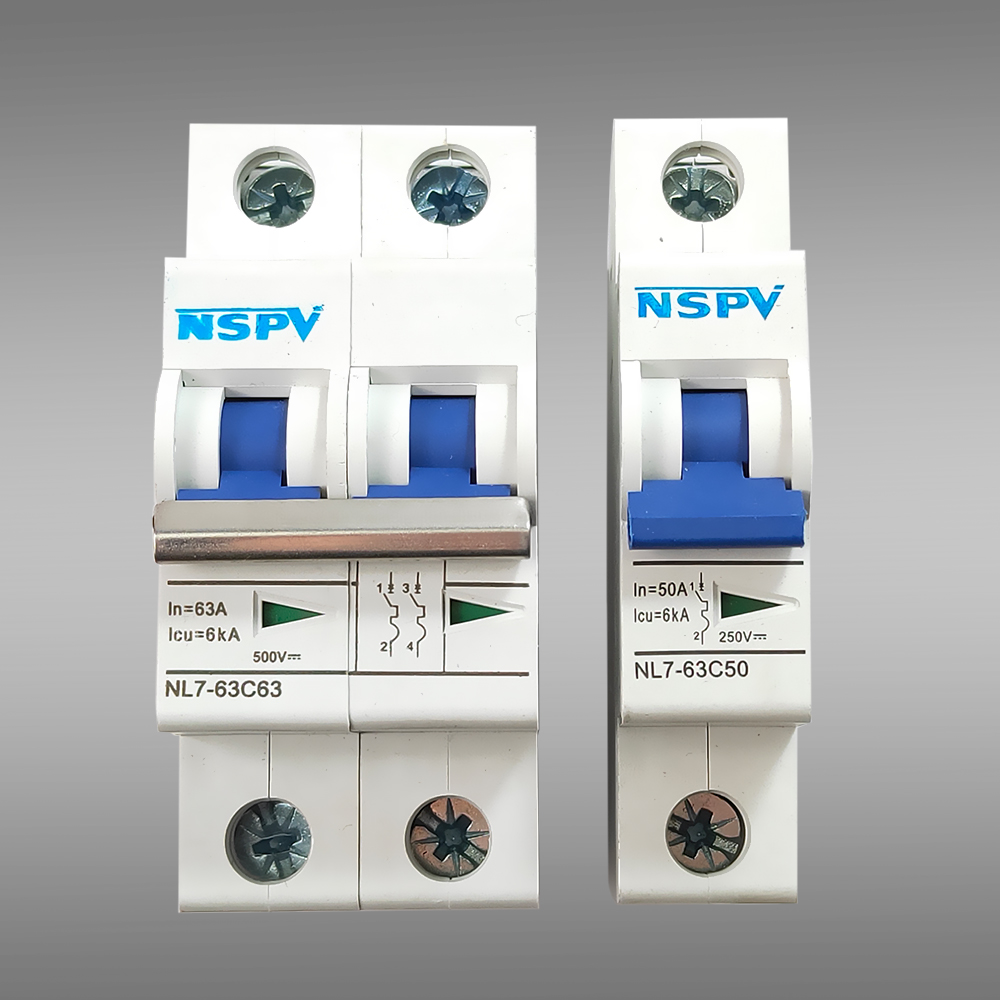

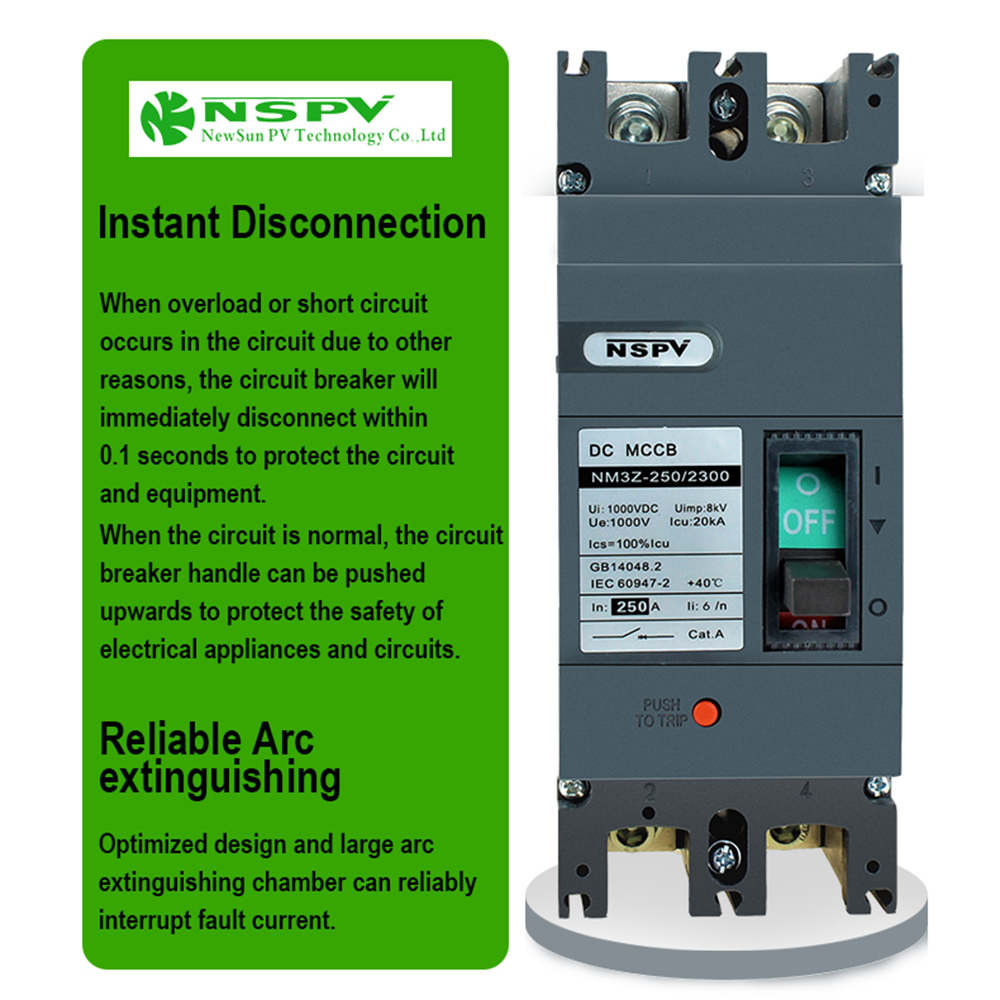

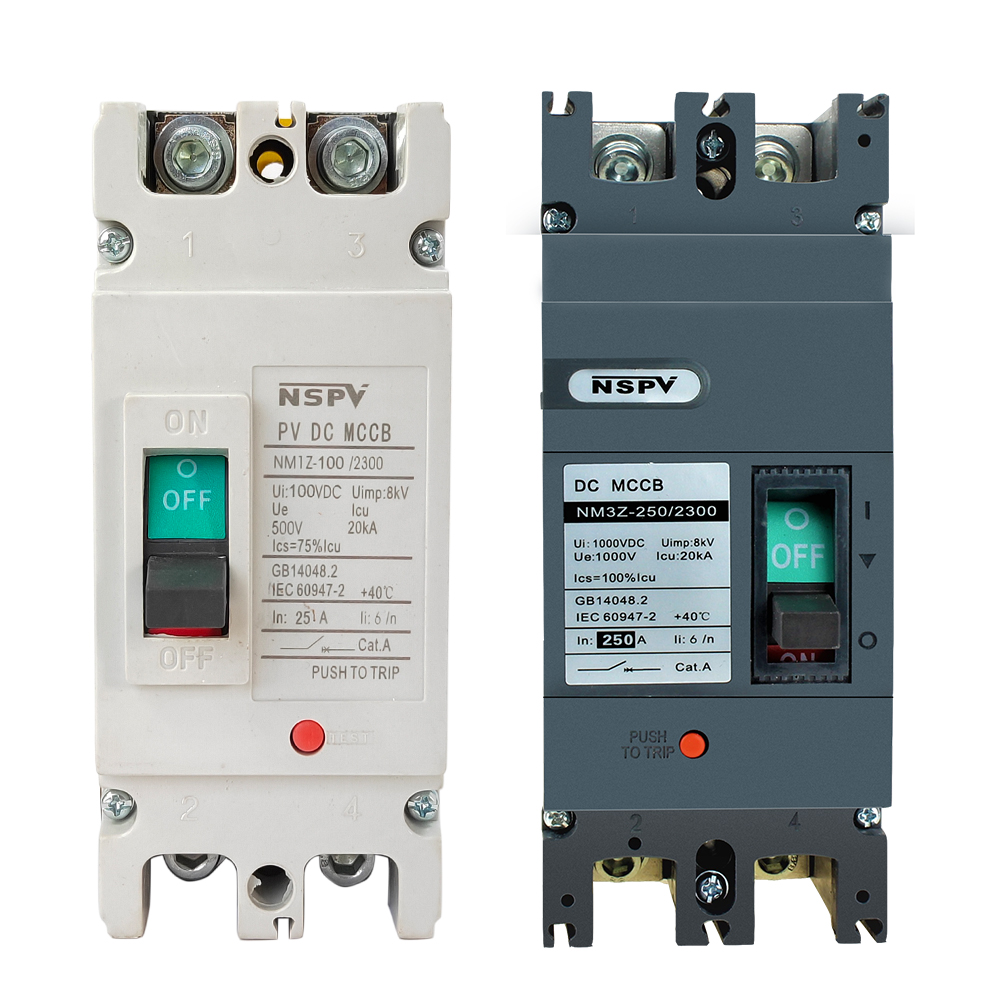

NSPV Solar DC MCB & MCCB Solution

1. Rated Continuous Current (Inm): Available in various specifications ranging from 125A to 1250A.
2. Rated Operating Voltage (Ue, DC): Comes in a wide range from 12V to 1000V DC.
3. Rated Insulation Voltage (Ui): Specified between 1000V and 1500V.
4. Rated Current (In): Covers a range from 16A to 1250A.
5. Total Breaking Time: A rapid 20 milliseconds.

Inquiry

Write a Review

Product Introduction

The NSPV Solar DC MCB MCCB solution is a top-tier choice for solar photovoltaic systems, offering a rated current range from 16A to 125A and a robust 1500V DC voltage rating. Designed with both plastic and metal material options, it caters to diverse environmental and durability needs. The NSPV brand ensures high-quality craftsmanship, while compliance with IEC 60947-2, IEC 60947-1, GB 14048.1, and GB 14048.2 standards guarantees reliability and safety.

With a swift time constant of 20 ms, it provides rapid protection against overcurrent, enhancing system safety significantly. The IP20 protection level safeguards against solid objects, ensuring secure operation. One of its key advantages is cost-efficiency; its durable design reduces maintenance and replacement costs over time. Moreover, its high safety performance minimizes risks, protecting both equipment and personnel.

NSPV also offers OEM/ODM services, tailoring solutions to meet specific customer requirements, making it a perfect fit for various solar applications. This solution not only saves costs but also delivers unparalleled safety, perfectly addressing all customer needs in solar PV installations.

Product Specifications

Voltage Rating	1500V DC
Current Ratings	16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A
Material	Plastic or Metal
Time Constant	20 ms
Protection Level	IP20
Standards Compliance	IEC 60947-2, IEC 60947-1, GB 14048.1, GB 14048.2

Our Features

● High Voltage Rating: Rated for 1500V DC, suitable for high-voltage solar applications.

Wide Current Range: Available in multiple current ratings (16, 20, 25, 32, 40, 50, 63, 80, 100, 125A) to accommodate different system sizes.

● Material Options: Choose between plastic for cost-effective solutions or metal for enhanced durability and heat dissipation.

● Time Constant: A time constant of 20 ms ensures quick response to overcurrent conditions, enhancing system safety.

● Compliance with Standards: Meets international standards including IEC 60947-2, IEC 60947-1, GB 14048.1, and GB 14048.2, ensuring quality and reliability.

● IP20 Protection: Provides basic protection against solid objects larger than 12.5mm, ensuring safe operation in controlled environments.

Our Advantages

Rated Continuous Current (Inm): Available in various specifications ranging from 125A to 1250A.
Rated Operating Voltage (Ue, DC): Comes in a wide range from 12V to 1000V DC.
Rated Insulation Voltage (Ui): Specified between 1000V and 1500V.
Rated Current (In): Covers a range from 16A to 1250A.
Total Breaking Time: A rapid 20 milliseconds.

Application

The NSPV Solar DC MCB MCCB solution is ideal for a wide range of solar PV applications, including:

● Residential solar installations ● Commercial solar power systems ● Industrial solar farms ● Off-grid solar solutions ● Hybrid solar systems

FAQ

What is the maximum voltage these MCBs/MCCBs can handle?

The NSPV Solar DC MCB MCCB solution is rated for a maximum voltage of 1500V DC, making it suitable for high-voltage solar applications.

Can I get these devices in different current ratings?

Yes, the solution is available in a wide range of current ratings from 16A to 125A, allowing you to select the appropriate rating for your specific application.

Are these devices compliant with international standards?

Absolutely, the NSPV Solar DC MCB MCCB solution complies with IEC 60947-2, IEC 60947-1, GB 14048.1, and GB 14048.2 standards, ensuring quality and reliability.

Can I customize these devices with my brand logo?

Yes, NSPV offers OEM/ODM services, allowing you to customize the devices with your brand logo and specific requirements.

What is the protection level of these devices?

The devices are rated IP20, providing basic protection against solid objects larger than 12.5mm, suitable for controlled environments.
