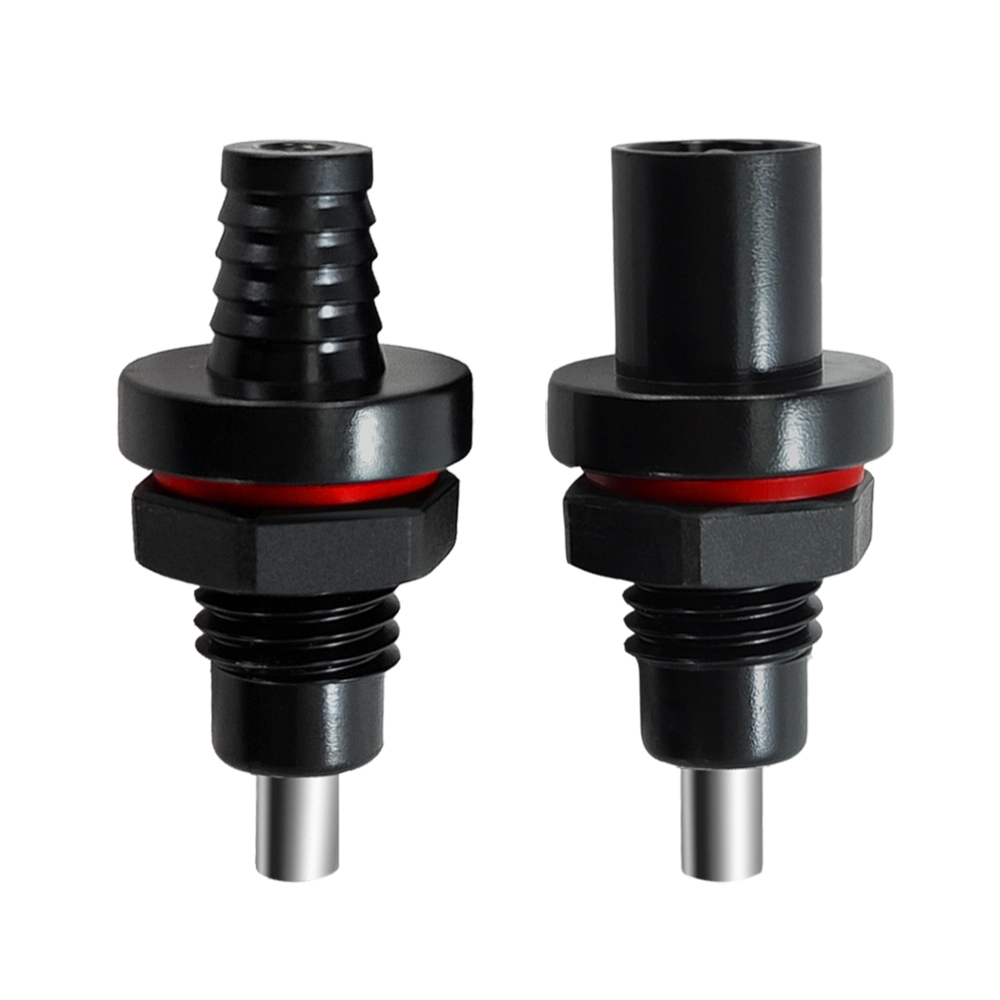

NSPV Solar MC3 Panel Connector DC1000V IP67 1

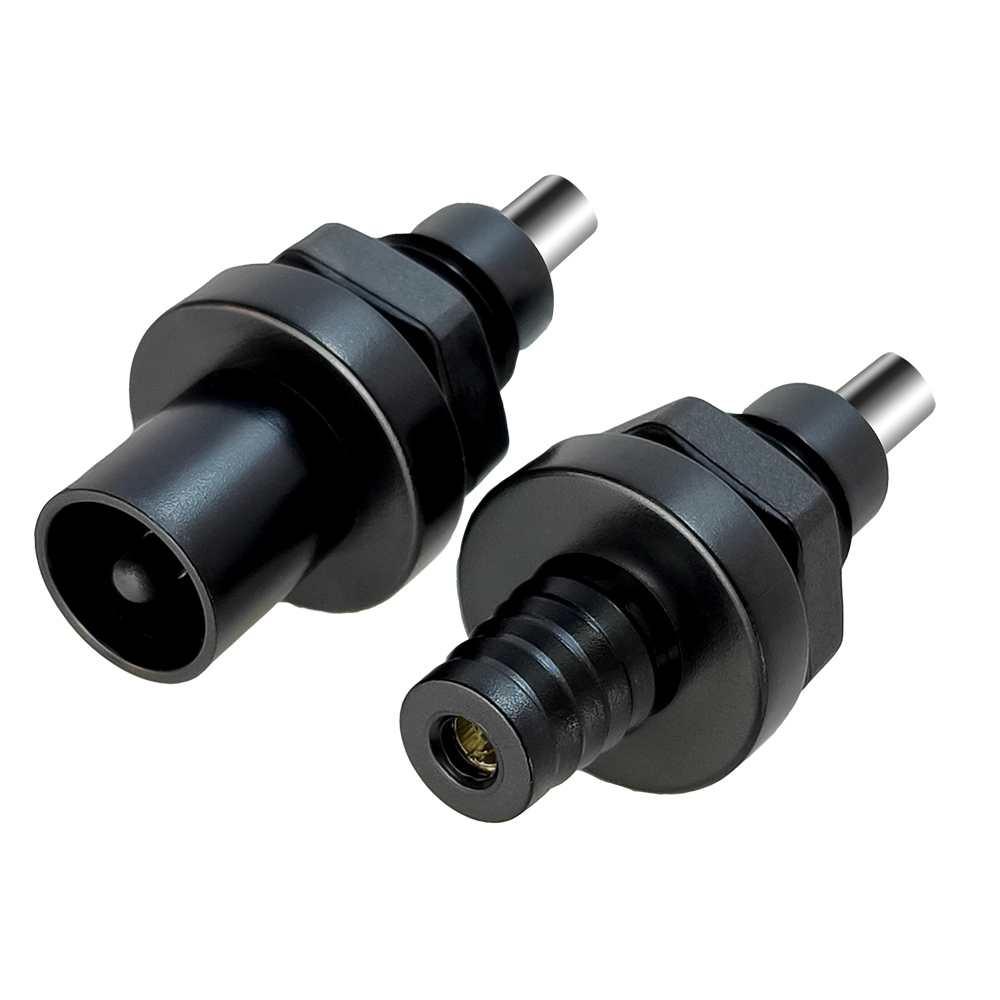

NSPV Solar MC3 Panel Connector DC1000V IP67 2

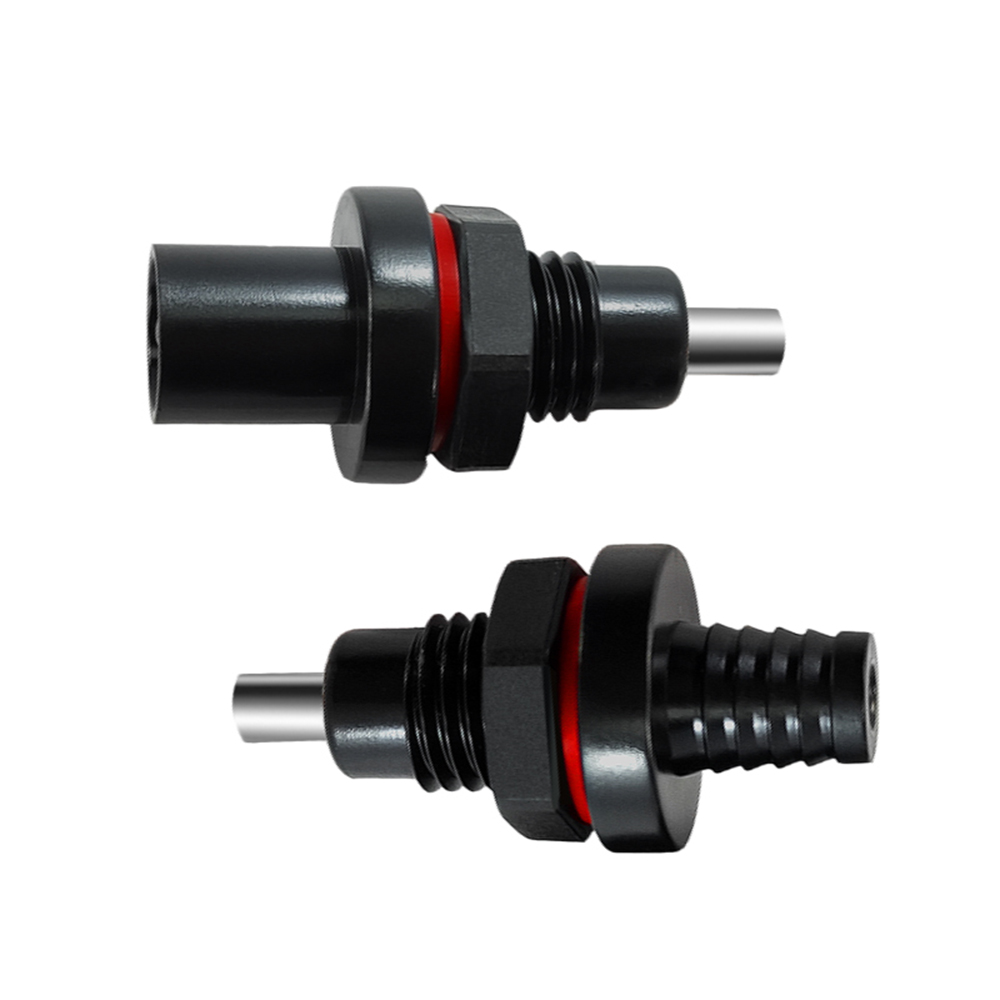

NSPV Solar MC3 Panel Connector DC1000V IP67 3

NSPV Solar MC3 Panel Connector DC1000V IP67 4

NSPV Solar MC3 Panel Connector DC1000V IP67

1. IP67 Waterproof, 30A Max Current
2. Versatile Use: Ideal for inverters and combiner boxes.
3. Broad Cable Range: Fits 2.5-6mm² (14-10AWG) cables.
4. Perfect Match: 3P4000-001/002 Rubber Panel Connectors Using together with 3C4000-001/002 Cable Connectors.

Inquiry

Write a Review

Product Introduction

The Solar MC3 Panel Connector from NSPV is a top-tier choice for solar photovoltaic (PV) systems, designed to handle DC voltages up to 1000V, making it perfect for connecting solar panels to inverters and combiner boxes. With an IP67 waterproof rating, this connector ensures reliable performance even in harsh outdoor environments, protecting against dust and water ingress.

Constructed from high-quality TPV/PA (Thermoplastic Vulcanizate/Polyamide) material, it offers exceptional durability, resistance to UV radiation, and withstands temperature extremes, ensuring a long service life. The connector supports a current rating of 30A and accommodates cable sizes from 2.5mm² to 6mm², providing flexibility in system design.

Its advantages include easy installation, reduced maintenance costs due to its robust build, and compatibility with various solar setups. The NSPV Solar MC3 Connector enhances system efficiency and reliability, making it an excellent investment for both residential and commercial solar projects.

Product Specifications

Voltage Rating	DC1000V
Current Rating	30A
Waterproof Rating	IP67
Cable Size Range	2.5mm² to 6mm²
Material	Constructed from high-quality PPE/PA (Polyphenylene Ether/Polyamide) material, which offers excellent resistance to UV radiation, chemicals, and temperature extremes.
Contact Material	Tin-plated copper for enhanced conductivity and corrosion resistance.
Operating Temperature Range	-40°C to +90°C, ensuring performance in harsh environments.
Certifications	Compliant with international standards such as IEC 62852, ensuring safety and reliability.

Our Features

The NSPV Solar MC3 Panel Connector is engineered to meet the rigorous demands of solar photovoltaic (PV) systems, ensuring reliable and efficient power transmission. Designed for DC applications up to 1000V, this connector is ideal for linking solar panels to inverters and combiner boxes. Its robust construction guarantees durability, while its IP67 waterproof rating ensures protection against dust and water ingress, making it suitable for outdoor installations in various climates. The connector supports a current rating of 30A, accommodating a wide range of solar setups.

Our Advantages

IP67 Waterproof & High Current Rating: It features an IP67 waterproof rating and can handle a maximum rated current of 30A.
Versatile Application: Suitable for use in inverters and combiner boxes.
Wide Cable Compatibility: Compatible with cables ranging from 2.5 to 6mm² (14-10AWG).
Matching Connectors: Designed to pair perfectly with the 3P4000-001 female/002 male connectors and the corresponding 3C4000-001 female/002 male rubber connectors.

Application

This connector is widely used in solar PV systems to connect solar panels to inverters and combiner boxes. Its high voltage and current ratings make it suitable for large-scale solar farms as well as smaller residential installations. The IP67 waterproof rating ensures that the connector can be installed outdoors without the need for additional protective enclosures, reducing installation costs and complexity. Its compatibility with various cable sizes allows for customization based on specific system requirements.

FAQ

What makes the NSPV Solar MC3 Connector suitable for outdoor use?

The connector's IP67 waterproof rating ensures it is protected against dust and water ingress, making it ideal for outdoor installations in various weather conditions.

Can this connector be used with different cable sizes?

Yes, the NSPV Solar MC3 Connector is compatible with cable sizes ranging from 2.5mm² to 6mm², providing flexibility in system design and installation.

What is the maximum operating temperature for this connector?

The connector can operate in temperatures ranging from -40°C to +90°C, ensuring reliable performance in extreme climates.

Is the NSPV Solar MC3 Connector compliant with international standards?

Yes, it meets international standards such as IEC 62852, ensuring safety and reliability in solar PV applications.

What are the benefits of using PPE/PA material for the connector housing?

PPE/PA material offers excellent resistance to UV radiation, chemicals, and temperature extremes, ensuring long-term durability and performance of the connector.
