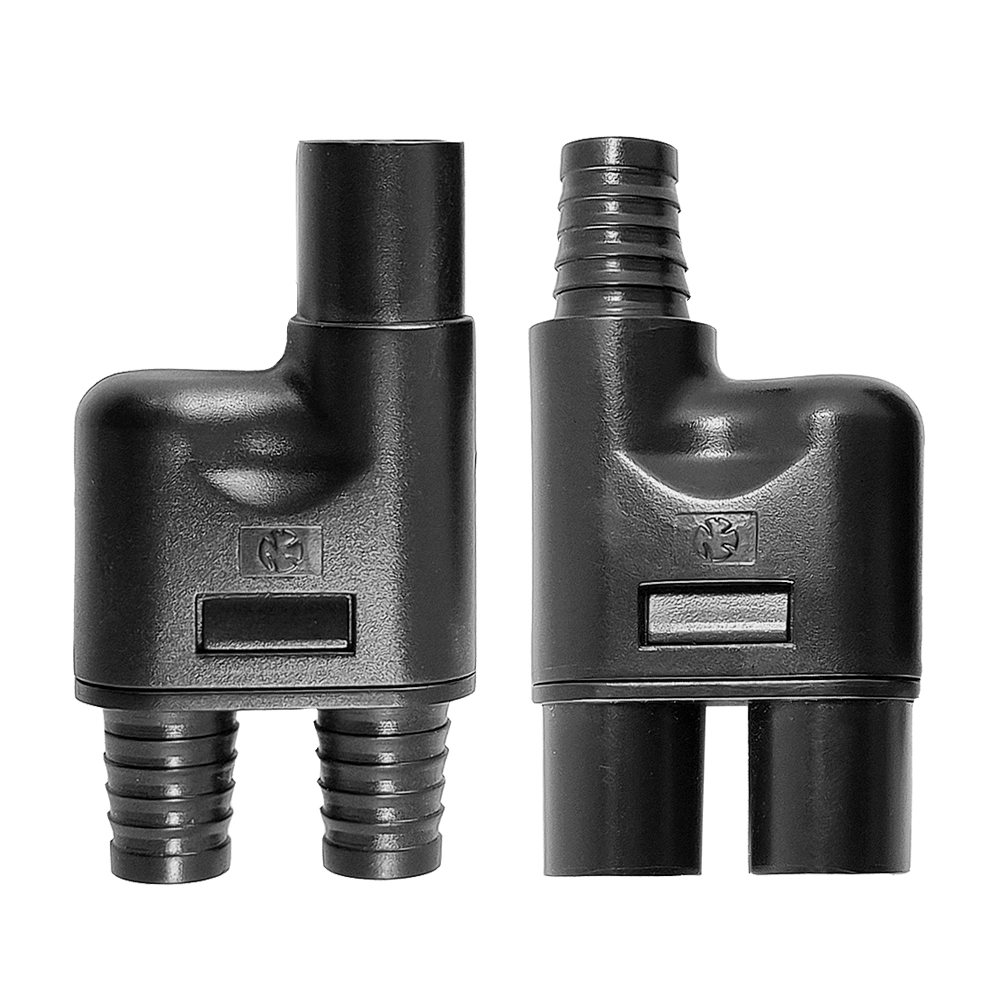

NSPV Solar MC3 Rubber Branch Connector DC1000V 2-In-1 1

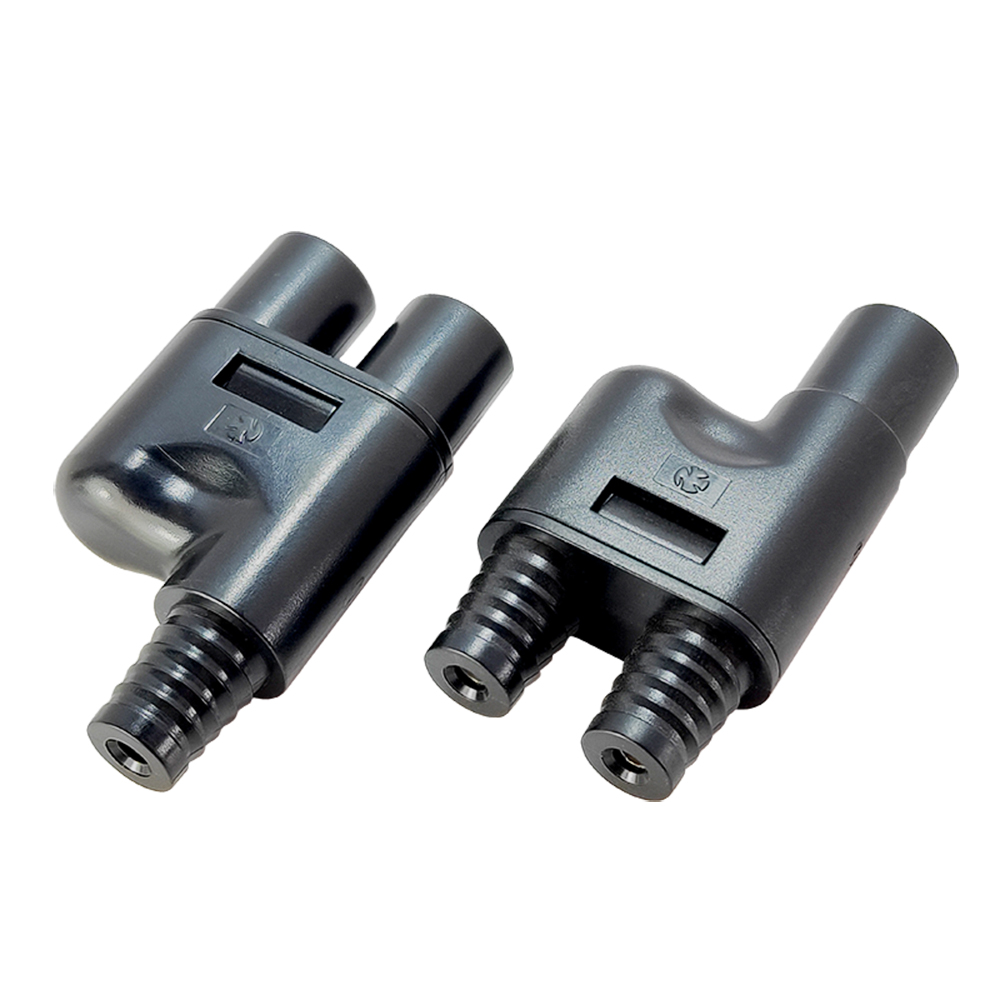

NSPV Solar MC3 Rubber Branch Connector DC1000V 2-In-1 2

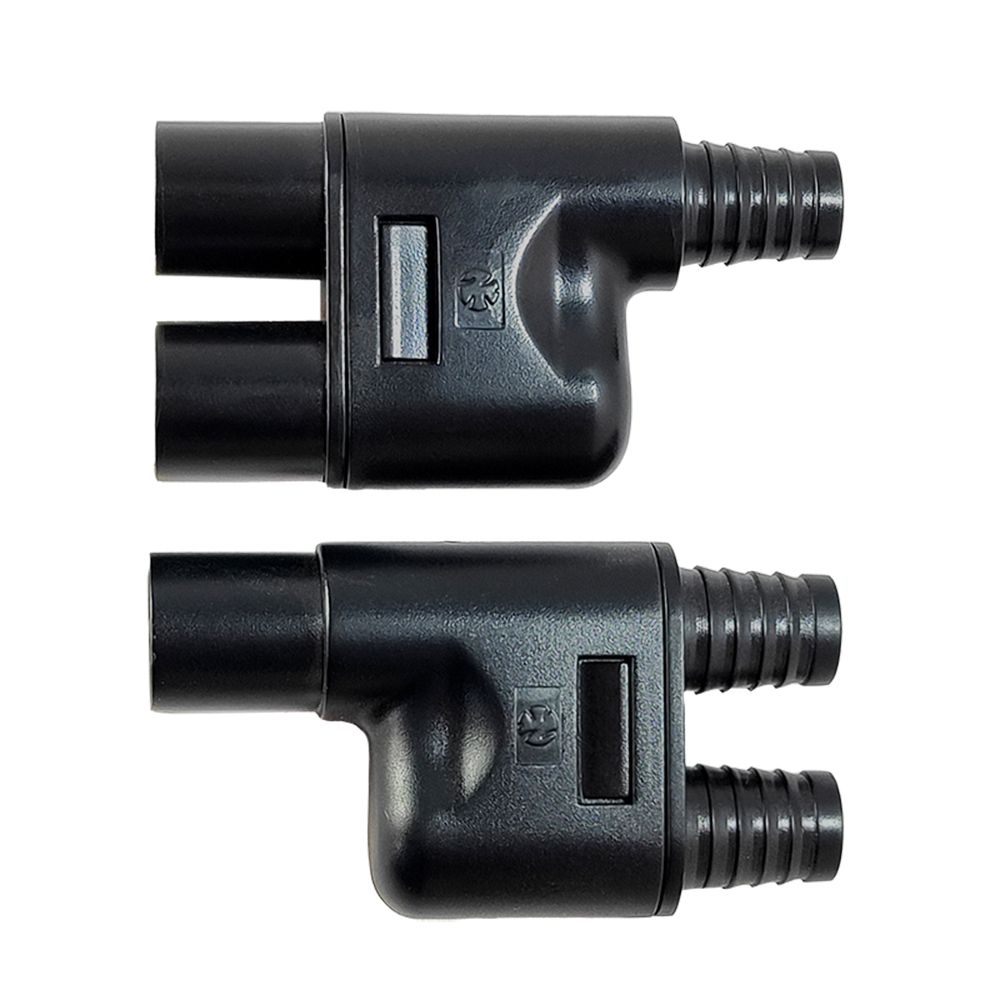

NSPV Solar MC3 Rubber Branch Connector DC1000V 2-In-1 3

NSPV Solar MC3 Rubber Branch Connector DC1000V 2-In-1 4

NSPV Solar MC3 Rubber Branch Connector DC1000V 2-In-1

PPE/PA, IP67: Durable & weatherproof.
Force Control: Easy plug (≤50N) & secure pull (≥50N).
Tinned Copper: Reliable, corrosion-resistant contacts.

Inquiry

Write a Review

Product Introduction

The NSPV Solar MC3 Branch Connector DC1000V 2 In1 is a top-tier choice for solar power system installations, crafted from robust PPE/PA material. This material ensures exceptional durability, withstanding UV exposure, chemicals, and extreme temperatures, thus prolonging the connector's lifespan and maintaining its performance over time.

One of its standout features is its IP67 waterproof rating, providing comprehensive protection against dust ingress and temporary immersion in water. This makes it ideal for outdoor solar installations, where exposure to the elements is inevitable. Additionally, the connector boasts a 30A current capacity, enabling efficient power transmission and reducing energy loss.

The 2 In1 design allows for multi-connect functionality, simplifying the wiring process and enhancing system scalability. This not only saves installation time but also reduces costs. Overall, the NSPV Solar MC3 Branch Connector DC1000V 2 In1 offers a reliable, efficient, and cost-effective solution for connecting solar panels, ensuring optimal performance and longevity of your solar power system.

Product Specifications

Material	PPE/PA for enhanced durability and resistance
Voltage Rating	DC1000V, catering to high-voltage solar systems
Current Capacity	30A, ensuring efficient power flow
Connection Type	2 In1, allowing for the combination of two inputs into one output
Waterproof Rating	IP67, providing protection against dust ingress and temporary immersion in water
Operating Temperature Range	-40°C to +90°C, ensuring functionality in diverse climates
Certifications	Compliant with international standards for solar connectors, ensuring safety and reliability

Our Features

The NSPV Solar MC3 Branch Connector DC1000V 2 In1 is engineered to streamline solar power installations by facilitating efficient and secure connections between solar panels and other components in a photovoltaic system. This connector is designed with a robust PPE/PA (Polyphenylene Ether/Polyamide) material, ensuring durability and resistance to environmental factors such as UV radiation, chemicals, and extreme temperatures. Its innovative design allows for multi-connect capabilities, enabling users to link multiple solar panels or strings with ease, thereby optimizing the layout and scalability of solar arrays. The connector is rated for DC1000V, making it suitable for high-voltage solar installations, and can handle a current of up to 30A, ensuring reliable power transmission.

Our Advantages

Durable Material & High Protection Rating: Made of PPE/PA material with an IP67 rating, ensuring excellent durability and resistance to environmental factors.
Optimal Insertion/Withdrawal Force: Features an insertion force of ≤50N and a withdrawal force of ≥50N, providing easy and secure connections.
High-Quality Contact Material: Utilizes tinned copper for contacts, ensuring reliable electrical conductivity and corrosion resistance.

Application

This connector is ideal for use in solar photovoltaic systems where multiple solar panels need to be connected in series or parallel configurations. It is particularly useful in scenarios where space is limited, and a compact, efficient connection solution is required. The NSPV Solar MC3 Branch Connector can be used in residential rooftop installations, commercial solar farms, and industrial solar power plants, providing a reliable and cost-effective connection solution.

FAQ

Can this connector be used in both series and parallel connections?

Yes, the NSPV Solar MC3 Branch Connector is versatile and can be used in both series and parallel configurations, depending on the specific requirements of your solar system.

Is the connector easy to install?

Absolutely. The connector's design allows for quick and easy installation, even by individuals with limited technical experience. However, it is always recommended to follow the manufacturer's instructions and safety guidelines.

How does the IP67 rating affect the connector's performance?

The IP67 rating means that the connector is dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes. This ensures that the connector remains operational even in challenging environmental conditions, enhancing the reliability of your solar system.
