Solar Y Cable by NSPV
Product details of the solar y cable
Quick Overview
When designing NSPV solar y cable, a team of creative designers are employed. It is designed to be ergonomic and user-friendly and thus meets the needs of customers. The implement of quality assurance ensures that it meets the company’s quality criteria. Our solar y cable is widely used in multiple industries and fields. NEWSUN PV TECHNOLOGY CO., LTD takes the lead in grasping the development trend of solar y cable industry.
Product Introduction
In order to know solar y cable better, NEWSUN will show you the specific details in the following section.
Product Introduction

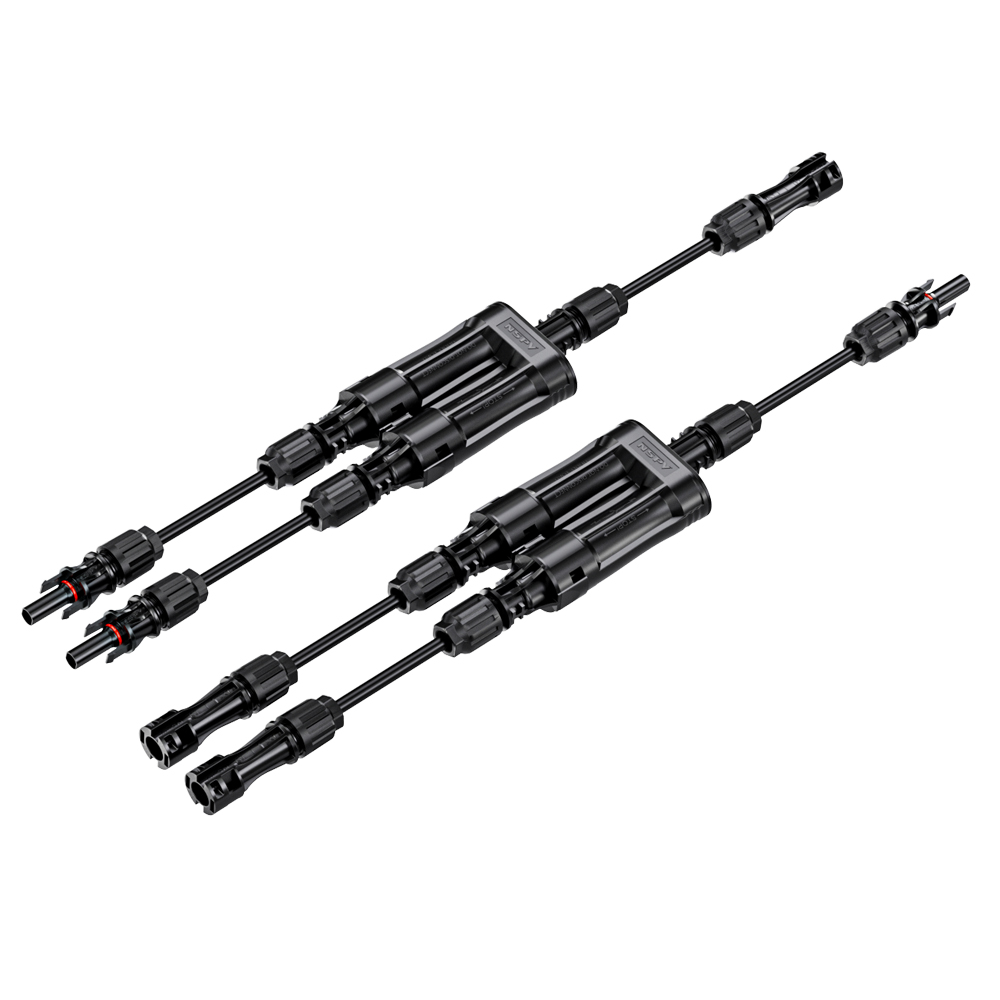

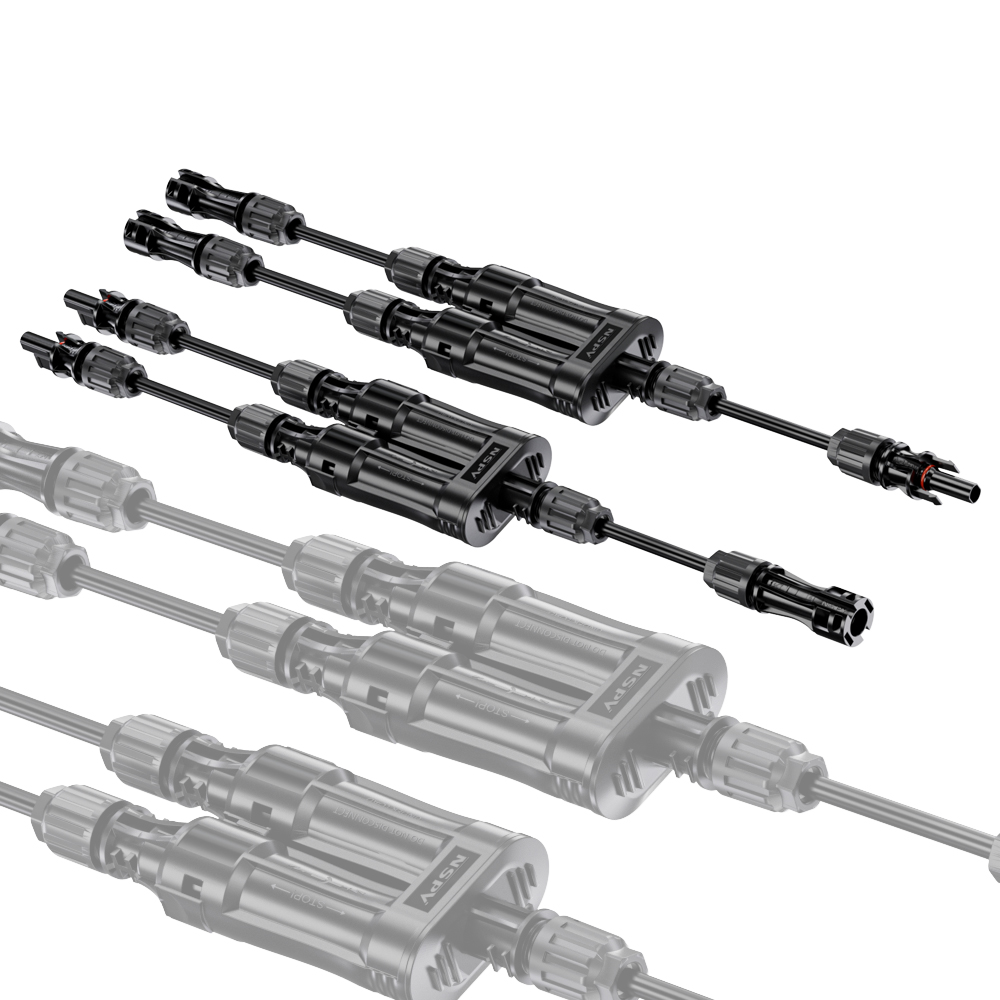

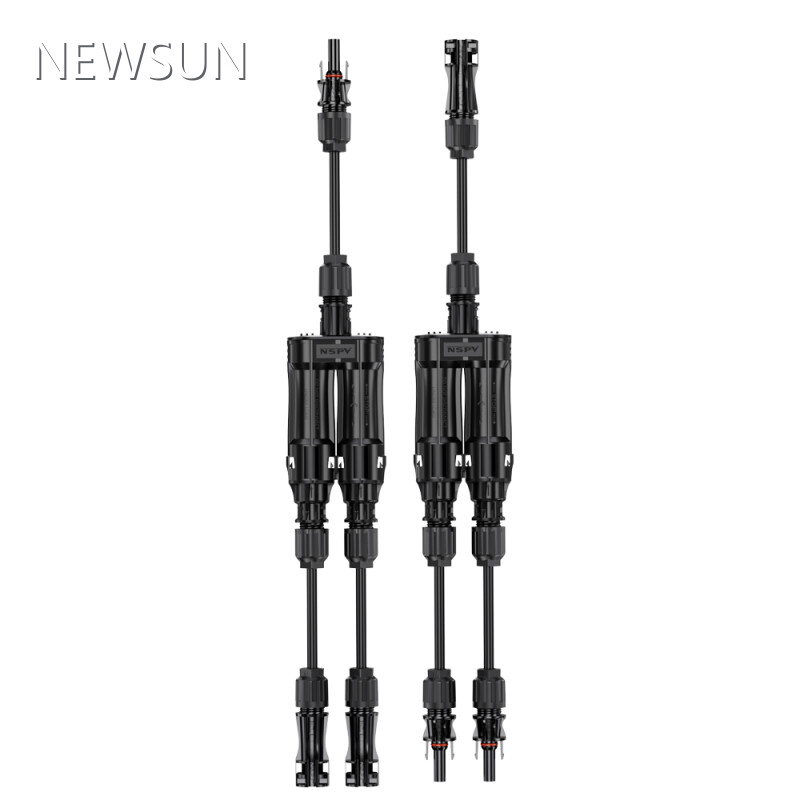

4FBCC-15 Y cable harness is engineered to combine two solar panel outputs into a single output, facilitating efficient power transmission and simplifying wiring configurations in solar installations. It features high-quality solar connectors at both ends and a fuse connector in the middle, ensuring optimal electrical performance and enhanced safety against overcurrent conditions.
Product Specifications
Product Connection Capability | NSPV 2-in-1 4FBCC-15 wiring Y Cable Harness supports a wide range of cable sizes, from 2.5mm² to 16mm² (14-8AWG), providing flexibility in connecting various solar panel configurations. |
Voltage Rating | It is rated for 1500V DC, suitable for high-voltage solar systems. |
IP Rating | The IP68 rating guarantees protection against dust ingress and temporary immersion in water. |
Material | XLPE insulation and tinned copper conductors ensure safety, durability, and efficient power transmission. |
Certification | Compliant with TUV IEC standards, ensuring quality and reliability. |
Our Features
- High Current and Voltage Ratings: The connector supports a maximum input current of 30A (without fuse) and a maximum output current of 60A, with a rated voltage of 1500VDC, making it suitable for high-power solar applications.
- Wide Range of Fuse Options: It offers a comprehensive selection of fuse ratings from 1A to 50A, allowing for precise overcurrent protection tailored to specific system requirements.
- High-Quality Materials: The insulation material is PPE/PA, known for its excellent electrical insulation properties and resistance to environmental degradation. The metal conductors are made of copper, plated with tin for enhanced conductivity and corrosion resistance.
- Robust Design: The connector is designed to withstand harsh environmental conditions, with an operating temperature range of -40℃ to +85℃ (IEC standard) and a flame class rating of UL94-V0, ensuring fire safety.
- IP68 Protection Rating: It provides dust-tight and waterproof protection, making it suitable for outdoor installations in various climates.
Our Advantages
- Enhanced Safety: The built-in fuse protection prevents damage to solar panels and other system components by interrupting the circuit in case of overcurrent, reducing the risk of fire and electrical hazards.
- Improved System Efficiency: By combining two inputs into one output, the Y cable harness reduces wiring complexity and minimizes power losses, enhancing overall system efficiency.
- Versatility: The wide range of fuse options allows for flexible configuration and customization according to the specific needs of different solar installations.
- Durability: The high-quality materials and robust design ensure long-term reliability and performance, even in challenging environmental conditions.
Fuse Link*2, 1A to 50A of Each
The product includes two fuse links, each available in ratings from 1A to 50A. This dual-fuse configuration provides redundant protection, ensuring that if one fuse fails, the other can still provide overcurrent protection, enhancing system safety and reliability.
Application
The NSPV Solar Branch Fuse Connector 4FBCC-15 DC1500V Y Cable Harness Wiring Solution is ideal for use in residential, commercial, and industrial solar PV systems. It is particularly suitable for installations where multiple solar panels need to be connected in parallel, providing a safe and efficient solution for power transmission and overcurrent protection.
