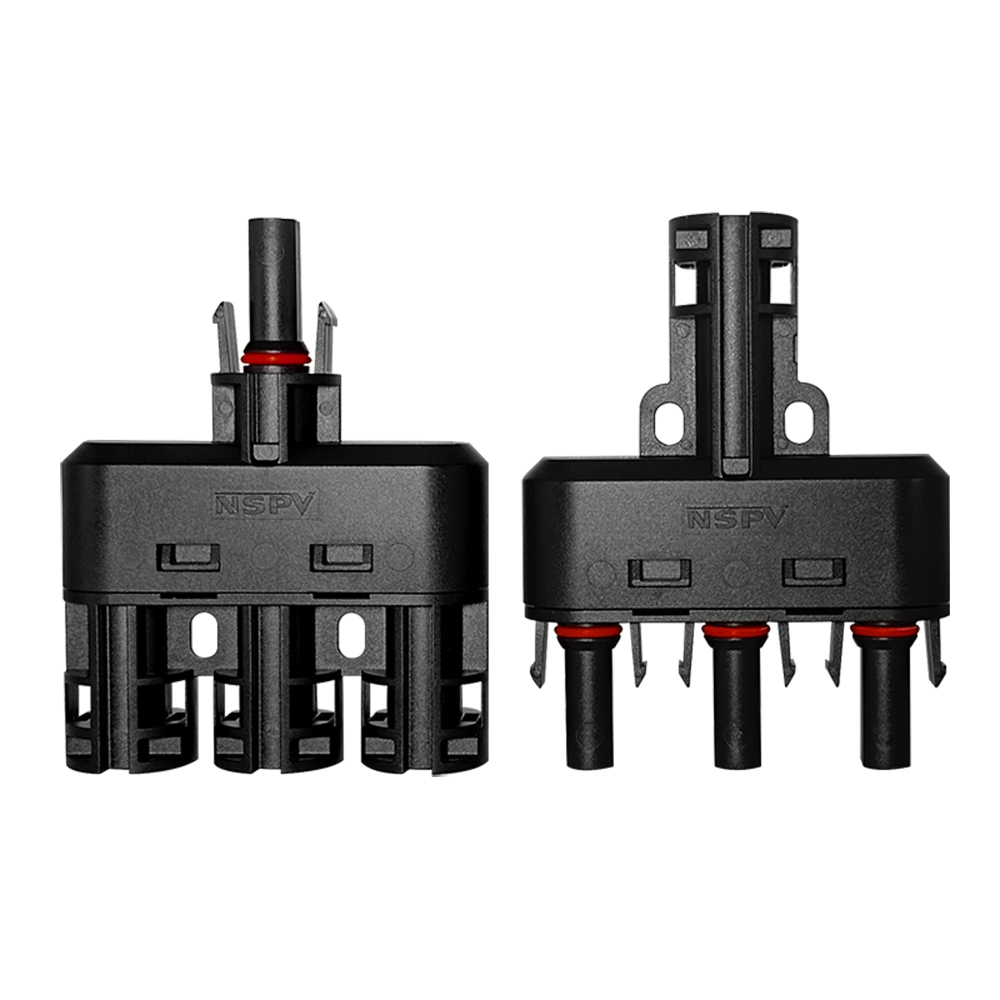

NSPV Solar 1500VDC Cable Branch Connector 3-In-1

Universal MC types Connectors

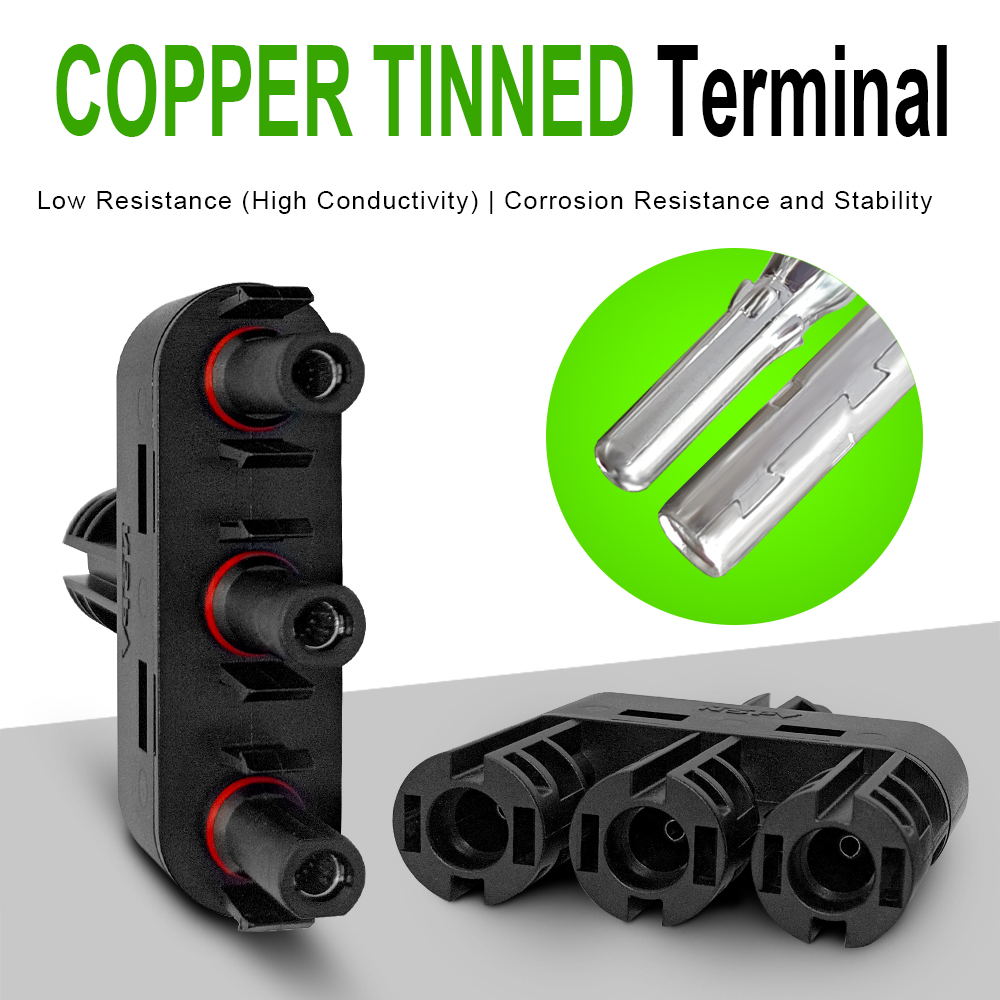

Contact resistance: ≤0.35mΩ

Input: 20A

Output: 60A ( 10 sqmm or 8 AWG )

Flame: UL94-V0

Inquiry

Write a Review

Product Introduction

The NSPV Solar 1500V DC Cable Branch Connector 3-In-1 is a versatile, high-performance solution designed for modern solar energy systems. Built with universal compatibility in mind, this multi-connect connector seamlessly integrates with a wide range of solar PV cables (2.5mm² to 16mm²), eliminating the need for multiple connector types and simplifying inventory management. Its 1500V DC rating ensures compatibility with high-voltage solar arrays, enhancing energy efficiency and system scalability.

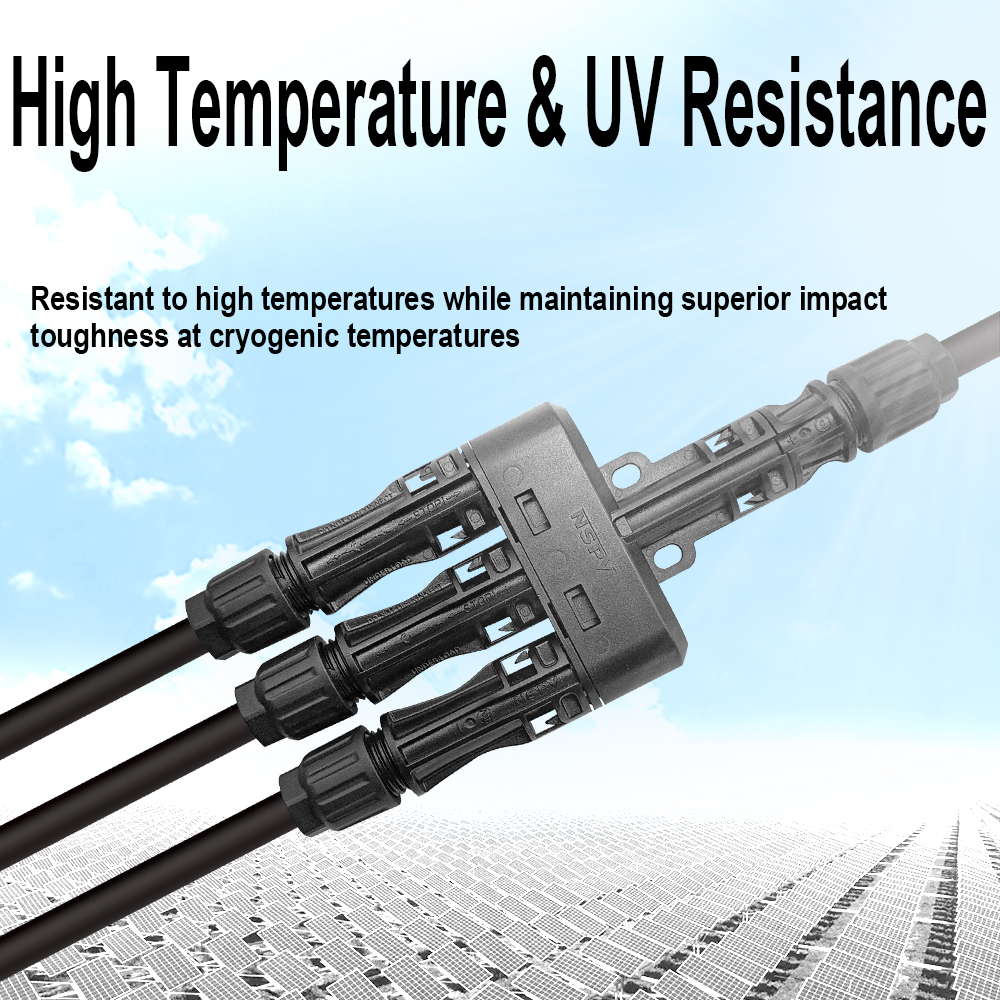

● Crafted from premium PPE/PA materials, the connector offers exceptional durability, withstanding UV exposure, extreme temperatures, and harsh weather conditions. The IP68-rated waterproof and dustproof design guarantees reliable performance in outdoor environments, reducing maintenance costs over time.

● Key advantages include tool-free installation, enabling quick and secure connections without specialized equipment. The 3-In-1 multi-connect feature streamlines wiring by allowing three cables to be joined in a single connector, optimizing space and reducing clutter.

● NSPV provides comprehensive after-sales support, including a 5-year warranty, technical assistance, and easy replacement services. Trusted by professionals worldwide, this connector combines safety, efficiency, and cost-effectiveness, making it an ideal choice for residential, commercial, and industrial solar projects.

Product Specifications

Current Capacity	Up to 70A (depending on cable size)
Voltage Rating	1500V DC
Cable Compatibility	Accepts 2.5mm² to 16mm² solar PV cables

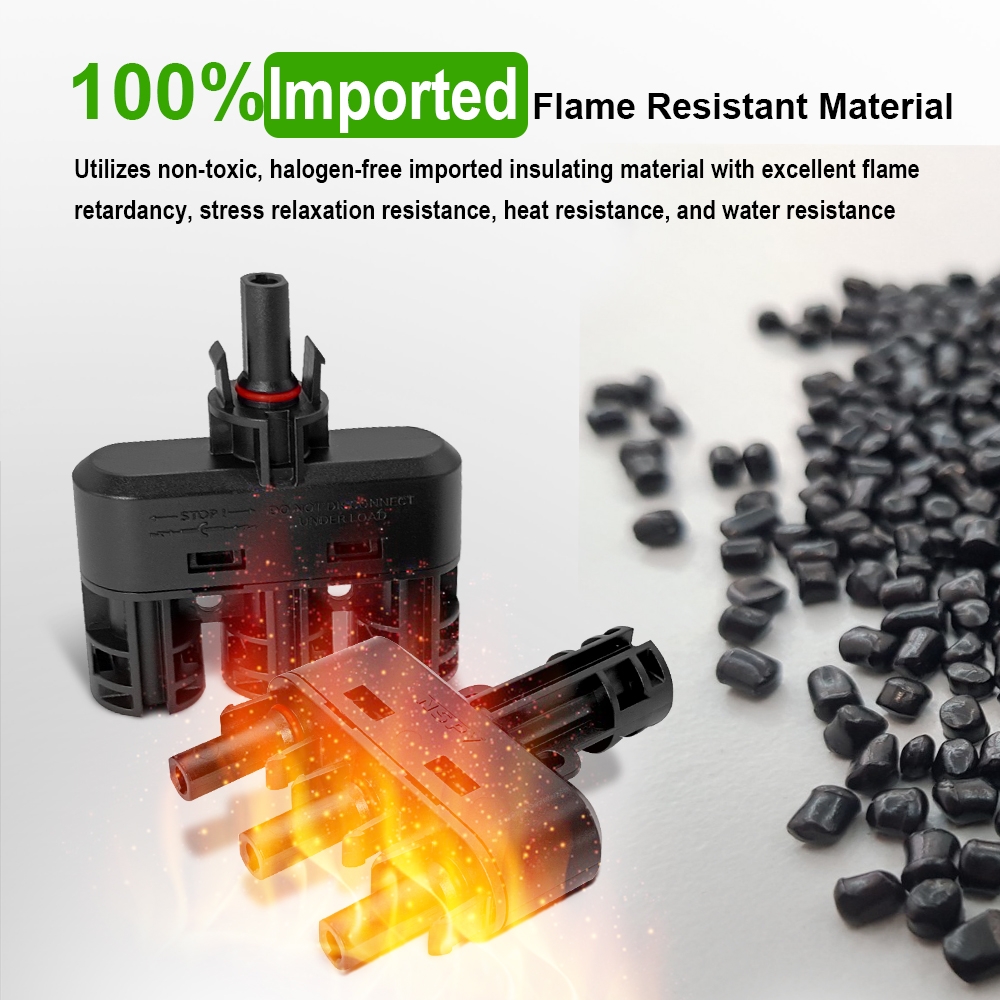

Material	High-grade PPE (Polyphenylene Ether) and PA (Polyamide) for UV resistance, corrosion resistance, and flame retardancy (UL94-V0)
Connector Type	3-In-1 multi-connect branch design for parallel or series wiring
Protection Class	IP68 (waterproof and dustproof)
Operating Temperature	-40°C to +90°C
Certifications	Compliant with IEC 62852, TÜV, and CE standards

Our Features

The NSPV Solar 1500V DC Cable Branch Connector 3-In-1 is engineered for high-performance solar energy systems, offering a robust, multi-connect solution for efficient power distribution. Designed with universal compatibility in mind, this connector accepts solar PV cables ranging from 2.5mm² to 16mm², ensuring flexibility across diverse installations. Its 1500V DC rating meets modern solar array requirements, enabling safe operation in both residential and commercial projects. The connector’s ergonomic design simplifies installation, while its IP68-rated waterproof and dustproof construction guarantees durability in harsh outdoor environments.

Our Advantages

Universal Compatibility:
- The NSPV 3-in-1 multi-connect connector adopts universal MC-type connectors, ensuring seamless integration with a broad spectrum of solar PV cables, ranging from 2.5mm² to 16mm².
High Current & Voltage Rating:
- Designed for robust performance, it supports a maximum current of 65A and is rated for 1500V DC, making it ideal for high-power solar applications.
Superior Environmental Protection:

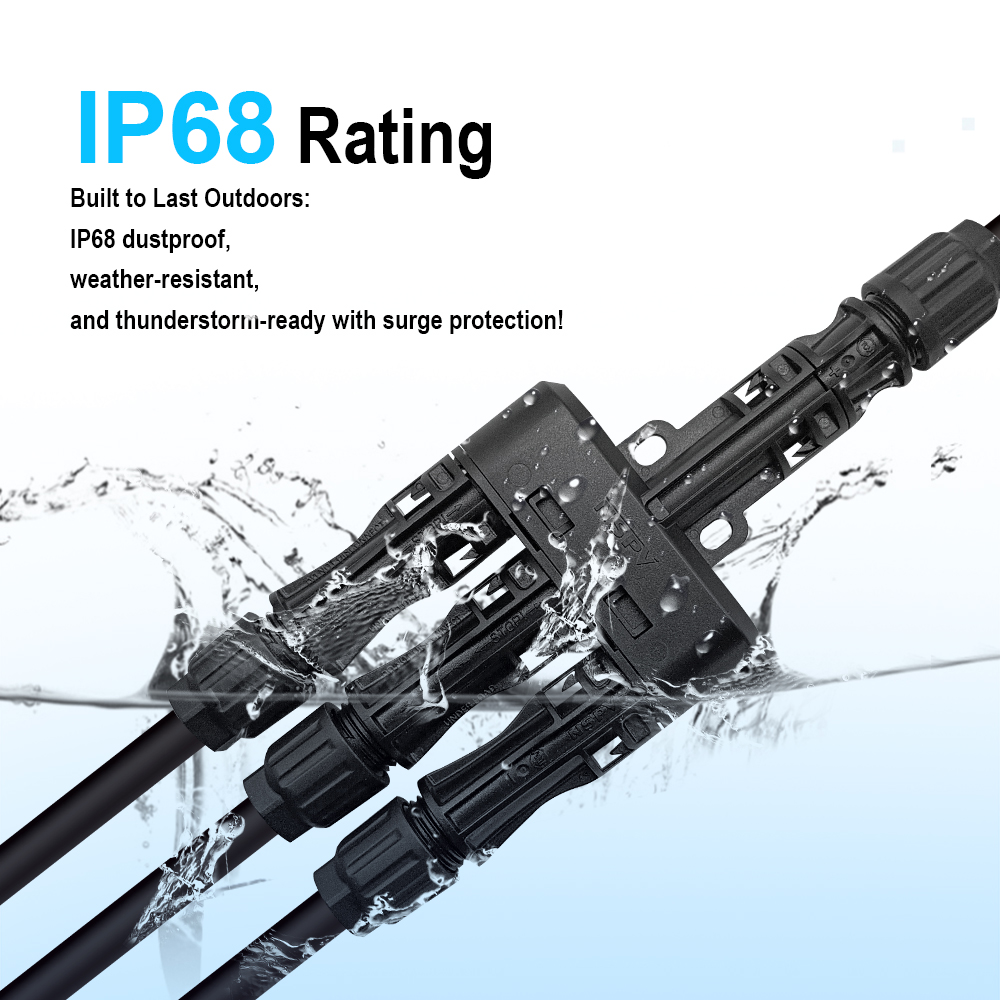

- With an IP68 rating, this connector provides exceptional resistance against dust and water ingress, ensuring reliable operation even in harsh outdoor environments.
Streamlined Installation & Space Efficiency:
- The innovative 3-in-1 design simplifies cable management by consolidating multiple connections into a single unit, saving space and reducing installation complexity.

Application

This connector is ideal for：

● Residential Solar Systems: Simplifies wiring for rooftop installations with multiple panel strings.

● Commercial Solar Farms: Enables efficient power distribution in large-scale arrays, reducing cable clutter.

● Off-Grid Projects: Compatible with battery storage systems and hybrid inverters for remote energy solutions.

● Industrial Installations: Supports high-voltage DC applications in factories or agricultural setups using solar power.

FAQ

What cable sizes can this connector accommodate?

It accepts solar PV cables from 2.5mm² to 16mm², covering most standard and heavy-duty applications.

Is this connector suitable for 1500V DC systems?

Yes, it is rated for 1500V DC, making it compatible with modern high-voltage solar arrays.

How does the 3-In-1 design benefit installation?

The multi-connect feature allows three cables to be joined in a single connector, streamlining parallel or series wiring without extra components.

What materials are used, and why?

The connector is made of PPE/PA, which provides UV resistance, flame retardancy, and durability in extreme weather conditions.

Can this connector be used in wet environments?

Absolutely—its IP68 rating ensures it remains waterproof and dustproof, even during prolonged outdoor exposure.

Does it require special tools for installation?

No, the connector is designed for tool-free assembly, though cable crimping tools may be needed for preparing cable ends.
